Atlas Platinum PVL12 ALI Certified 12,000 lb Overhead 2 Post Lift
Price range: $3,583.54 through $3,807.54
Description

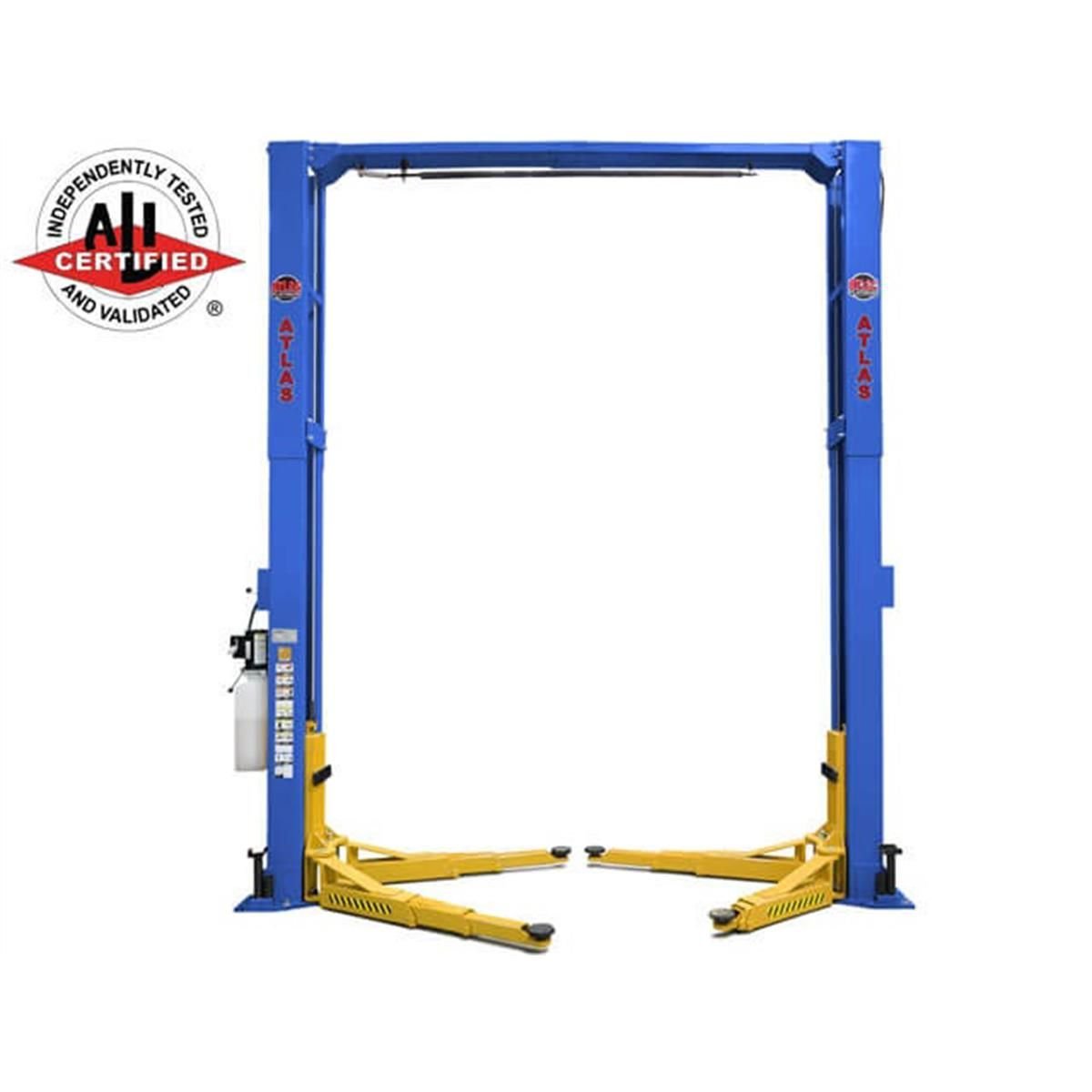

The Atlas® Platinum PVL12 is an ALI Certified, commercial-grade two-post lift with a 12,000 lb. heavy-duty capacity, engineered specifically for professional automotive shops. Its low pad height allows it to service both long wheelbase trucks and standard passenger vehicles. The increased spacing between the columns provides clearance for wider vehicles and those equipped with large side mirrors, while the added overall height makes it ideal for taller vans and box trucks.
The Platinum PVL12 carries ALI certification and is supported by one of the strongest warranties in the industry, offering additional confidence and long-term reliability.
This lift is equipped with a premium ALLY power unit, certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. The ALLY hydraulic system features extra heavy-duty armatures and additional motor windings, incorporating increased silver content in the wiring and electrical connections. This design significantly reduces heat buildup and ensures consistent torque output throughout the lifting cycle. The ALLY power unit also includes an industry-leading two-year limited warranty.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
- ALI Certified Lift
- 12,000 lb. Capacity
- Commercial Grade Construction
- Extra Tall & Extra Wide Design
- Adjustable Height: 165″ (13′ 9″) or 177″ (14′ 9″)
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Thick Rubber Door Guards on Carriage
- Single-Point Lock Releases
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 8-Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Power Unit

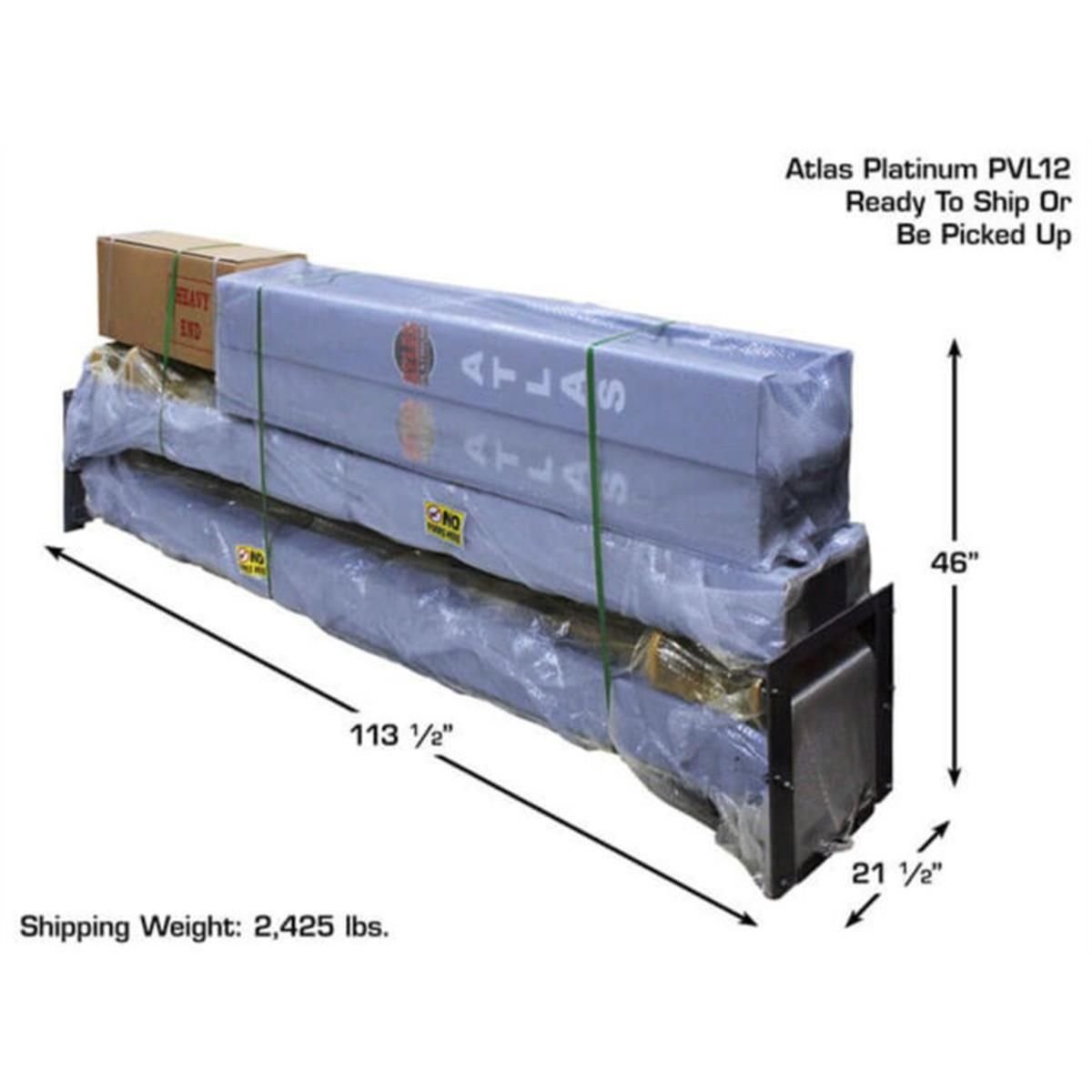

- Shipping Weight: 2,425 lbs.
- 5-Year Structural – 2-Year Hydraulic – 2-Year Power Unit Warranty
Specifications
Atlas® Platinum PVL12 Specifications
| Capacity | 12,000 lb. |
|---|---|

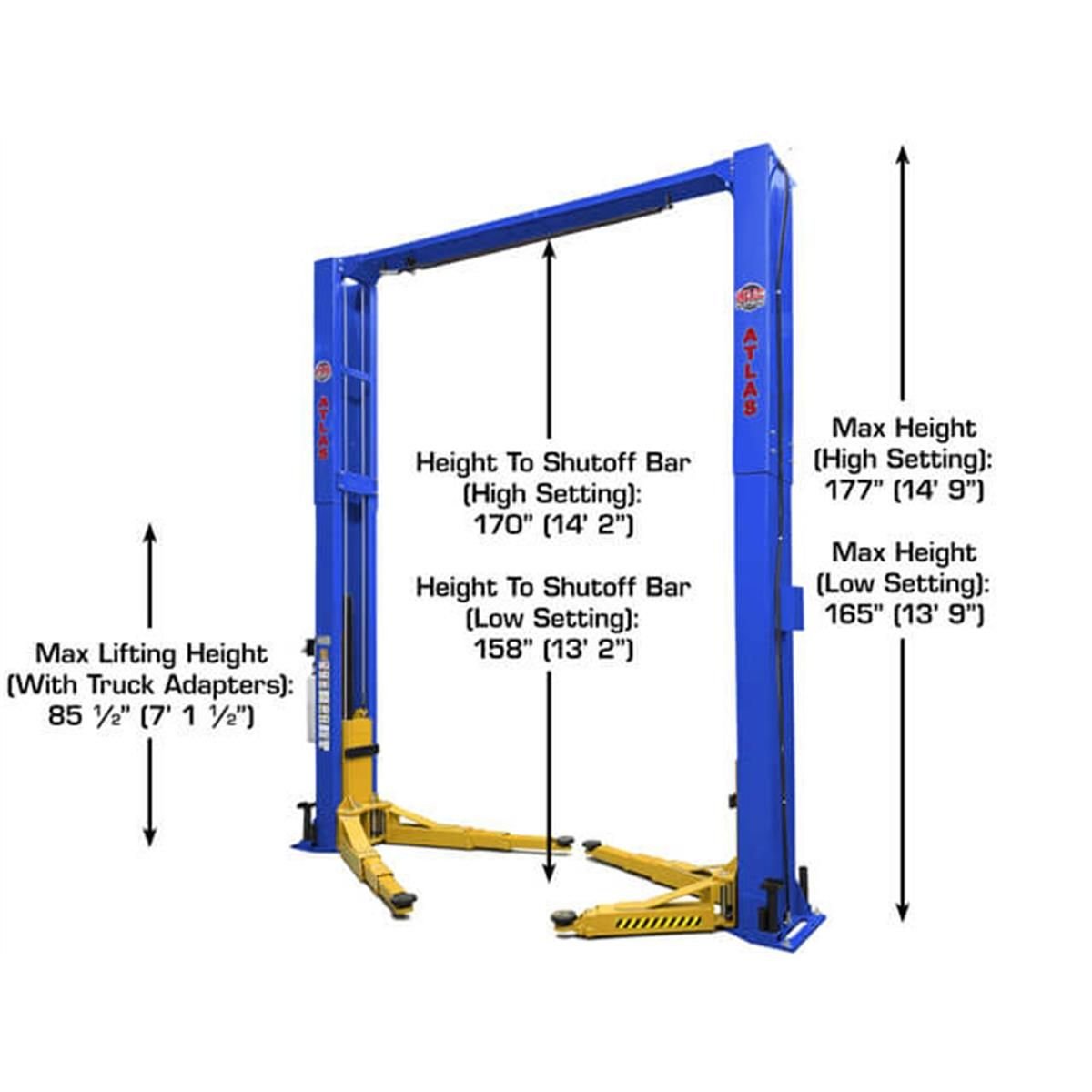

| Overall Height | 165″ (13’ 9”) or 177” (14’ 9”) |
| Overall Floor Width | 150 3/8″ (12’ 6 3/8”) |
| Outside Column to Outside Column | 139 1/8″ (11’ 7 1/8″) |
| Maximum Lift Height (Without Adapters) | 73 5/8″ |
| Maximum Lift Height (With Adapters) | 85 1/2″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column | 122 5/8” (10’ 2 5/8”) |
| Drive Thru | 109 5/8″ (9’ 1 5/8”) |
| Column Size | 7 1/2″ x 14 1/2″ |
| Column Thickness of Steel | 6 mm |

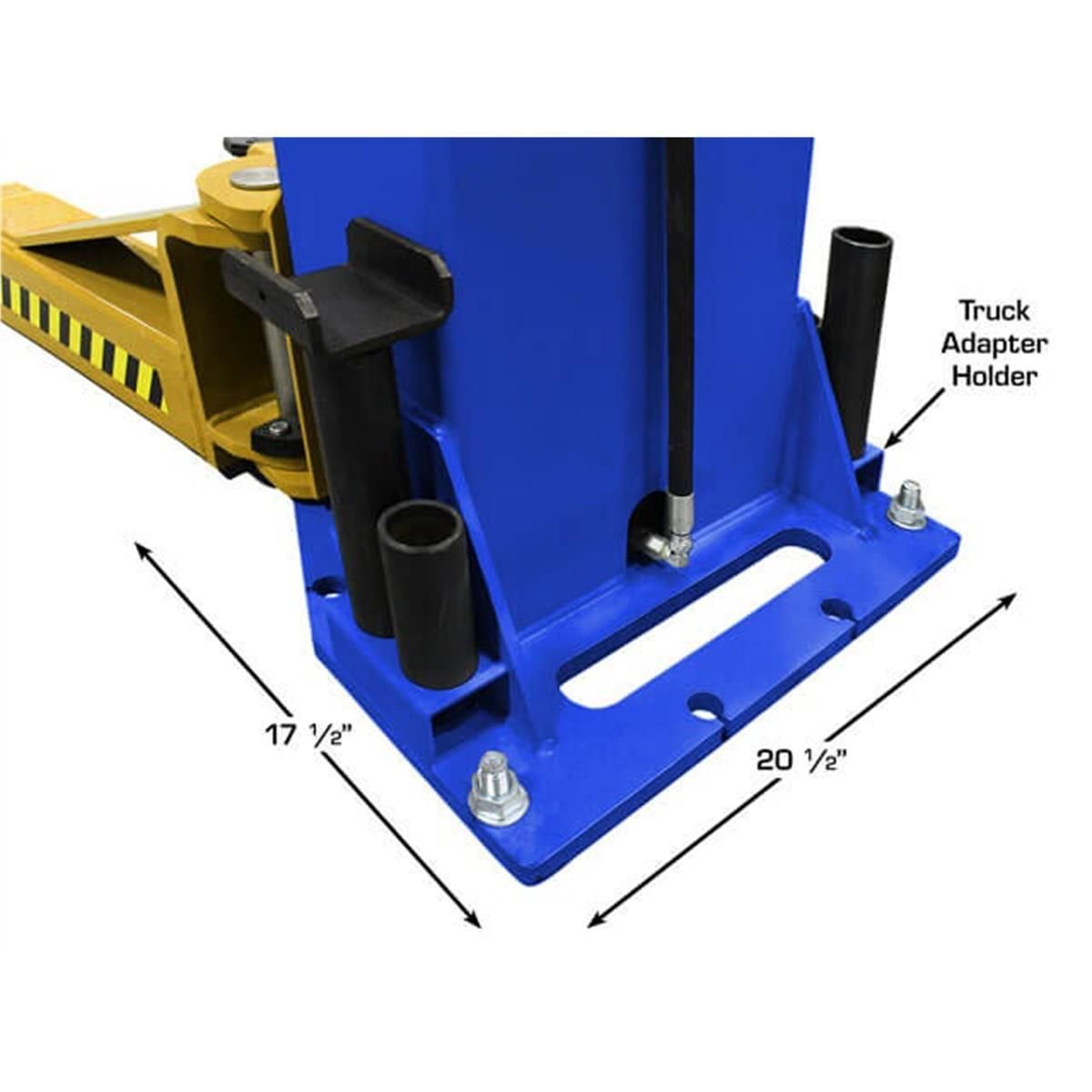

| Base of Lift | 17 1/2″ x 20 1/2″ |
| Motor/Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 2,425 lbs. |
| Adapter Heights | 4 Each: 4.5”, 8.5” |
| Arm Hole/Adapter Peg Size | 1.57” |
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.
