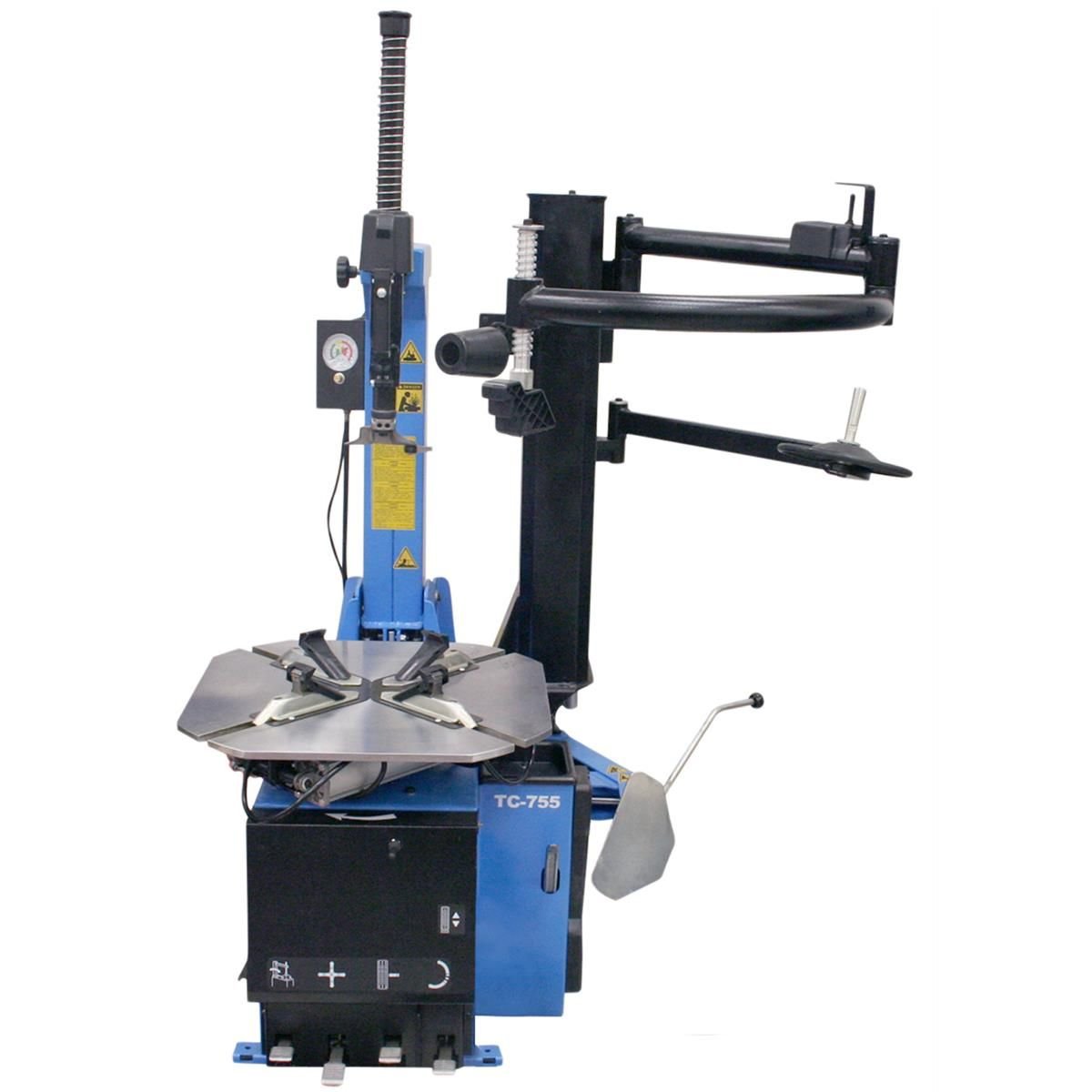

Atlas TC755EZ Tilt-Back Rim-Clamp Tire Changer w/ E-Z Arm
Price range: £2,105.15 through £2,261.95
Description

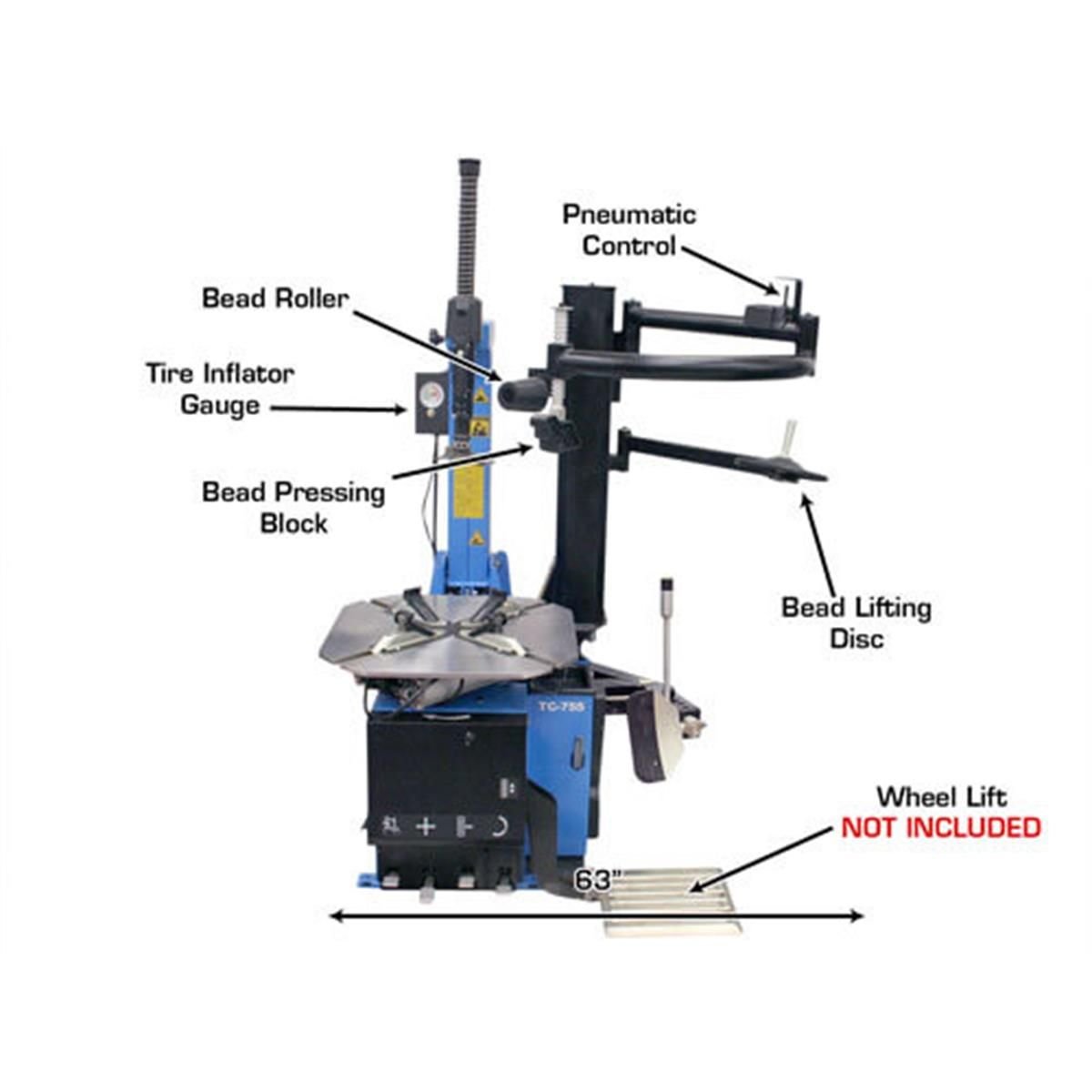

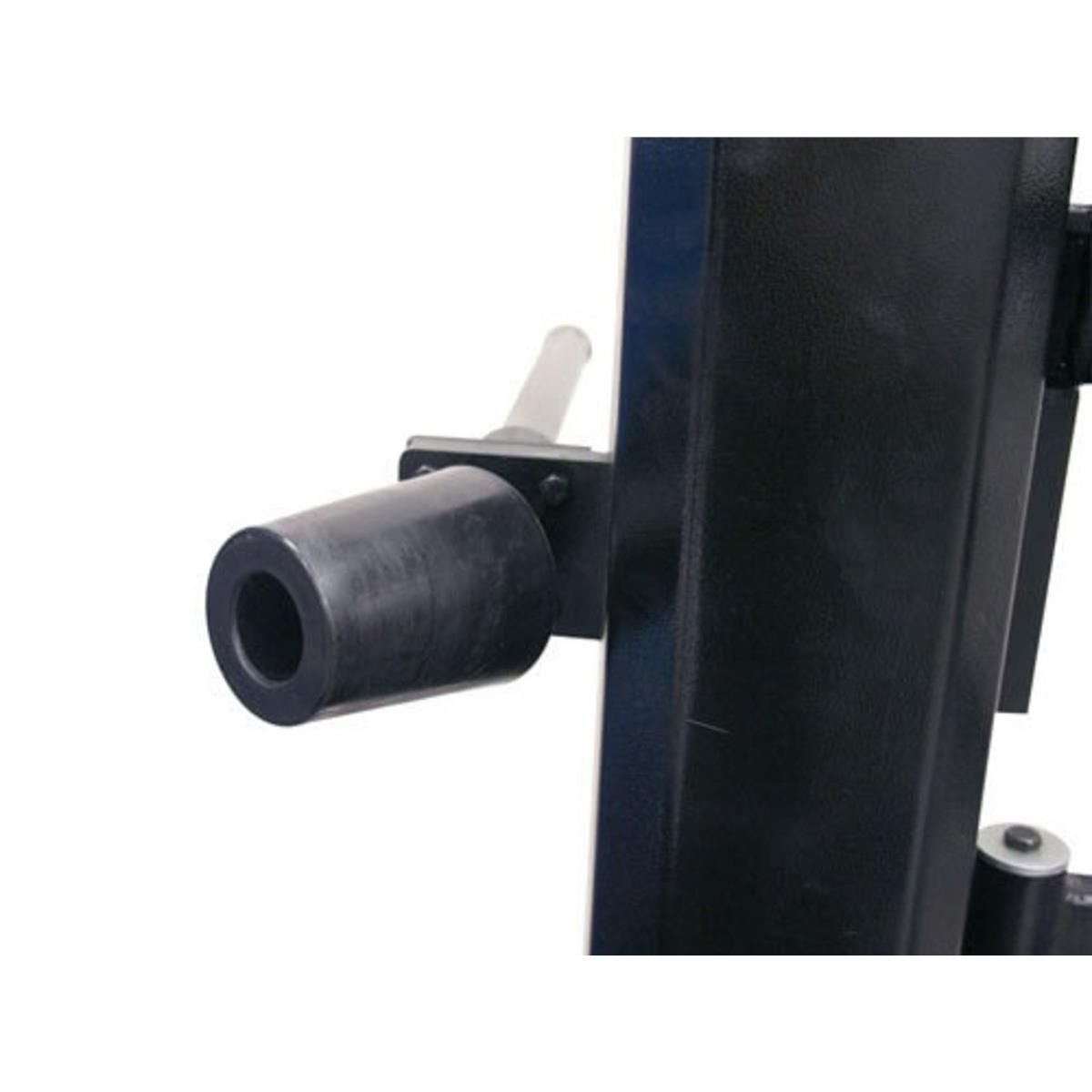

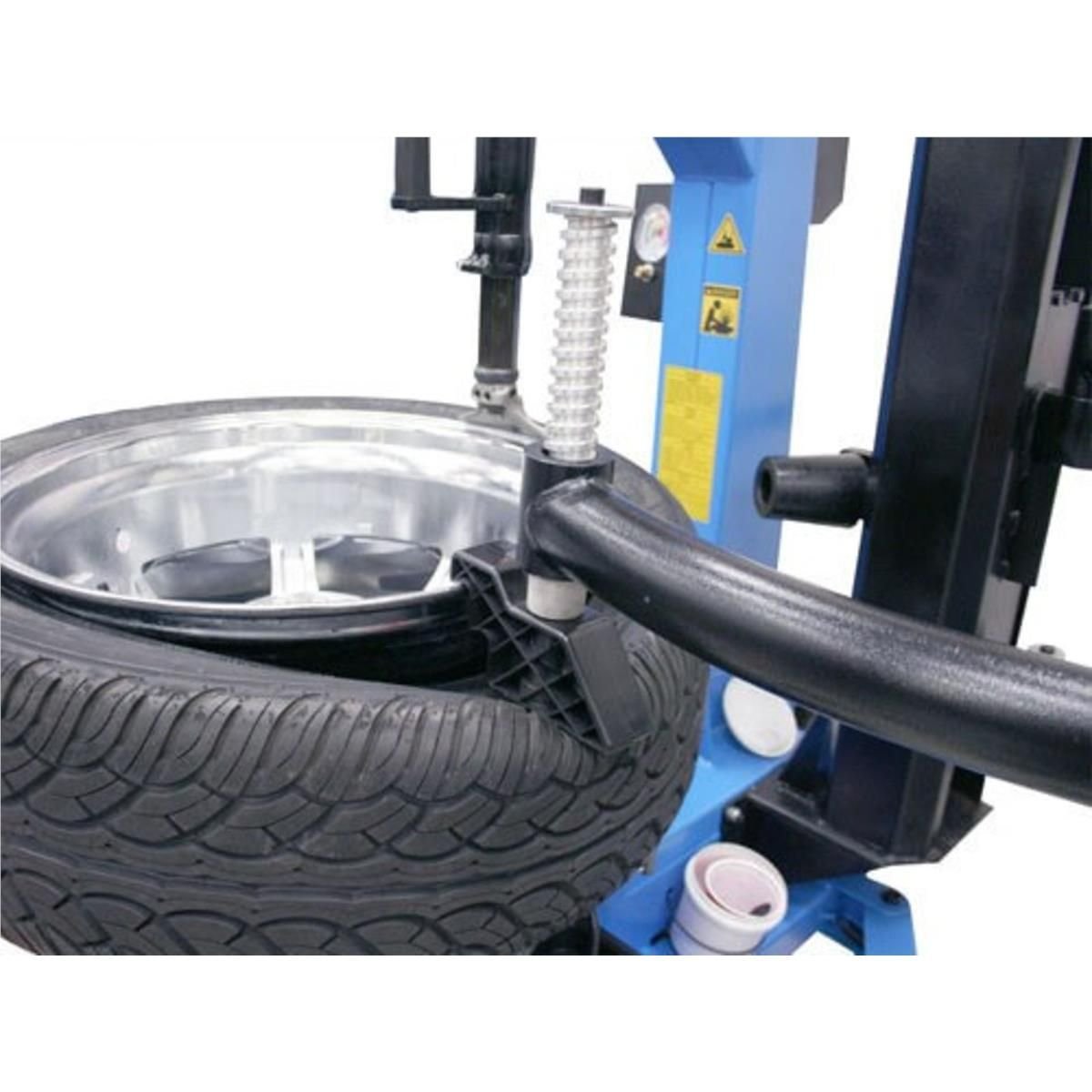

The Atlas® TC755EZ is a tilt-back style rim clamp tire changer designed for professional tire dealers and large car dealerships. This version of the Atlas® TC755 is equipped with the E-Z right-side mounted assist arm. The E-Z arm integrates the most popular features of the traditional Dual Assist Arm package, including a pressing/lifting disk, bead roller, and pressing block.

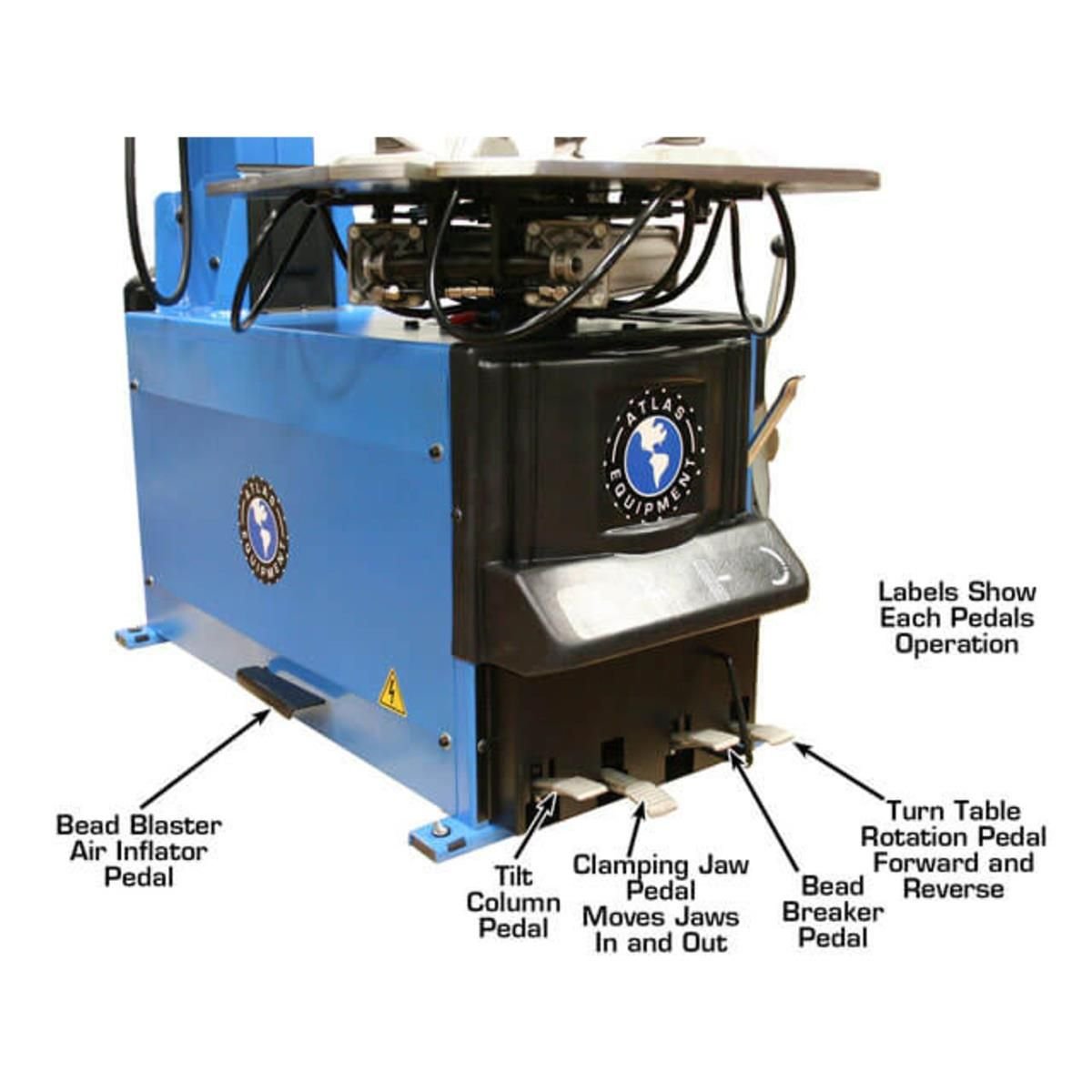

The Atlas® TC755EZ features a foot-operated tilt-back column, allowing the operator to quickly and easily mount and dismount tires without repositioning the arm or risking contact with the column. With the tilt-back design, the TC755 also incorporates a pneumatic locking mount/demount head, significantly reducing the chance of head movement during operation and minimizing the risk of wheel or tire damage. The machine comes standard with an extra-large turntable capable of clamping most 26-inch chrome rims without requiring additional adapters.

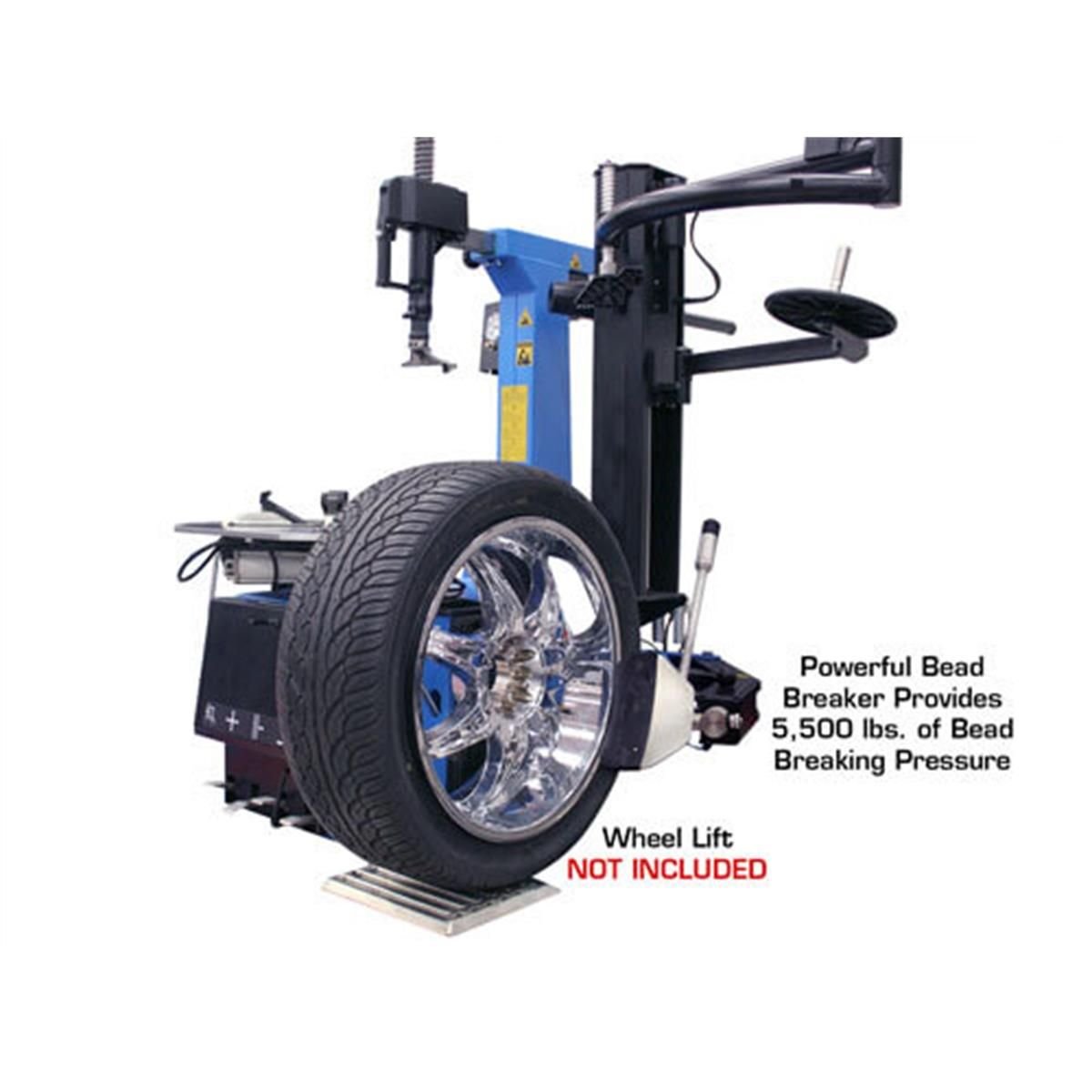

The Atlas® TC755EZ includes a built-in “Beadblaster” system to assist with inflating stiff sidewall or other hard-to-seat tires. It also features a powerful, hand-controlled bead breaker mounted on the side of the machine, engineered to separate even stubborn or rusted beads without damaging the rim. The turntable jaws—optionally protected with plastic covers—securely hold the wheel while protecting its surface. These jaws can be adjusted to three different mounting positions along the turntable slide, expanding or reducing the clamping range to accommodate a wide variety of tire sizes.
The Atlas® TC755EZ requires minor assembly after purchase.
Features
- Tilt-Back Column Tire Changer
- E-Z Assist Arm Included
- Rim-Clamp Style
- Extra-Large Turntable for Increased Clearance
- Air-Operated Jaws & Bead Breaker (External Air Supply Required)
- Electric Turntable
- Adjustable Jaws with Three Mounting Positions
- Button-Controlled Bead Breaker (Operated at Blade)
- Metal Mount/Demount Head with Metal Roller or Replaceable Plastic Inserts
- Column-Mounted Inflator Box with Gauge Included

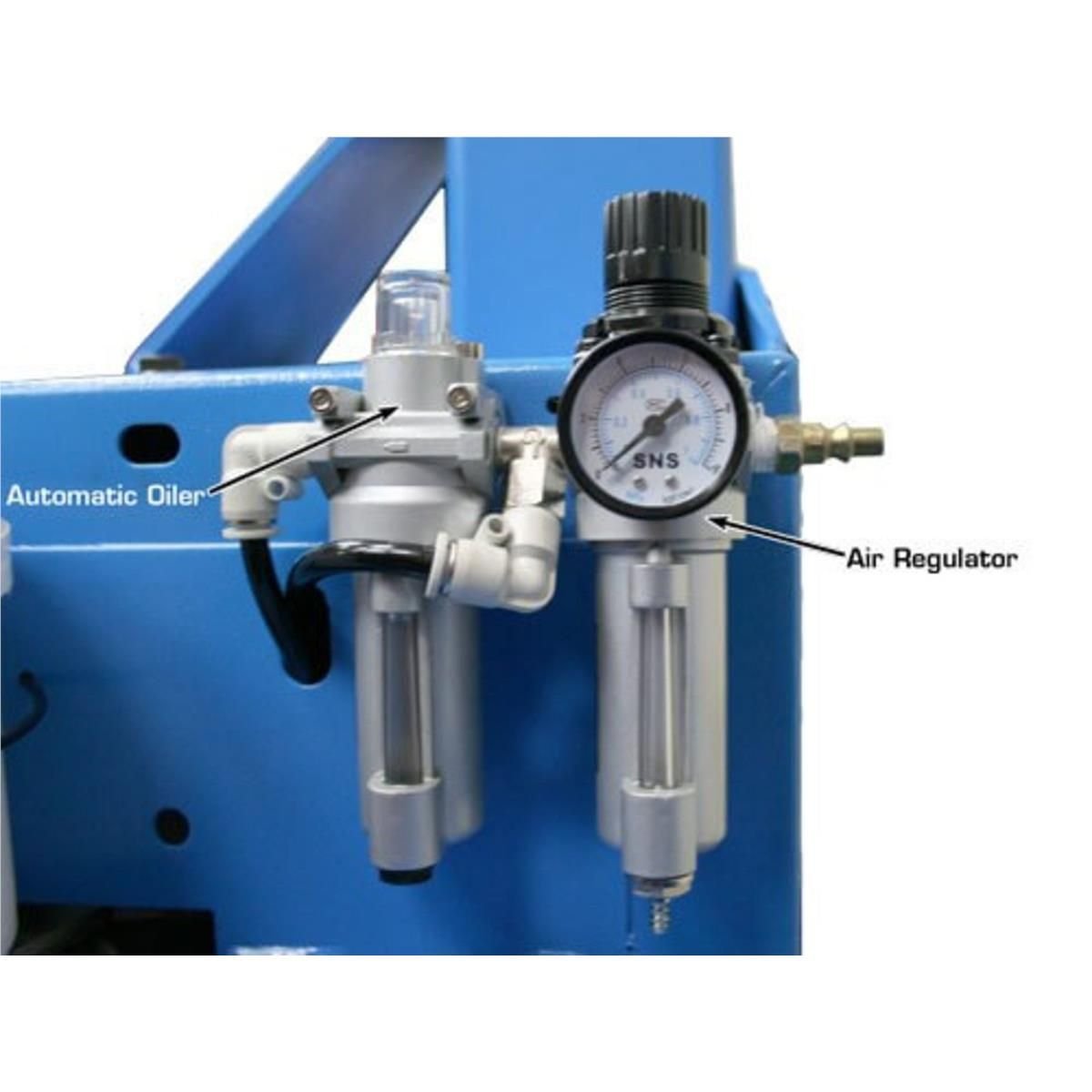

- Filter / Regulator / Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for Mount/Demount Head Included
- Built-In “Beadblaster”

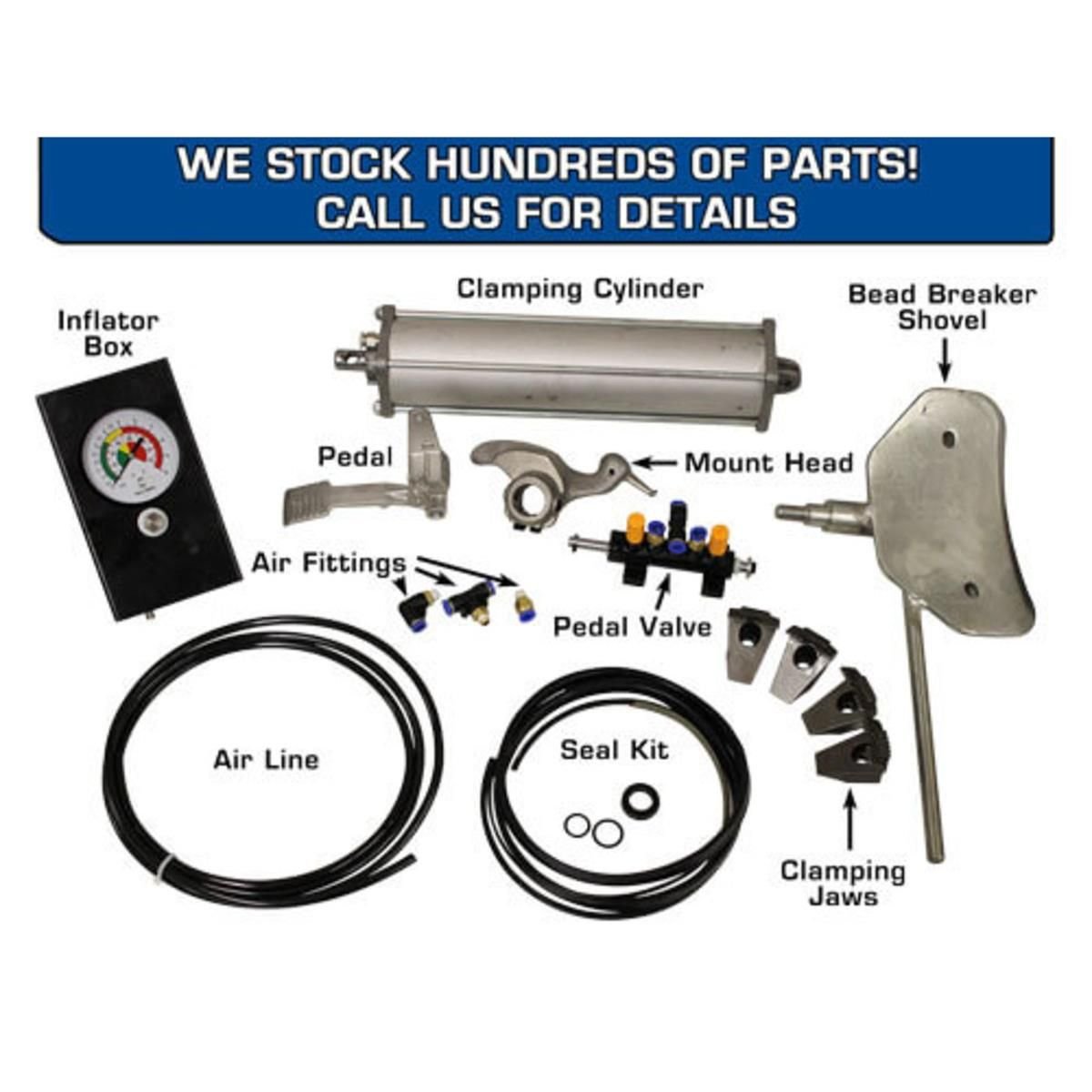

- Replacement Parts & Wear Items Always in Stock
- 1-Year Parts-Only Warranty
Specifications
Atlas® TC755EZ Specifications
| Rims | Steel, Aluminum, Alloy |
|---|---|
| External Locking Rim Dimension (3 Positions) | 1) 11 7/8″ – 26″ 2) 12 7/8″ – 27″ 3) 13 3/4″ – 28″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 13 7/8″ – 27 7/8″ 2) 14 5/8″ – 28 7/8″ 3) 15 5/8″ – 29 7/8″ |
| Maximum Tire Diameter | 47″ |
| Maximum Wheel Width (Bead Breaker) | 18″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 volt |
| Shipping Weight | 900 lbs. |
