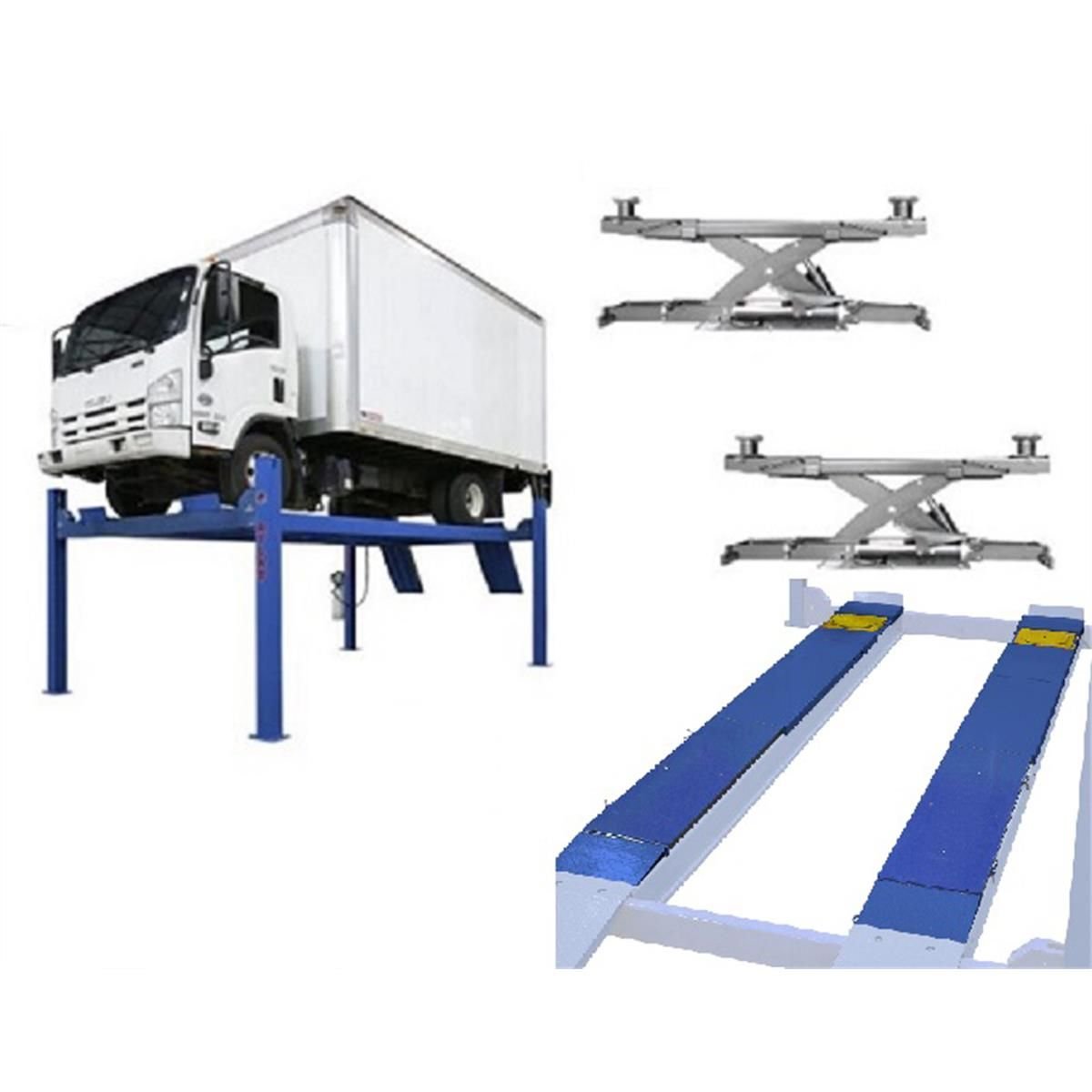

Atlas Platinum PVL14 4 Post Lift + RJ7000 & Alignment Kit ALI Certified Combo
Price range: $6,271.53 through $6,943.53
Description
The Atlas® Platinum PVL14 is a heavy-duty, commercial-grade four-post lift engineered for professional automotive shops. It is designed to accommodate a wide range of vehicles, including cars, vans, SUVs, trucks, and select light- to medium-duty commercial vehicles.
The Platinum PVL14 utilizes a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway, powered by a 220-volt (single-phase) power unit. Unlike many competitors that use outdated chain-driven systems with exposed hydraulic cylinders, this design allows for easier leveling and helps prevent vehicle damage such as door dings caused by exposed components.
The Atlas® Platinum PVL14 is ALI certified and supported by one of the strongest warranties in the industry, providing additional confidence and long-term reliability.
This model is equipped with the ALLY Hydraulic AL2650 power unit. This premium unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Its heavy-duty armatures and enhanced motor windings, incorporating increased silver content in the wiring and connections, significantly reduce heat generation and ensure consistent torque throughout the lifting process. The ALLY power unit includes an industry-leading two-year limited warranty.
This combination package also includes two ALI Certified Atlas® Platinum RJ7000 rolling bridge jacks. These jacks allow you to raise a vehicle’s wheels off the runways for tire and brake service. In addition, this package includes the ALI Certified Atlas® Platinum Bolt-On Alignment Kit, which features slip plates, ramps, spacers, and turntables.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
PLATINUM PVL14
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy-Duty, Commercial-Grade Construction
- Extra Tall, Extra Wide & Extra Long Design
- Adjustable Lock Ladder Design
- Higher-Quality Powder Coat Finish
- Air-Operated Single-Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Power Unit
- 220 Volt / 1 Phase Operation (30 Amp Breaker Recommended)
- Shipping Weight: 2,800 lbs.
- 5-Year Structural – 2-Year Hydraulic – 2-Year Power Unit Warranty
PLATINUM RJ7000
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact, Low-Profile Design
- Smooth Rolling Operation
- Scissor Mechanism for Level Lifting
- Powder Coat Finish
- 1-Year Parts-Only Warranty
Platinum Alignment Kit
- Includes Slip Plates and Turntables
- 1″ Diameter Steel Roller Bearings on Rear Slip Plate
- Removable and Installable as Needed
- Shipping Weight: 1,000 lbs.
- 1-Year Parts-Only Warranty
Specifications
Atlas® Platinum PVL14 Specifications
| Capacity | 14,000 lb. |
|---|---|
| Lifting Height | 76 1/2″ (6′ 4 1/2″) |
| Overall Width of Columns (Without Motor) | 131 3/4″ (10′ 11 3/4″) |
| Overall Width of Columns (With Motor) | 140 1/2″ (11′ 8 1/2″) |
| Overall Length with Approach Ramp | 251 1/2″ (20′ 11 1/2″) |
| Length Between Columns | 196″ (16′ 4″) |
| Runway Length | 205 1/2″ (17′ 1 1/2″) |
| Runway Width | 20″ |
| Thickness of Runway | 7″ |
| Width Between Runways | 42 3/4″ (with rail 39 1/4″) |
| Outside Runway to Outside Runway | 83 1/8″ (6′ 11 1/8″) |
| Clearance Under Runways | 69 1/2″ (5′ 9 1/2″) |
| Clearance Between Columns | 116 3/8″ (9′ 8 3/8″) |
| Height of Columns | 92 1/2″ (7′ 8 1/2″) |
| Maximum Wheel Base | 195″ (16′ 3″) |
| Drive Thru | 94 1/2″ (7′ 10 1/2″) |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor/Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,800 lbs. |
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.
Atlas® Platinum RJ7000 Specifications
| Maximum Capacity | 7,000 lb. |
|---|---|
| Maximum Width | 45 1/2″ (3′ 9 1/2″) |
| Minimum Width | 36″ (3′) |
| Distance Between Runway Capability | 36″ – 45″ |
| Maximum Lifting Height (With Adapters) | 27 1/2″ (2′ 3 1/2″) |
| Air Requirement | 70–115 PSI |
| Shipping Weight | 400 lbs. |
| Double Screw-Up Adapter Pad | 1 1/2″ – 4″ |
Atlas® Platinum Alignment Kit Specifications
| Maximum Capacity | 14,000 lb. |
|---|---|
| Overall Length | 199 1/3″ (16′ 7 1/3″) |
| Overall Width (Each Side) | 20 5/8″ |
| Minimum Wheel Base | 75 2/5″ (6′ 3 2/5″) |
| Maximum Wheel Base | 148 2/3″ (12′ 4 2/3″) |
| Minimum Turntable Recess | 1 1/2″ |
| Maximum Turntable Recess | 2″ |
| Turntable Dimensions | 17 1/2″ x 17 1/2″ x 1 1/2″ |
| Shipping Weight | 1,100 lbs. |
