Atlas ALI Certified APEX 8 4 Post Lift + RJ35 Sliding Jacks Combo
Price range: £3,045.94 through £3,449.14
Description
The Atlas® APEX8 is the ALI Certified version of the highly popular Atlas® Garage PRO8000 four-post hobbyist lift. It is ideal for customers who need to maximize limited garage space, allowing most passenger vehicles to be stacked for efficient storage.
The Atlas® APEX8 is engineered for homeowners and restoration shops. It is not recommended for commercial repair facilities where the lift would be cycled multiple times daily.
Weighing nearly 200 lbs. more than many comparable lifts on the market, the APEX8 offers added structural robustness. It includes a complimentary caster kit with polyurethane wheels, allowing the lift to be made portable in just minutes. The lift can be moved between bays or even outdoors when necessary. Combined with ALI Certification, these features make the APEX8 one of the strongest values in the four-post hobbyist category.
This combo package also includes two Atlas® RJ35 sliding bridge jacks. These jacks allow the vehicle’s wheels to be lifted off the runways for brake and tire service.
Note: The RJ35 sliding jacks are not ALI Certified. Only the APEX8 lift carries ALI Certification.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features
APEX8
- ALI Certified lift
- 8,000 lb. capacity
- Free-standing / portable design
- Powder coat finish

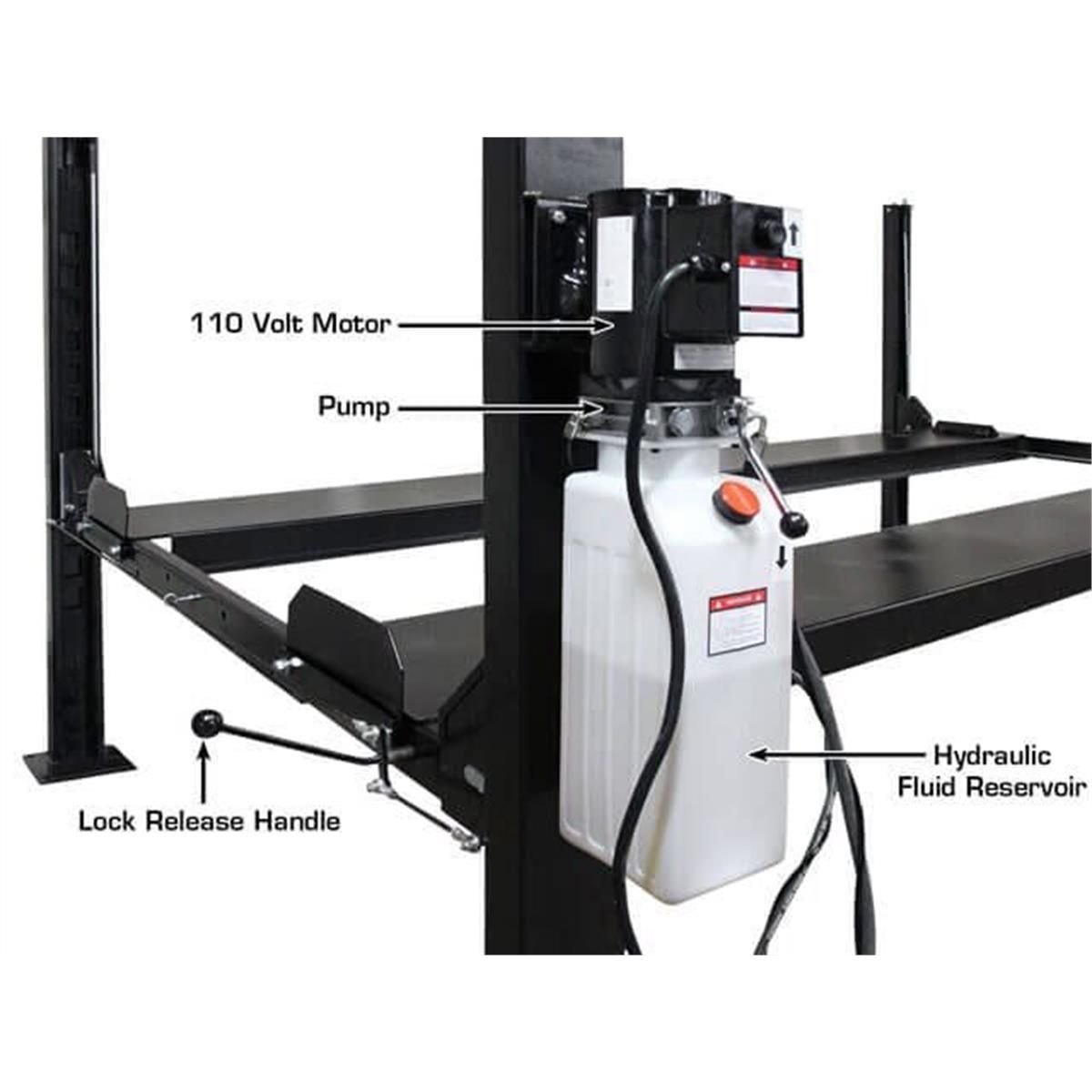

- Single-point lock release
- Lock ladder design
- Double-lock safety system
- Steel approach ramps included
- Wheel stops included
- Two wheel chocks included
- Caster kit with polyurethane wheels included
- Anchor bolts optional (sold separately)
- Ideal for vehicle storage or service work

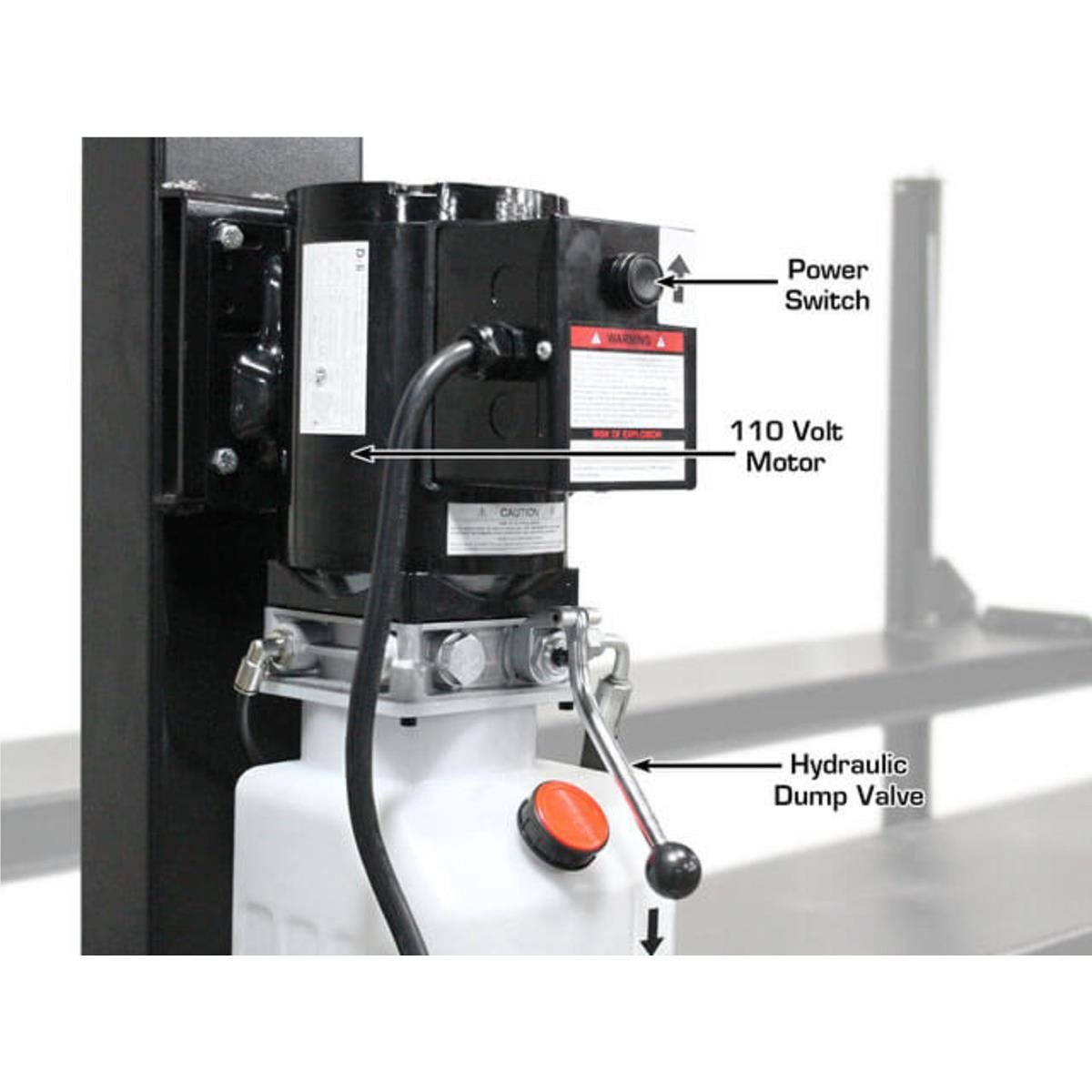

- 110-volt electric operation (requires 30 amp breaker)

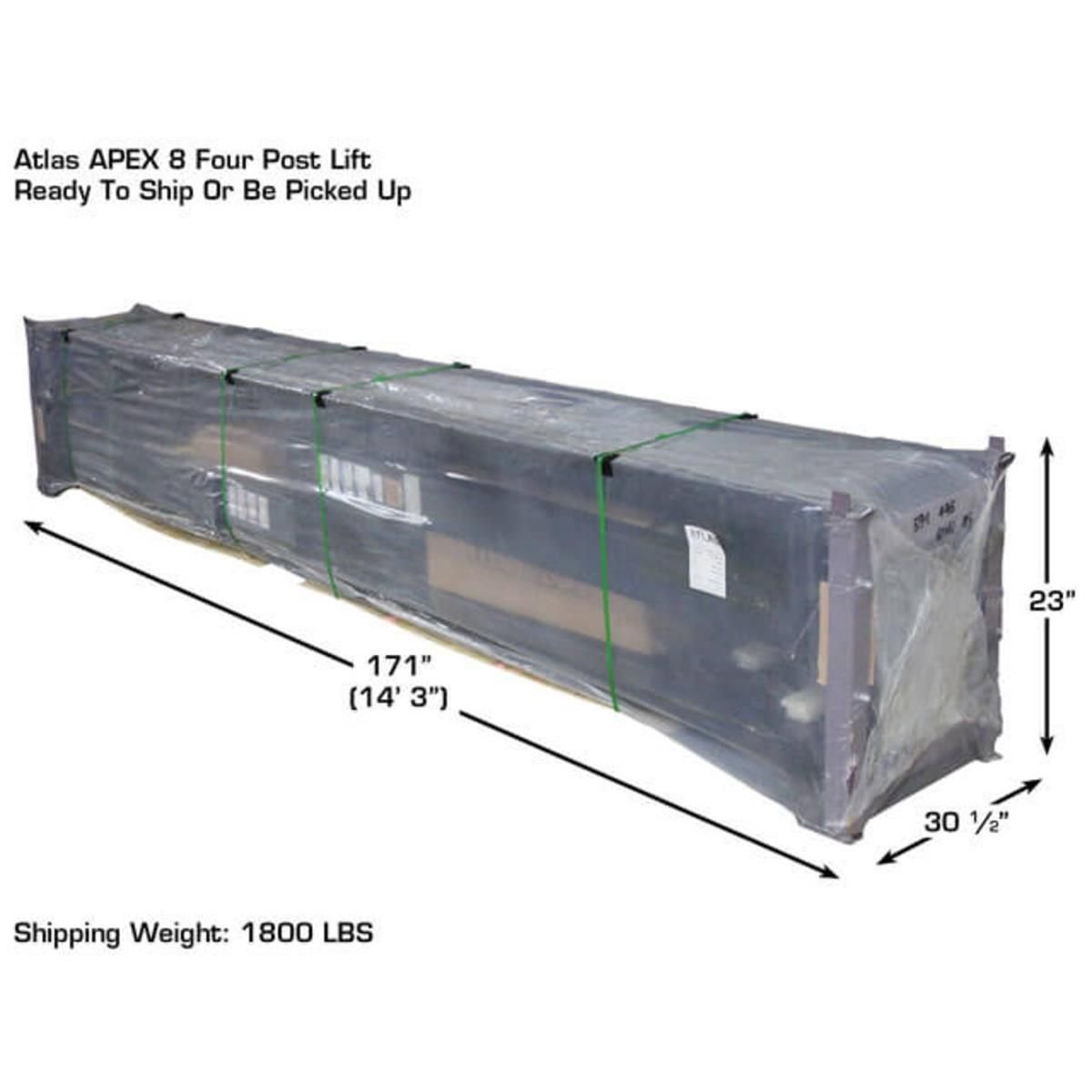

- Shipping weight: 2,000 lbs.
- Warranty: 5-year structural – 2-year hydraulic (parts only)

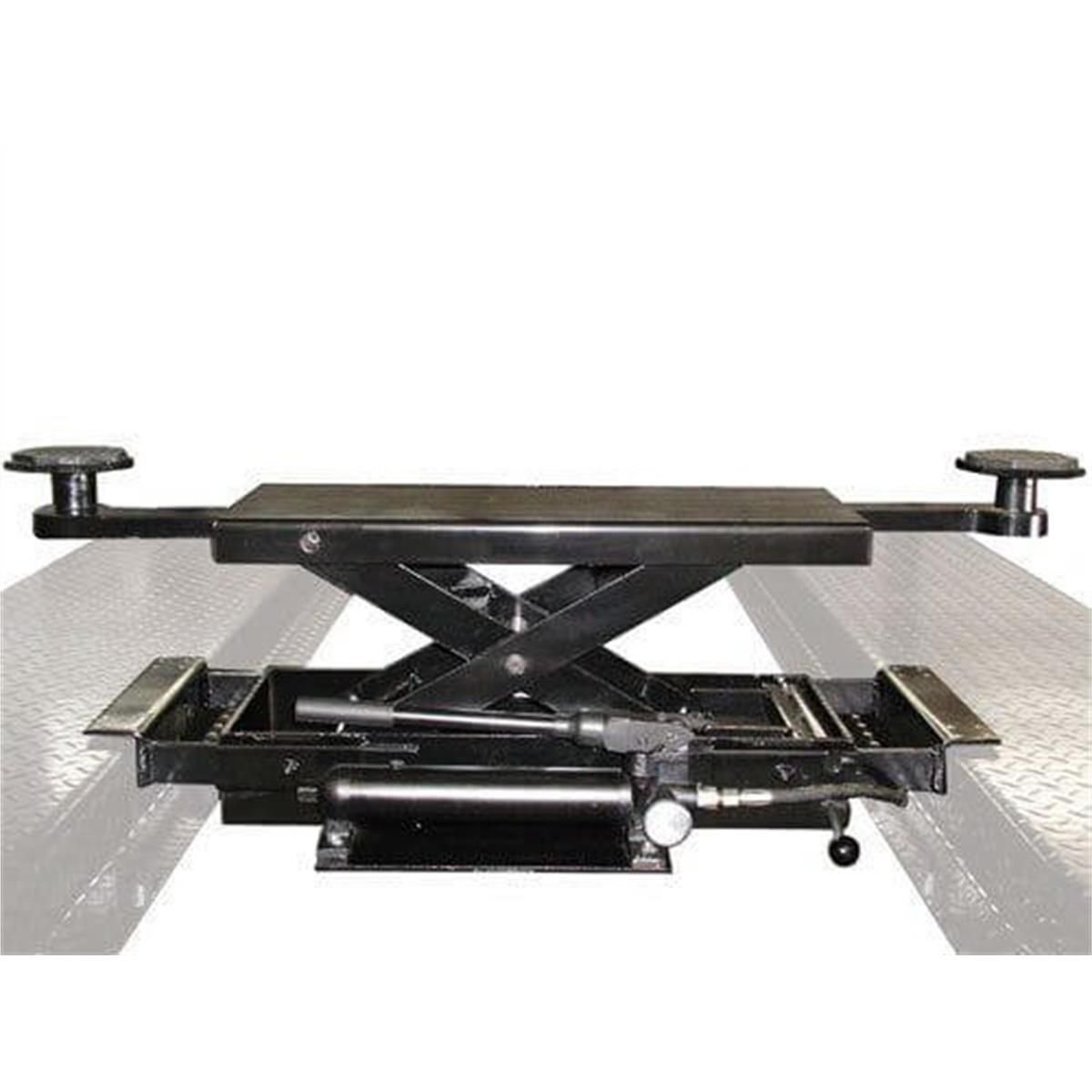

PROJACK35 (RJ35)
- Sliding bridge jack
- 3,500 lb. capacity
- Manual hand-pump operation
- Scissor mechanism for level lifting
- Low-profile, compact design
- Adjustable width to fit many 4-post lifts
- Adjustable lift arms for multiple lifting points
- Multiple safety lock positions

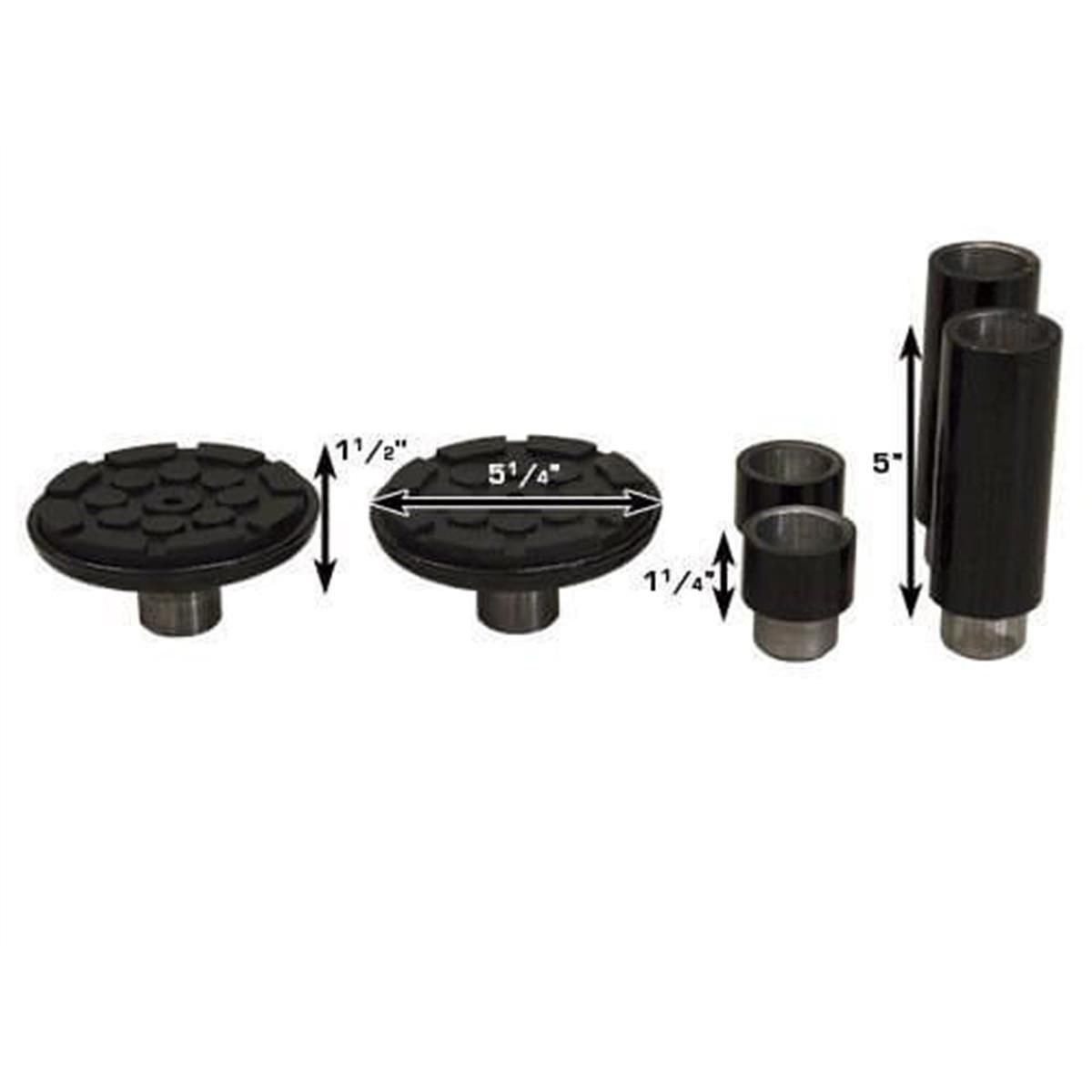

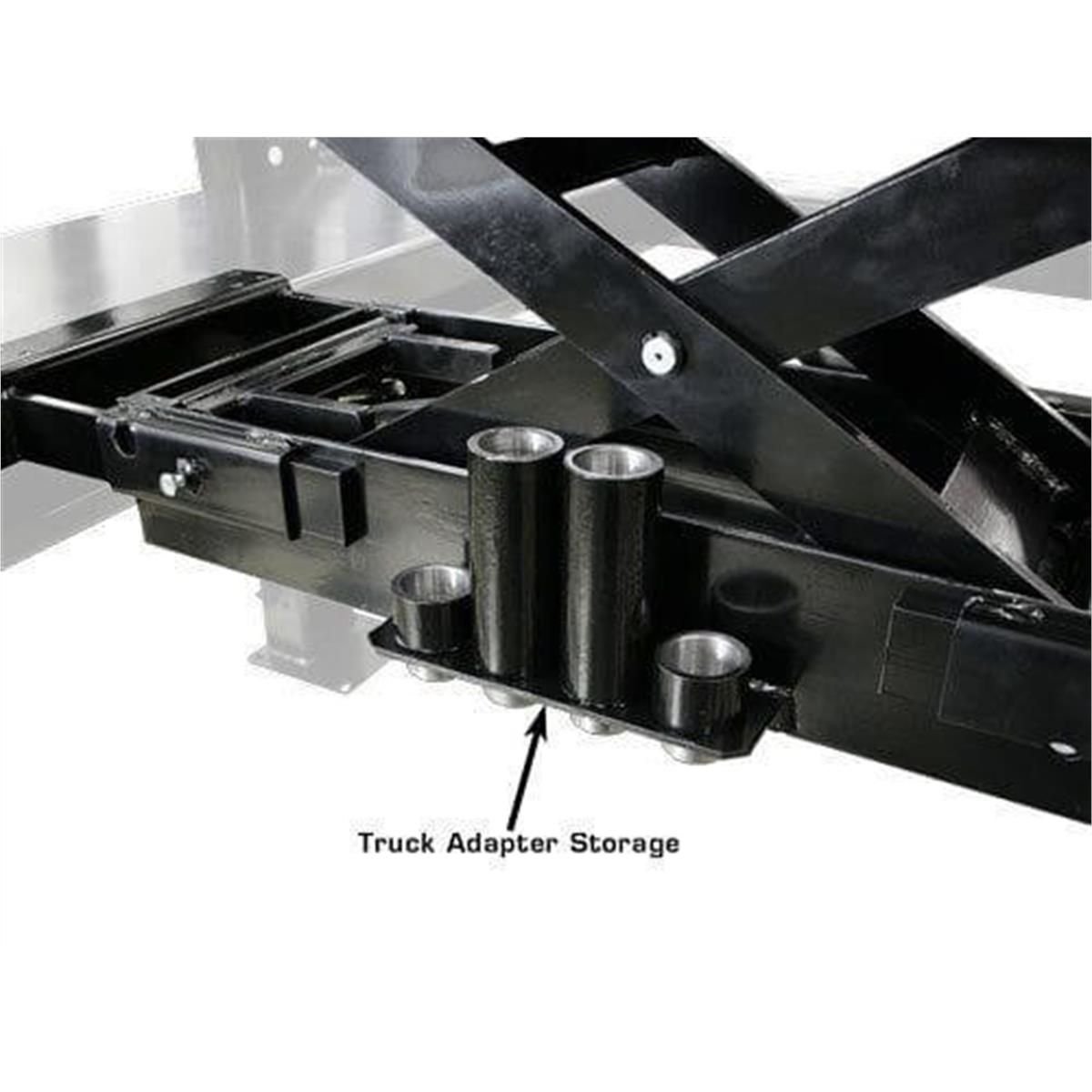

- 4-piece truck adapter set included
- 1-year parts-only warranty
Specifications
Atlas® Apex 8 Specifications
| Capacity | 8,000 lbs. |
|---|---|
| Lifting Height to Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67″ (5′ 7″) |
| Height of Columns (Including Nuts) | 86 5/8″ (7′ 2 5/8″) |
| Overall Width (Without Motor or Casters) | 104″ (8′ 8″) |
| Overall Width (With Motor) | 114″ (9′ 6″) |
| Overall Length without Approach Ramps (Including Lock Release Bar) | 186 1/2″ (15′ 6 1/2″) |
| Overall Length with Approach Ramps | 207 5/6″ (17′ 3 5/6″) |
| Approach Ramp Length | 37 1/2″ (3′ 1 1/2″) |
| Runway Width | 18 2/3″ |
| Runway Rail Width | 2 1/2″ |
| Runway Length | 169 1/2″ (14′ 1 1/2″) |
| Runway Thickness | 4 1/3″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 33″ (2′ 9″) |
| Outside Runway to Outside Runway | 75 1/4″ (6′ 3 1/4″) |
| Clearance Between Columns | 94″ (7′ 10″) |
| Length Between Columns | 157 1/3″ (13′ 1 1/3″) |
| Maximum Wheelbase | 154″ (12′ 9″) |
| Drive Thru (Outside Tire to Outside Tire) | 80 1/4″ (6′ 8 1/4″) |
| Motor / Electrical Requirement | 110 volt – 30 amp breaker required |
| Shipping Weight | 2,000 lbs. |

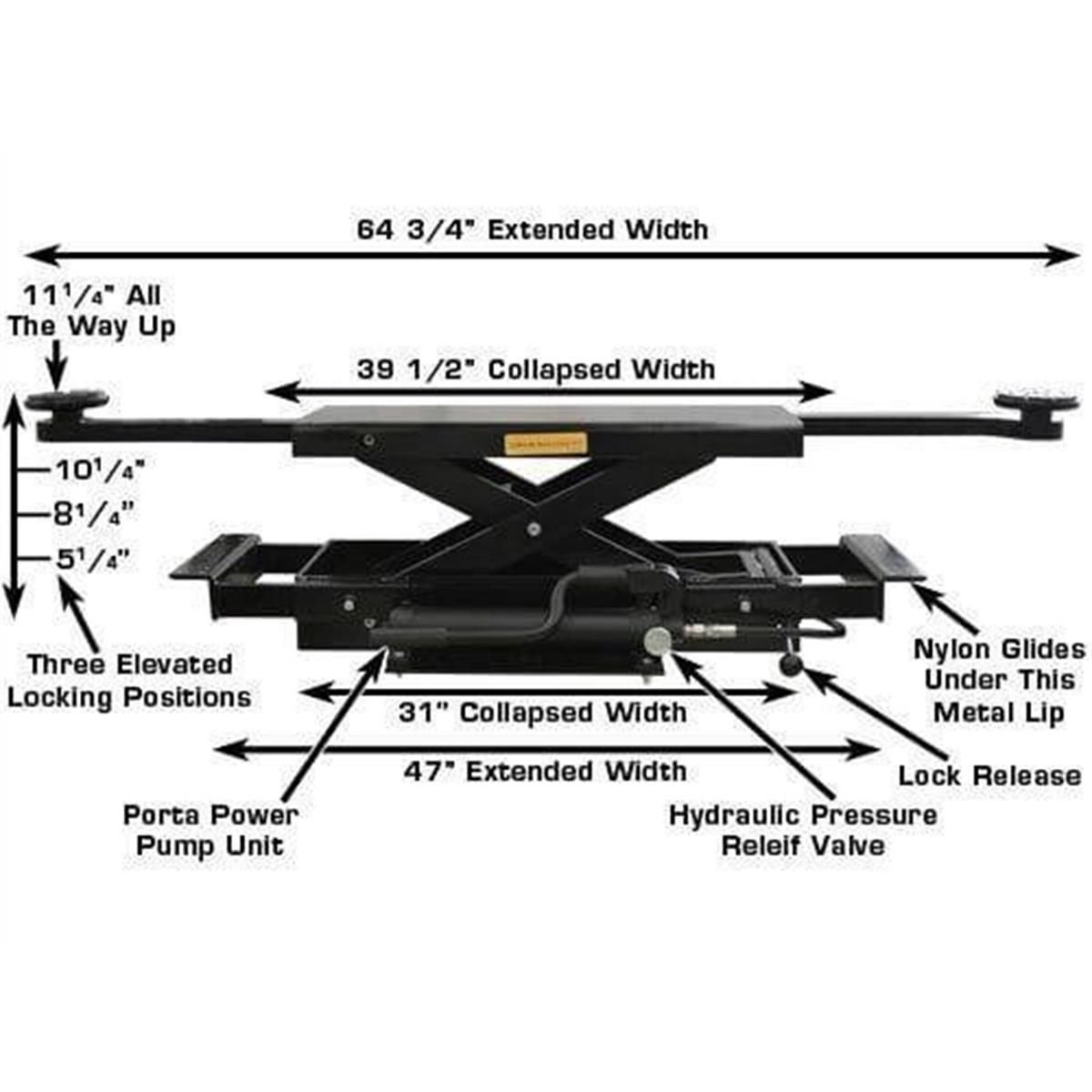

Atlas® RJ35 Specifications
| Maximum Capacity | 3,500 lbs. |
|---|---|
| Maximum Width | 64 3/4″ (5′ 4 3/4″) |
| Minimum Width | 29 1/2″ (2′ 5 1/2″) |
| Minimum Height with Lift Pad Above Runway | 3 1/2″ (may vary by lift) |
| Lift Pad Height Above Arm | 1 3/8″ |
| Maximum Raised Height (Without Adapters) | 11″ |
| Maximum Raised Height (With Adapters) | 17 1/4″ |

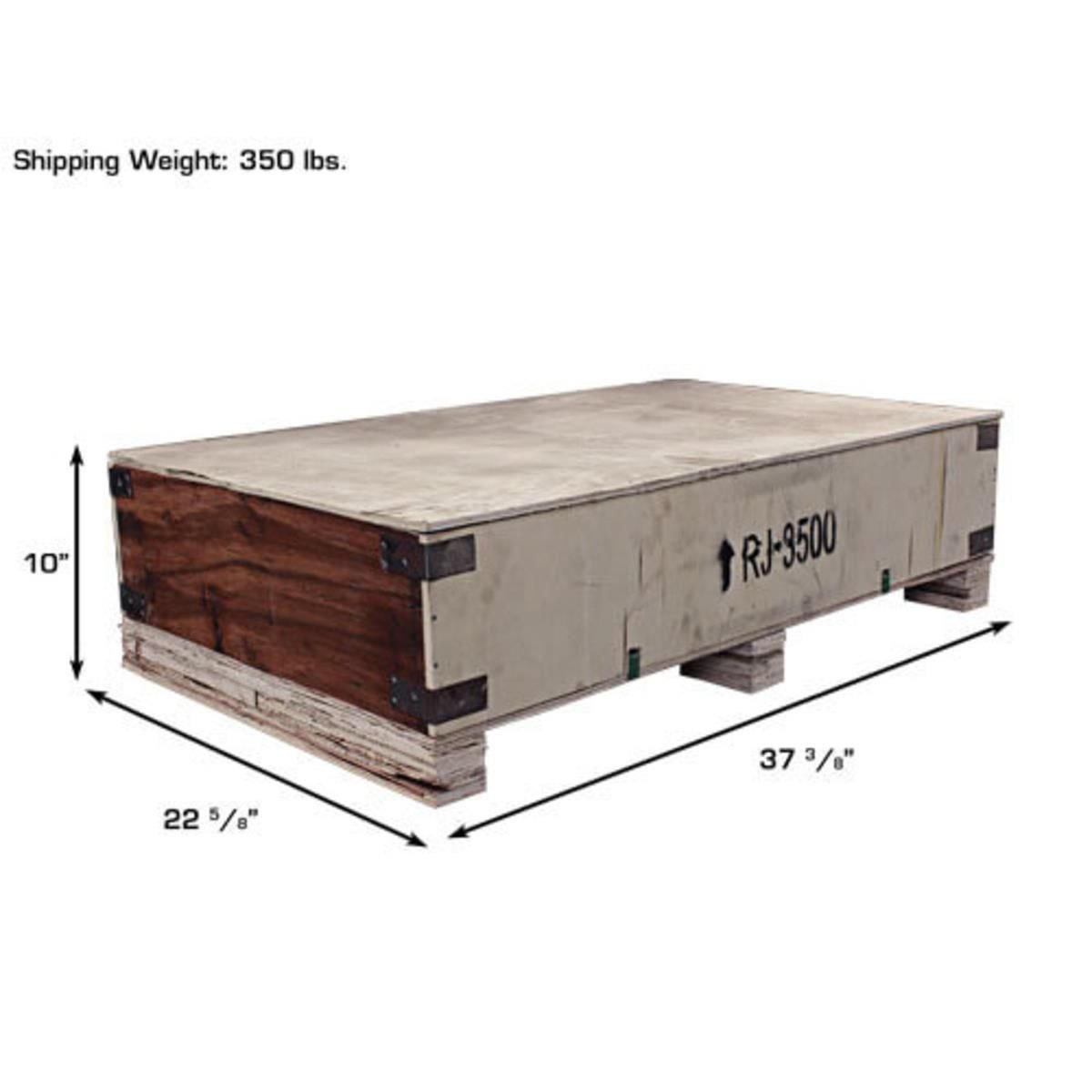

| Shipping Weight | 350 lbs. |
| Adapter Heights | 2 each: 1.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
