Description

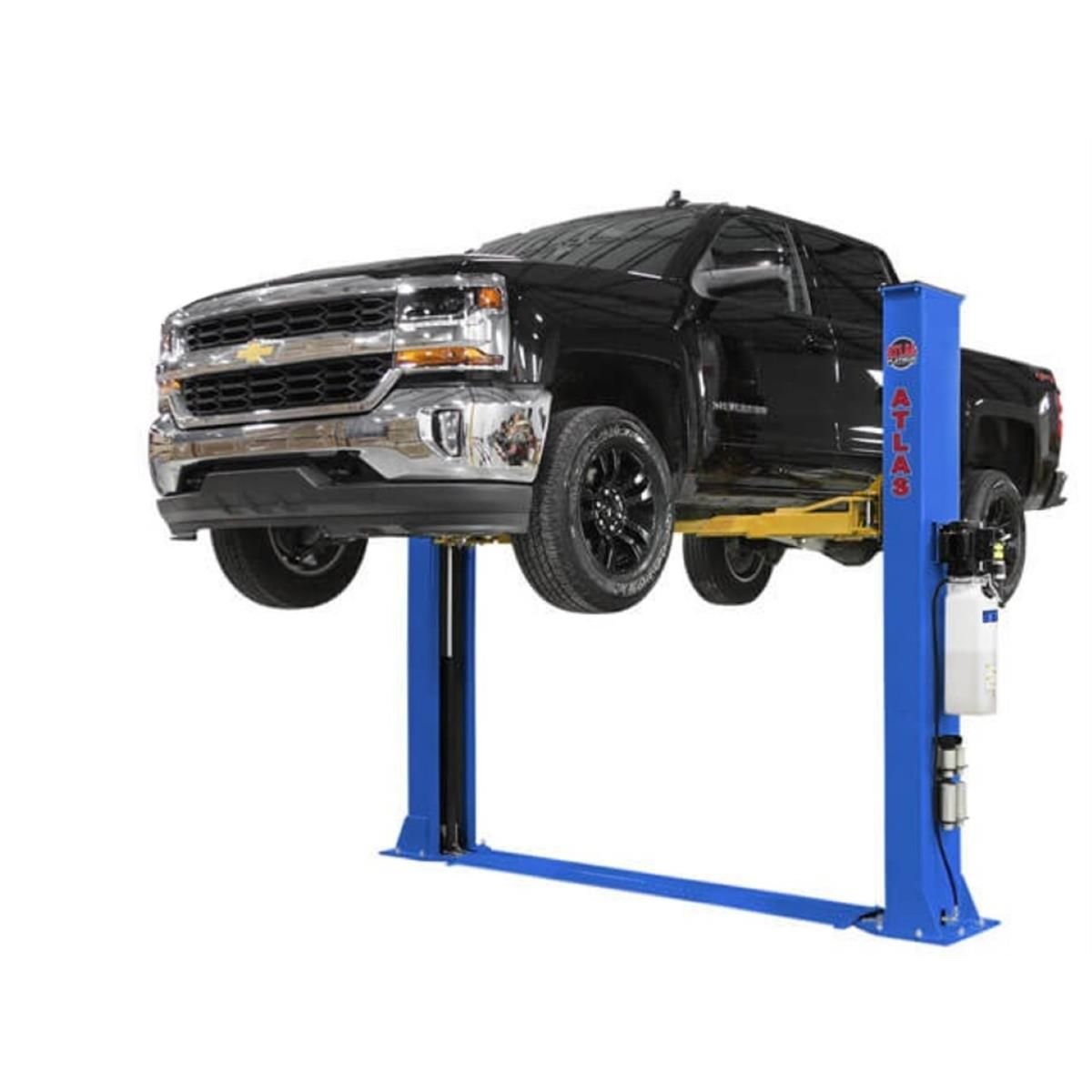

The Atlas® Platinum PVL9BP is a 9,000 lb. capacity base-plate two-post lift designed for professional automotive service environments. Its open-top configuration makes it especially suitable for facilities with low ceiling heights or for operators who prefer to avoid the constraints of an overhead beam. With an overall column height of 111 1/8″ (9′ 3 1/8″), the PVL9BP can service a broad range of domestic and foreign vehicles, including full-size trucks and light-duty commercial vehicles.

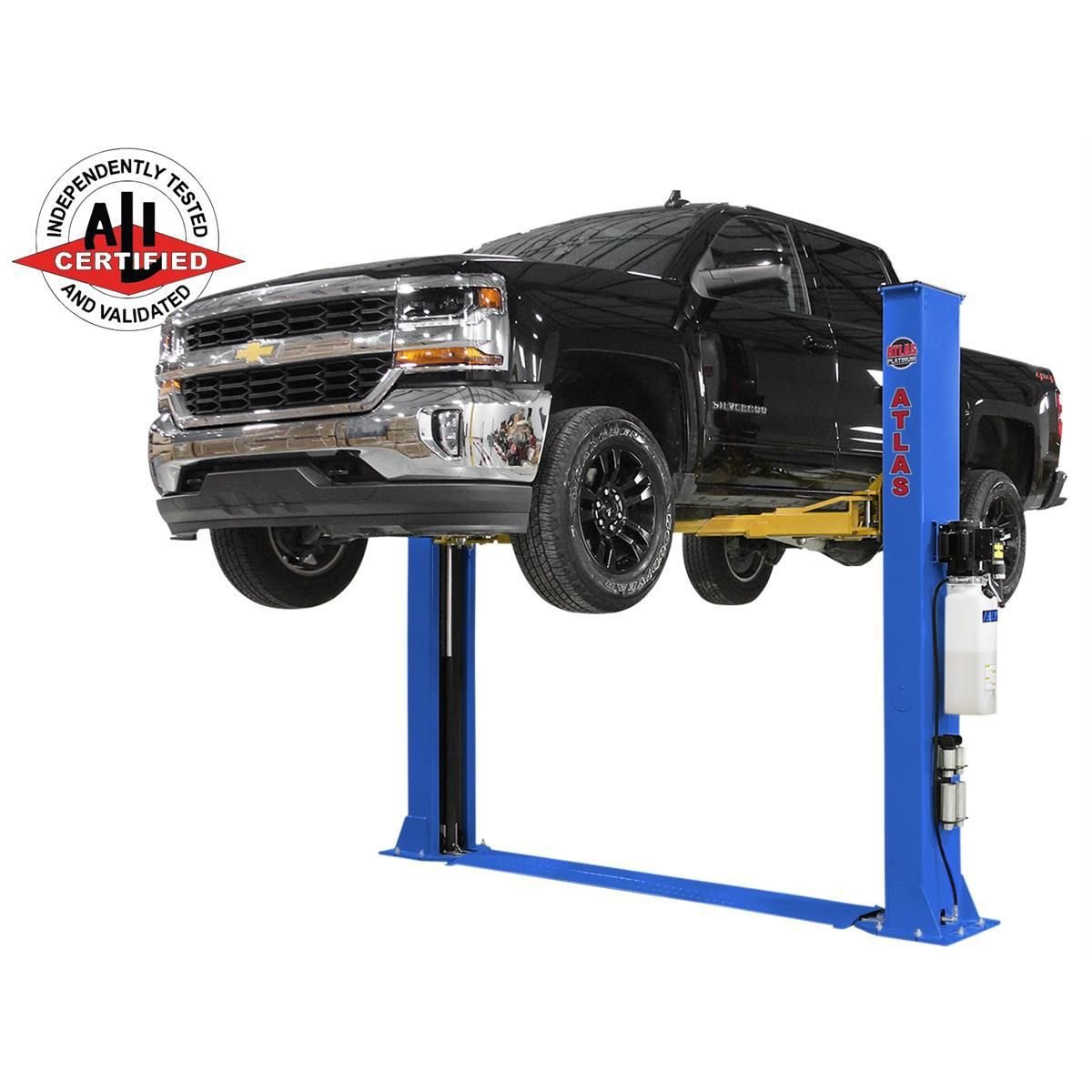

This lift is ALI Certified and backed by one of the strongest warranties in the industry, delivering long-term reliability and peace of mind.

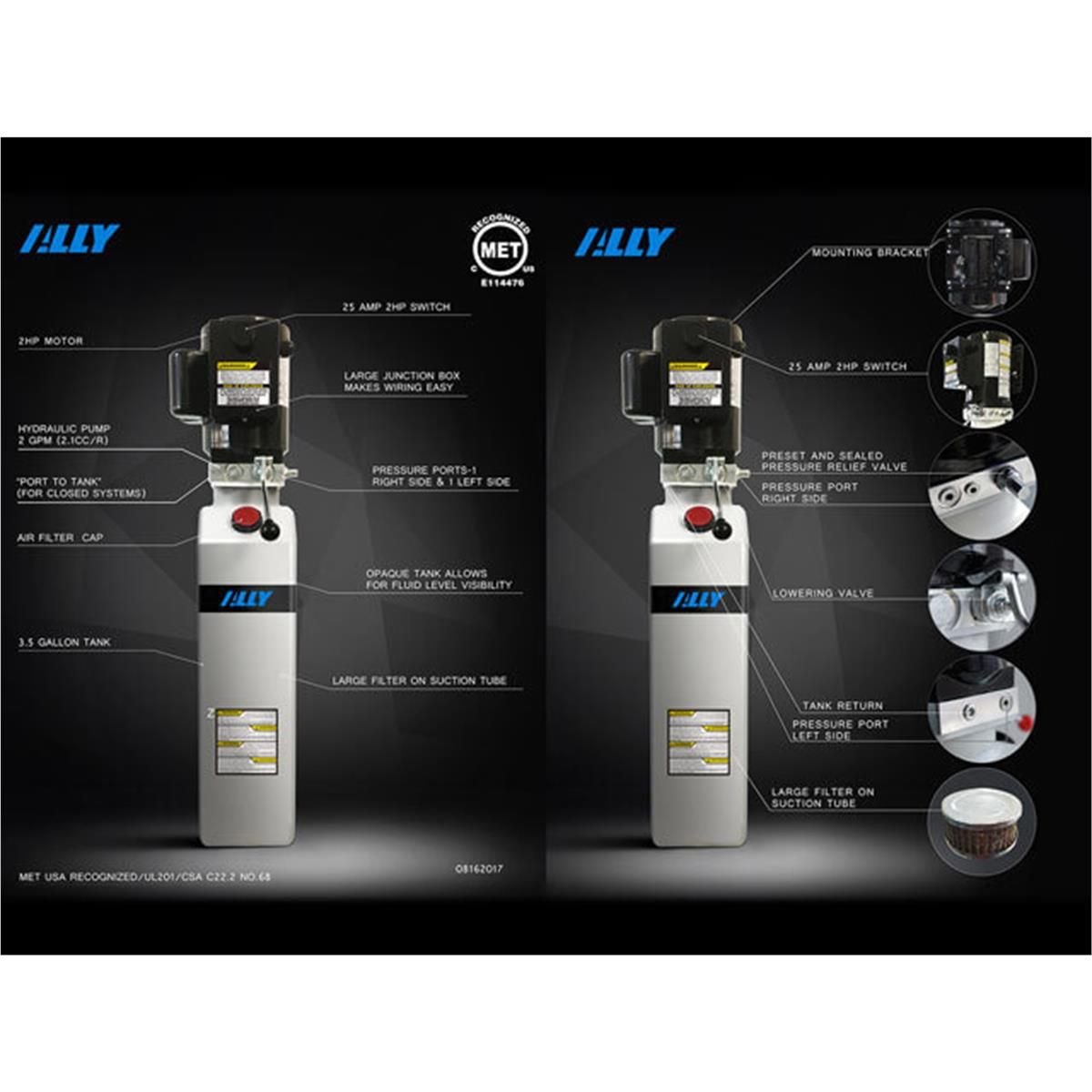

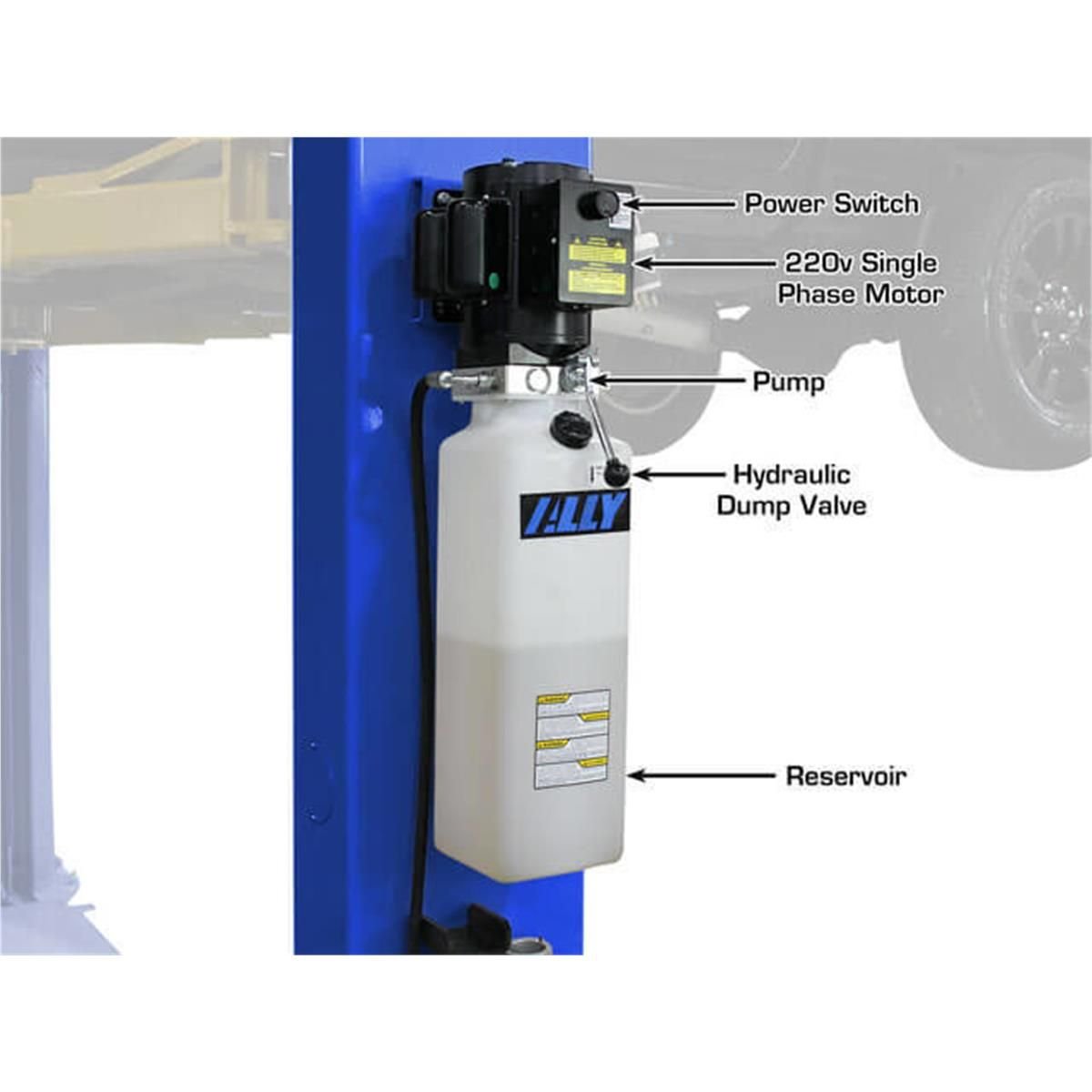

The Atlas® Platinum PVL9BP is equipped with the premium ALLY hydraulic power unit, tested and certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. The ALLY unit features reinforced armatures, enhanced motor windings, and silver-infused wiring to minimize heat generation and maintain steady torque throughout the lifting cycle. It also carries a two-year limited warranty, reflecting its high-performance and durable construction.
Features
- ALI Certified for Safety
- 9,000 lb. Lifting Capacity
- Professional-Grade Construction

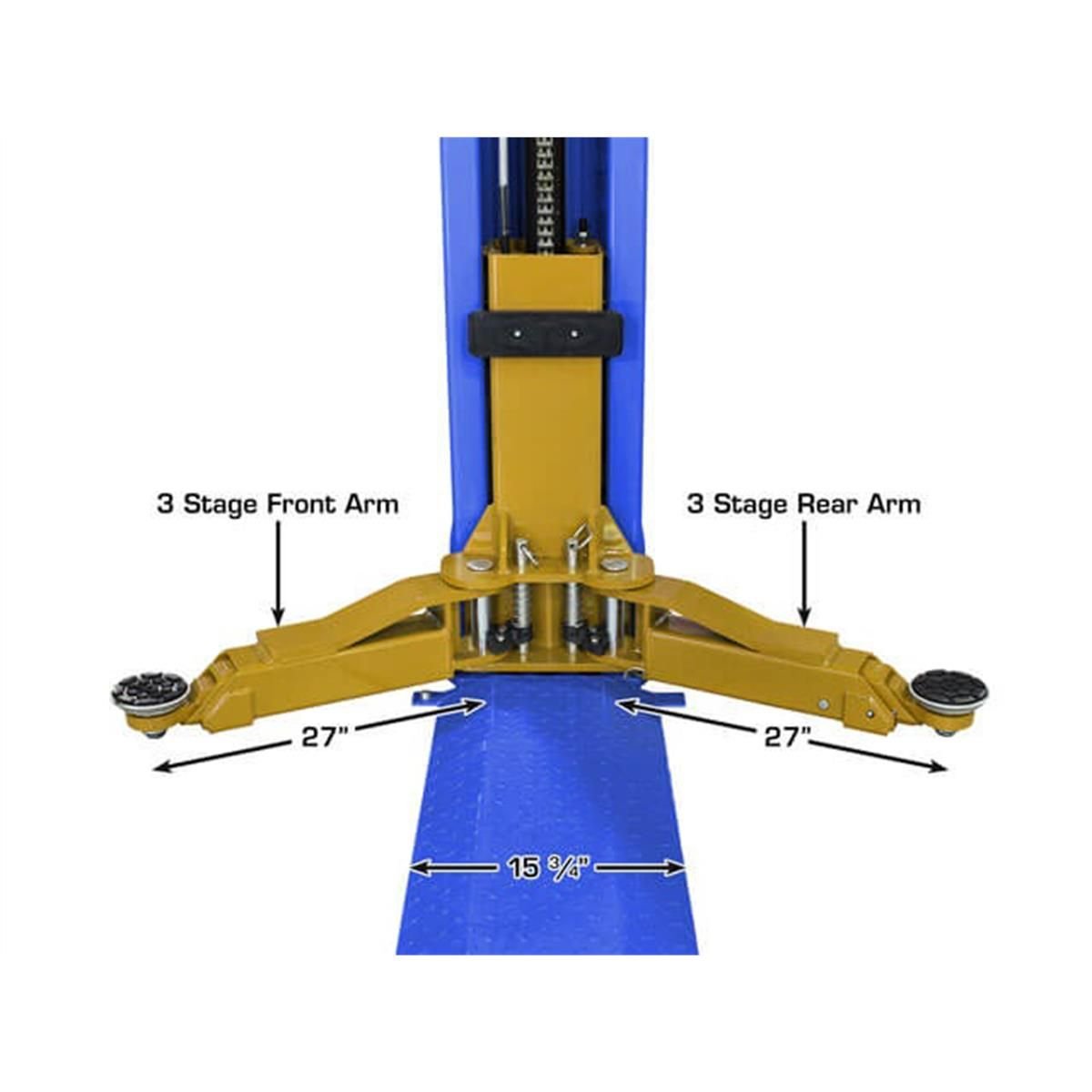

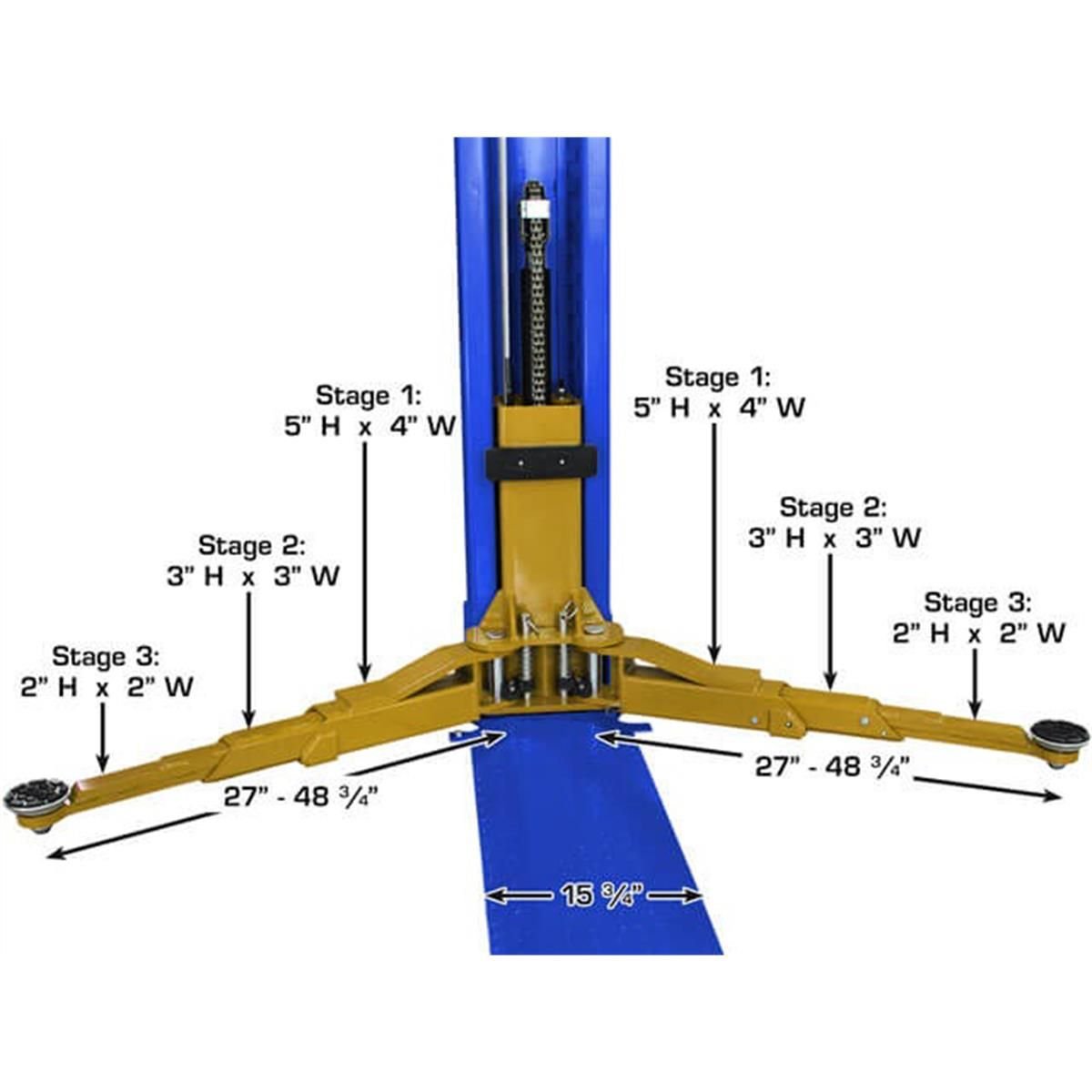

- 3-Stage Symmetric Arms
- Base Plate, Open-Top Design
- Ideal for Low Ceiling Applications – 9′ 3 1/8″ Column Height
- Twin Hydraulic Chain-Drive Cylinders
- Secondary Locking System (SLS)
- Automatic Arm Locking System

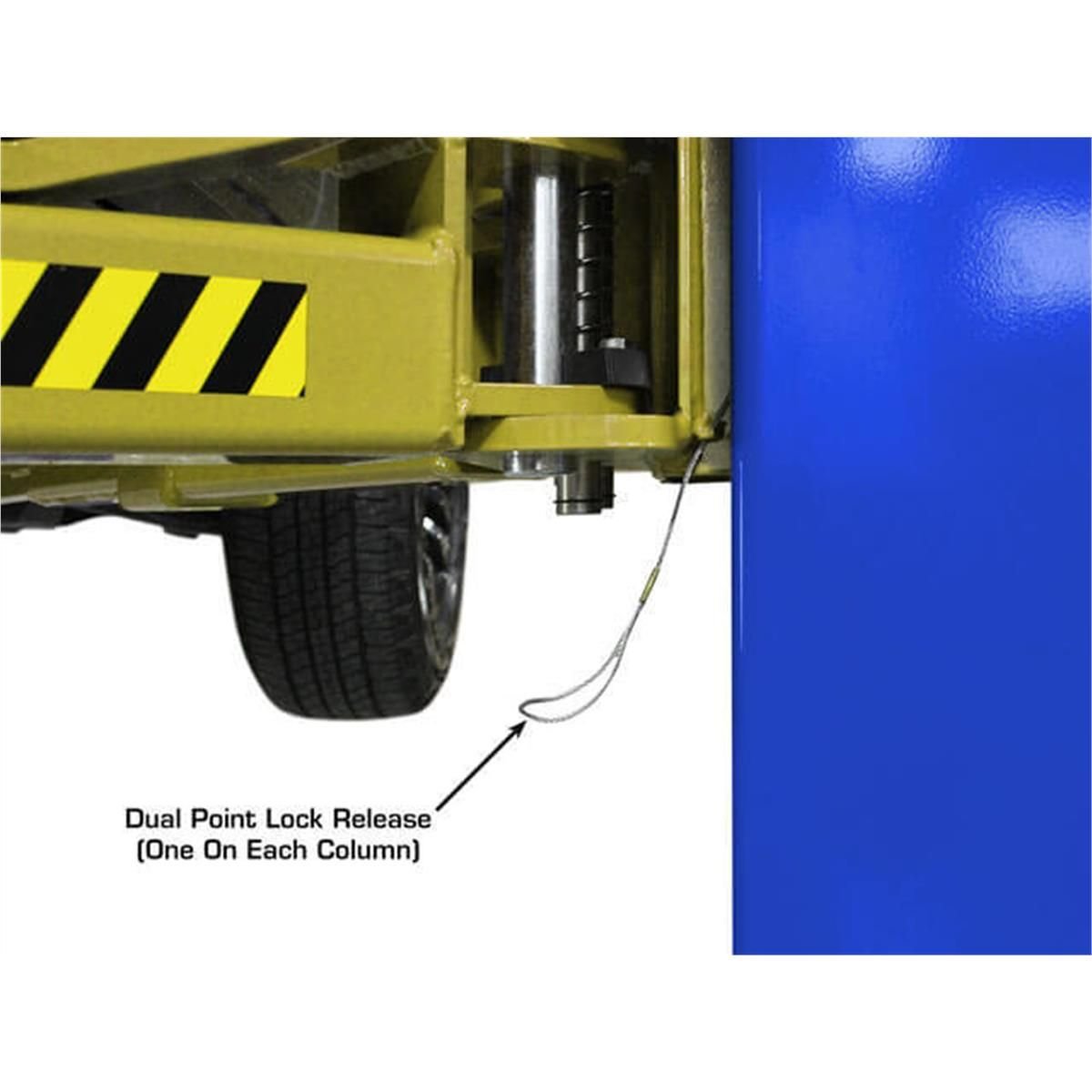

- Dual-Point Lock Release

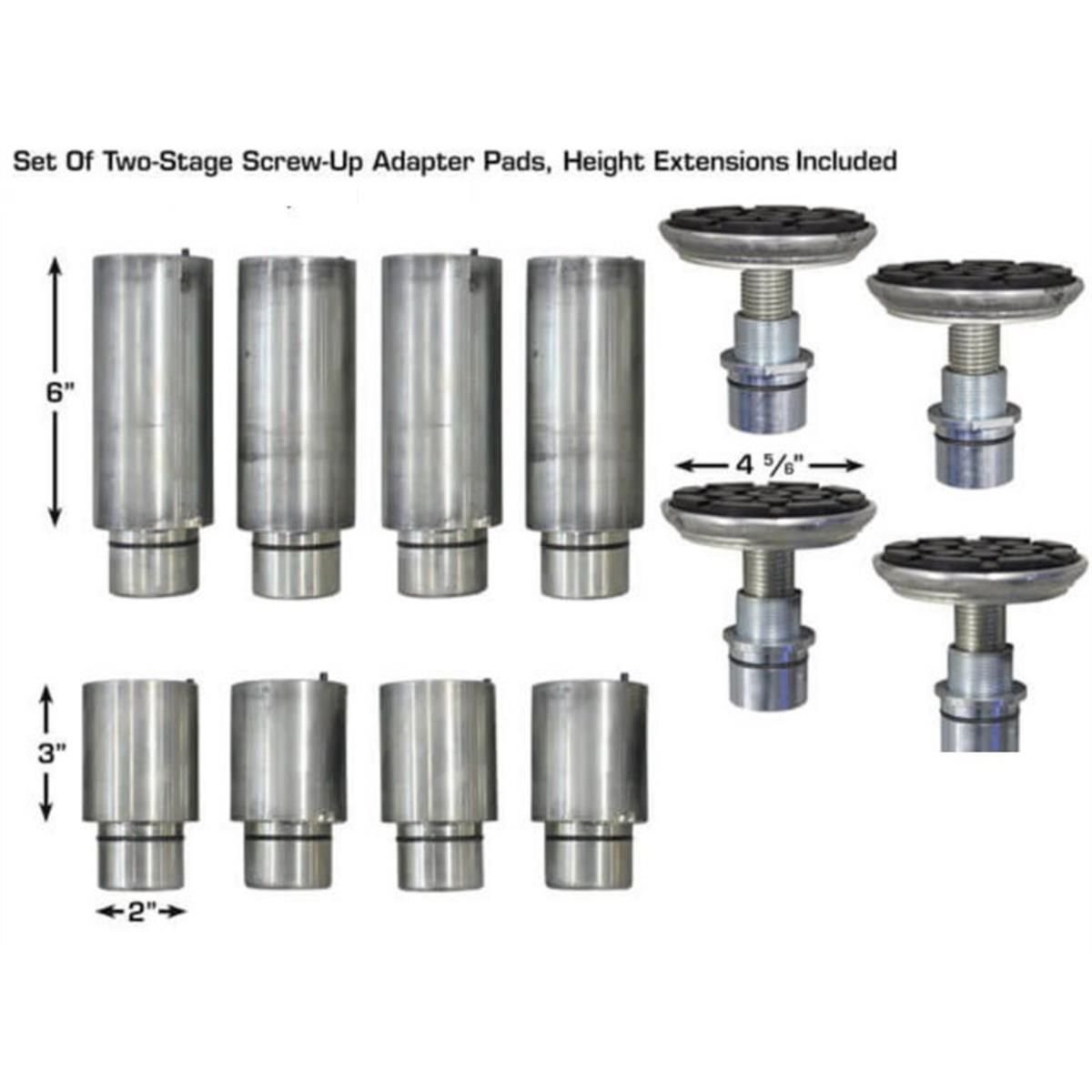

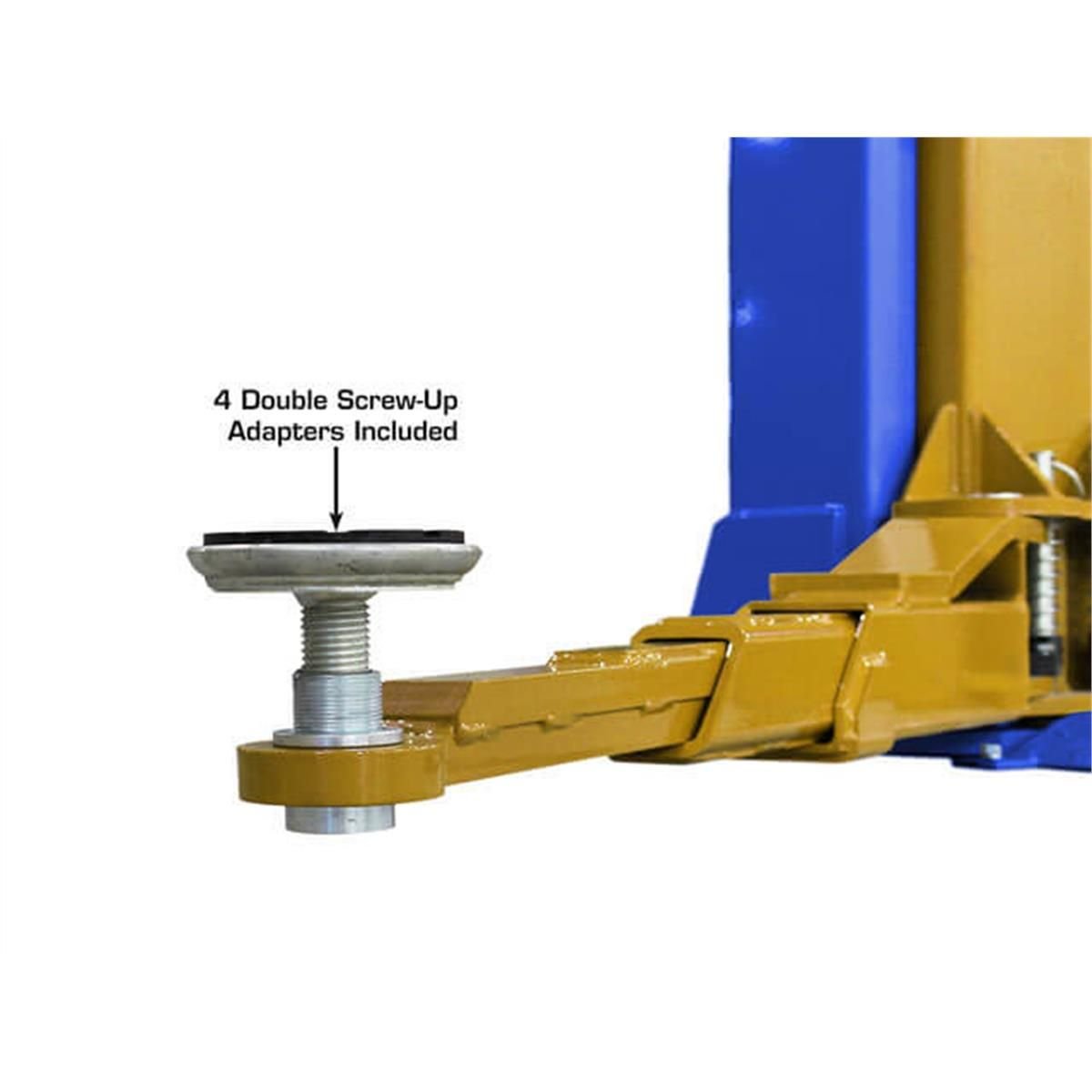

- Includes Double Screw-Up Adapters
- Includes 8-Piece Truck Adapter Kit
- Standard with Premium ALLY Power Unit

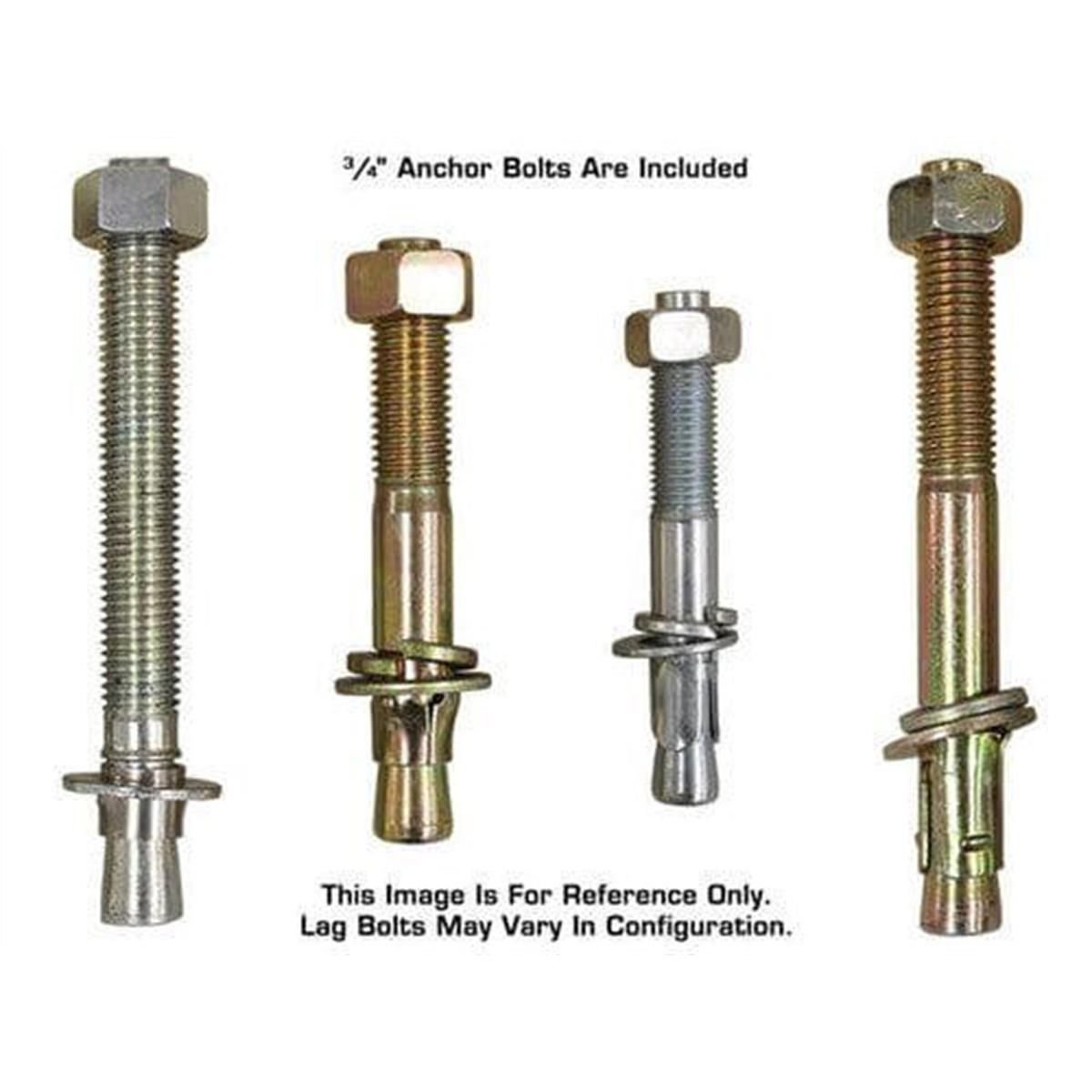

- Mounting Hardware Included
- Shipping Weight: 1,700 lbs.
- Warranty: 5-Year Structural / 2-Year Hydraulic / 2-Year Power Unit
Specifications
Atlas® Platinum PVL9BP Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lbs |

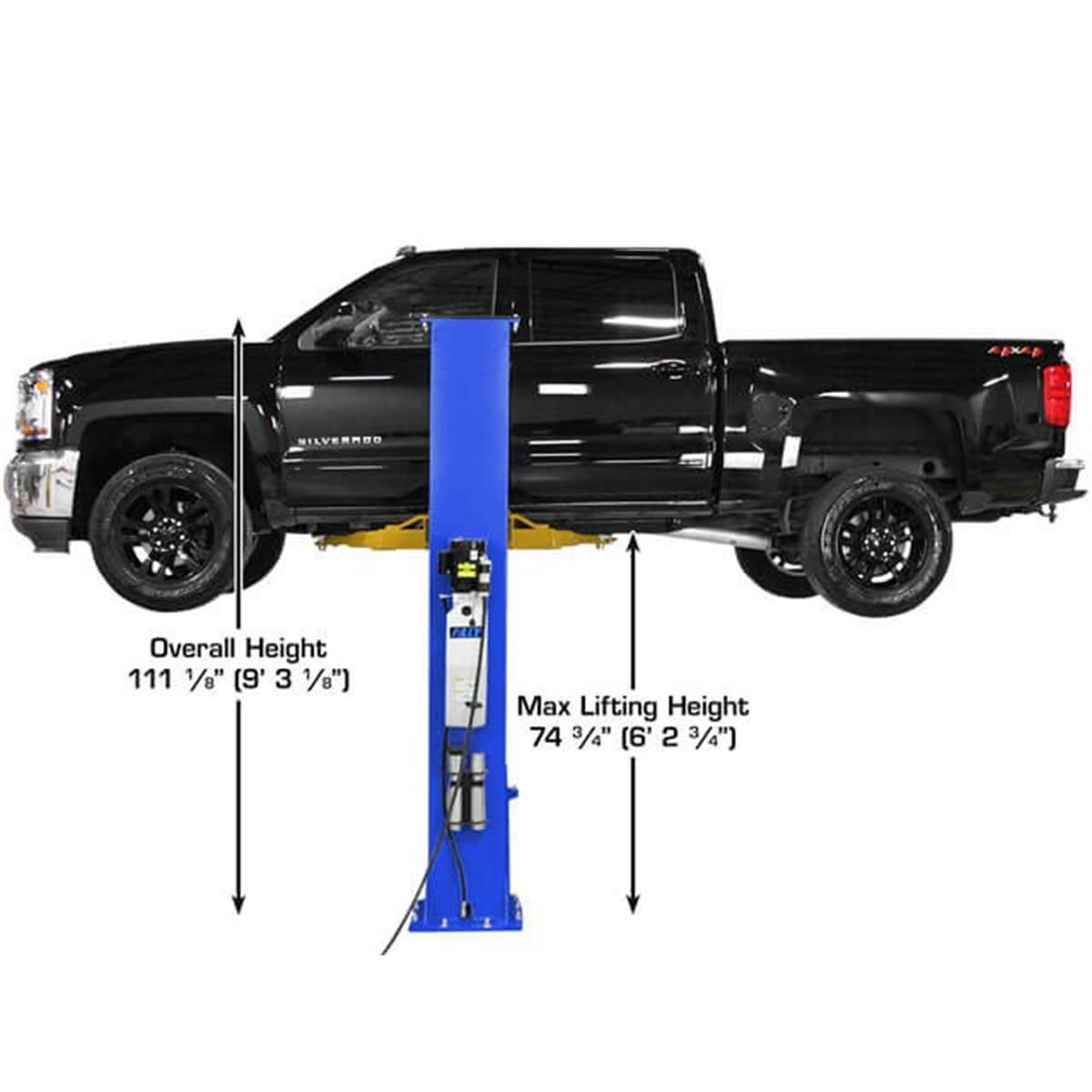

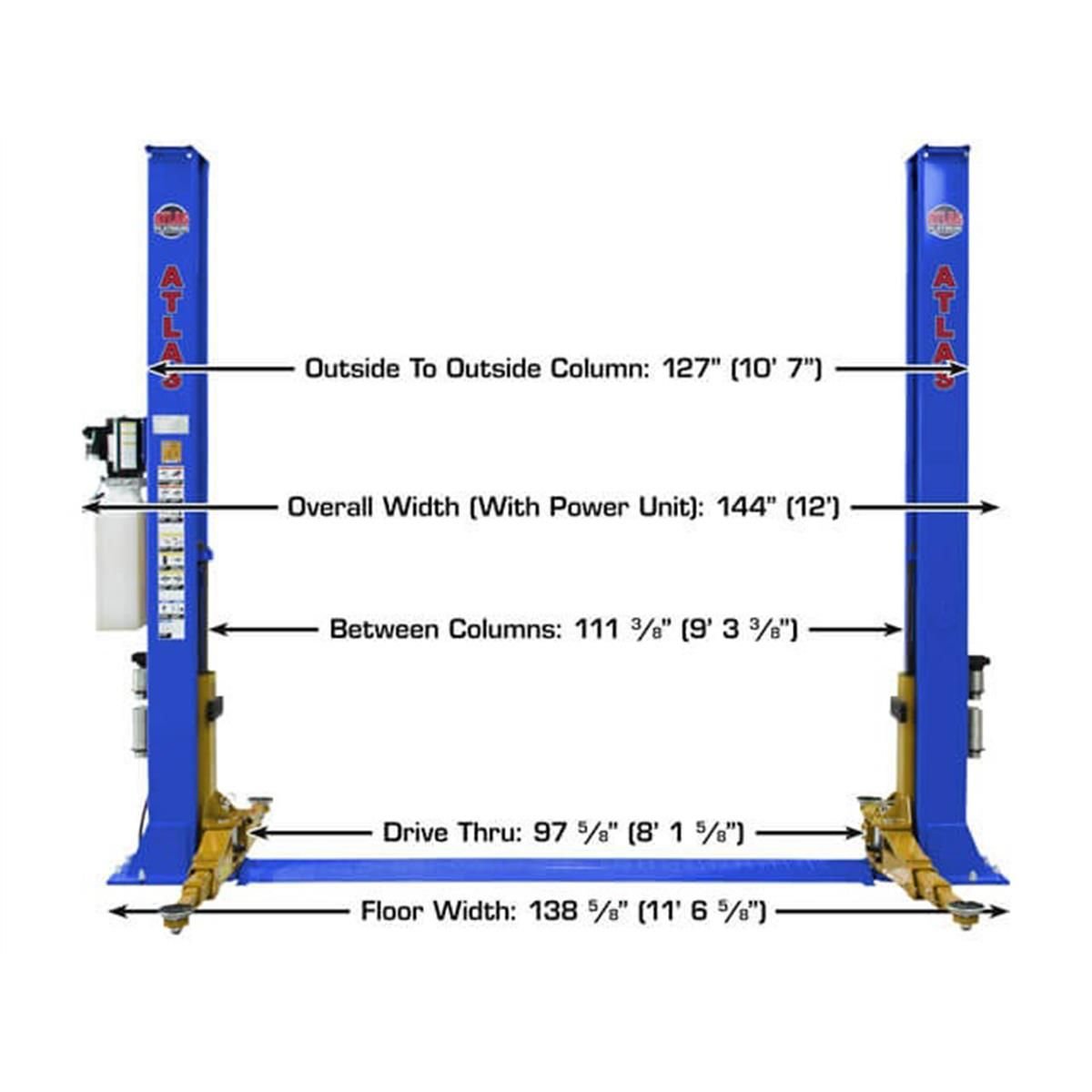

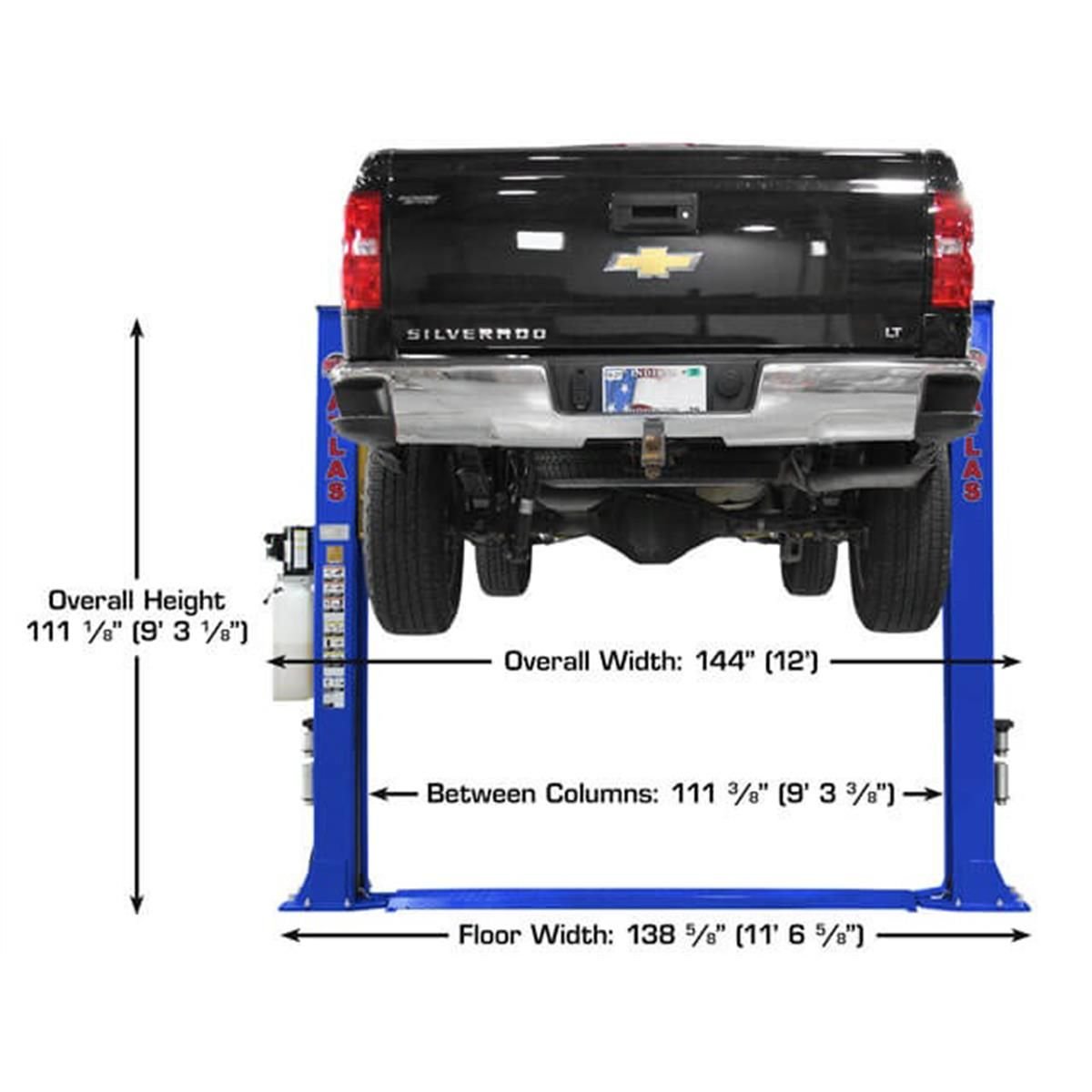

| Overall Height | 111 1/8″ (9′ 3 1/8″) |

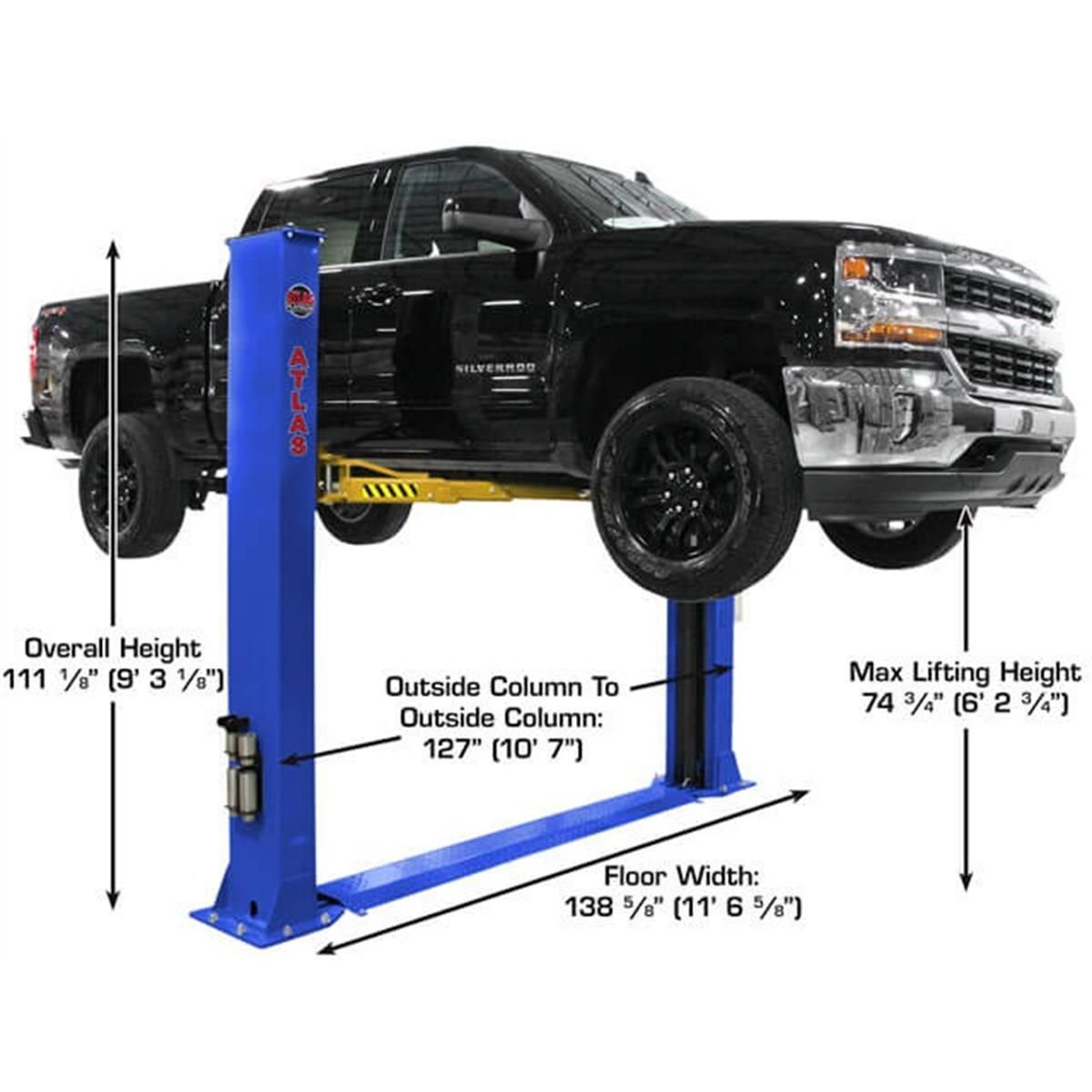

| Overall Floor Width | 138 5/8″ (11′ 6 5/8″) |
| Outside Column to Outside Column | 127 1/2″ (10′ 7 1/2″) |
| Max Lift Height (Without Adapters) | 74 3/4″ |
| Max Lift Height (With Adapters) | 83 3/4″ |
| Minimum Arm Height | 4 1/2″ |
| Inside Column | 111 3/8” (9′ 3 3/8”) |
| Drive-Thru Clearance | 97 5/8” (8′ 1 5/8”) |
| Column Dimensions | 7 5/8″ × 14 1/4″ |
| Column Steel Thickness | 6 mm |

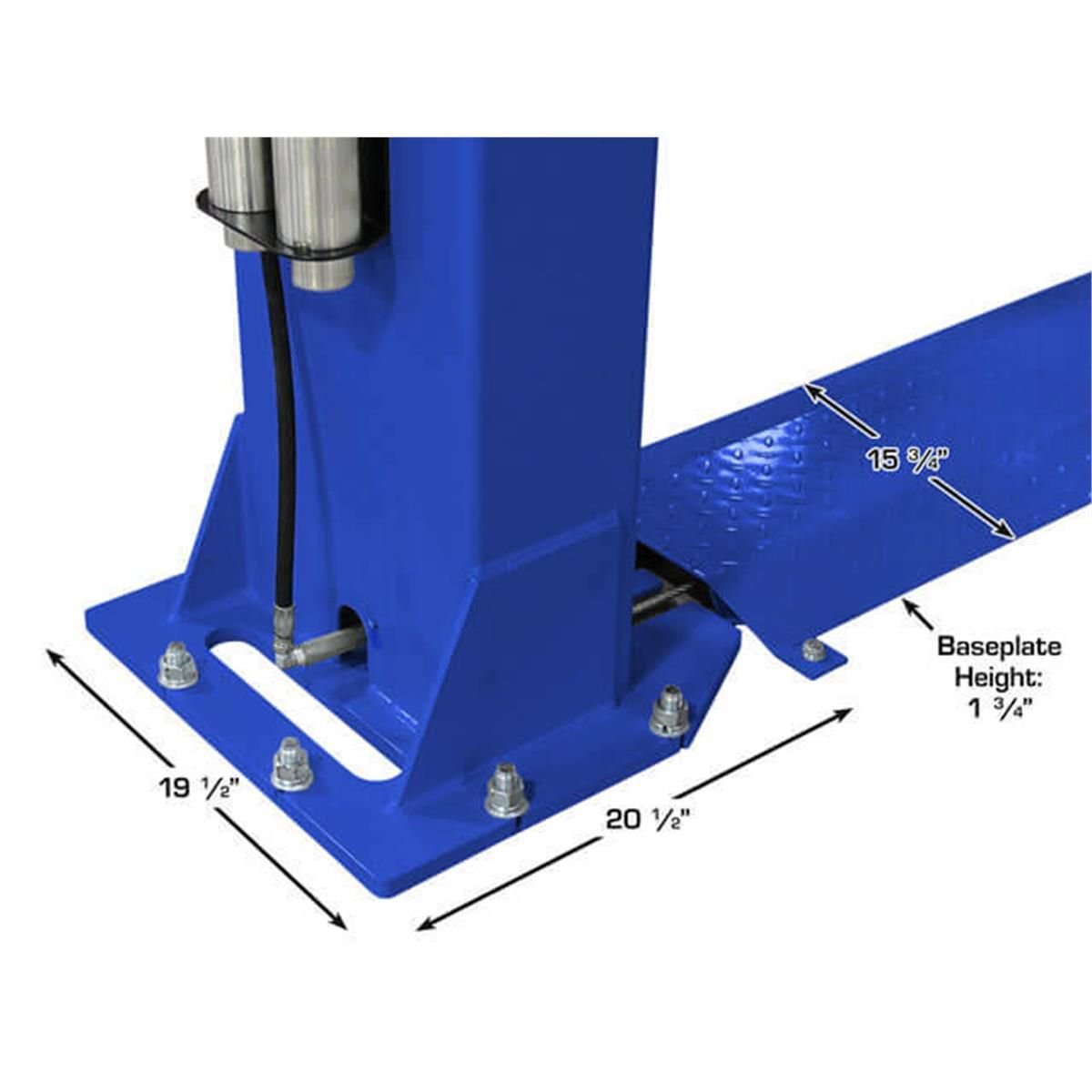

| Base Plate Size | 19 1/2″ × 20 1/2″ |
| Motor / Electrical Requirement | 220V single-phase 30 amp breaker recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (not included) |
| Shipping Weight | 1,700 lbs |
| Adapter Heights | 4 Each: 3”, 6” |
| Arm Hole / Adapter Peg Size | 2” |
Requires a minimum 4″ concrete slab with a 3,000 PSI strength rating.
