Atlas PV15PX 15,000 lb Overhead 2-Post Lift
Price range: £3,023.54 through £3,247.54
Description
The Atlas® PV Series delivers exceptional value for customers seeking a heavy-duty, professional-grade two-post lift at a competitive price point. Atlas® has been producing PV Series above-ground two-post lifts for more than a decade, with thousands of units sold. These lifts are frequently described as “bulletproof,” extremely rugged, and built for demanding commercial environments.
The Atlas® XH-PV15PX is a commercial-grade lift engineered to handle everything from passenger vehicles to heavy-duty service trucks. The symmetrical columns are spaced nearly 123″ apart, providing over 109″ of drive-through clearance. This generous width accommodates wide vehicles and those equipped with extended side mirrors. The extended symmetrical arm design, combined with the included peg-style truck adapter set, allows operators to safely lift long wheelbase trucks and vehicles fitted with running boards. The increased overall height also provides the clearance necessary to raise vans and box trucks with confidence.
The Atlas® XH-PV15PX offers three height configurations. Standard settings include 165″ (13′ 9″) and 177″ (14′ 9″). A special reduced height of 150″ (12′ 6″) is available but requires the purchase of shorter cables.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
- 15,000 lb capacity
- Extra tall and extra wide design
- Commercial grade construction
- Adjustable height: 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height: 150″ (12′ 6″) (requires purchase of extra cables)

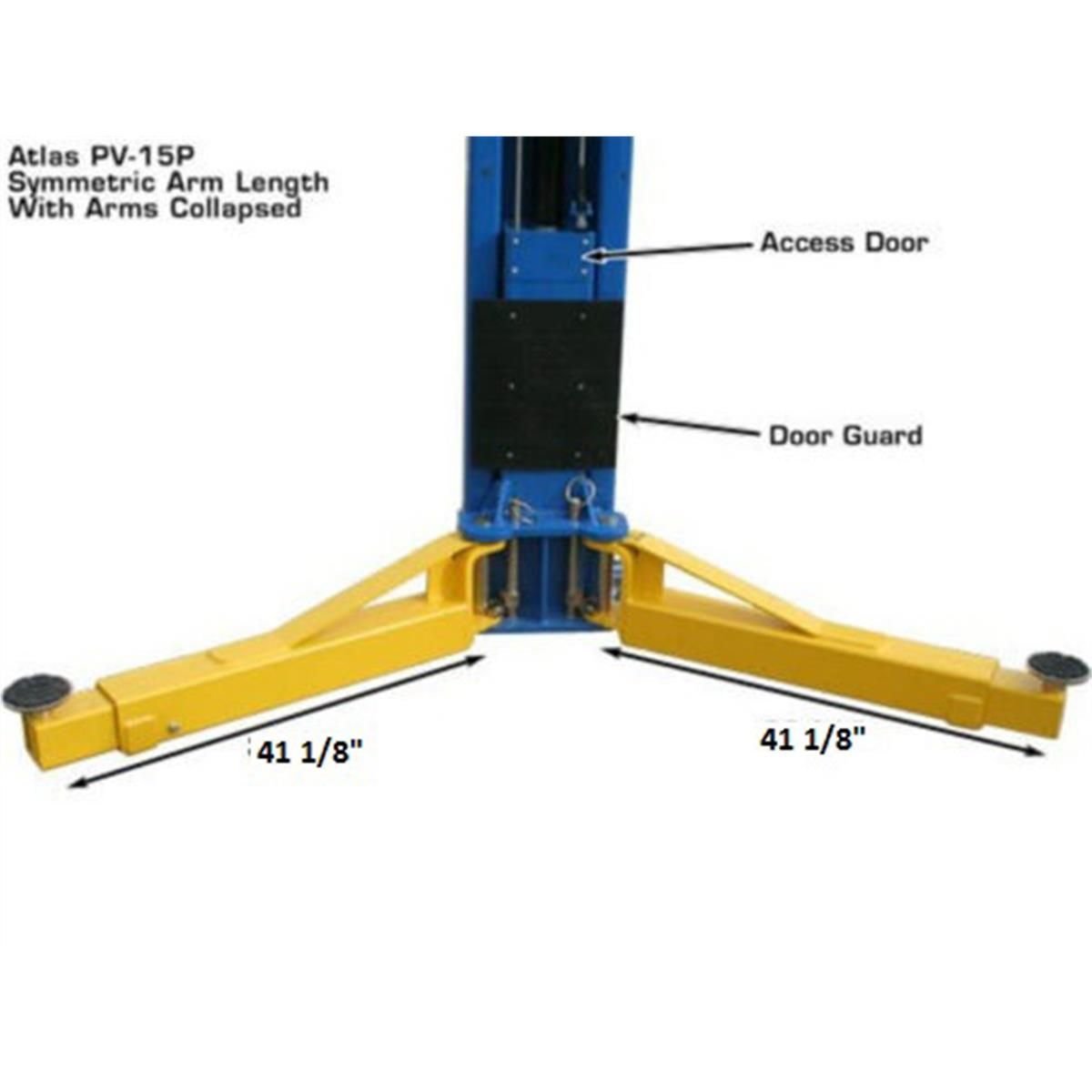

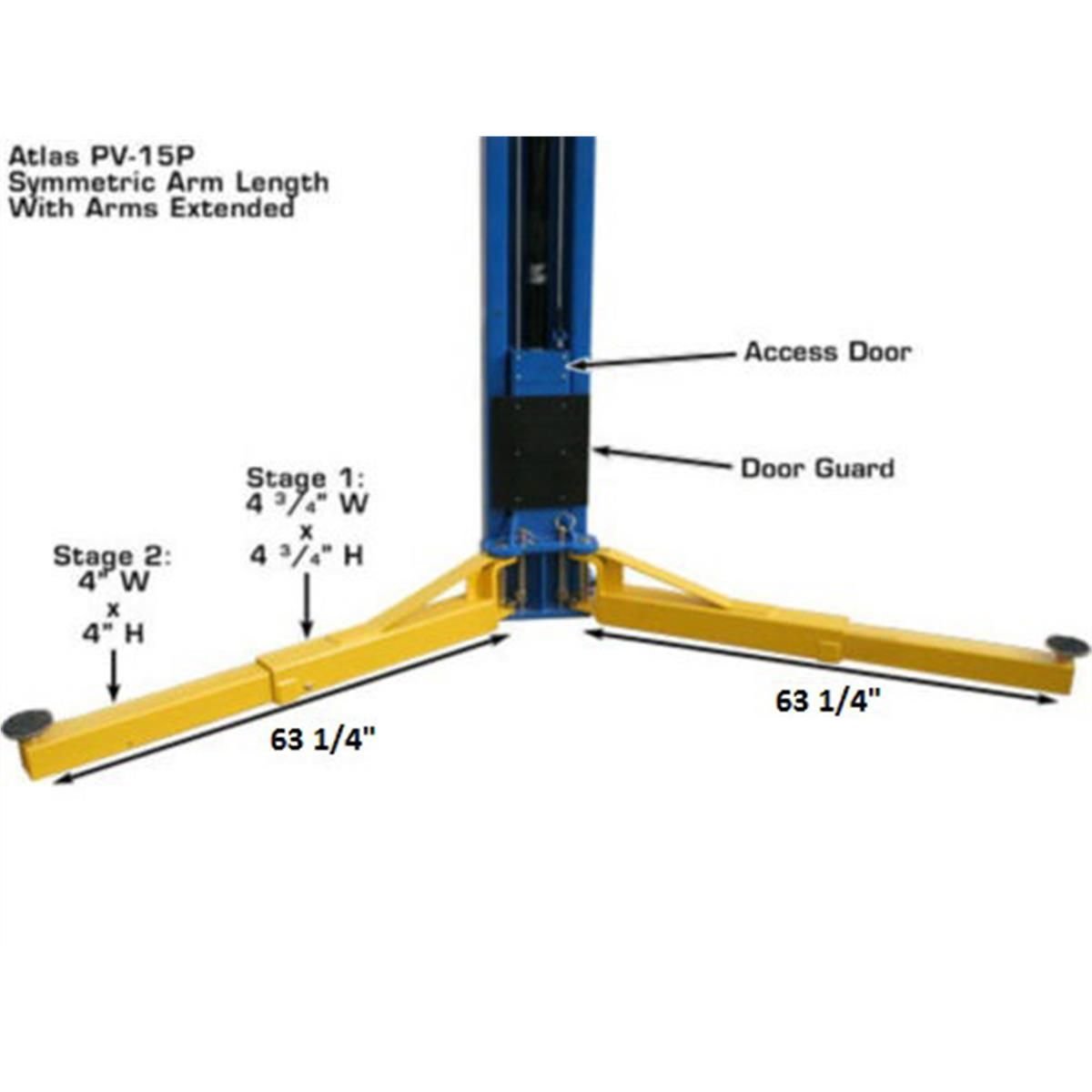

- Symmetric arms

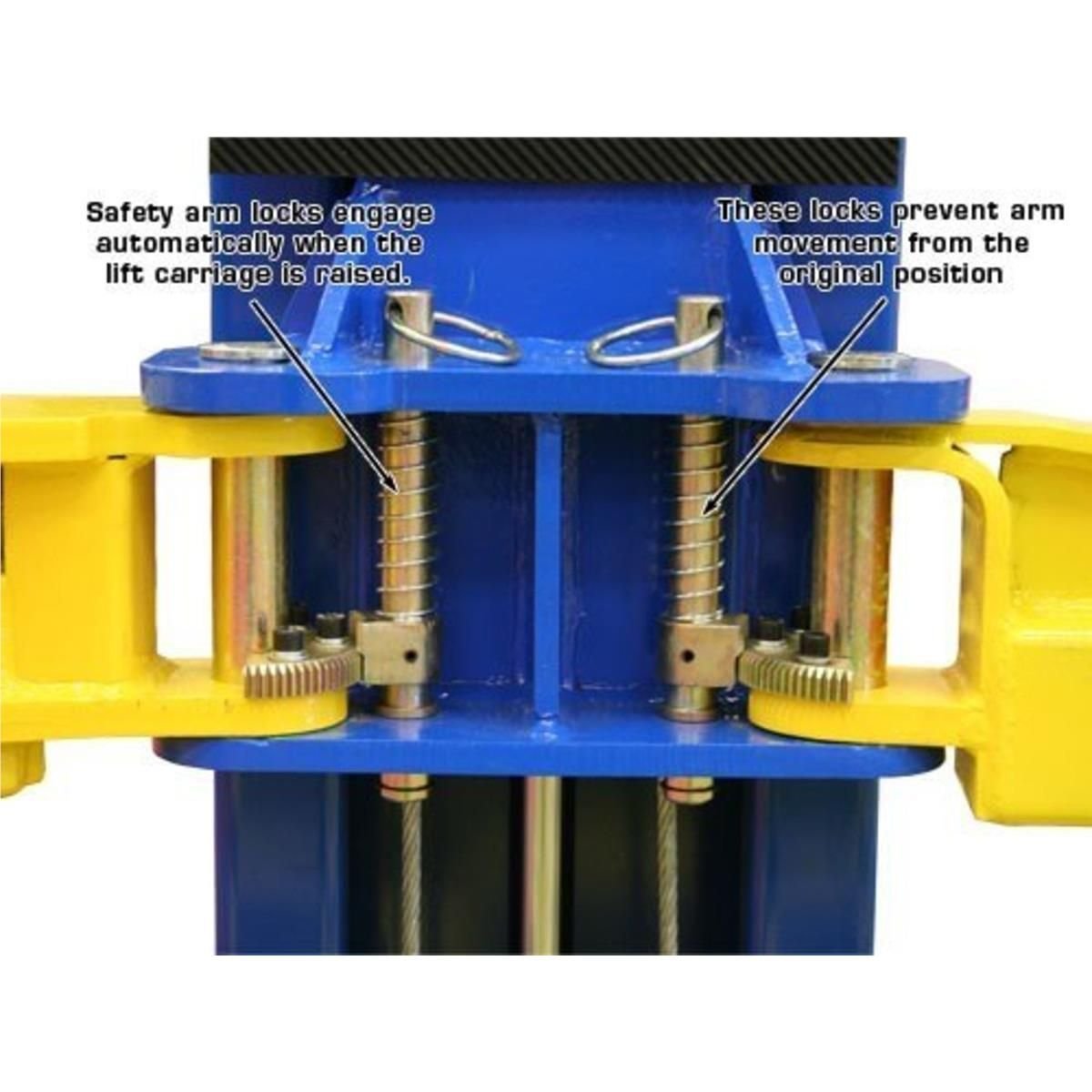

- Automatic arm restraints
- “Padded” shut-off bar
- Door guards on carriages

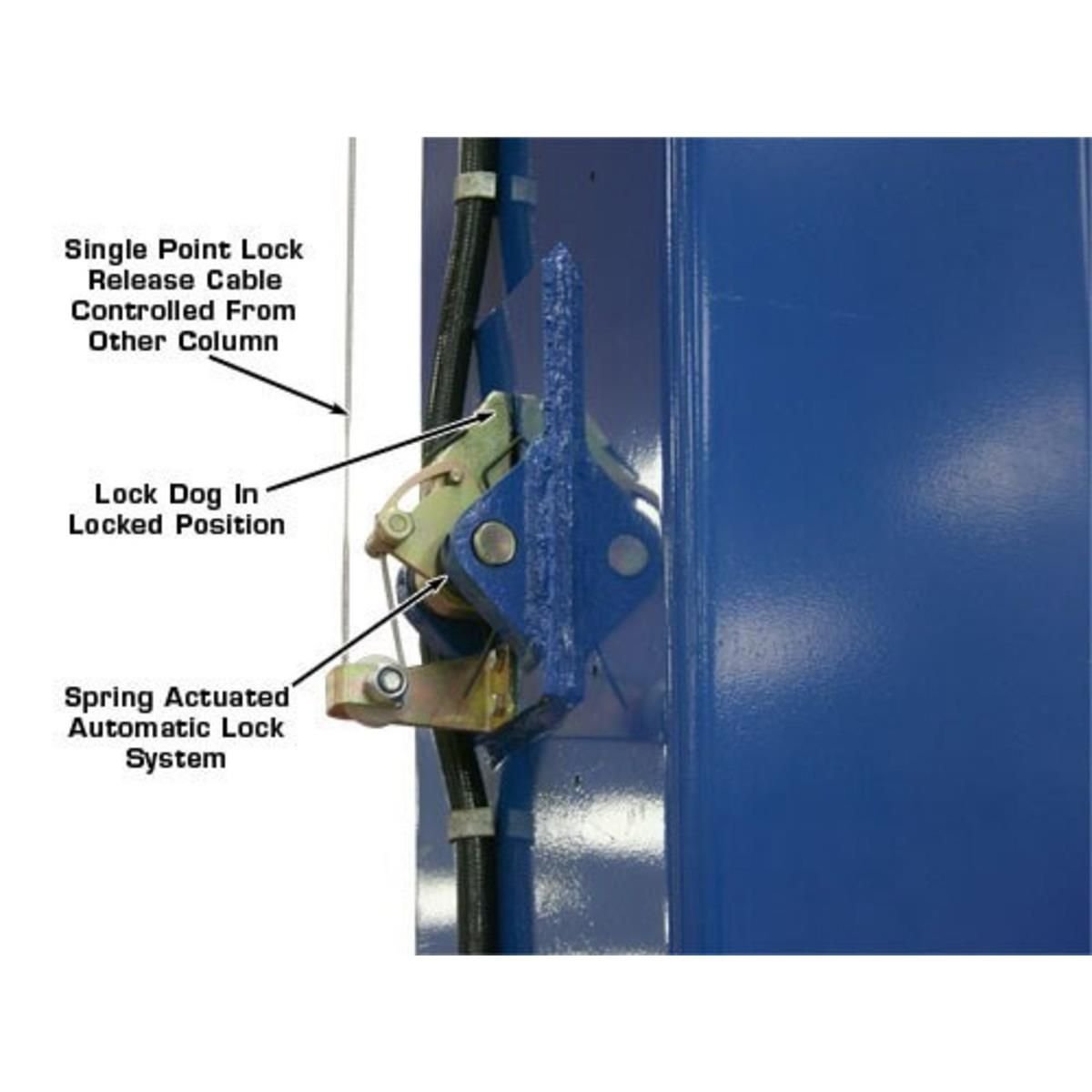

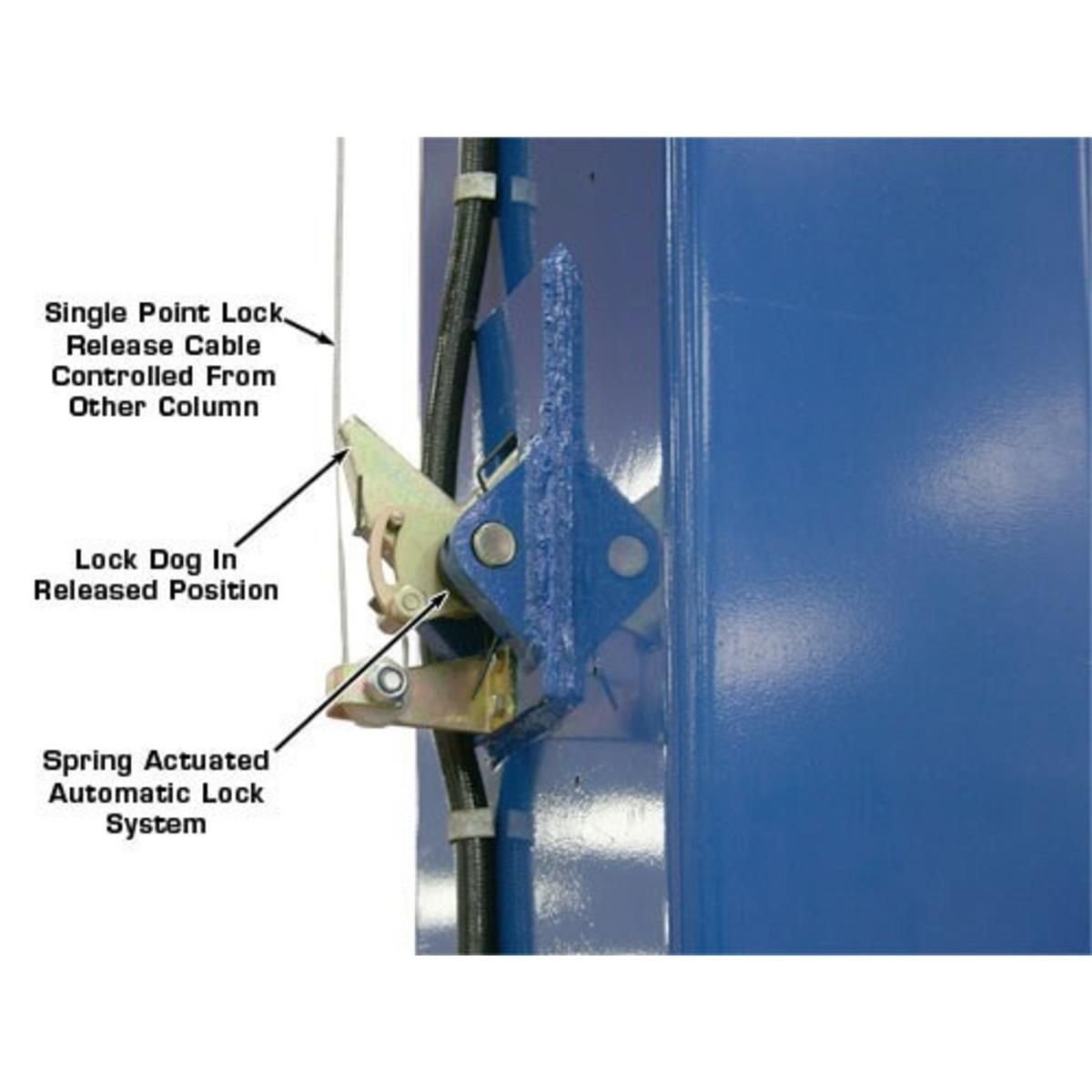

- Single-point lock release
- Direct-drive cylinders
- Powder coat finish
- Free 12-piece truck adapter set

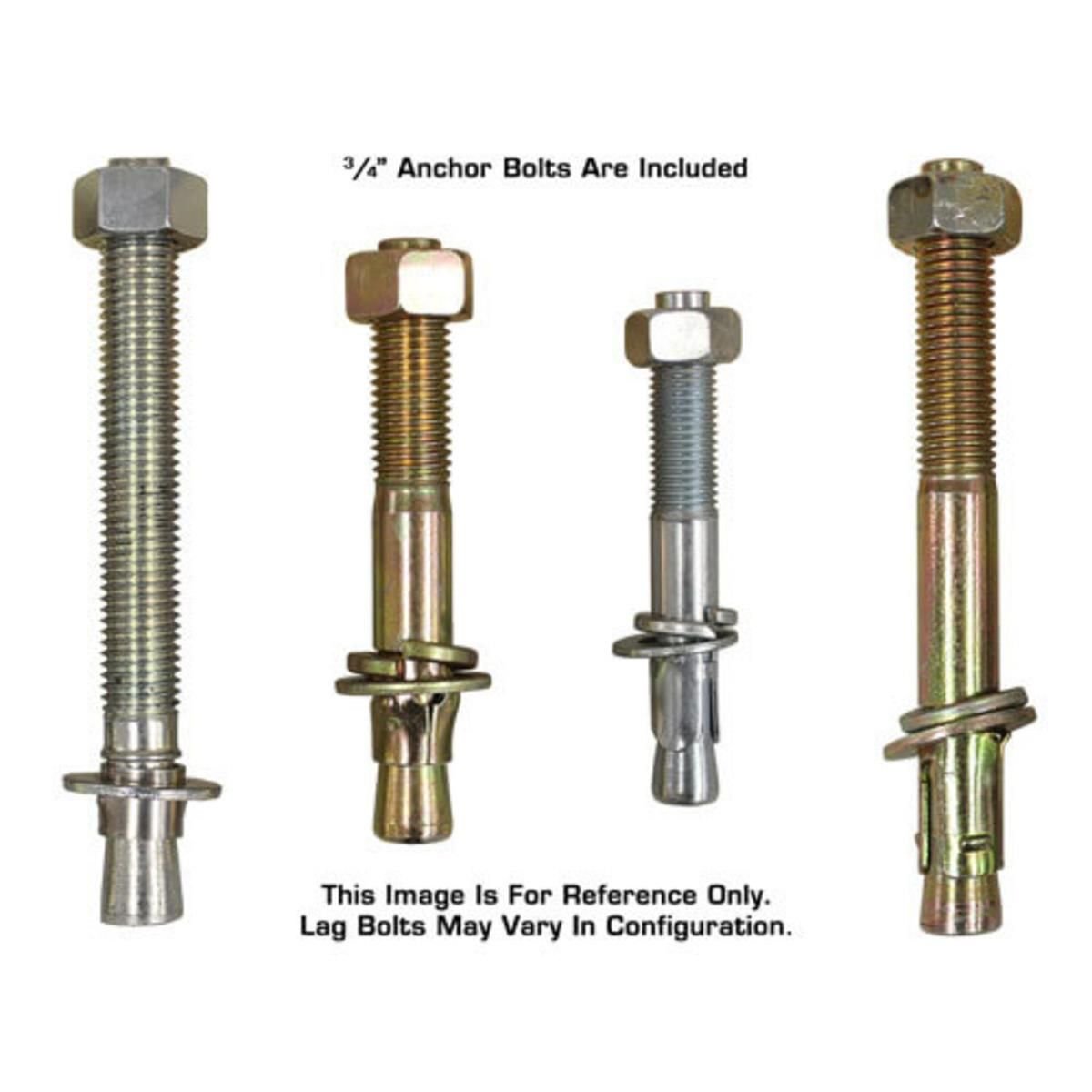

- Mounting hardware included

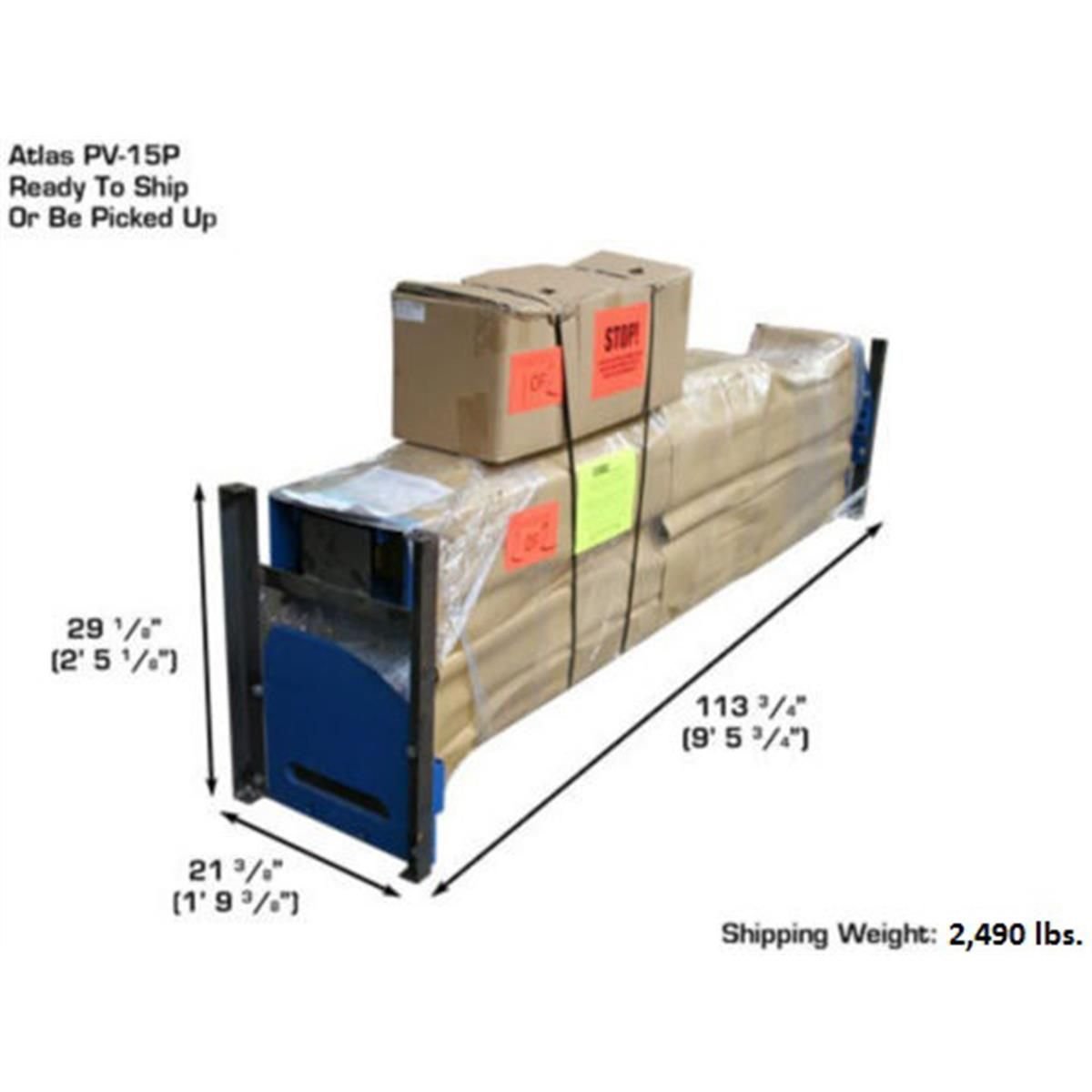

- Shipping weight: 2,490 lbs.
- 5-year structural warranty – 2-year hydraulic warranty (parts only)
Specifications
Atlas® XH-PV15PX Specifications
| Specification | Details |
|---|---|
| Capacity | 15,000 lbs. |
| Overall Height | 165″ (13′ 9″) or 177″ (14′ 9″) |
| Special Low Height | 150″ (12′ 6″) (requires purchase of extra cables) |
| Overall Floor Width | 150 3/4″ (12′ 6 3/4″) |
| Outside Column to Outside Column | 139 1/8″ (11′ 7 1/8″) |
| Maximum Lift Height (Without Adapters) | 72 1/4″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Pad Height | 7 1/4″ |
| Inside Column Width | 123 1/2″ (10′ 3 1/2″) |
| Drive-Thru Clearance | 109 1/2″ (9′ 1 1/2″) |
| Column Size | 7 1/2″ x 14 1/2″ |
| Column Steel Thickness | 6 mm |

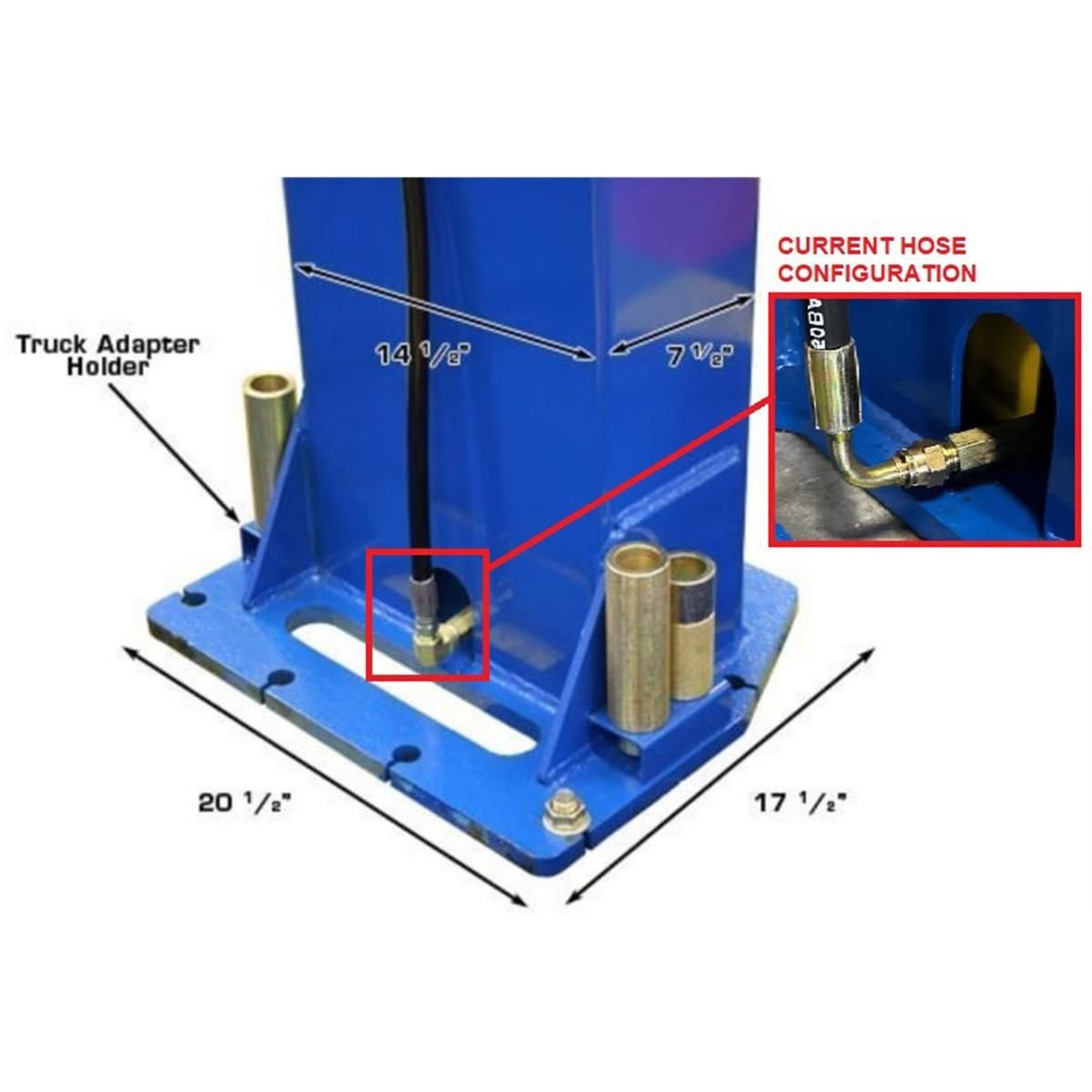

| Base of Lift | 17 1/2″ x 20 1/2″ |
| Motor / Electrical Requirement | 220 volt single (1) phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 2,490 lbs. |
| Adapter Heights | 4 each: 1.25″, 2.5″, 5″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
Installation Requirement:
Requires a minimum of 6″ thick concrete with a 3,000 PSI rating.
