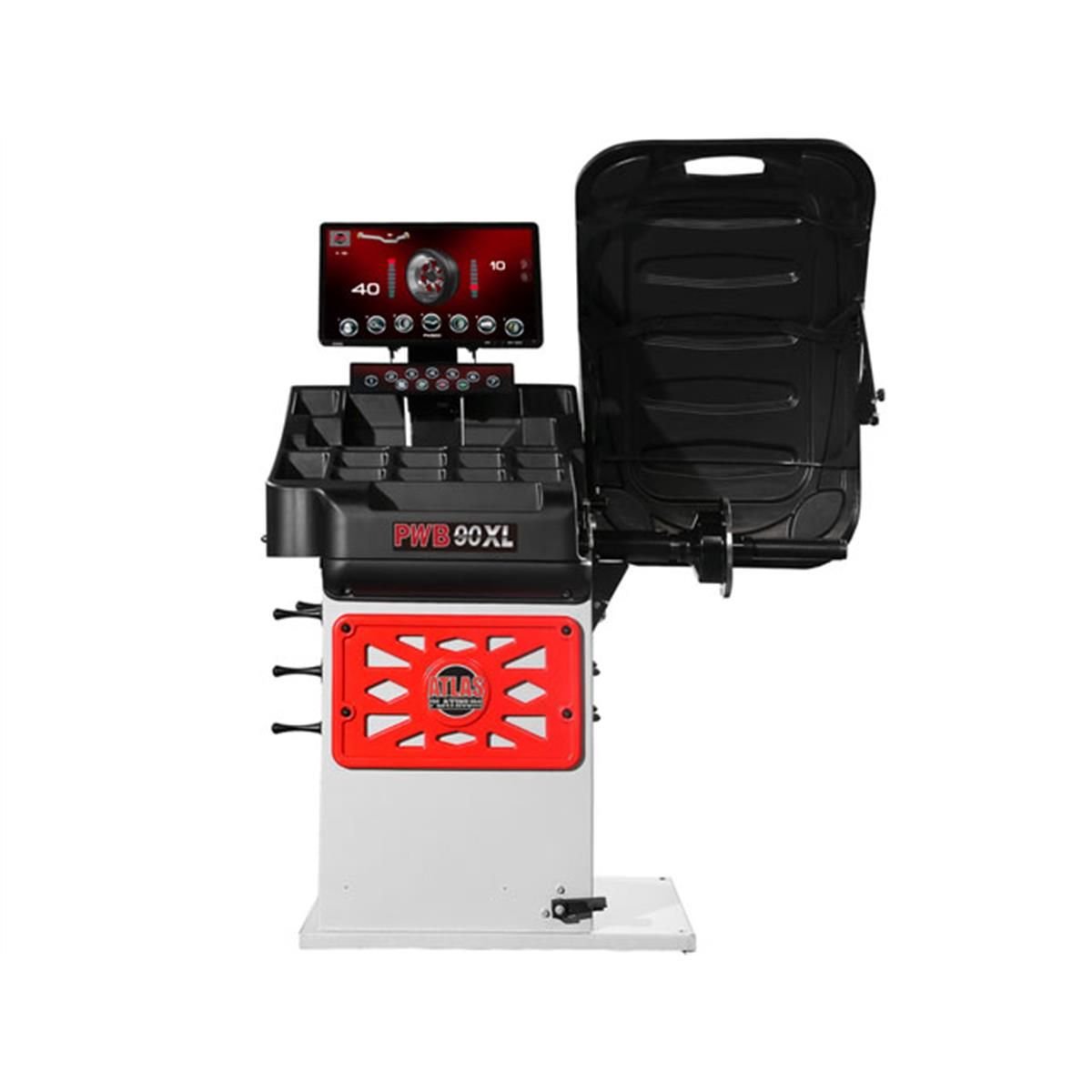

Atlas Platinum PWB90XL 3D Video Wheel Balancer W/ Laser Line
Price range: $2,418.74 through $2,508.34
Description
The Atlas® Platinum PWB90XL is equipped with Super Automatic 3D Data Entry, utilizing a single measuring gauge for offset and diameter, along with touchless sonar technology to determine rim width—eliminating the need for a traditional measuring arm. With the weight placement arm, the operator can select the most convenient location for applying weights. A built-in Laser Line then guides the user precisely back to that position after the spin cycle, minimizing human error and delivering accurate zero/zero results on the first attempt.
The Fast & Easy Split (FES) function simplifies concealing adhesive weights behind wheel spokes, while the Opposite Weight Function (OWF) allows the technician to shift the weight application position from 12 o’clock to 6 o’clock for easier access when installing adhesive weights. The PWB90XL also features OPTIMATCH software, enabling tire and wheel unbalance optimization (match mounting) to efficiently balance even the most challenging wheel assemblies.
The PWB90XL is a true top-tier wheel balancer, designed to compete with premium industry benchmark brands. It delivers exceptional speed, precision, and durability by combining Italian engineering and components with the Factory Direct Value associated with Atlas® worldwide.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
- Platinum 3D Video Motorized Spin Balancer
- Italian Engineering and Components
- High-Resolution Video Monitor Display
- Super Automatic 3D Data Entry (Touchless Sonar for Rim Width)
- Laser Line for Precise Weight Placement
- LED Light to Illuminate Wheel Interior
- Static and Dynamic Balancing Modes
- Optimatch, FES (Split), and OPF (Opposite Position) Functions
- Special ALU-S and Additional ALU Programs
- NWN (No Wheel Need) System
- Self-Diagnosing and Self-Calibrating
- USB Hub for Firmware Updates via PC/Notebook
- High Stability in Measuring Imbalance Between Planes
- Displays in Grams or Ounces, and in Millimeters or Inches
- No Anchor-Down Installation Required
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, and Measuring Calipers
- Replacement Parts & Wear Items Always in Stock
- 2-Year Parts-Only Warranty
Specifications
Atlas® Platinum PWB90XL Specifications
| Max Tire Diameter | 43″ |
|---|---|
| Rim Sizes (Cars and Light Trucks) | 10″ – 30″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40 mm |
| Max. Wheel Weight | 165 lbs. |
| Balancing Speed | 130 rpm |
| Data Entry | Super Automatic 3D |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 seconds |
| Power Supply | 110 volt |
| Shipping Weight | 290 lbs. |
