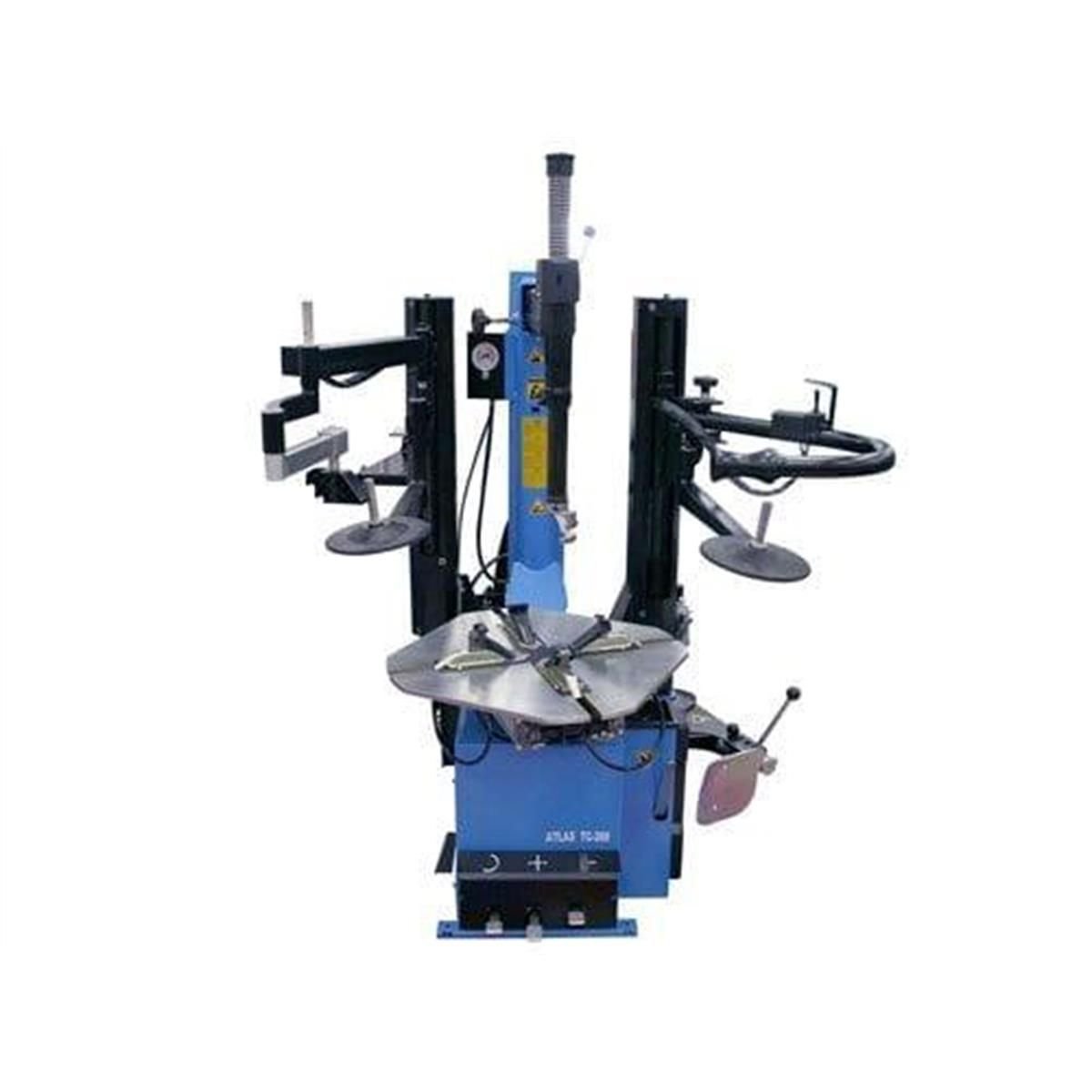

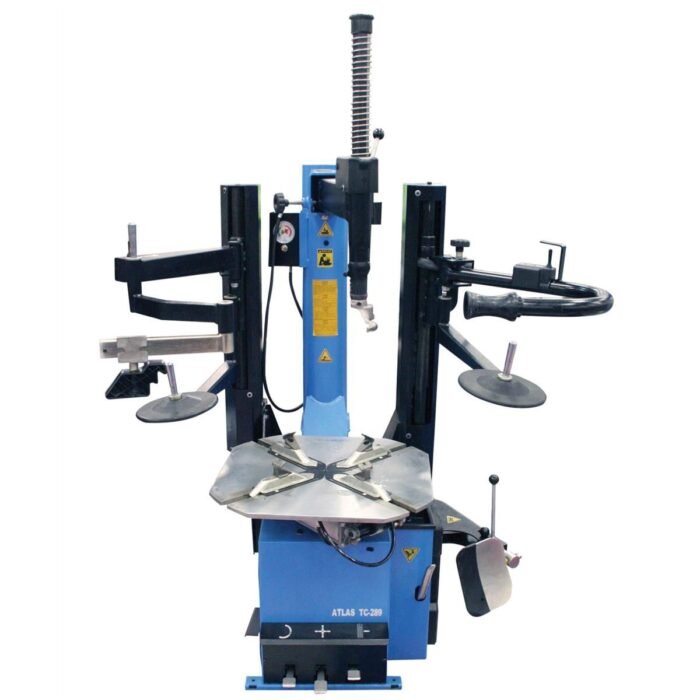

Atlas TC289DAA Extra Large Rim-Clamp Tire Changer w/ Dual Assist Arms

Description

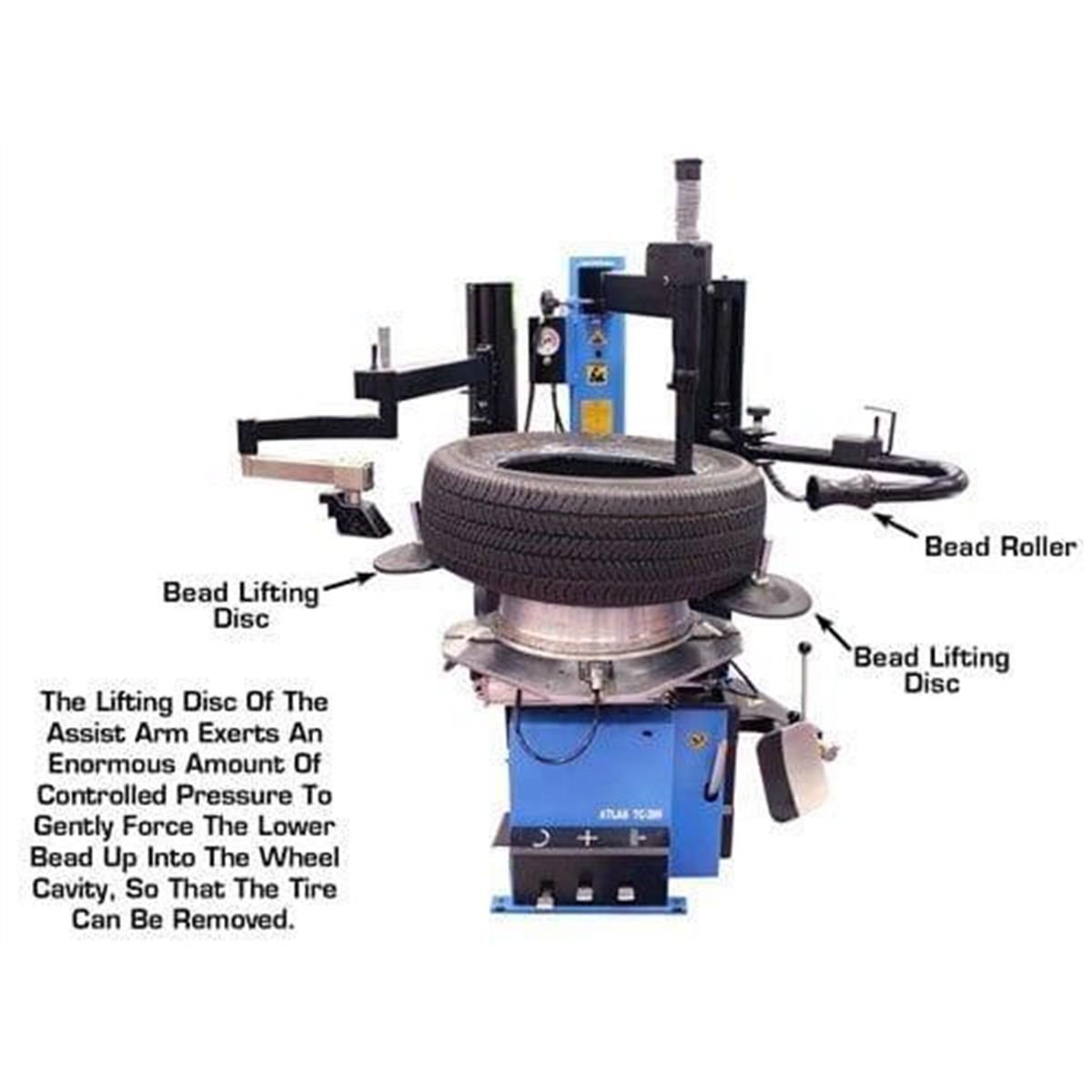

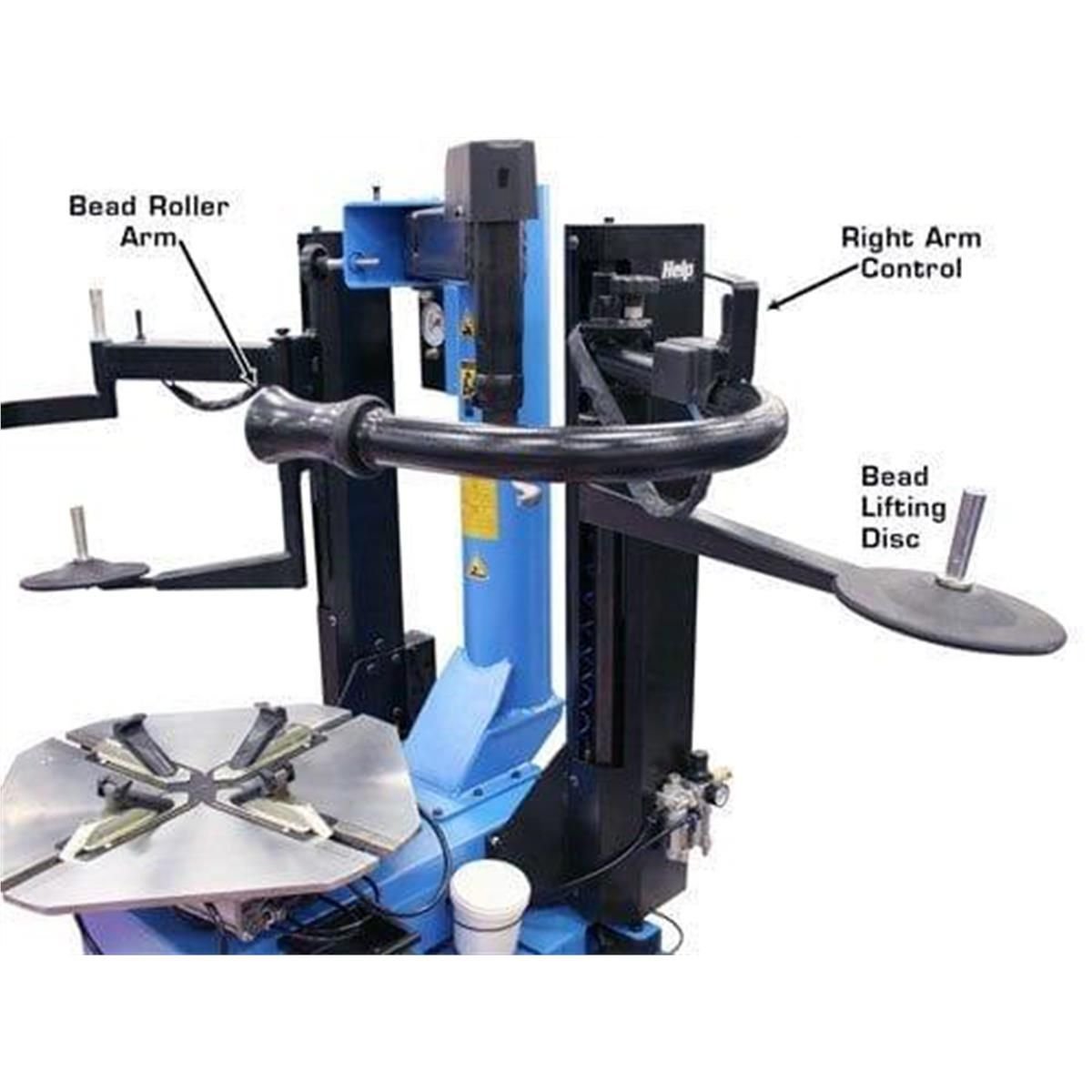

The Atlas® TC289DAA rim clamp, swing arm tire changer is an excellent choice for general automotive service departments, mid-sized tire shops, and farm applications. This version of the TC289 includes the Atlas® DAA-SA dual assist arm package, consisting of a left-mounted arm with a pressing block and pressing/lifting disk, along with a right-mounted arm equipped with a pressing/lifting disk and bead roller. These dual assist arms are essential for shops frequently servicing stiff sidewall, low-profile, and run-flat tires. The DAA system effectively serves as an extra set of hands, reducing operator fatigue and increasing efficiency.

The Atlas® TC289DAA features the largest turntable in its class and provides maximum clearance for servicing large-diameter tires, making it ideal for large SUVs and one-ton trucks. It also includes a built-in “Beadblaster” system designed to help seat and inflate stiff sidewall or otherwise difficult-to-inflate tires.

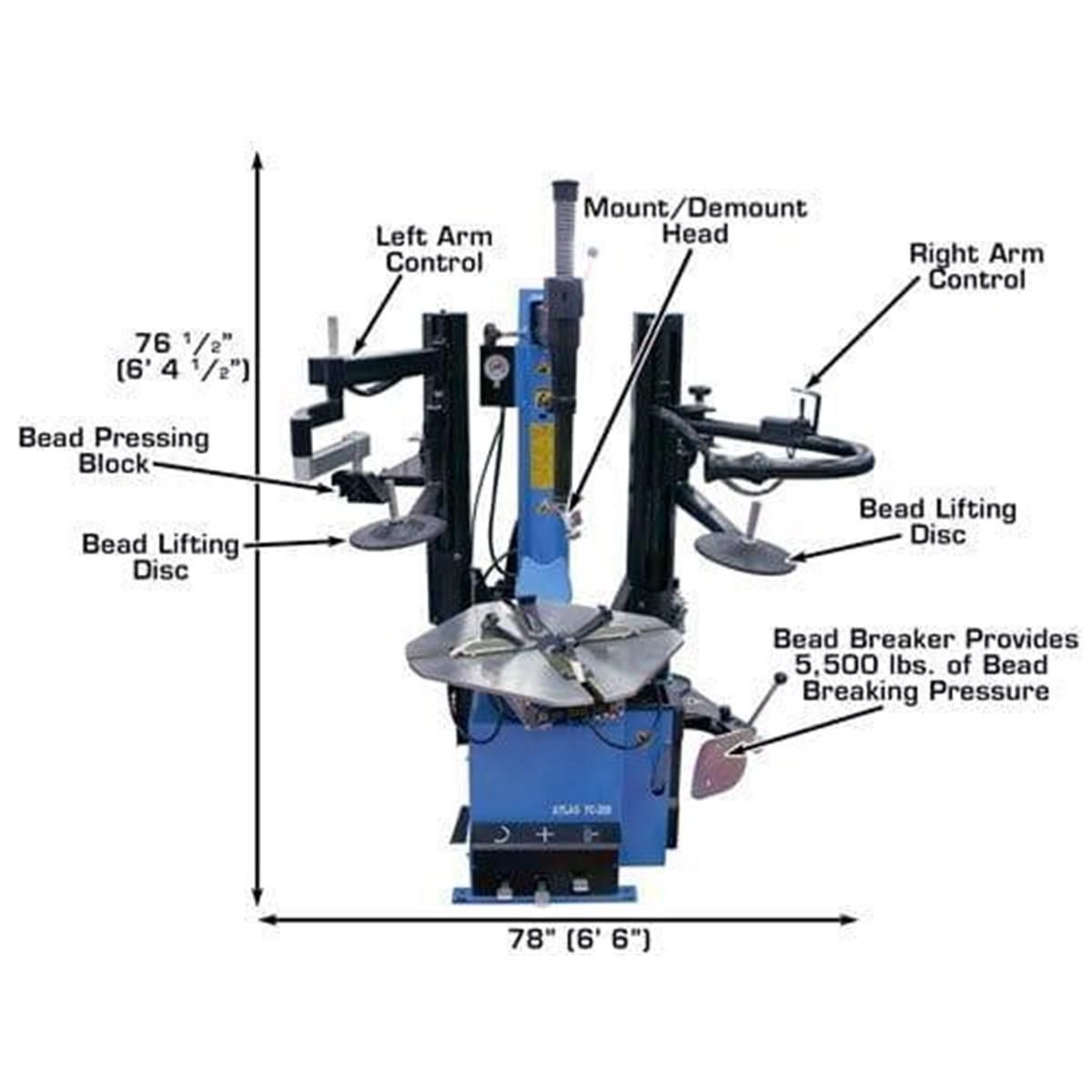

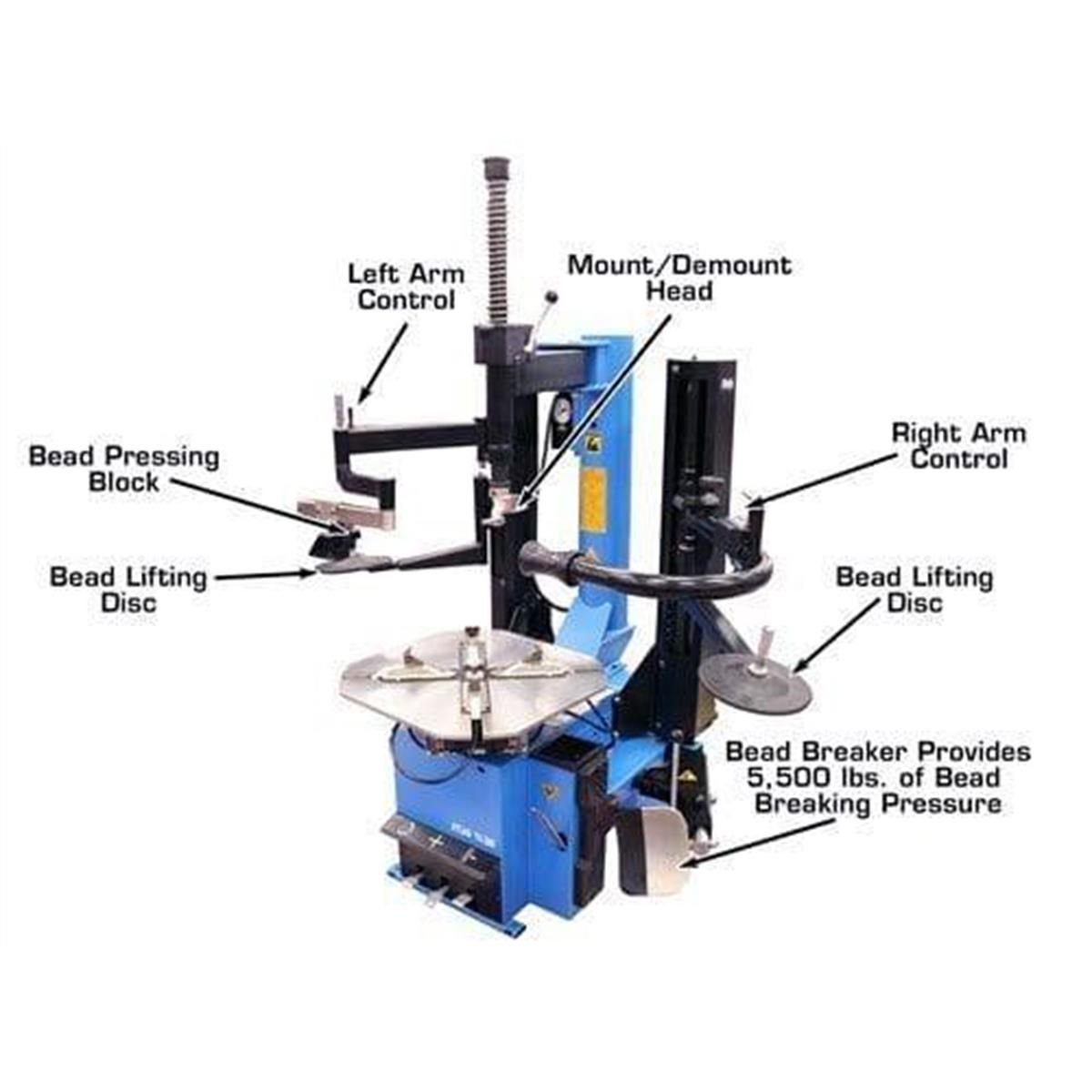

Atlas® wheel clamp tire changers are engineered to handle both premium alloy wheels and standard steel wheels without damaging the rim or tire. The TC289 is equipped with a powerful adjustable bead breaker mounted on the side of the machine, capable of loosening even heavily rusted or stubborn beads without causing rim damage. The turntable jaws, which can be fitted with plastic protective covers, securely clamp the rim while preventing surface damage. These jaws can be adjusted to three different positions along the turntable slide, allowing the operator to increase or decrease the clamping range to accommodate a wide variety of tire sizes.

The Atlas® TC289DAA requires some assembly after purchase.

Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.

Features

• Large rim clamp / swing arm tire changer
• Extra-large turntable for increased clearance
• Dual assist arms included
• Air-operated jaws and bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws with three mounting positions

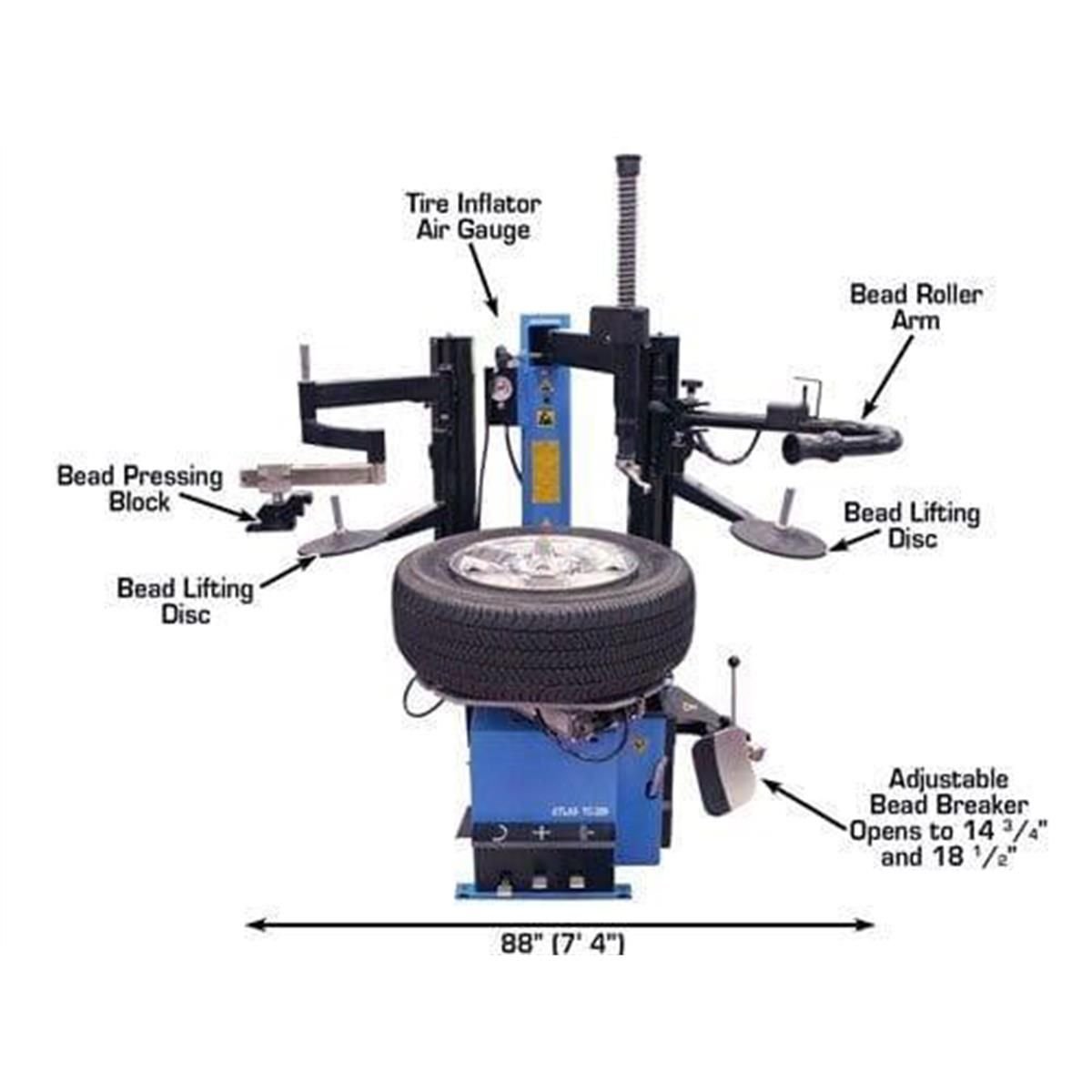

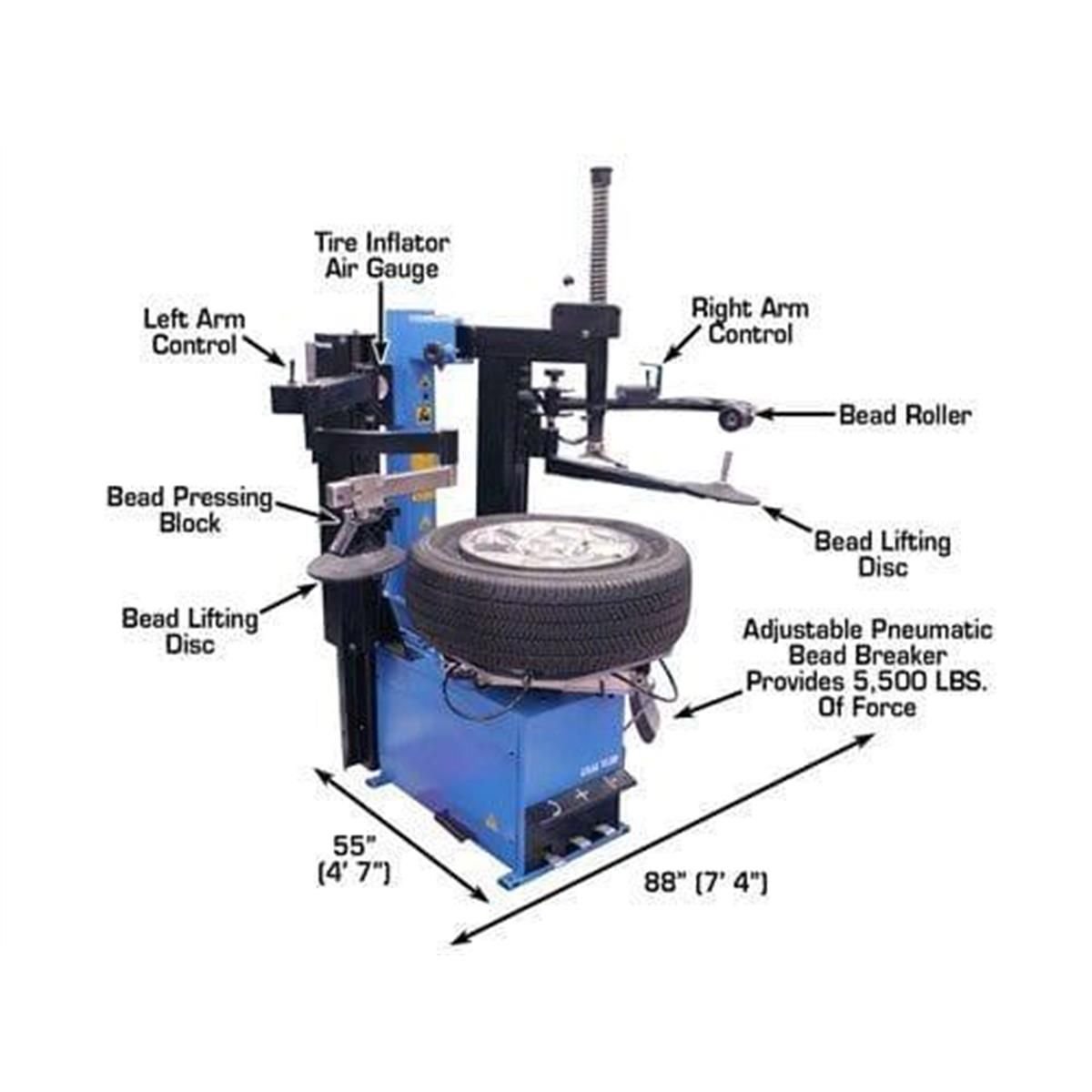

• Adjustable bead breaker plate
• Metal mount/demount head with metal roller or replaceable plastic inserts
• Column-mounted inflator box with gauge included
• Filter / Regulator / Lubricator included
• 20″ Tire tool included
• Lube bucket with brush included
• Set of large plastic jaw covers included
• Plastic cover for bead breaker shovel included
• Multiple replacement plastic inserts for mount/demount head included
• Motorcycle and ATV adapters available (sold separately)
• Built-in “Beadblaster”
• Replacement parts and wear items always in stock
• 1-year parts-only warranty

Specifications

Atlas® TC289 Specifications
