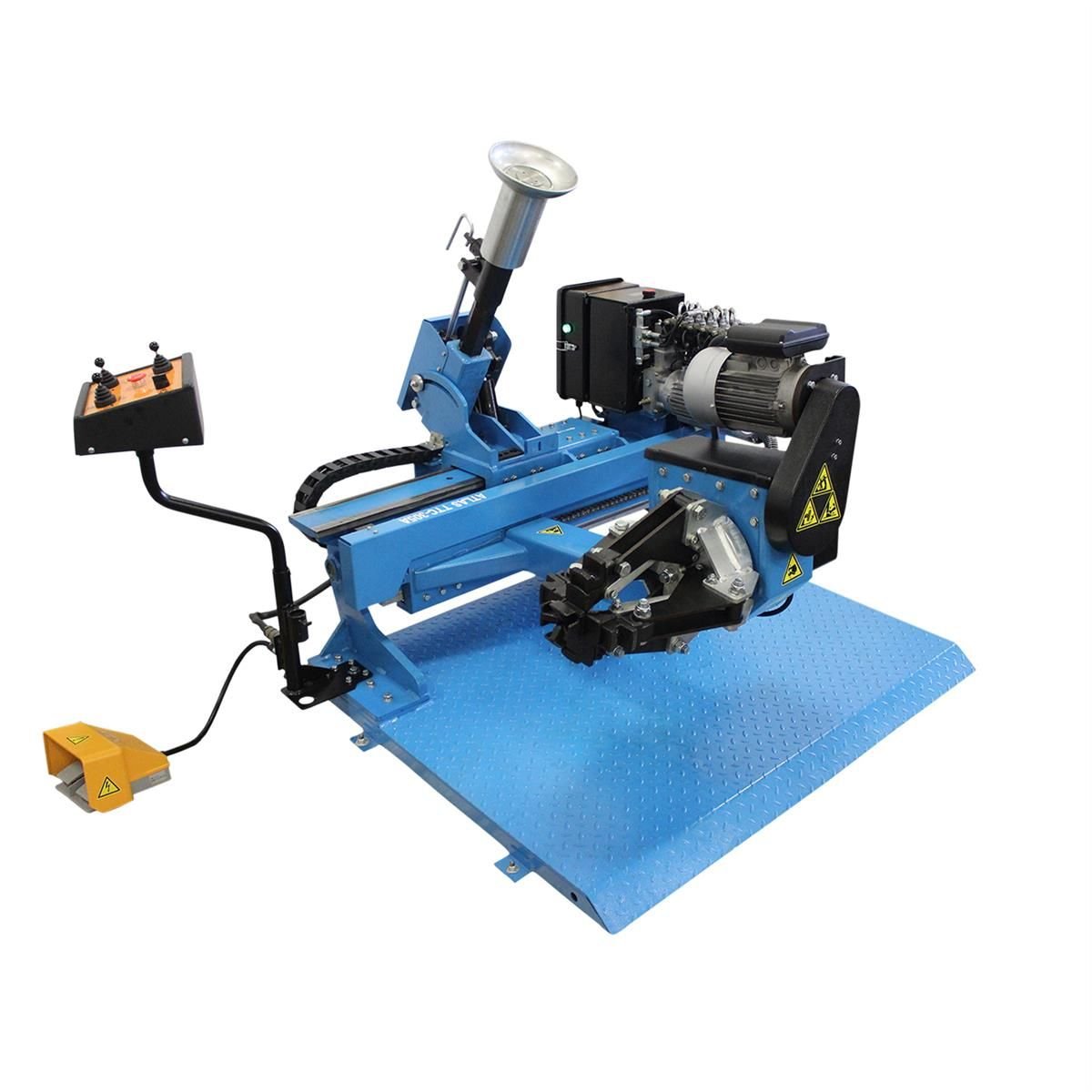

Atlas TTC305A Automated Truck Tire Changer
Price range: $4,748.33 through $4,972.34
Description
The Heavy Duty Atlas® TTC305A automatic truck tire changer is engineered to service rim bore sizes ranging from 8 inches to 26 inches and tire diameters exceeding 55 inches. The fully automatic Atlas® TTC305A can handle tires with a maximum width of 30 1/2 inches. This model was developed through a collaboration between a highly respected Italian wheel service manufacturer and a leading wheel service equipment producer in Asia.
The Atlas® TTC305A features a single-speed hydraulic chuck with five (5) rim locking positions. An ergonomic toggle control panel combined with foot pedal controls enables fully automatic operation. The main control panel allows the technician to operate the automatic movement of the chuck arm, raise and lower the bead tool, and automatically position the carriage to align the bead tool with the tire. Foot pedals control the rotational direction of the chuck. The unit includes both a standard mount/demount head and a high-speed roller head that can be interchanged quickly. An emergency stop switch on the control panel immediately halts all machine functions when activated.
This automatic tire changer is ideal for high-volume operations servicing semi-truck tires, 19.5-inch tires, and forklift tires. Eliminate the need for manual tire irons and excessive physical effort—let the Atlas® TTC305A handle large and heavy assemblies beyond the capacity of standard passenger tire rim-clamp machines.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- Fully Automatic Truck Tire Changer
- Handles Rims from 8″ to 26″ and Tire Diameters Over 55″
- Accommodates Tires up to 30 1/2″ in Width
- Automatic Movement and Positioning of Bead Tool, Carriage, and Chuck Arm
- Bead Breaker
- Interchangeable Mount/Demount and Roller Heads
- Electric/Hydraulic Self-Centering Four-Jaw Chuck
- Five Rim Locking Positions
- Mounted Control Unit with Additional Foot Pedal Controls
- Heavy-Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set with Plastic Inserts Included
- 1-Year Parts-Only Warranty
Specifications
Atlas® TTC305A Specifications
| Specification | Details |
|---|---|
| Rim Clamping Range | 13″ – 26″ |
| Minimum Clamping Size w/ Alloy Adapters | 8″ |
| Max Wheel Weight | 838 lbs. |
| Max Tire Diameter | 55″ |
| Max Tire Width | 30 1/2″ (2′ 6 1/2″) |
| Clamping Power | 6,600 lbs. |
| Operating Pressure | 0–1885 PSI |
| Acoustic Pressure | <70 dBA |
| Bead Breaker Force | 3,990 lbs. |
| Tool Arm Positioning | Automatic |
| Tool Head Positioning | Automatic |
| Construction | Single-Piece Frame with Solid Floor Plate |
| Hydraulic Motor Power | 2 HP, 220V (+/- 5% 209–231 volts) 1 Phase, 30 amp breaker required |
| Chuck Motor Power | 3 HP, 220V (+/- 5% 209–231 volts) 1 Phase, 30 amp breaker required |
| Shipping Weight | 1,490 lbs. |
