Atlas WB49-2 Premium 2D Computer Wheel Balancer

Description

The Atlas® WB49-2 represents the newest generation of Atlas® wheel balancer technology. This premium model features Automatic 2D Data Entry, where offset and diameter measurements are entered automatically using the inner measuring gauge. It also includes a redesigned LED display monitor and an updated chassis that provides a more functional layout and modern appearance.

Additional premium features include a Split-Weight Function for discreet placement of wheel weights behind spokes and an integrated automatic LED light to illuminate the inside of the rim during weight installation. Like the Atlas® WB41, the WB49-2 features a raised display for improved visibility and a larger, more accessible wheel weight tray.

The Atlas® WB49-2 includes self-diagnostic capabilities and displays error codes, enabling operators to perform adjustments or repairs in-house without waiting for a service technician. It accommodates a wide range of wheels, supporting rim diameters up to 32″. The unit comes standard with four cones to fit center holes from 1.75″ to 5.18″. For larger center bores and wheels with greater offset, a Light Truck Adapter Kit—consisting of a larger cone and spacer—is available separately.

The Atlas® WB49-2 can accurately balance wheel assemblies weighing up to 150 lbs. While many balancers advertise a 150 lb capacity, there is a significant difference between a shaft supporting that weight and a machine precisely balancing it.

Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.

Features

• Computer-controlled motorized spin balancer
• Raised, easy-to-read display
• Large wheel weight tray
• Automatic 2D data entry
• Width measuring gauge for automatic 3D data entry available (sold separately)
• Split-weight function for hiding weights behind spokes
• Automatic LED rim illumination
• Auto-positioning

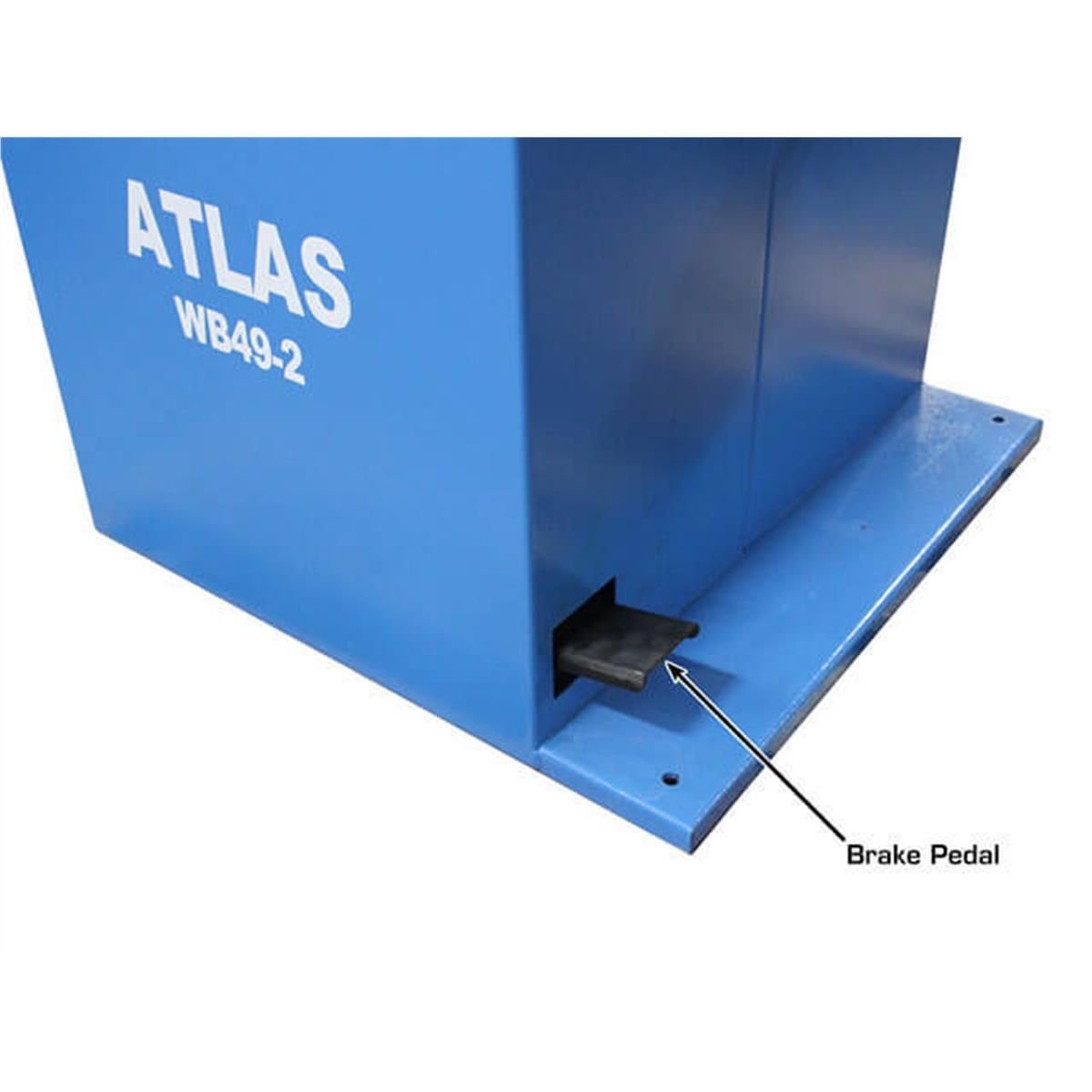

• Automatic and pedal-operated brake
• Automatic start/stop when hood is lowered or raised
• Static and dynamic balancing modes
• Rapid optimization (OPT)
• Self-diagnosing and self-calibrating system
• Superior stability in measuring imbalance between planes
• Displays in grams or ounces, and in millimeters or inches
• No anchor-down installation required
• Includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers
• Replacement parts and wear items readily available
• 1-year parts-only warranty

Specifications

Atlas® WB49-2 Specifications
