Autel MaxiAlign IWA500ACT Wheel Alignment System with Tablet and Rim Storage Cabinet

Description

The Autel IWA500ACT is the IWA500 MaxiAlign wheel alignment system bundled with the 10.1-inch touchscreen MaxiAlign IWA500 tablet and an Autel-branded metal rim-storage cabinet. The system is purpose-built for one job: fast, precise, repeatable wheel alignments. A mobile six-camera frame captures camber, caster, toe, and thrust angle on U.S., Asian, and European vehicles from 1975 to current production, with continuously updated OE alignment specifications loaded by server-based Auto VID.

The guided workflow starts with vehicle identification, then steps the technician through an all-systems pre-scan, undercarriage inspection, and tire tread depth and pressure analysis before measurement begins. Real-time feedback during adjustment shortens iteration loops and reduces the number of “re-check, re-measure” cycles per alignment. The auto-tracking crossbar follows the vehicle as the lift moves, holding precise target alignment without manual repositioning between measurement passes.

Beyond standard alignment, the IWA500 handles the cases that slow most bays down: bump steer, raised-vehicle adjustment for limited-clearance designs, wheel-off mode for tight suspensions, and SAS (Steering Angle Sensor) calibration to properly complete alignments on ADAS-equipped and electronic-steering vehicles. Autel’s MaxiToe feature centers the steering wheel during toe adjustment without a steering wheel holder, simplifying a step that traditionally requires extra hardware and a second set of hands.

The IWA500ACT is fully portable bay-to-bay — there is no fixed installation. Detailed pre- and post-alignment reports document every job for the customer, the insurer, and the shop’s records, and the reports save, print, or share digitally from the tablet.

Features

• Mobile six-camera frame — captures camber, caster, toe, and thrust angle; bay-to-bay portable
• Server-based Auto VID — instant vehicle identification with OEM alignment specifications loaded automatically
• Guided graphical workflow — all-systems pre-scan, undercarriage inspection, and tire tread depth and pressure analysis before measurement
• Core measurements — rolling diameter, symmetry values, camber, caster, toe, thrust angle
• Advanced functions — bump steer, raised-vehicle analysis, wheel-off adjustment
• MaxiToe — centers the steering wheel during toe adjustment without a steering wheel holder
• SAS (Steering Angle Sensor) calibration — completes the post-alignment task required on ADAS-equipped and electronic-steering vehicles
• Auto-tracking crossbar — automated crossbar positioning follows the vehicle as the lift moves and maintains target alignment
• Pre- and post-alignment reports — detailed OE-spec verification reports; save, print, or share digitally
• Compatible with Autel’s Bluetooth handheld inclinometer for Mercedes-Benz alignment workflows (inclinometer sold separately)

Compatibility

• Vehicle coverage: U.S., Asian, and European models, 1975 to current production
• ADAS-equipped vehicles: SAS Relearn supports post-alignment requirements on modern electronic-steering and ADAS vehicles
• Mercedes-Benz alignment: pair with Autel’s Bluetooth-enabled handheld inclinometer (sold separately) to support Mercedes-Benz alignment workflows
• Bay placement: bay-to-bay portable; no fixed installation required

What’s Included

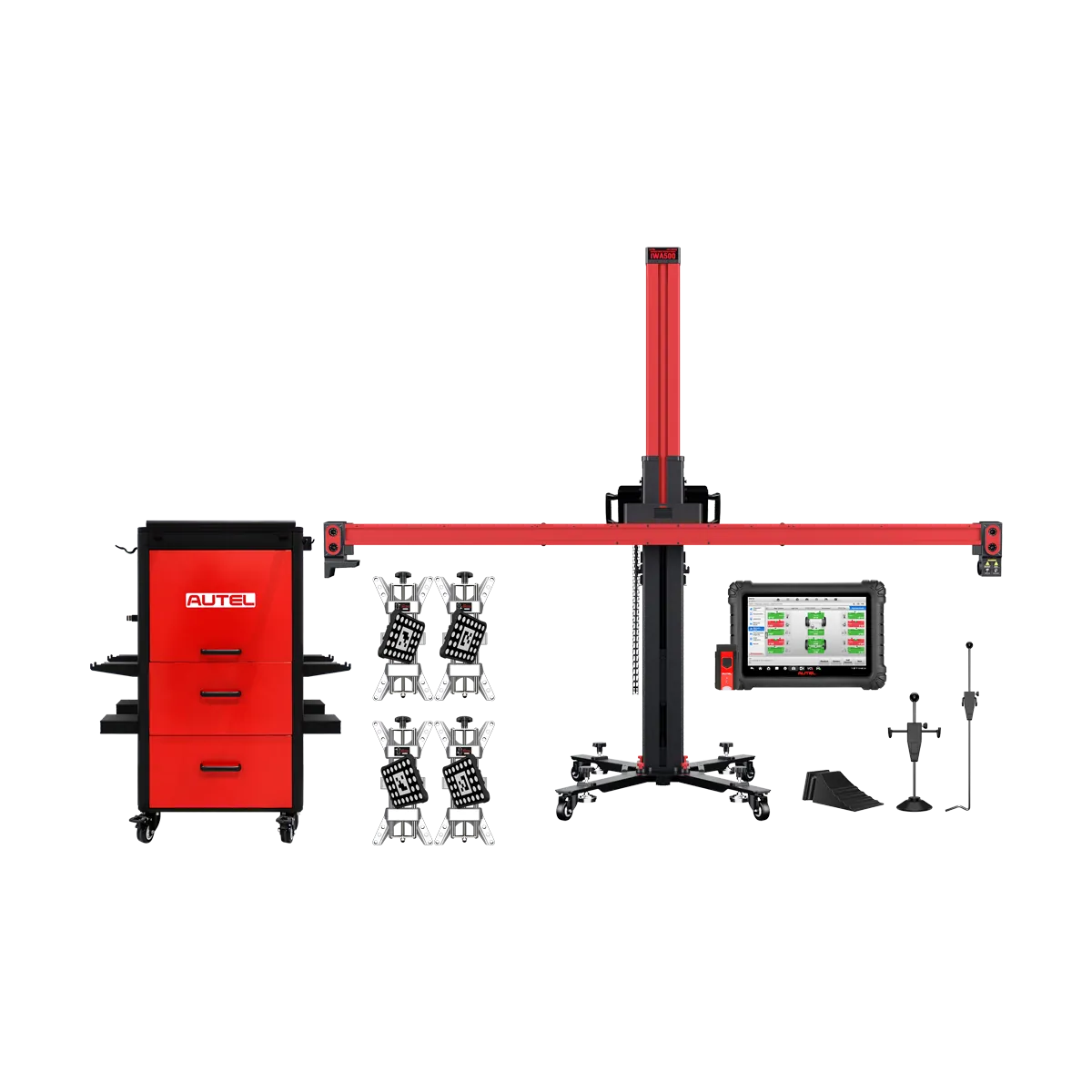

• IWA500 mobile six-camera wheel alignment frame
• 10.1-inch touchscreen wireless MaxiAlign IWA500 tablet
• Bluetooth MaxiVCI V200 vehicle communication interface
• Autel-branded metal rim-storage cabinet
• Four (4) tire rim clamps with positioning targets
• Two (2) wheel chocks
• Brake pedal depressor
• Steering wheel holder stand tool
• Equipment cover
• Tablet holder
• AC power cord
• 12/24 V power cord

Warranty

One-year limited warranty covering the IWA500 alignment system, MaxiAlign IWA500 tablet, and rim-storage cabinet. The tablet ships with one year of included software updates so vehicle coverage and OE alignment specifications stay current through the warranty period.

FAQ

How is the IWA500ACT different from the IWA500T?

The IWA500T package includes the IWA500 alignment system and the MaxiAlign IWA500 tablet only. The IWA500ACT adds the Autel-branded metal rim-storage cabinet for organizing the four rim clamps and accessories between jobs.

Does the IWA500 handle ADAS calibration?

The IWA500 is a wheel alignment system, not an ADAS calibration system. It performs Steering Angle Sensor (SAS) calibration as part of the post-alignment workflow on ADAS-equipped vehicles, which is what most alignments on modern electronic-steering vehicles require. Full ADAS calibration (radar aim, camera target placement, LDW, BSM, etc.) is handled by Autel’s IA700, IA900, and IA1000 family of ADAS calibration systems.

Does it work on alignment-rack lifts or scissor lifts?

The IWA500 is a mobile, free-standing frame designed to roll bay-to-bay. It works alongside any properly equipped alignment-capable lift; the system itself does not require a dedicated lift.

Is installation included?

The IWA500ACT ships in a packaged configuration. The Quick Guide for Disassembly & Assembly (below) walks through bay setup. Contact MGS if your shop needs installation coordination.

Documents

• IWA500 Flyer
• IWA500 Main Control Tablet Operation Quick Guide
• IWA500 Quick Guide for Disassembly & Assembly
