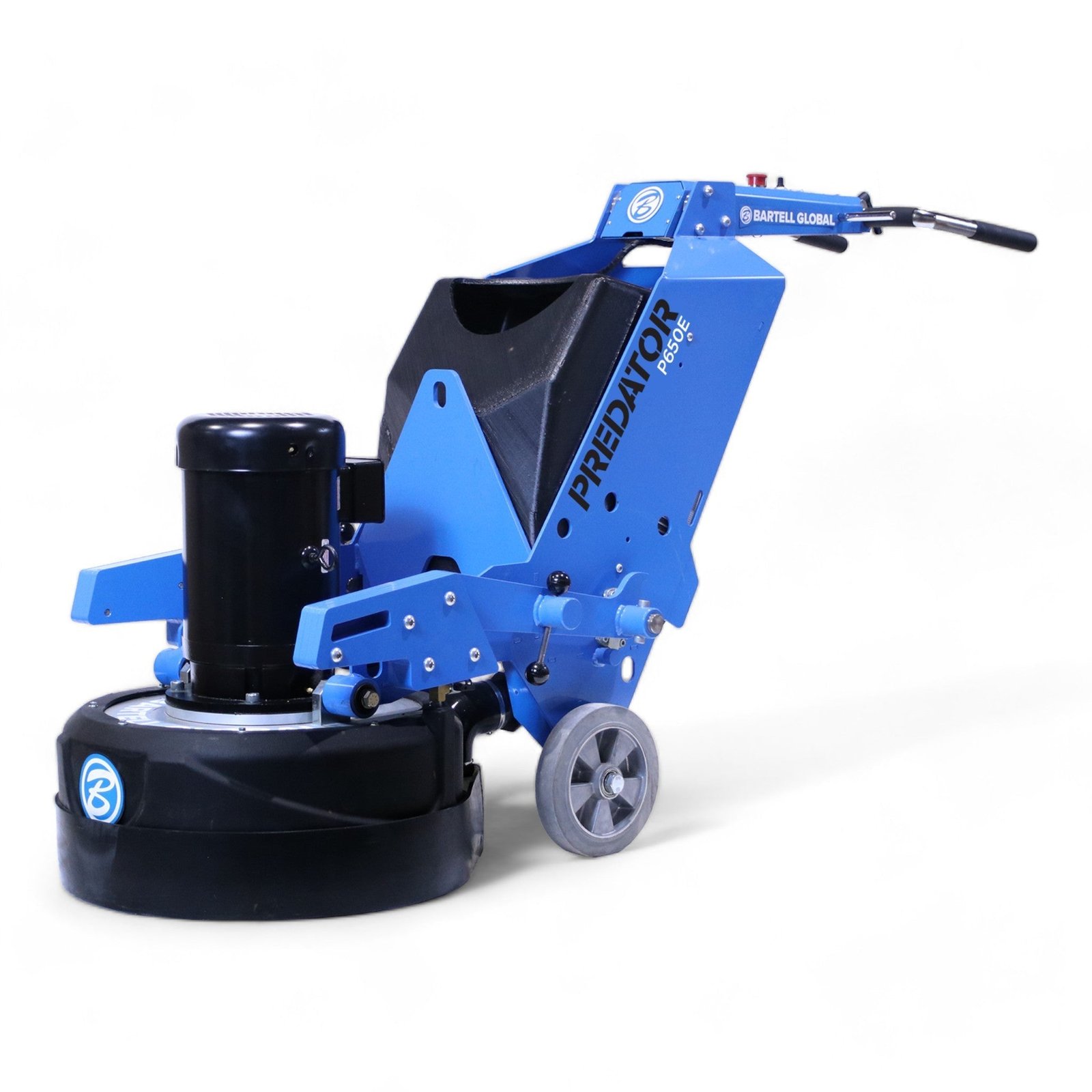

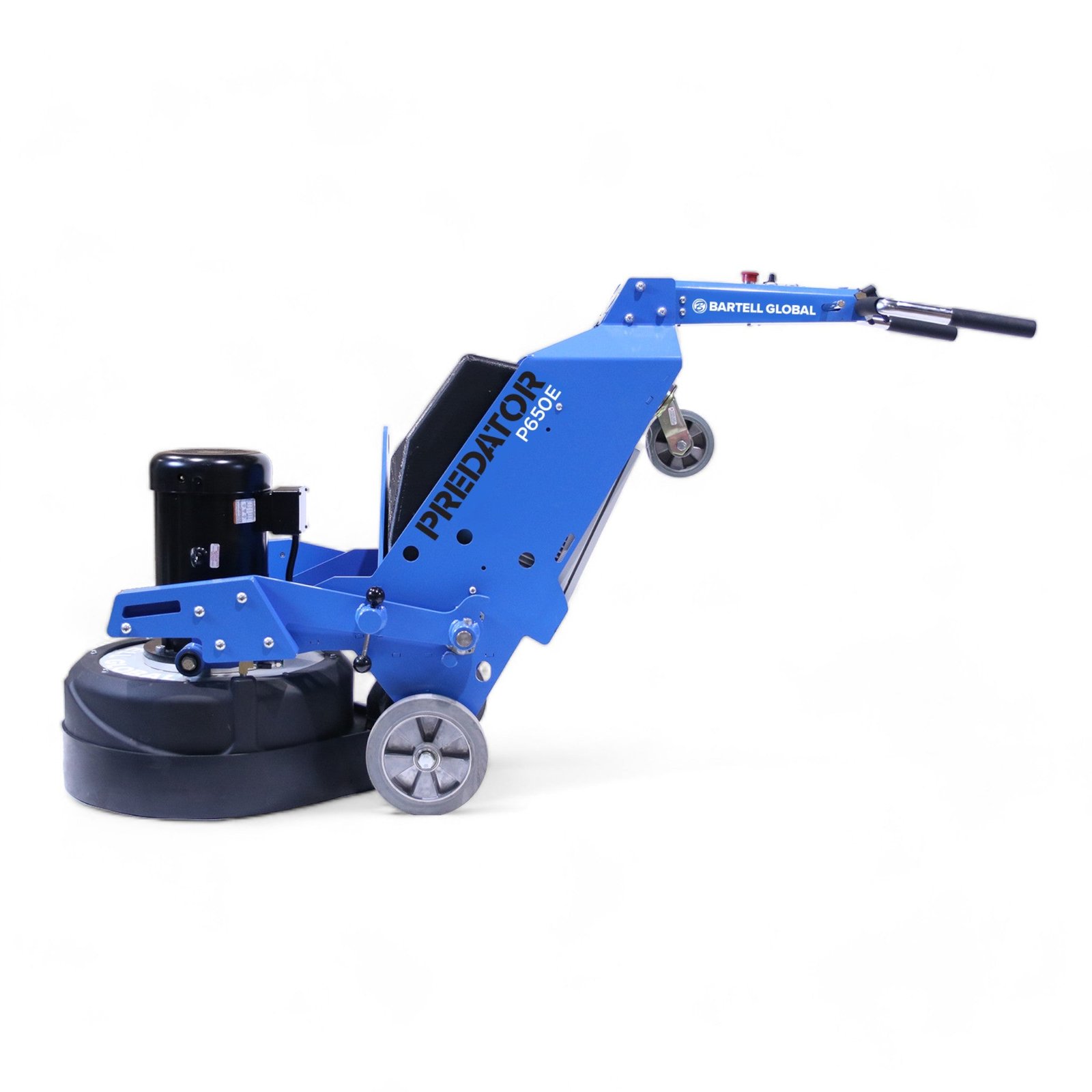

ALL NEW Predator Line of Concrete Grinder/Polishers

The PREMIUM LINE OF PLANETARY GRINDERS has been completely REIMAGINED, REDESIGNED, and REENGINEERED to meet the industry’s most demanding expectations. These machines are incredibly reliable, highly productive, well-balanced, and easy to operate for users at any experience level. Designed to integrate with the HD HEPA-filter Dust Extraction system, they offer exceptional dust control to keep your worksite clean, safe, and compliant.

Features:

• 3-HEAD PLANETARY DESIGN: Delivers top-tier grinding and polishing with even, professional-quality results on every surface.
• ENGINEERED WEIGHT DISTRIBUTION FOR MAXIMUM BALANCE: Provides smoother operation and reduces user fatigue while maintaining surface contact.
• TRUSTED BELT-DRIVEN MECHANISM: Offers reliable power delivery with minimal maintenance requirements and consistent performance.
• FAST-ADJUST HANDLES: Easily adapt the handle position for ergonomic use and quick job site setup.
• SPRING-LOADED SWING WEIGHTS WITH VARIABLE PRESSURE: Adjust head pressure to match surface conditions for optimal grinding results.
• HEAVY-DUTY STEEL PLATE FRAME: Built to withstand rugged environments and extended use without compromising performance.
• INTEGRATED TRANSPORT WHEELS: Ensure easy mobility across the job site with minimal lifting or strain.
• VARIABLE SPEED SETTINGS: Adjust grinding speed to suit specific surfaces, conditions, and finish requirements.
• FORWARD AND REVERSE GRINDING MODES: Increases control and flexibility across various grinding and polishing tasks.
• BUILT-IN WATER TANK: Supports wet grinding to suppress dust and extend tooling lifespan.
• DUAL LED LIGHTS (FRONT & REAR): Provide bright visibility for safe, precise operation in all conditions.
• ADJUSTABLE DUST SKIRT: Helps trap dust at the source, keeping the workspace clean and compliant with safety standards.
• LIFT, TIE-DOWN & WINCH CONNECTION POINTS: Make machine transport and handling secure and efficient.

Specifications:

• MODEL: P650E
• ELECTRIC MOTOR: 230V, 60 Hz, 1 Phase (460V, 60 Hz 3 Phase) and 230V, 60 Hz, 3 Phase (460V, 60 Hz 3 Phase): Offers versatile voltage configurations for a range of job site needs.
• POWER OUTPUT: 7.5 hp (5.6 kW), 10 hp (7.5 kW): Provides powerful grinding performance to handle demanding applications.
• VARIABLE HEAD SPEED: 1012 rpm: Allows optimal speed control for efficiency and surface finish.
• WATER TANK CAPACITY: 7.5 gal (28 litres): Large enough to support extended wet grinding without frequent refills.
• VACUUM PORT: 3″ (75 mm): Ensures excellent dust collection for cleaner and safer operation.
• GRINDING FORCE: 565 lbs (256 kg): Provides strong downward pressure for effective material removal.
• GRINDING WIDTH: 25 INCH (625 mm): Wide grinding area to increase coverage and productivity.
• INDIVIDUAL HEAD DIAMETER: 9 INCH (229 mm): Perfectly sized for control and maneuverability.
• MAX HEIGHT (HANDLE UP): 76 inch (1930 mm)
• MIN HEIGHT (HANDLE DOWN): 44 inch (1118 mm)
• MIN LENGTH (HANDLE & WEIGHTS FORWARD): 52 inch (1321 mm)
• MAX LENGTH (HANDLE & WEIGHTS BACK): 83 inch (2108 mm)
• WIDTH: 26 INCH (660 mm): Compact footprint for tight areas without sacrificing coverage.
• MACHINE WEIGHT: 775 lbs (351 kg): Solid construction for maximum stability during grinding.
