Bartell Super Vibratory Hand Winch Truss Screed

Deliver powerful, consistent vibration across the full aluminum screed length with the Bartell Super Vibratory Hand Winch Truss Screed. Designed to provide fast, smooth concrete surfaces, it handles slumps under 2″, delivers up to 14,000 vibrations per minute, and operates up to 25% faster than competitor models—even on varying concrete consistencies.

FEATURES

• COMPATIBLE WITH ALL FORM TYPES: Works efficiently with wood, metal, screed pipes, or concrete blocks. It can even checker-board from previously poured areas, enhancing versatility and jobsite adaptability.
• FULL-LENGTH TURNBUCKLES: Easily fine-tune slope and surface contours—whether crowning, dipping, or flattening—using built-in turnbuckles spaced along the screed. Offers up to 1/4 inch per foot adjustment, with locking jam nuts to hold your settings firmly.
• DURABLE LIGHTWEIGHT FRAME: Crafted from high-strength aluminum/magnesium for optimal strength without extra weight, enabling easier transport and longer service life.
• FULLY BOLTED DESIGN: No welding means easy replacement of components directly on-site with standard tools—minimizing downtime and simplifying maintenance.

SPECIFICATIONS

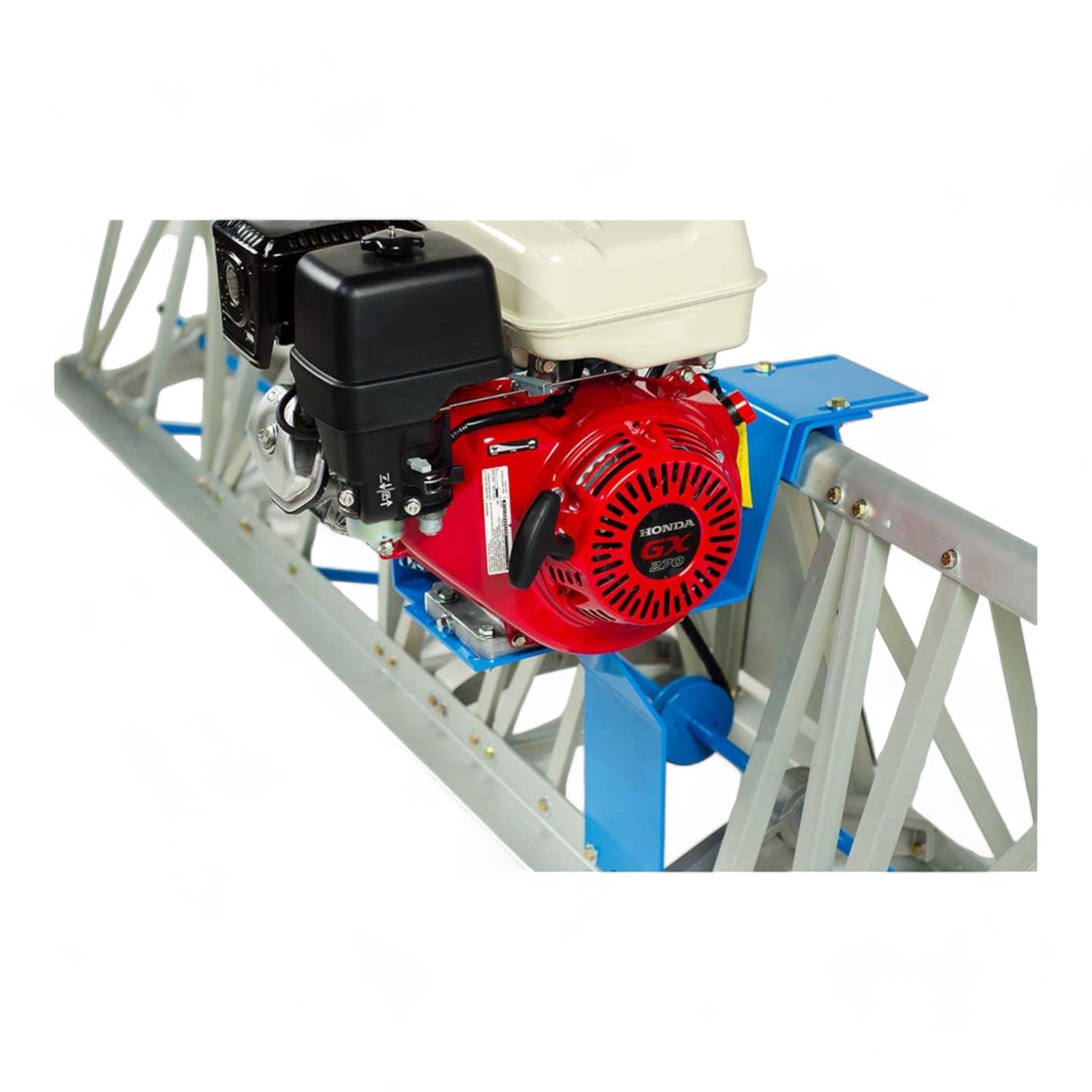

• ENGINE: Honda GX270: Trusted for its consistent power and dependable performance.
• TRUSS SCREED: Super: Premium classification for superior durability and output.
• HEIGHT: 19.5″ (50 cm): Balanced height to support usability and visibility.
• WIDTH: 15″ (37 cm): Compact design optimized for diverse jobsite conditions.
• WEIGHT: 15 lbs/foot (6 kg/30 cm): Lightweight build supports easy handling during setup and operation.
• BASE SECTION: 10′ (3 m), 94 lbs (43 kg): Provides strong foundational support during use.
• MOTOR MOUNT: 70 lbs (32 kg): Stable motor mount ensures continuous, vibration-rich performance.
• MAX RECOMMENDED SPAN: 80′ (24 m): Expansive working range accommodates large-scale pours.
• AVERAGE PEAK VIBRATION: 14,000 rpm: Delivers high-frequency vibrations for rapid and deep concrete settling.
• MAX COMPACTION DEPTH: 12″ (30 cm): Penetrates deep for thorough concrete consolidation.

SUBSECTIONS

• 2.5′ (0.75 m) – 31 lbs (14 kg)
• 5′ (1.5 m) – 55 lbs (25 kg)
• 10′ (3 m) – 100 lbs (45 kg)
• 0MS2-0120A – SCREED SUPER 10 FT SUBSECTION
• 0MS2-0121A – SCREED SUPER 5 FT SUBSECTION
• 0MS2-0126A – SCREED SUPER 2.5 FT SUBSECTION
• 0MS2-0131A – SCREED SUPER 1 FT SUBSECTION M2333
• 0MS2-0201A – SCREED SUPER SELF PROPELLED LH SECTION M1142
• 0MS2-0202A – SCREED SUPER SELF PROPELLED RH SECTION M1141

Choose the Bartell Super Vibratory Hand Winch Truss Screed for exceptional concrete finishing speed, user-friendly design, and unmatched durability. Perfect your flatwork with a screed built for performance and precision.
