Challenger Lifts EW1020 Wide Inground Lift 10,000 lbs. Capacity

Challenger Lifts EW1020 Wide Inground Lift 10,000 lbs. Capacity
Complete Package (Includes: Tub, Frame and Lift)

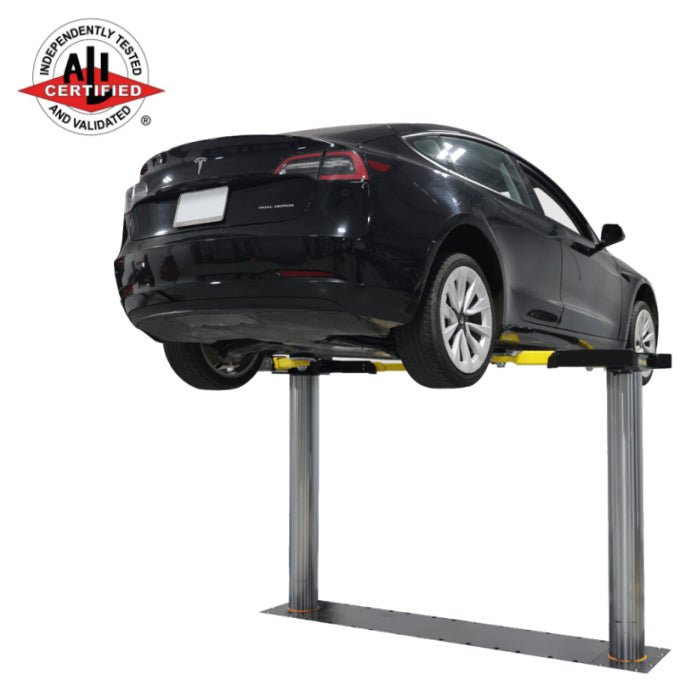

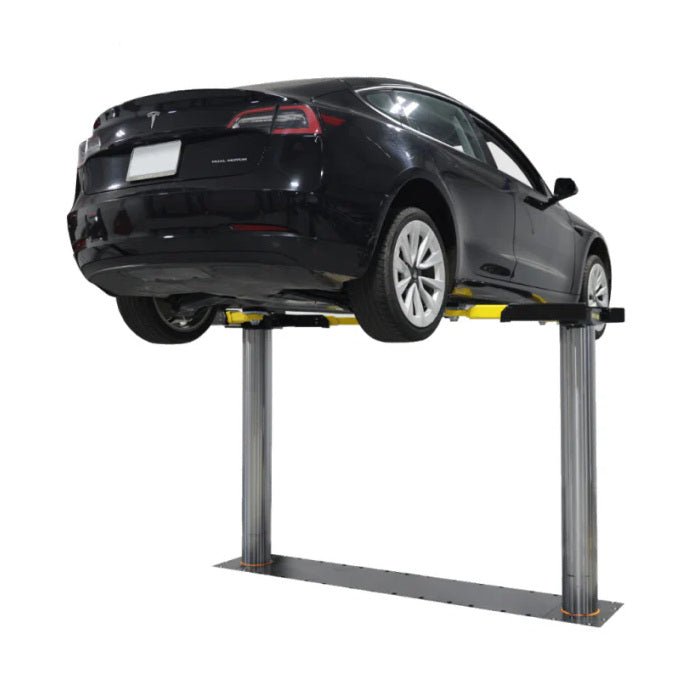

The Challenger Lifts EW1020 10,000 lbs. electric hydraulic inground lift provides an extra-wide drive-through clearance for servicing standard, electric, wide-bodied, and exotics with no bolster to drive over. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage front and rear arms and double-telescoping screw pads. Bench-mounted controls are optional. The EW1020 is ALI and ETL Certified.

The EW1020 can handle some of the widest cars currently on the market, such as the RAM TRX, Hummer EV, Tesla Model X & Ford Mach-E.

EW1020 Model Selection:
EW1020 Base Model (Includes: Tub, Frame and Lift)

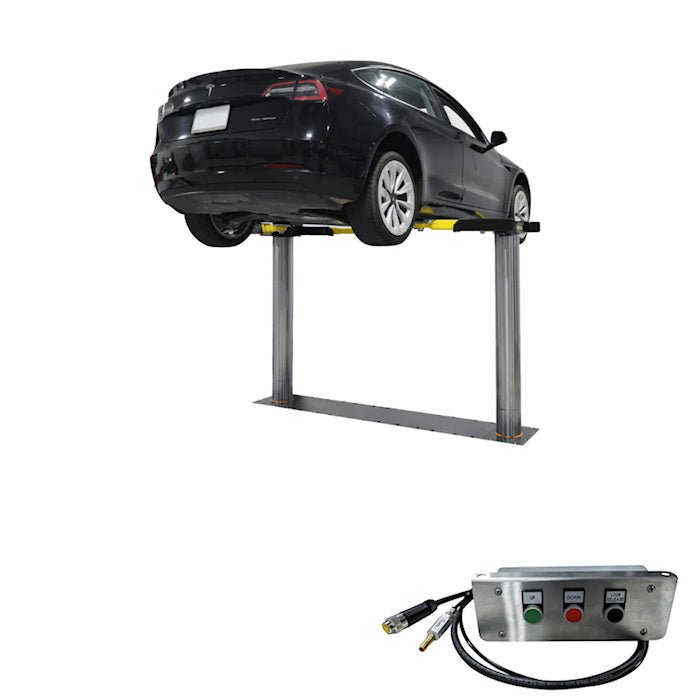

EW1020-BMC with Bench Mounted Controls
EW1020-QC with QuickCycle

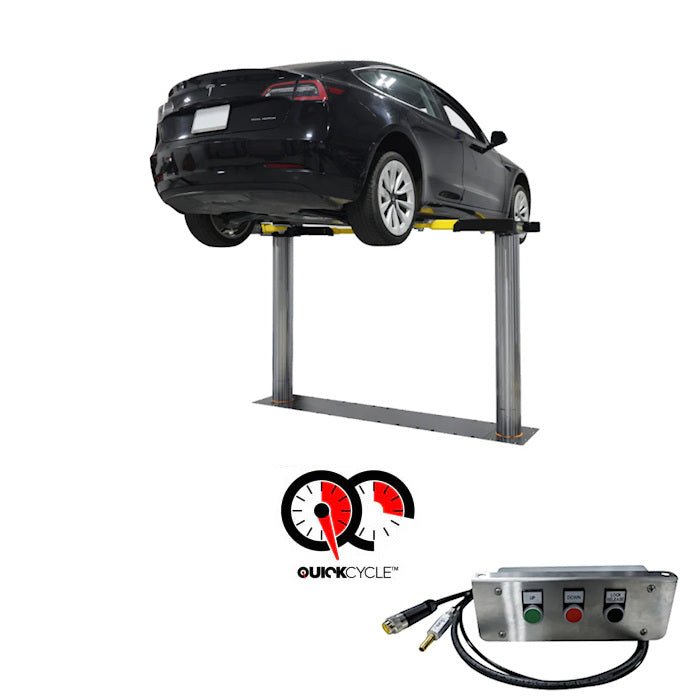

EW1020-BMC-QC with Bench Mounted Control and QuickCycle

All Challenger Inground Lifts are fully contained to eliminate any risk of environmental impact.

Challenger is at the cutting edge of vehicle lifting technology, and our new EW series inground lifts are no exception. Challenger designed these new models to accommodate electric and wide vehicles. Challenger’s electric hydraulic cassette-style inground EW & EV series lifts meet the rigorous demands of professional service facilities. Available in 8,000, 10,000, 12,000 and exclusive 15,000 lbs. lifting capacity. Whether you’re constructing a new facility or outfitting an existing building, we have an installation application to fit your needs.

The Challenger Lifts EW1020 Wide Inground Lift is the new 10,000 lbs. hydraulic inground lift revolutionizing the automotive service industry. Designed to cater to service centers’ evolving needs, the EW1020 offers an extra-wide drive-through clearance, which allows the lowering of batteries out of electric vehicles while not losing the function of a conventional inground cassette, making it an indispensable tool for service centers specializing in EV maintenance.

The lift’s 3-stage arms and double-telescoping screw pads ensure precise positioning while spotting vehicles. The EW1020 is ideally suited for some of the widest cars currently on the market, such as modern Electric Vehicles and Luxury cars with specific pick-up points. This versatility makes it ideal for service centers looking to expand their capabilities and cater to a diverse and evolving automotive market.

The EW1020 offers Bench-Mount Controls (BMC) by button or lever as an optional feature. BMC mounts the controls inside a workbench for a cleaner aesthetic look and facilitates more effortless lift operation and control, enhancing technician comfort and productivity.

The QuickCycle upgrade, which decreases the rise and descent time of the lift, is also available for the EW1020. This gets vehicles in the air and on the ground quicker, maximizing the earning potential of your service bay.

Upgrade your service center with the EW1020 and take your capabilities to the next level.

3-Stage Front and Rear Arms – provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential

Premium Double Telescoping Screw Pads – adjust to multiple heights minimizing the need for adapters

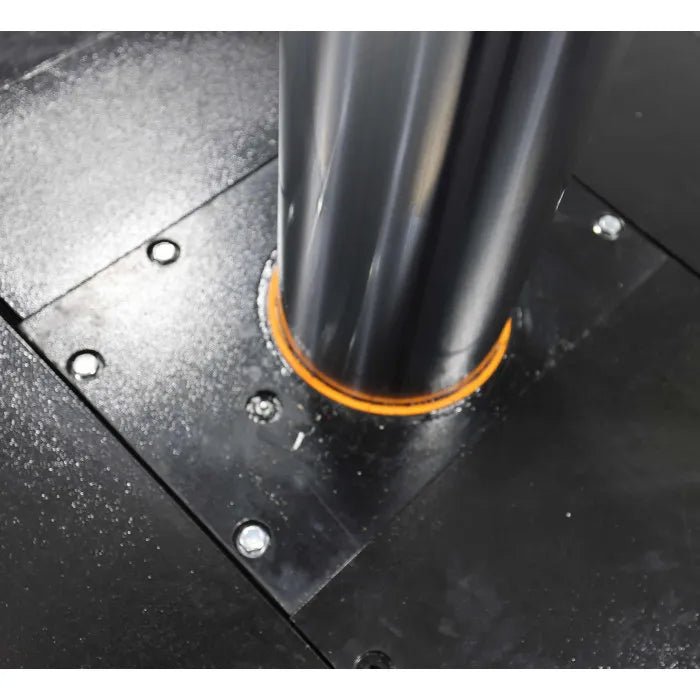

8.5″ Diameter Chrome Pistons – provide greater stability under load

Chrome Non-Breathing Ram Style Cylinders – provides for longer lift life

Enhanced Raised Bearing Wiper – at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings

Long Bearing Contact – provides increased stability

Mechanical Lock – engages every 4″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue

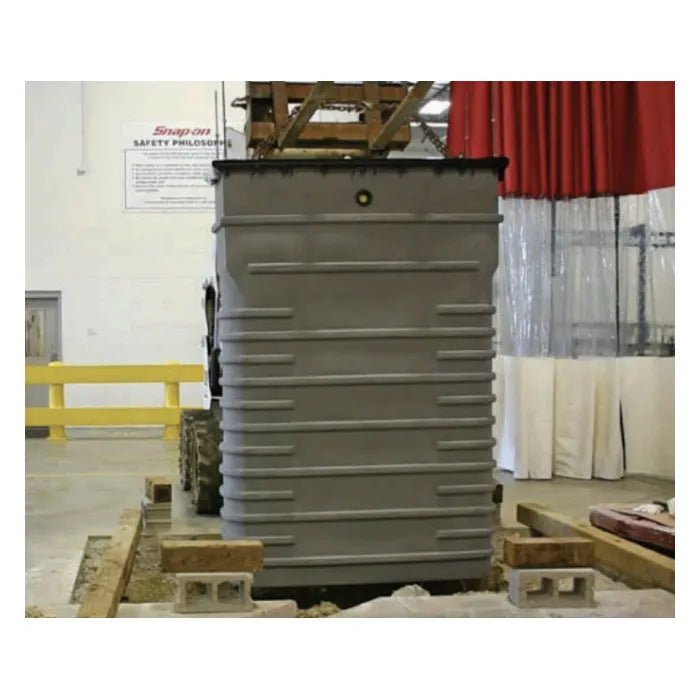

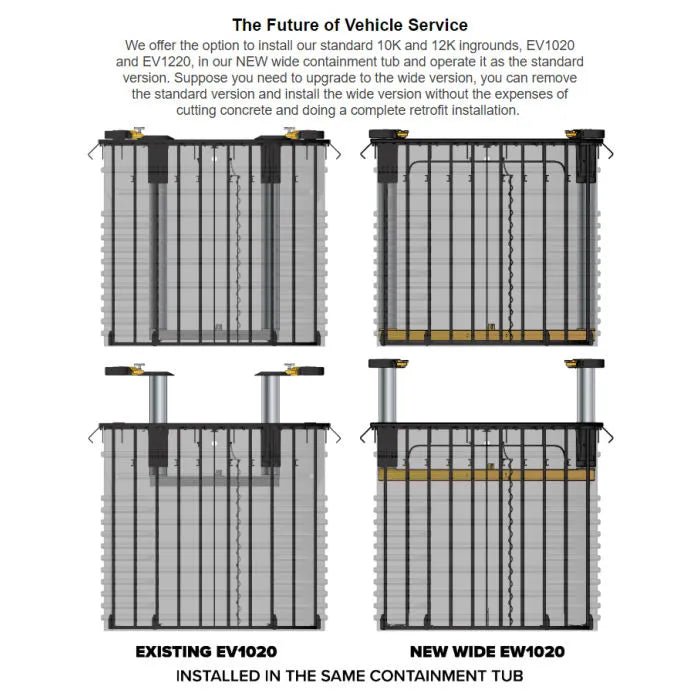

Fully Contained and Sealed Galvanized Steel Cassette Tub – eliminates risk of hydraulic fluid seeping into the ground

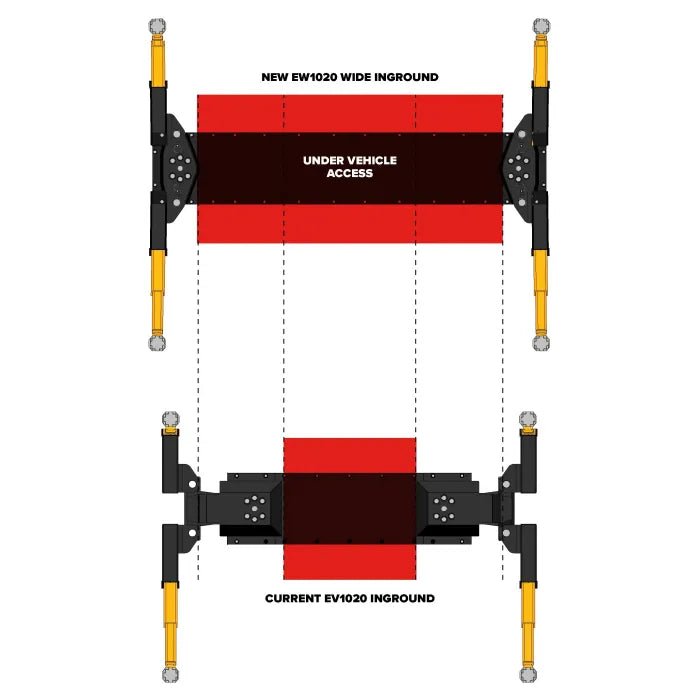

Widely Spaced Structure – allows for a large, unobstructed workspace, especially useful for battery access on new electric vehicles

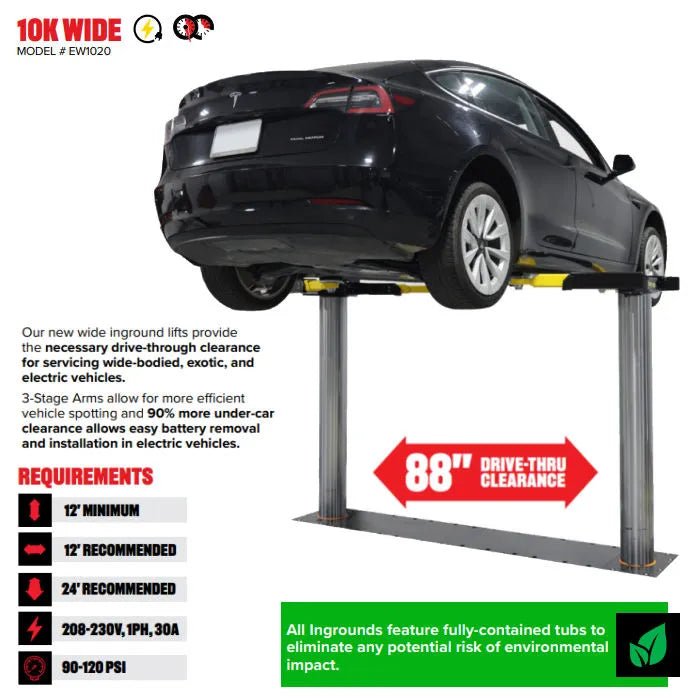

88″ Drive-Thru Clearance – accommodates wider vehicles, minimizes tire damage and provides for easy drive-on

Premium Powder Coat Finish – on bolsters and arms provides long-lasting durability

Single Concrete Pour Installation – easier install thanks to only needing one concrete pour instead of the current three

WHY CHOOSE AN INGROUND LIFT?
Challenger inground lifts make a strong first impression. The sleek, robust design inspires confidence and invokes the feeling of a showroom. Enjoy unobstructed access all around a lifted vehicle to increase productivity and minimize technician fatigue. The clear workspace is ideal for accurate diagnostic work, and a lack of overhead obstruction eliminates vehicle height restrictions. Open and close vehicle doors freely, without difficult maneuvering or worry of door damage.

With fewer obstructions to maneuver around, inground lifts offer higher service efficiency and reduced stress on technicians. They also eliminate concern over door damage and service restrictions based on a vehicle’s height. While lifted, inground lifts provide clear access to vehicle’s mechanical components. While lowered, they offer a clear presentation of your facility.

INGROUND VS. ABOVE-GROUND
Secure a higher return on investment. Inground lifts take up less valuable shop space than their above-ground counterparts. If your facility will.

OPTIONAL QUICKCYCLE TECHNOLOGY
The QuickCycle hydraulic enhancement for Challenger inground lifts saves both rise and descent time, allowing you to service more vehicles in the same amount of time. Increase your return on investment by upgrading your 10,000 lbs. or 12,000 lbs. inground lifts.

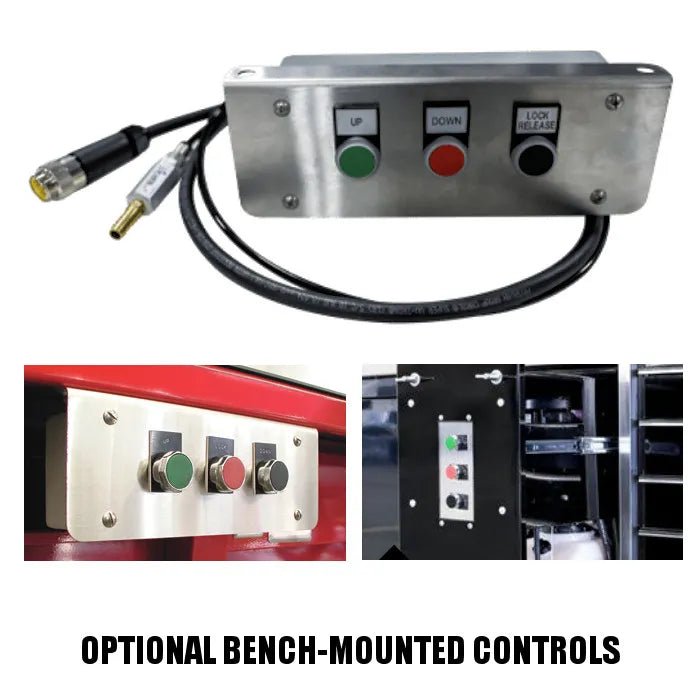

OPTIONAL BENCH-MOUNTED CONTROLS
Optional bench mounted power controls include raise, lower and lock release functions. They mount to many major workbench brands, providing convenient access to inground lift controls. Controls are also available in a lever option for no additional charge.

New Power Unit Service Bulletin Effective 4/21/25

As of 4/21/25, Challenger Lifts will be switching to the Bucher AB-9367-DLH and AB-9858-DLH power units from the current SPX AB-9367 and AB-9858 models. These new Bucher power units will only require a 20 amp breaker. Electrical consumption is becoming more important as customers look to save on electrical installation costs (less breakers) and conserve energy.

Benefits Of The Change:

• Minimum Breaker Required Reduced from 30 to 20 Amp
• Optimize Power Consumption
• By consolidating our 10K and 12K power units, we simplify maintenance procedures and reduce inventory complexity

New CYL+ Descent Time Service Bulletin Effective 2/18/26

As of 2/18/26, Challenger Lifts will be updating the cylinders that we currently are using to improve the descent times of our CL10 and CL12 Series 2-Post lifts and also the EW and EV 10K and 12K Series lifts.

We have improved the lowering speed by adding a pressure compensating flow control valve to each hydraulic cylinder. These flow control valves maintain the lowering speed to a constant 20 (approximately) seconds regardless of the weight of the vehicle.

Descent time of all models will improve, increasing productivity!

This change will not affect the QuickCycle™ model. You will still need to order QuickCycle™ if you want the faster rise and descent.

All new products will be marked with the label CYL+ on the outside of the packaging. This will call out that it has the new style cylinders with the faster descent.

Benefits Of The Change:

• Facilitates the technician’s ability to lower their completed work faster and get on to the next job
• Improved lowering speed will improve the productivity of the shop

Power Units Service Bulletin Effective 3/31/26

Due to ongoing supply chain challenges affecting our current power unit manufacturer, starting March 29th, 2026 we will be utilizing power units from both of our approved manufacturers for the foreseeable future. This adjustment will allow us to continue shipping product without interruption and maintain the level of service you expect from us. We apologize for this inconvenience and appreciate your understanding as we work through these temporary constraints.

Both current manufacturers meet all ALI certification requirements and fully align with our performance and quality standards. As a result:

• Either manufacturer’s power unit may be included with any two post or inground lift that ships.
• The power units will carry the warranty that the lift carry, regardless of manufacturer.

CL10AV3, CL10AV3-2, CL10AV3-3, CL10AV3-EV, CL10AV3-2-EV, CL10AV3-3-EV, CL10A-XP9, CL10A-2-XP9, CL10A-3-XP9
CL12A, CL12A-1, CL12A-2,CL12A-EV, CL12A-1-EV, CL12A-2-EV, CL12A-LC, CL12A-LC-EV
EV1020, EV1020-XP9, EW10, EH10, EV1220, EW12

*All Update and Completion Kits for these models will also be affected

As we move past the current supply chain issues, our long term plan is to return to using the Hydraulic Solutions power unit on our domestically produced models and the Bucher power units on our imported models. We believe this approach provides the most stability moving forward given the ongoing turbulence in the supply chain.

Please also note that once we transition back to our standard configuration, you will need to mark your orders with the amperage 20amp or 30amp) you prefer for your 10K two post and inground lift orders. If you do not mark your orders, you will automatically receive the 30amp Hydraulic Solutions power unit.

Thank you for your continued partnership and patience. If you have any questions or need additional information, our team is ready to assist.
