Double Truss Storage Shelter W30’xL60’xH20′
Price range: $4,915.44 through $5,660.02

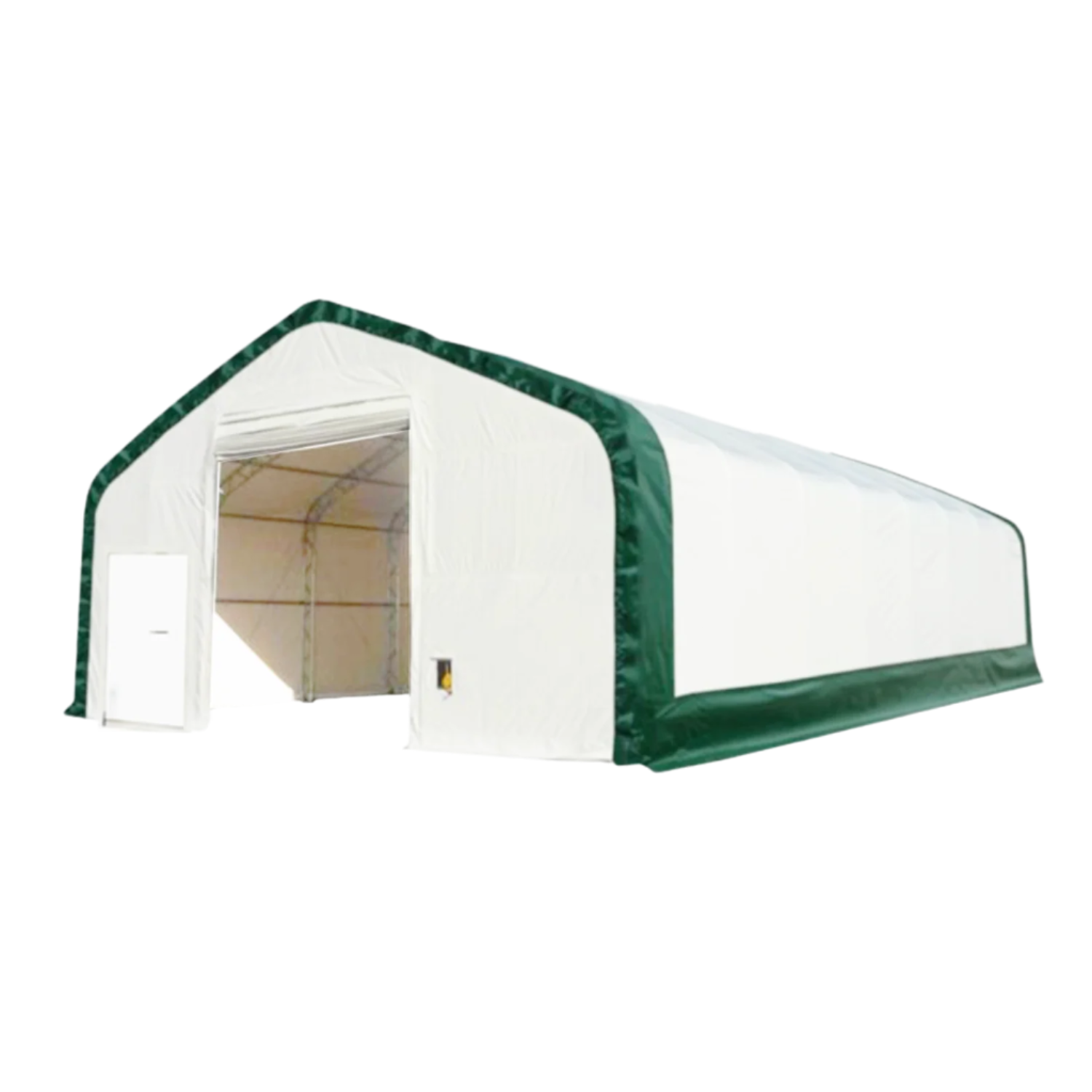

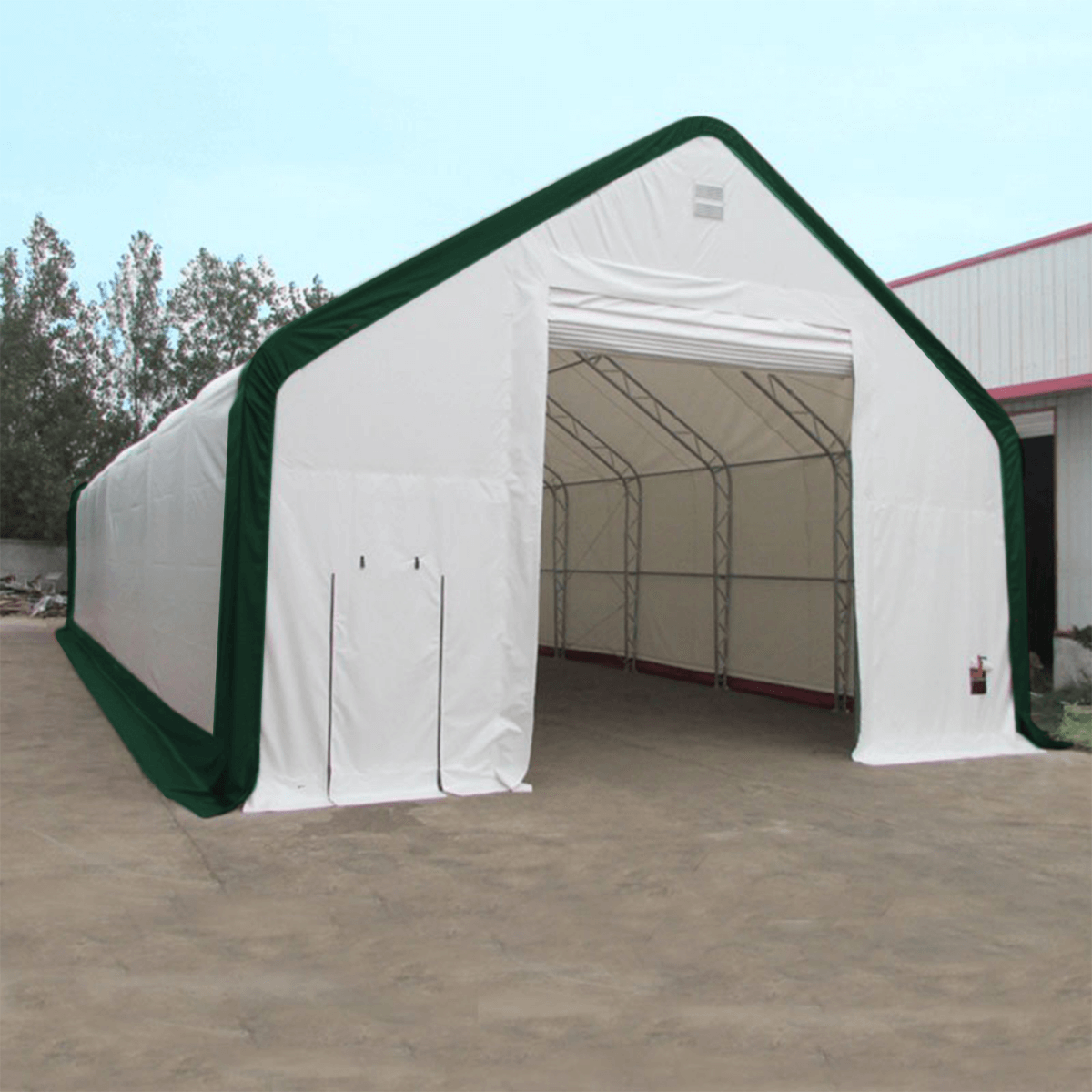

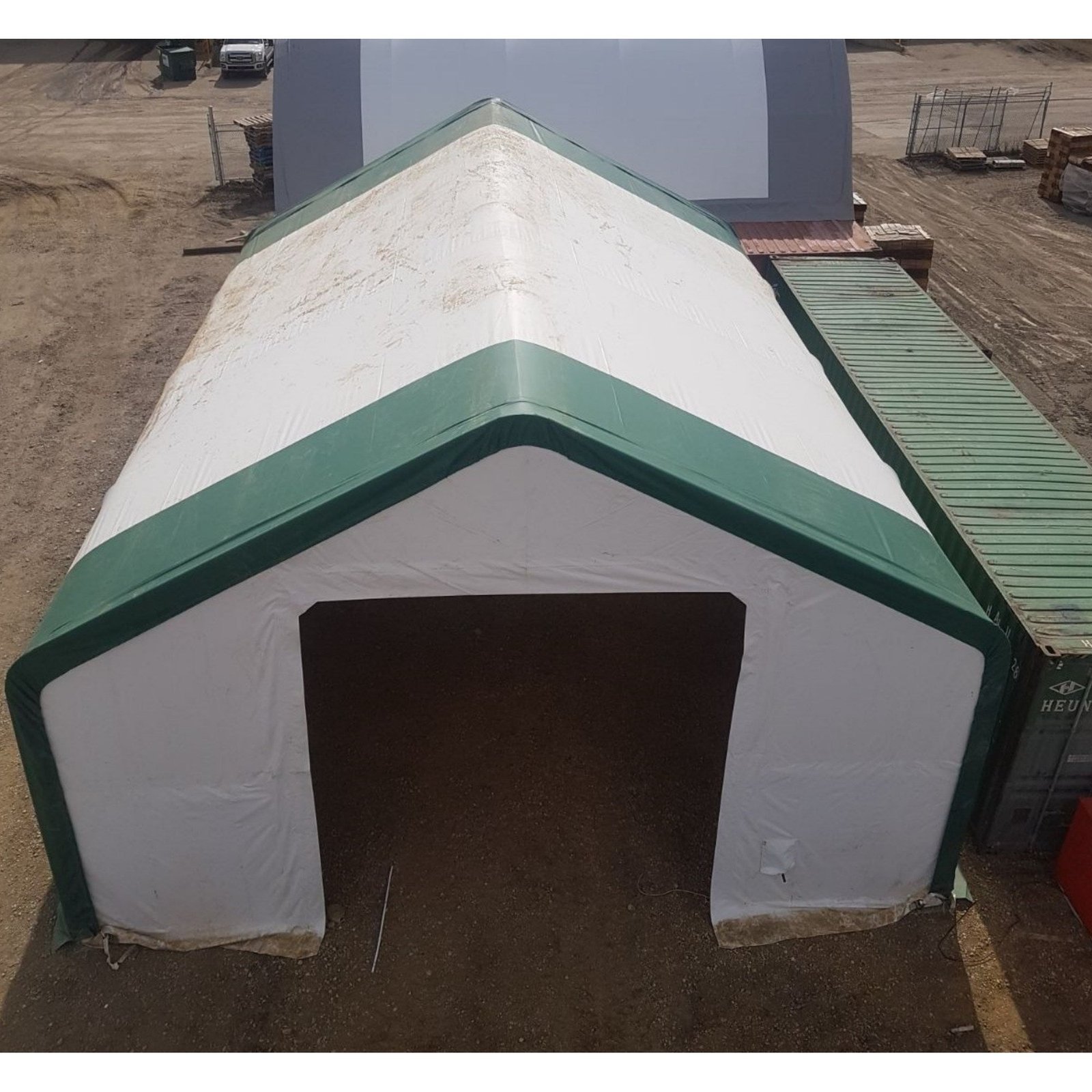

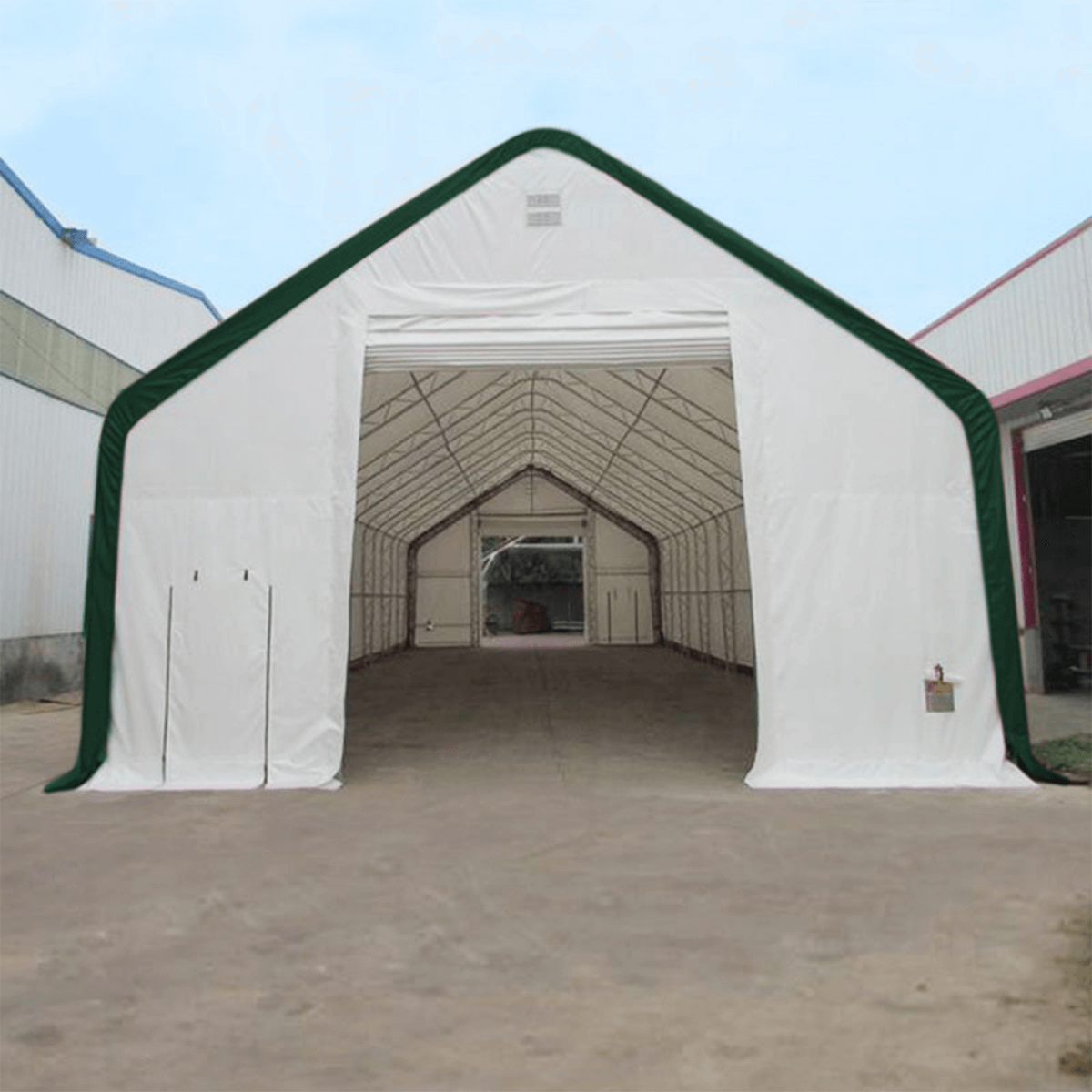

Gold Mountain Storage Shelter W30’xL60’xH20’ – Double Truss PVC
The Gold Mountain Storage Shelter W30’xL60’xH20’ with Double Truss PVC provides robust protection for vehicles, tools, equipment, agricultural materials, and industrial machinery. Engineered to withstand North America’s toughest weather conditions, it resists snow, storms, sun, wind, and rain. The durable PVC fabric, stronger and longer-lasting than PE, allows natural daylight inside while offering superior protection. Its peak design facilitates faster snow removal, ensuring optimal performance and longevity.

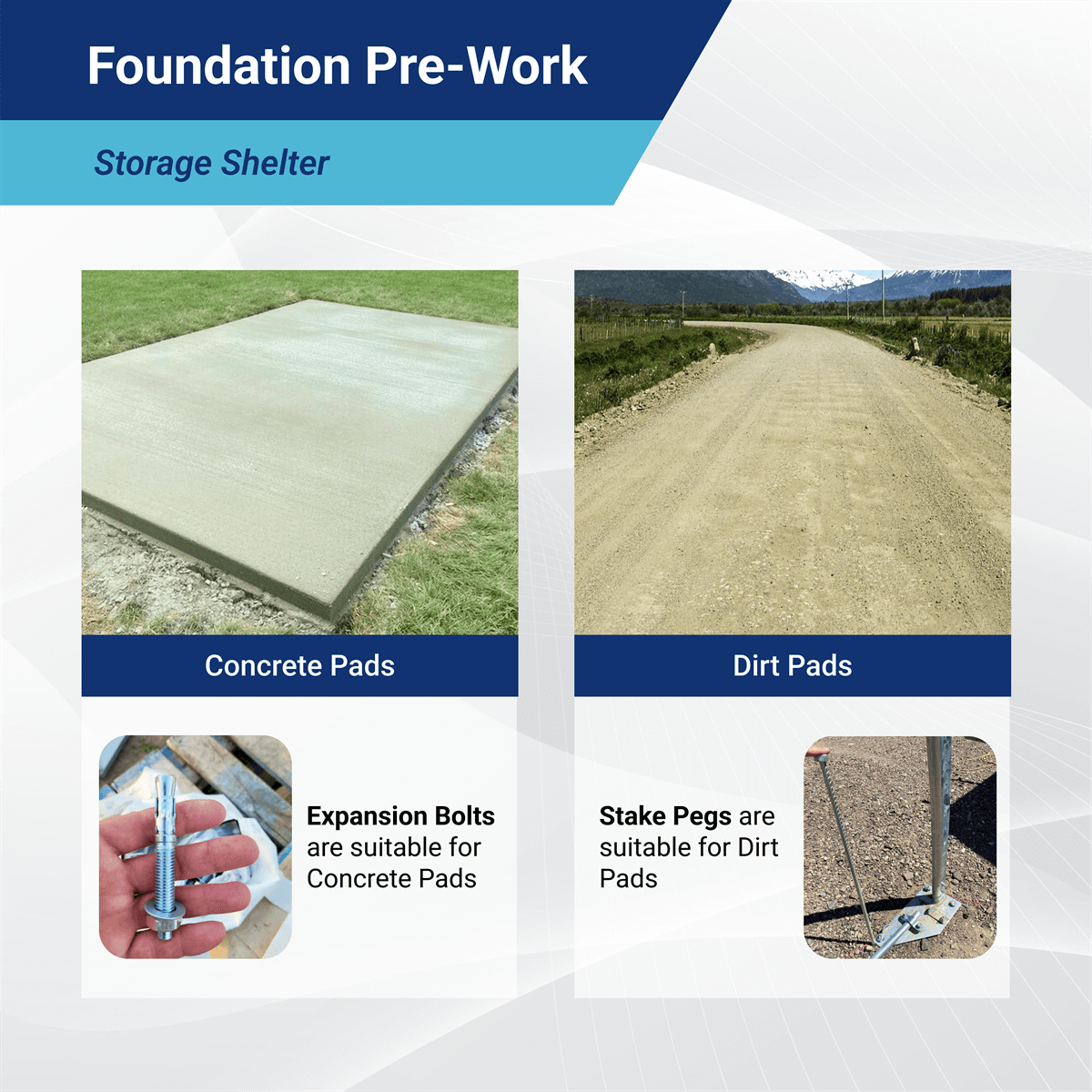

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specifications
| Description | Specifications |

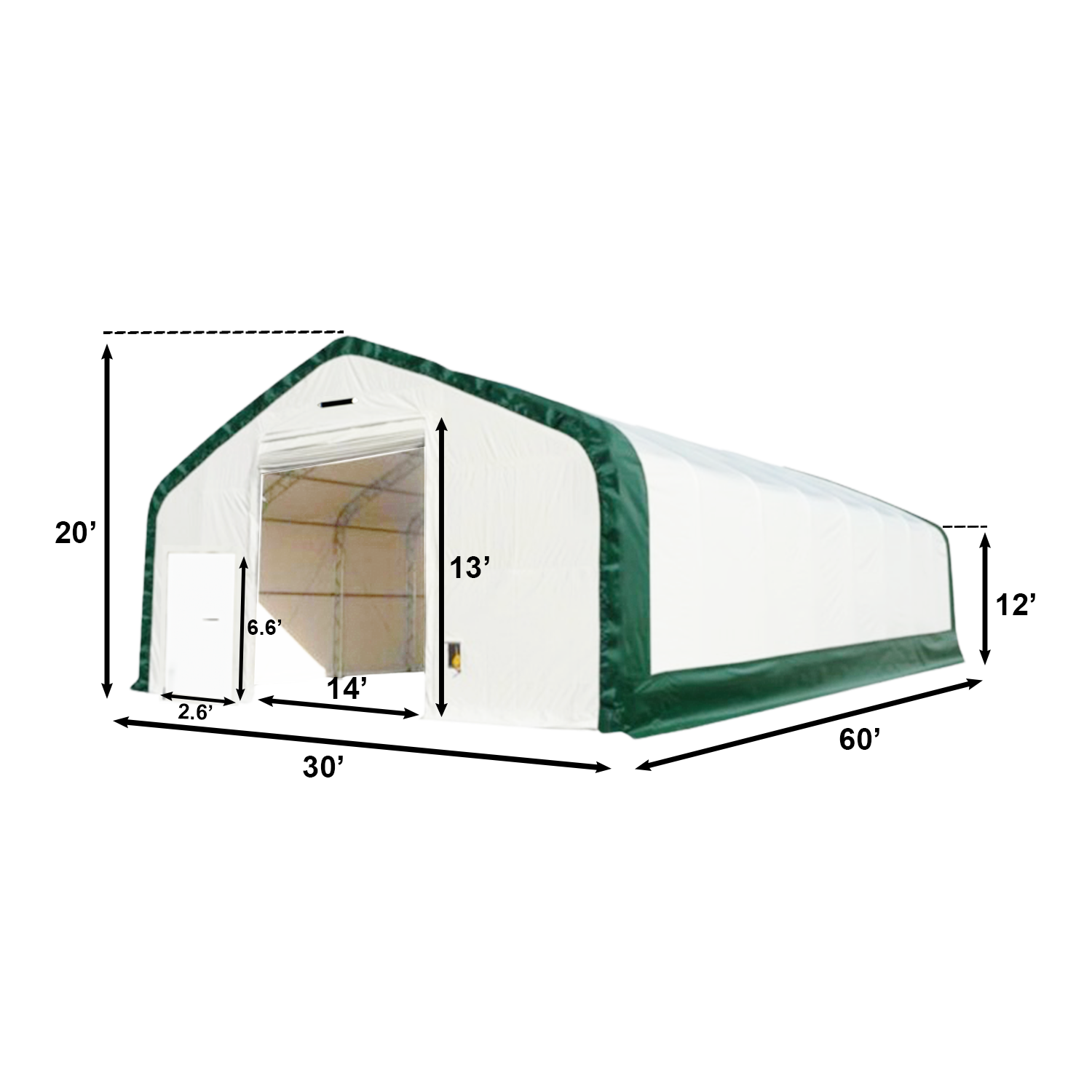

| Dimensions (WxLxH) | 30’x60’x20′ |
| Side-wall Height | 12 ft |
| Door size (WxH) (Front & Rear) | 14’x13′ |

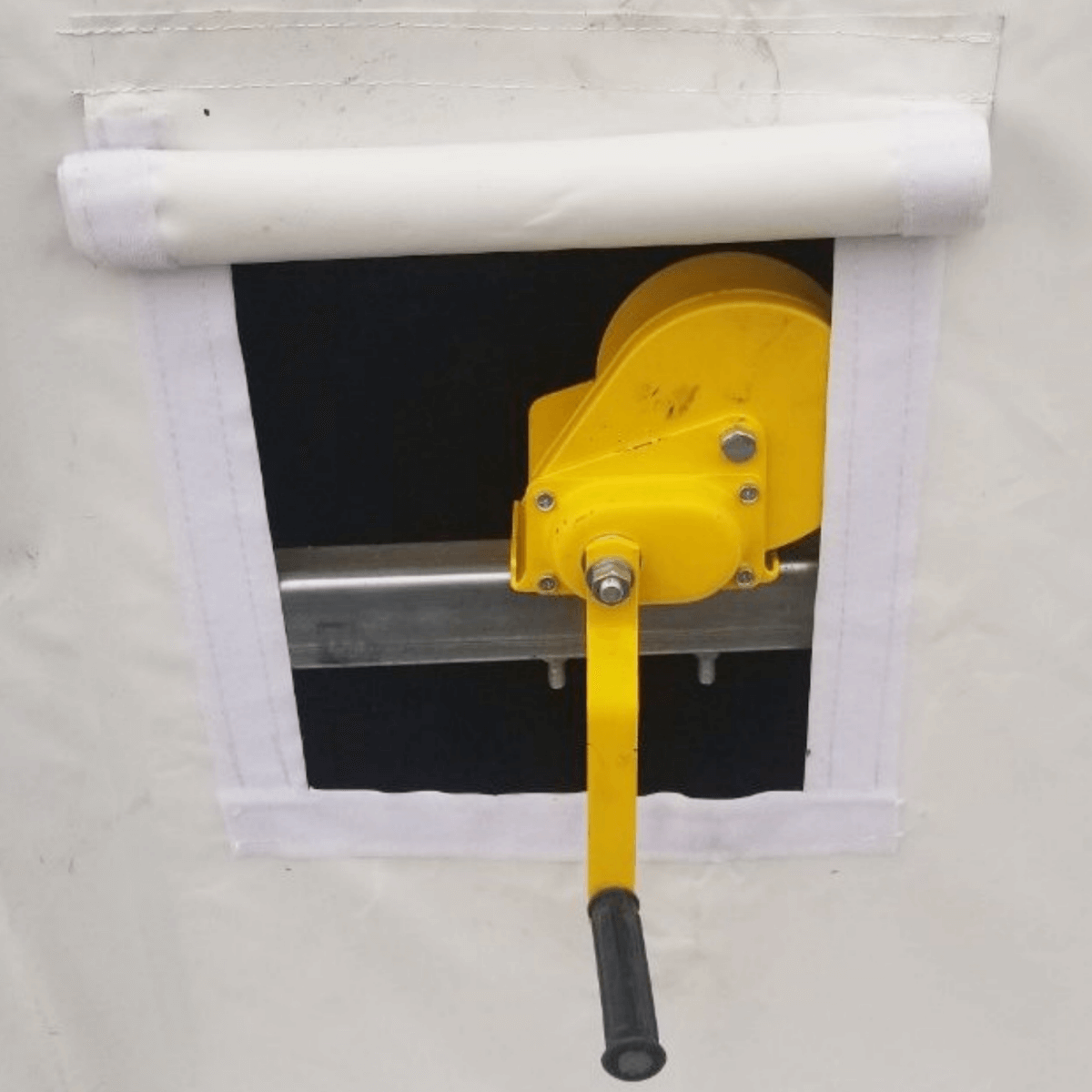

| Door Type | Mechanical Rollup Door |
| Man Door (WxH) | 2.6’x6.6′ |

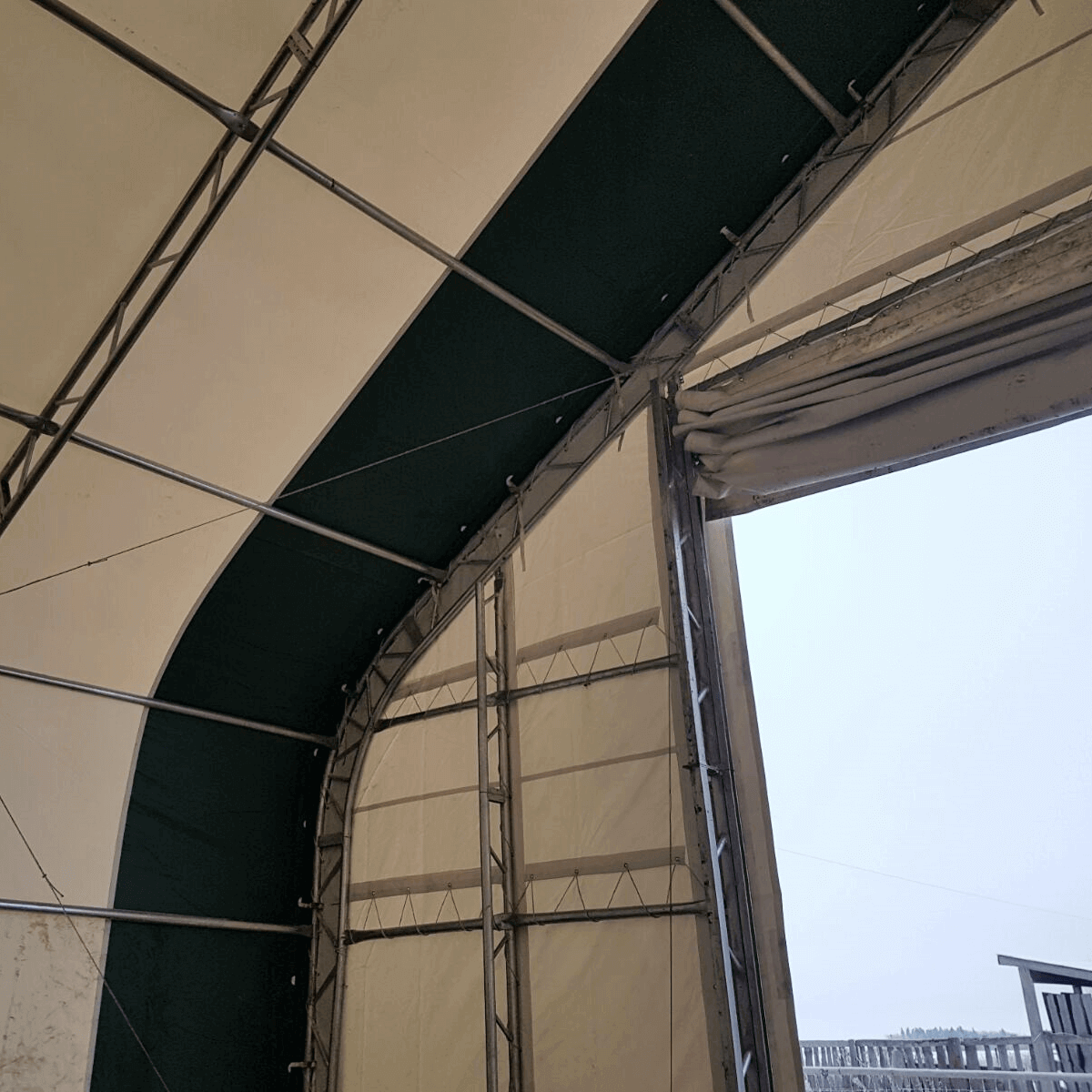

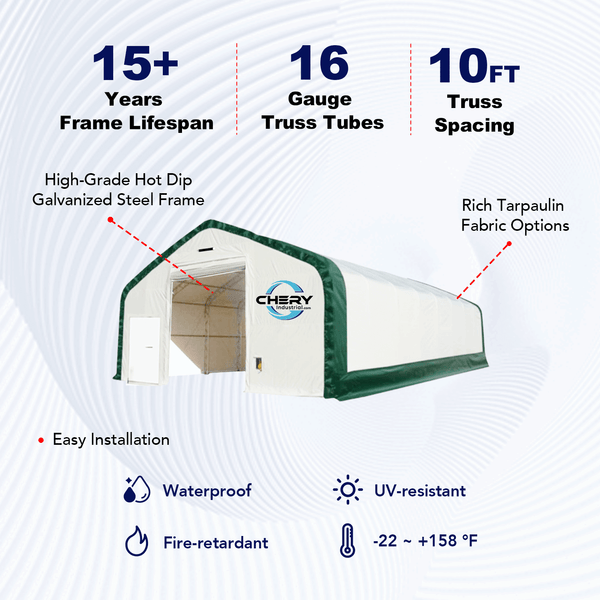

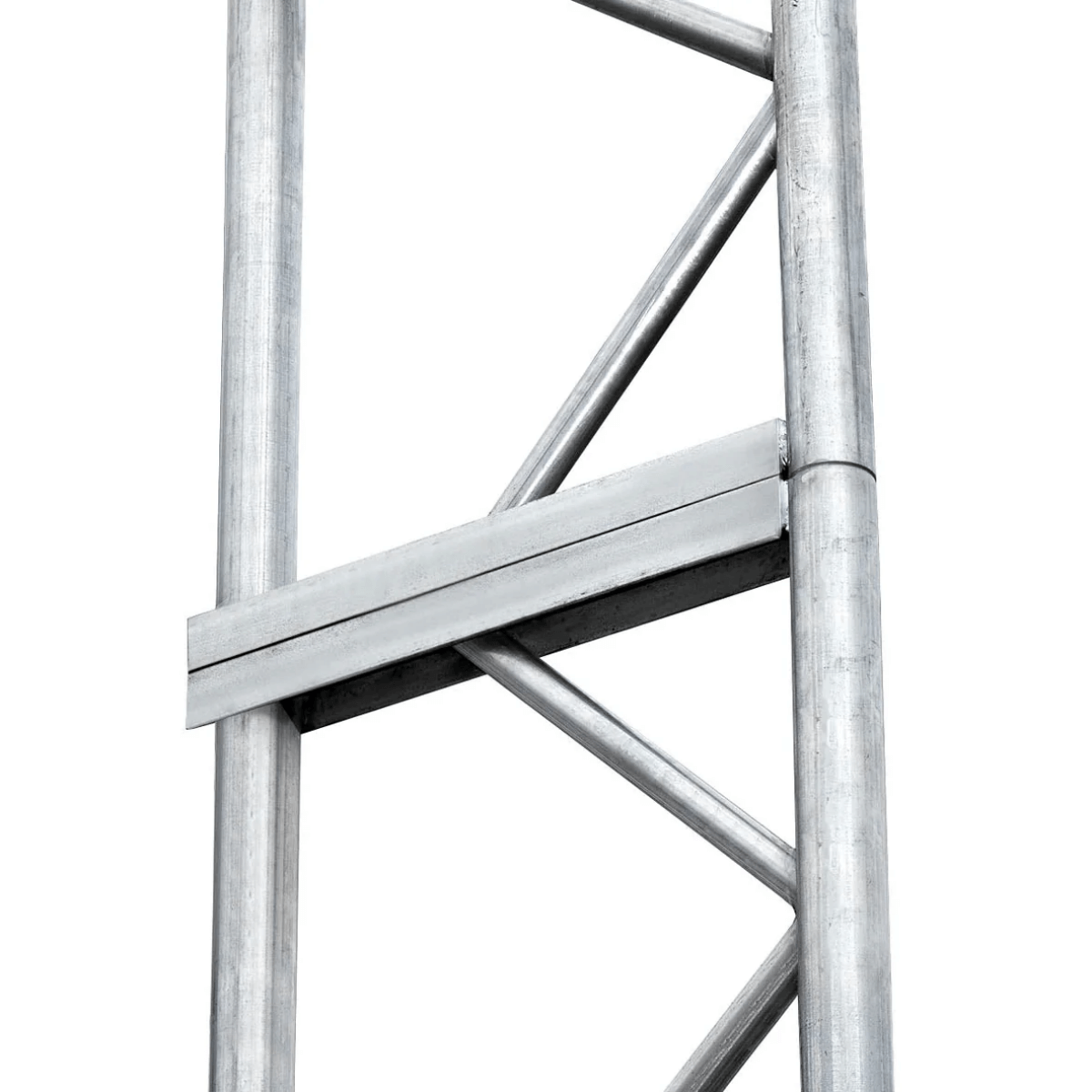

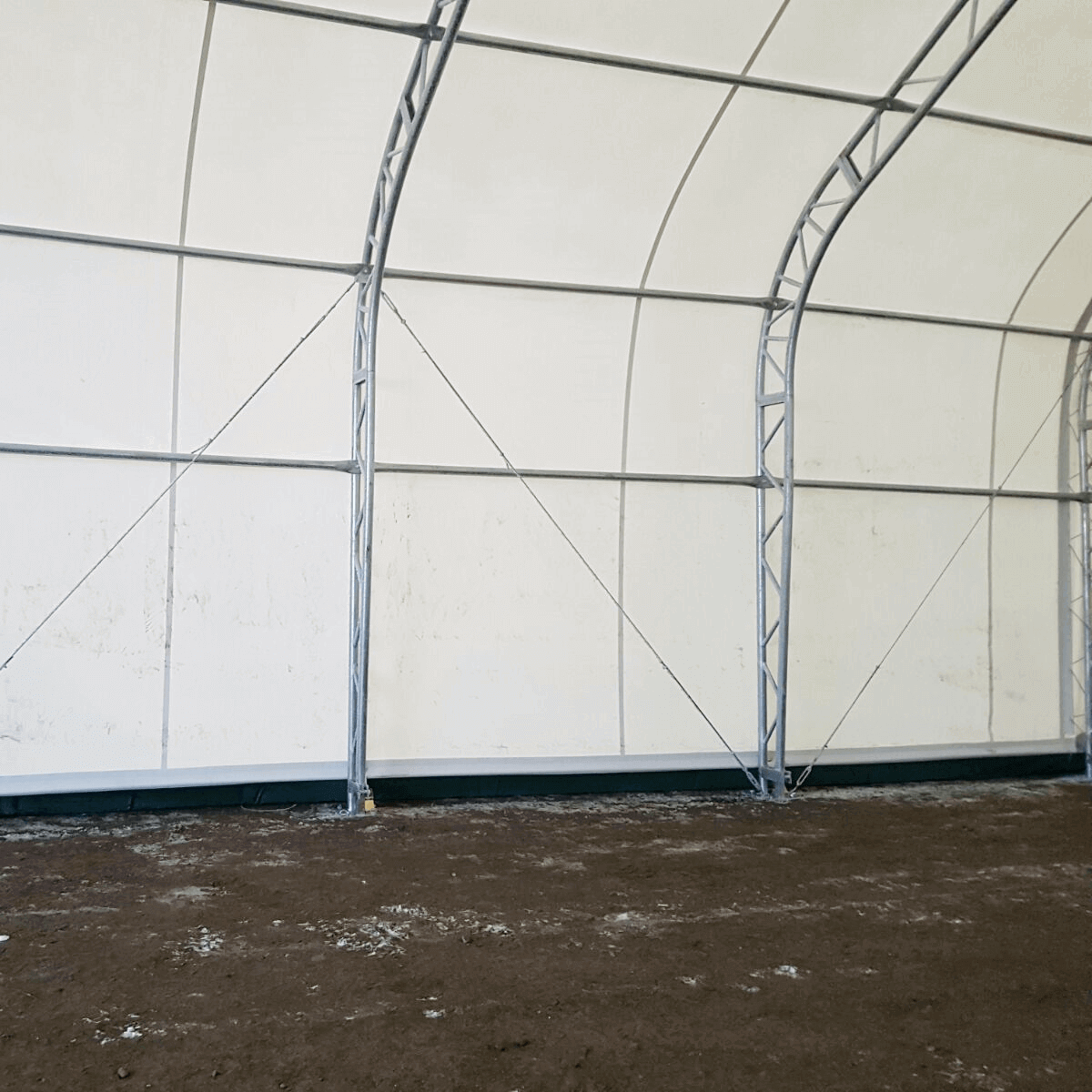

| Frame | Double Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 16 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 48×1.5mm |
| Purlin Ø | Φ 48×1.5mm |
| Arch Spacing | 10 ft |
| Number of Arch | 7 |
| Number of Anchor plates | 14 |

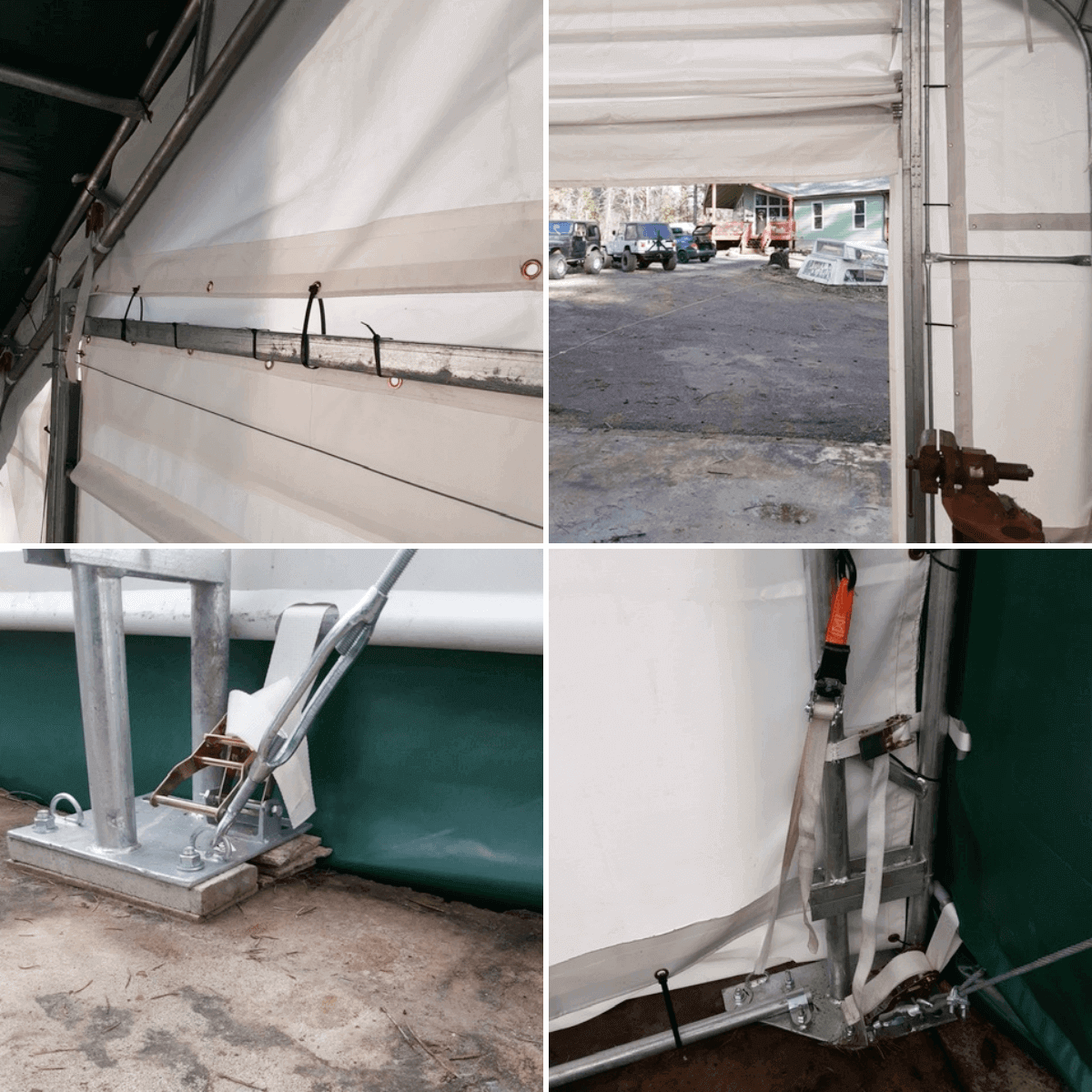

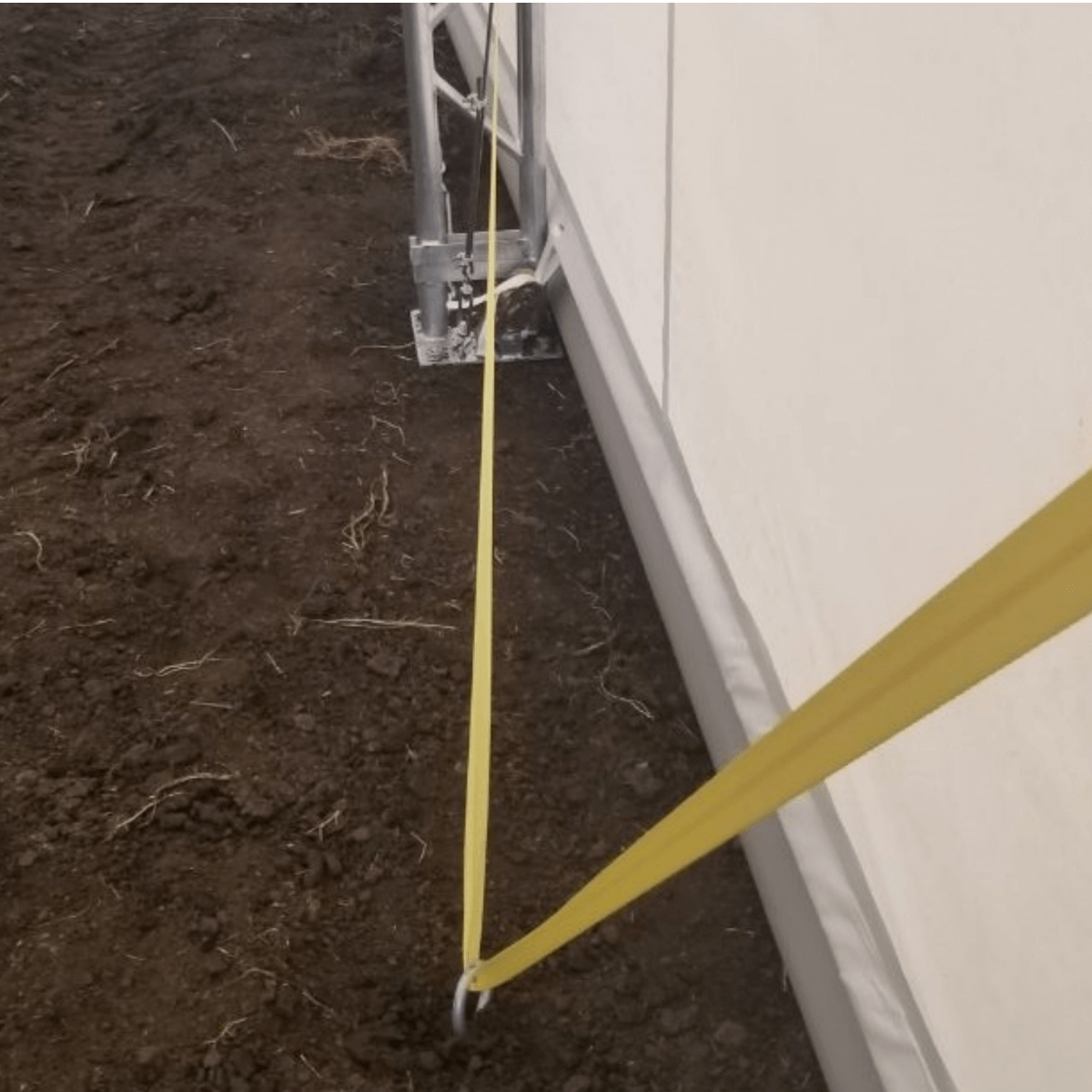

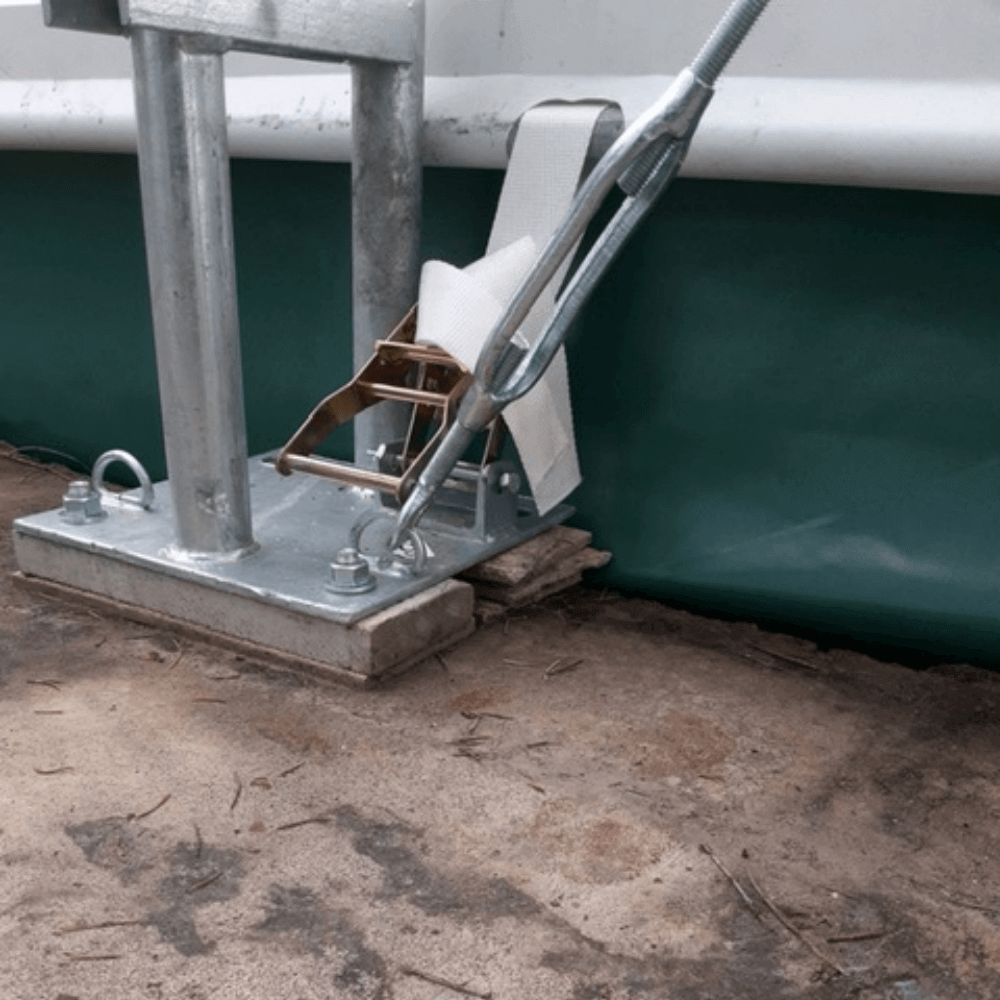

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 3 Days |

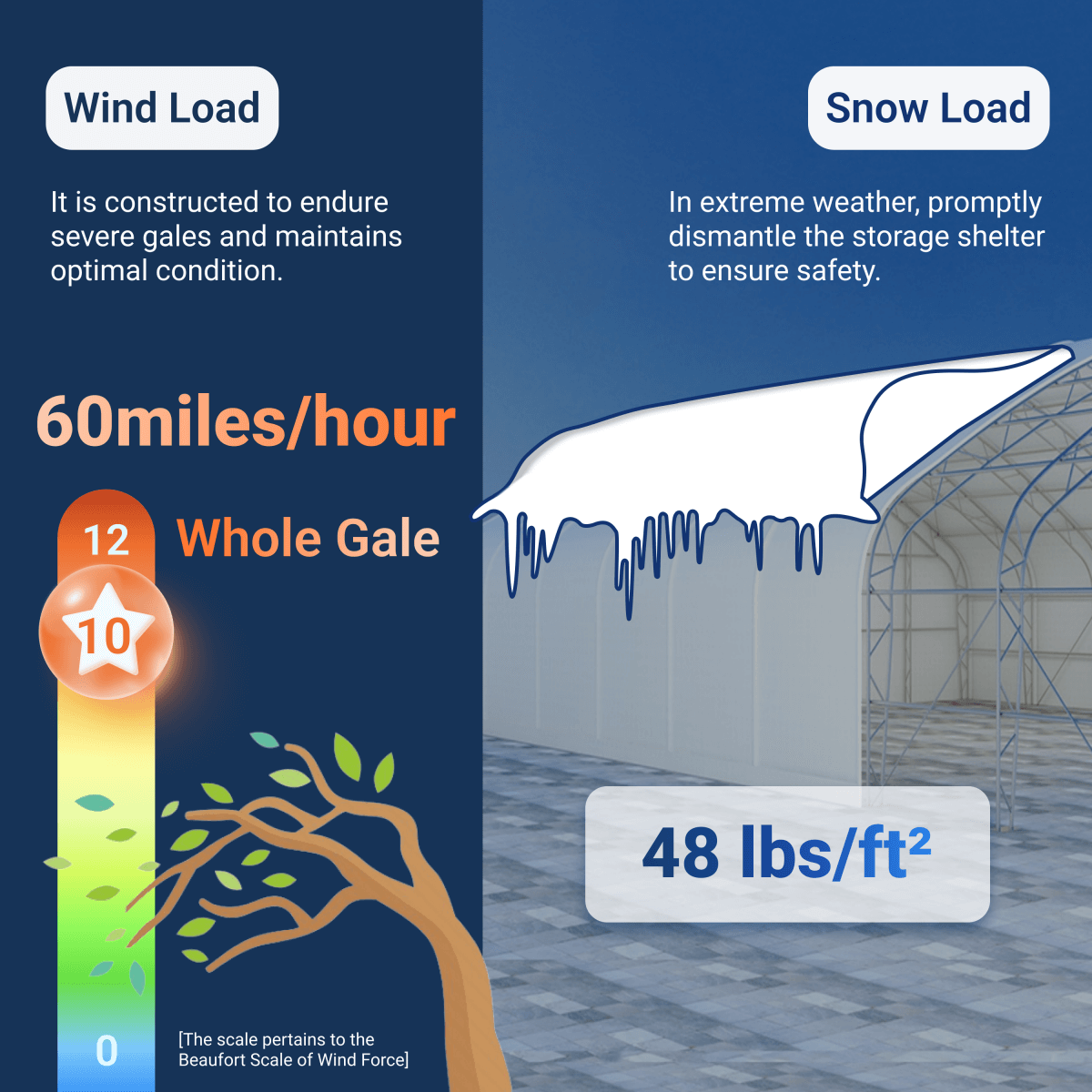

| Snow Load | 48 lbs/ft² |
| Wind Load | 60 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
-
Temporary placement usually does not require a permit. For semi-permanent installations, contact your local municipality.
-
Ensure the roof fabric is tightened to avoid sagging. Re-tighten after a few months of use, especially after cold weather causes the fabric to contract.
Features
- No building permits required*
- 100% waterproof, snow-resistant, and storm-stable
- Portable, easy to install, and quick to dismantle
- Two large doors at each end for convenient entry and exit
- PVC fabric blocks UV radiation while allowing natural light
- Galvanized steel frame resists harsh weather
- Suitable for industrial, agricultural, vehicle cover, and outdoor events

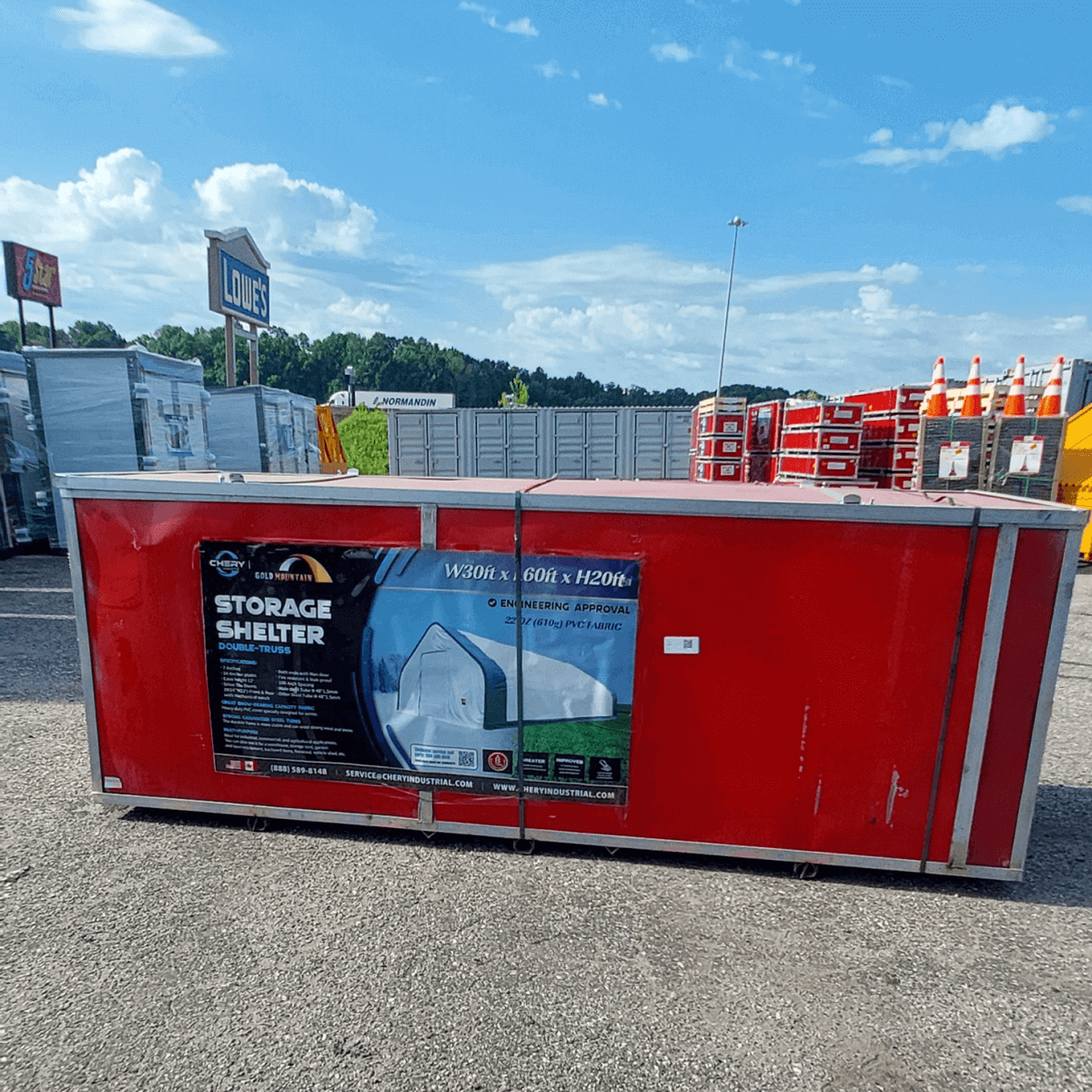

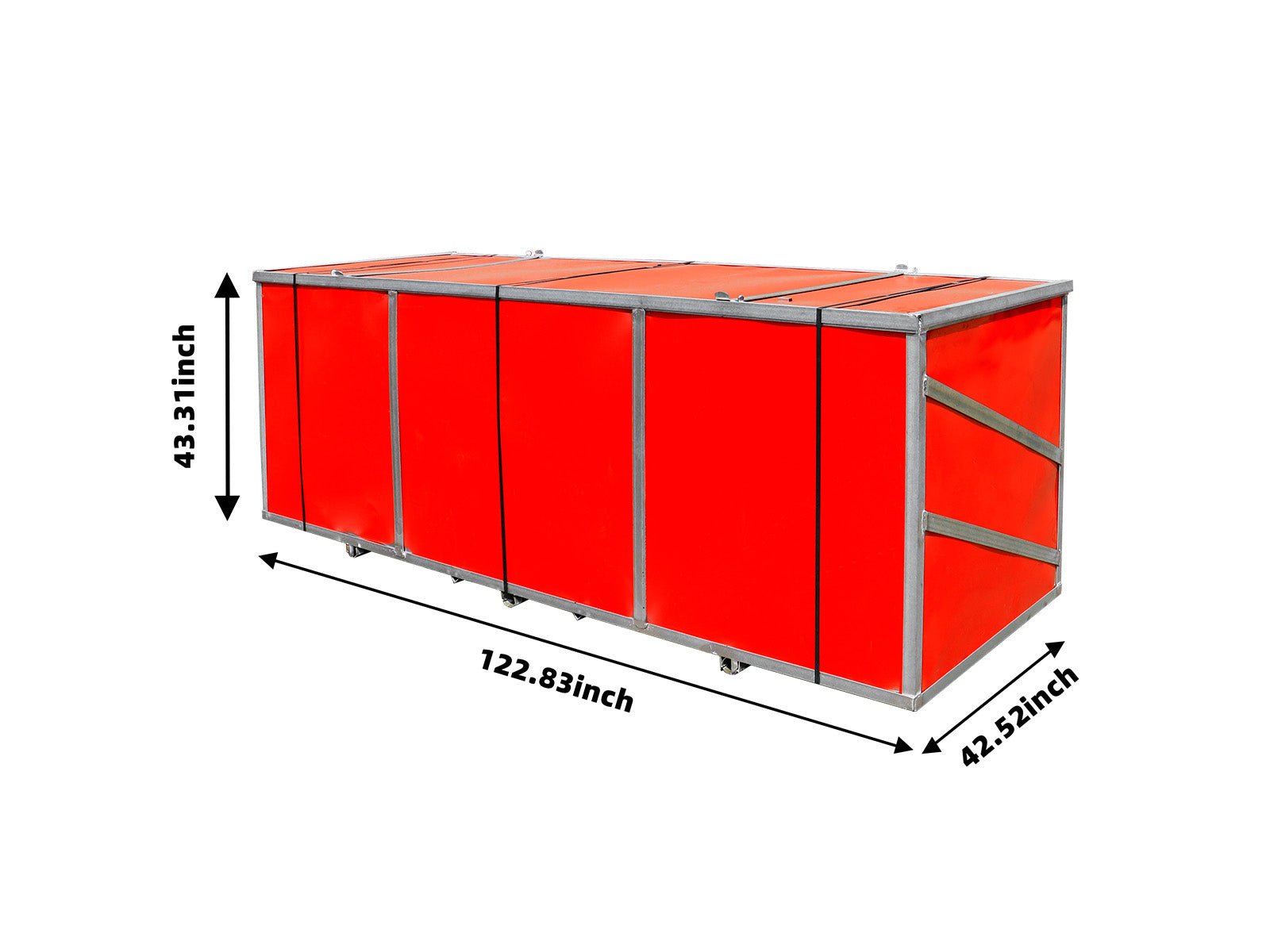

Package Size & Weight
- Dimensions (LxWxH in inch): 122.8×42.5×43.3
- Weight: 3000 lbs (16oz PVC), 3861 lbs (23oz PVC)

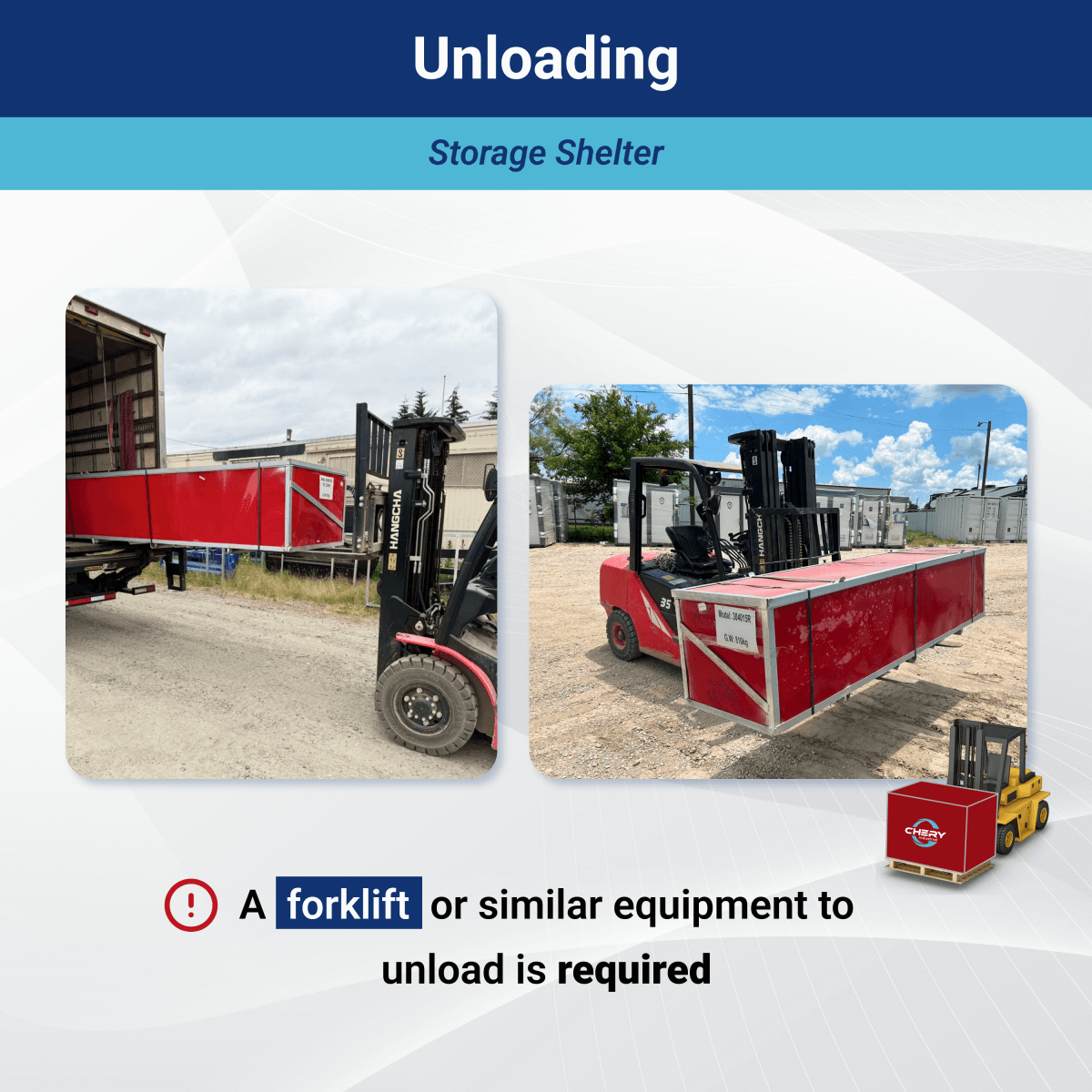

- Forklift: Required for unloading
Delivery: Loaded onto a box or flatbed truck depending on size; forklift or equivalent required for unloading.
