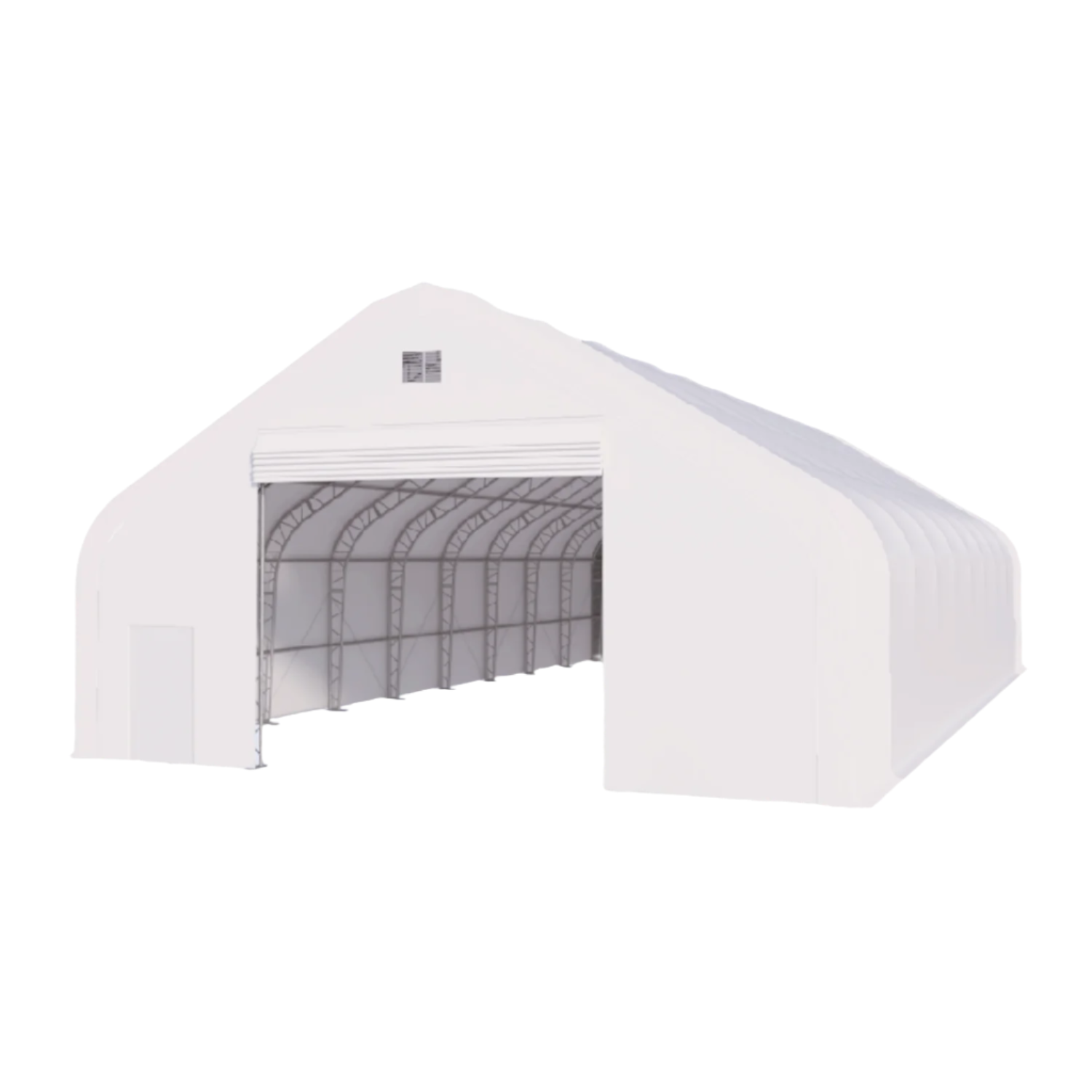

Double Truss Storage Shelter W50’xL80’xH23′
Price range: $12,723.16 through $14,291.15

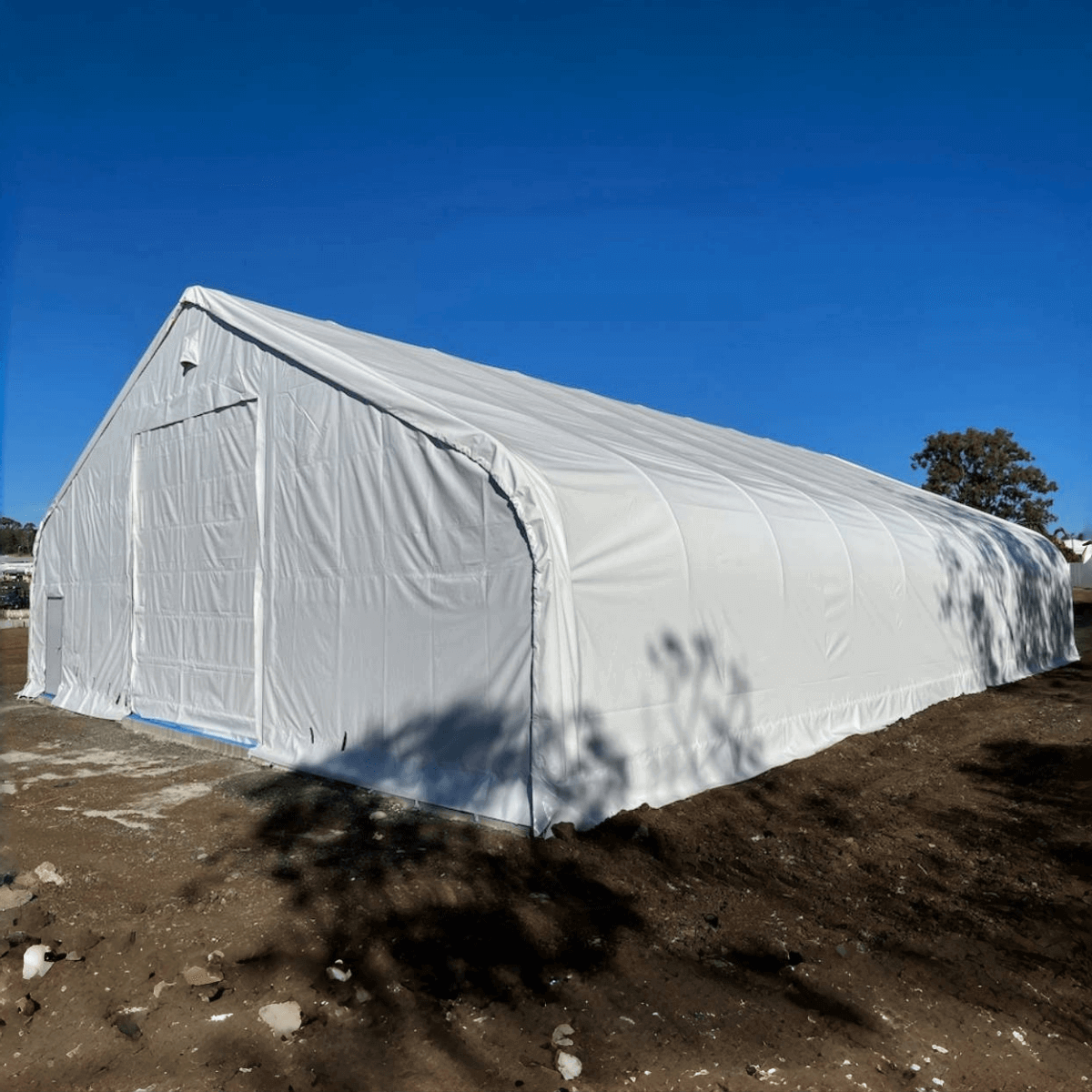

Gold Mountain Storage Shelter W50’xL80’xH23’ – Double Truss PVC

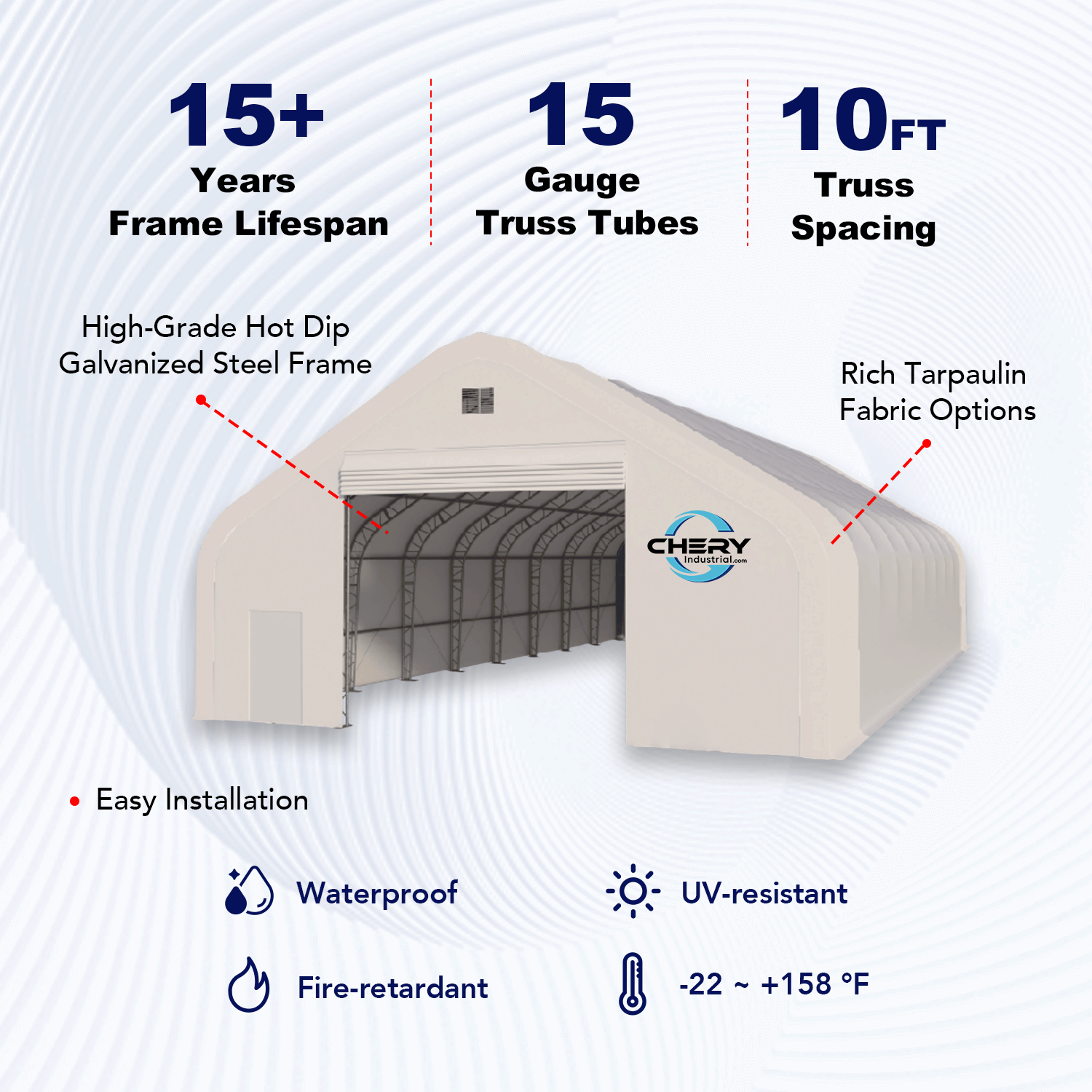

The Gold Mountain Double Truss Storage Shelter W50’xL80’xH23’ offers a high-capacity, durable solution for all your storage needs. Its double truss design provides superior stability, making it ideal for commercial, industrial, and heavy-duty applications. The heavy-duty, weather-resistant PVC fabric ensures long-lasting protection against snow, storms, rain, and sun. With a 23-foot height and a peak design, it easily accommodates large machinery, vehicles, or inventory, while facilitating efficient snow removal.

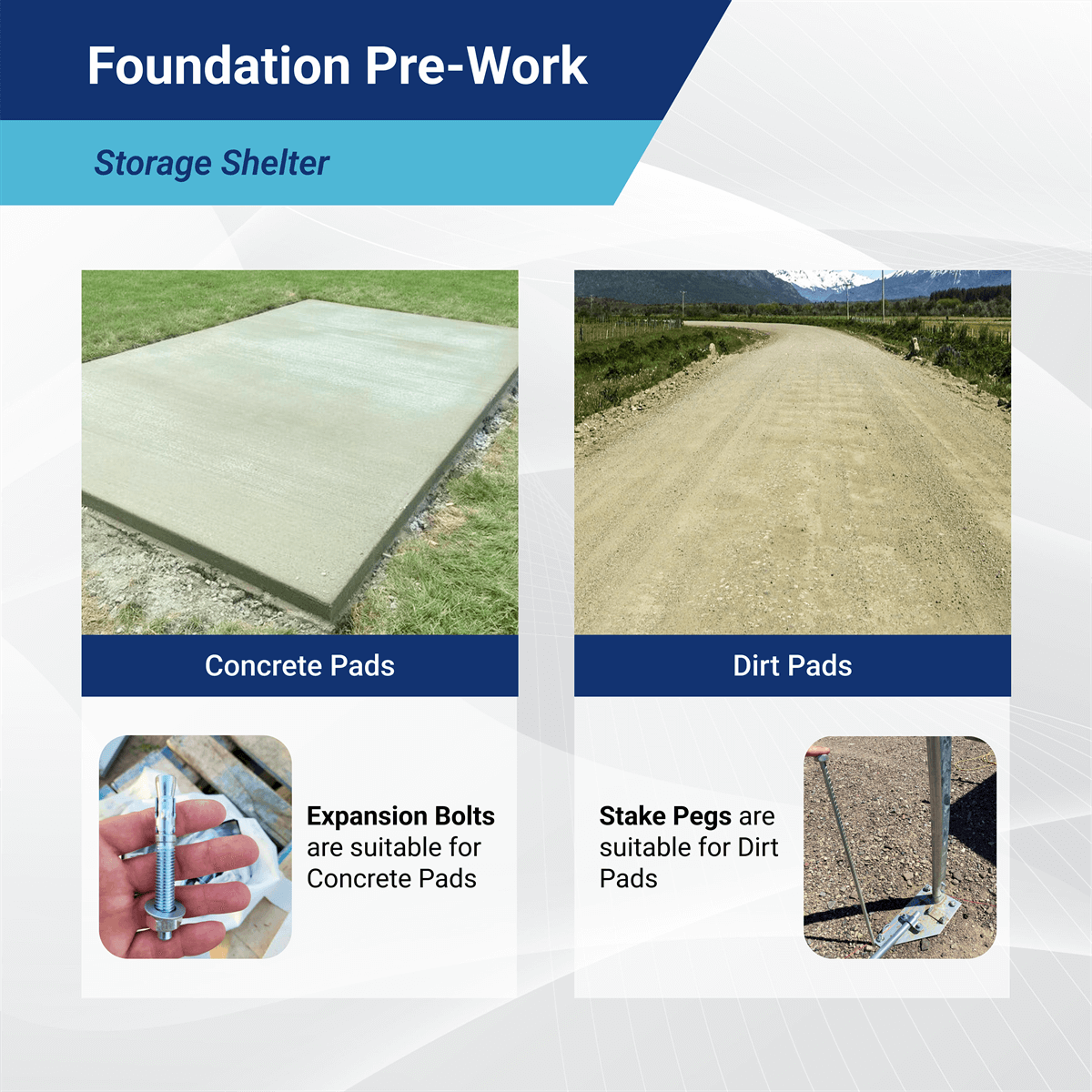

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specification
| Description | Specifications |

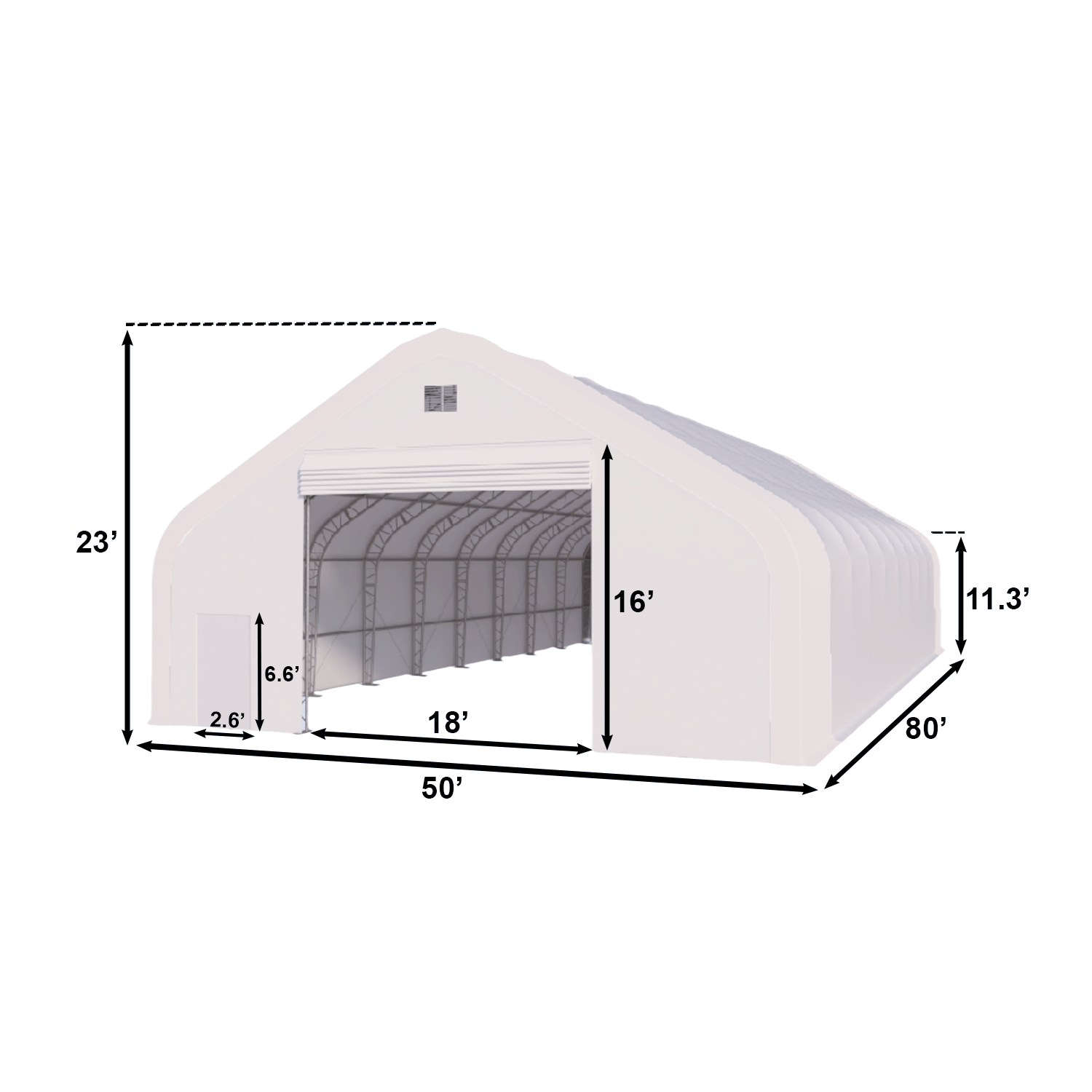

| Dimensions (WxLxH) | 50’x80’x23′ |
| Side-wall Height | 11.3 ft |

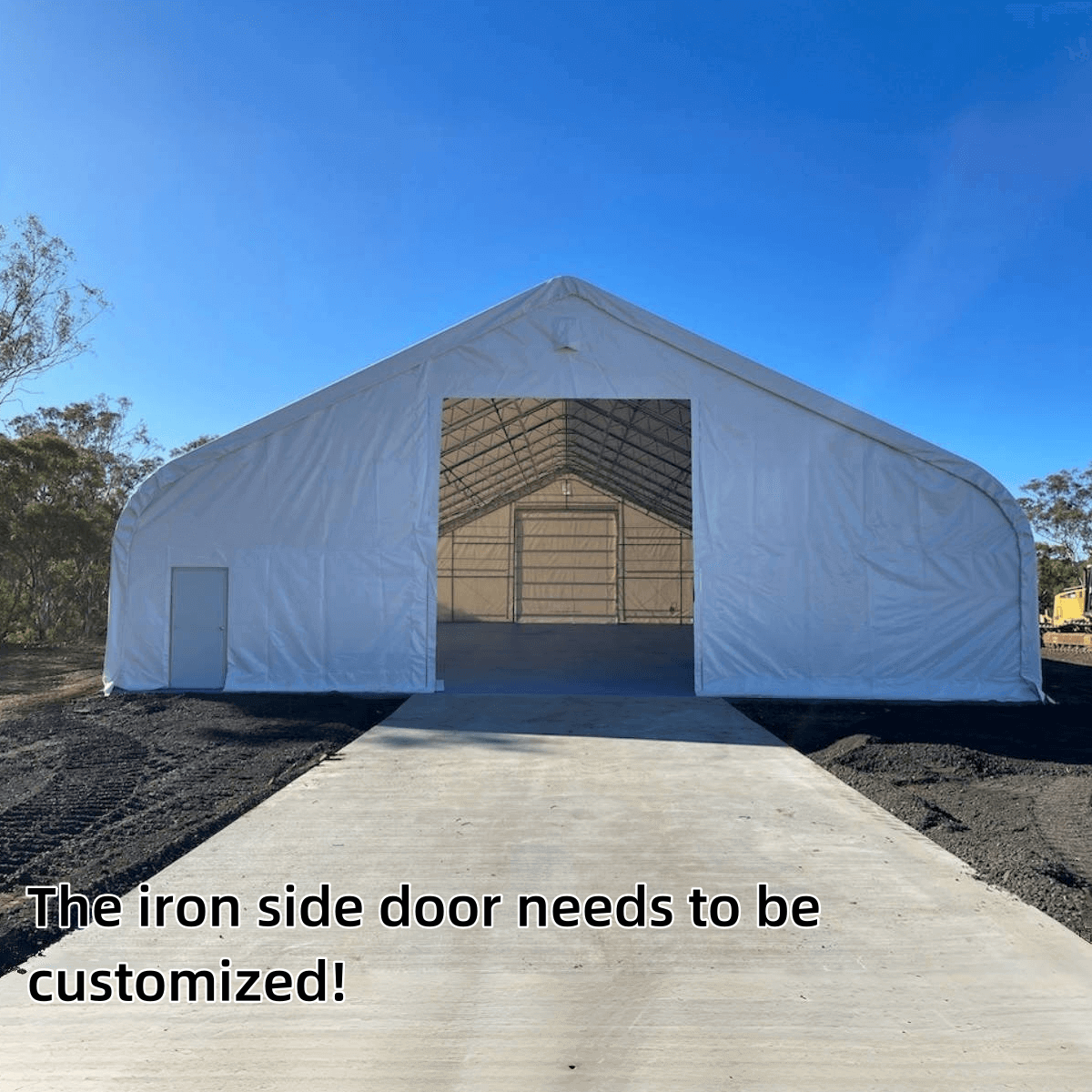

| Door size (WxH) (Front & Rear) | 18’x16′ |
| Door Type | Mechanical Rollup Door |

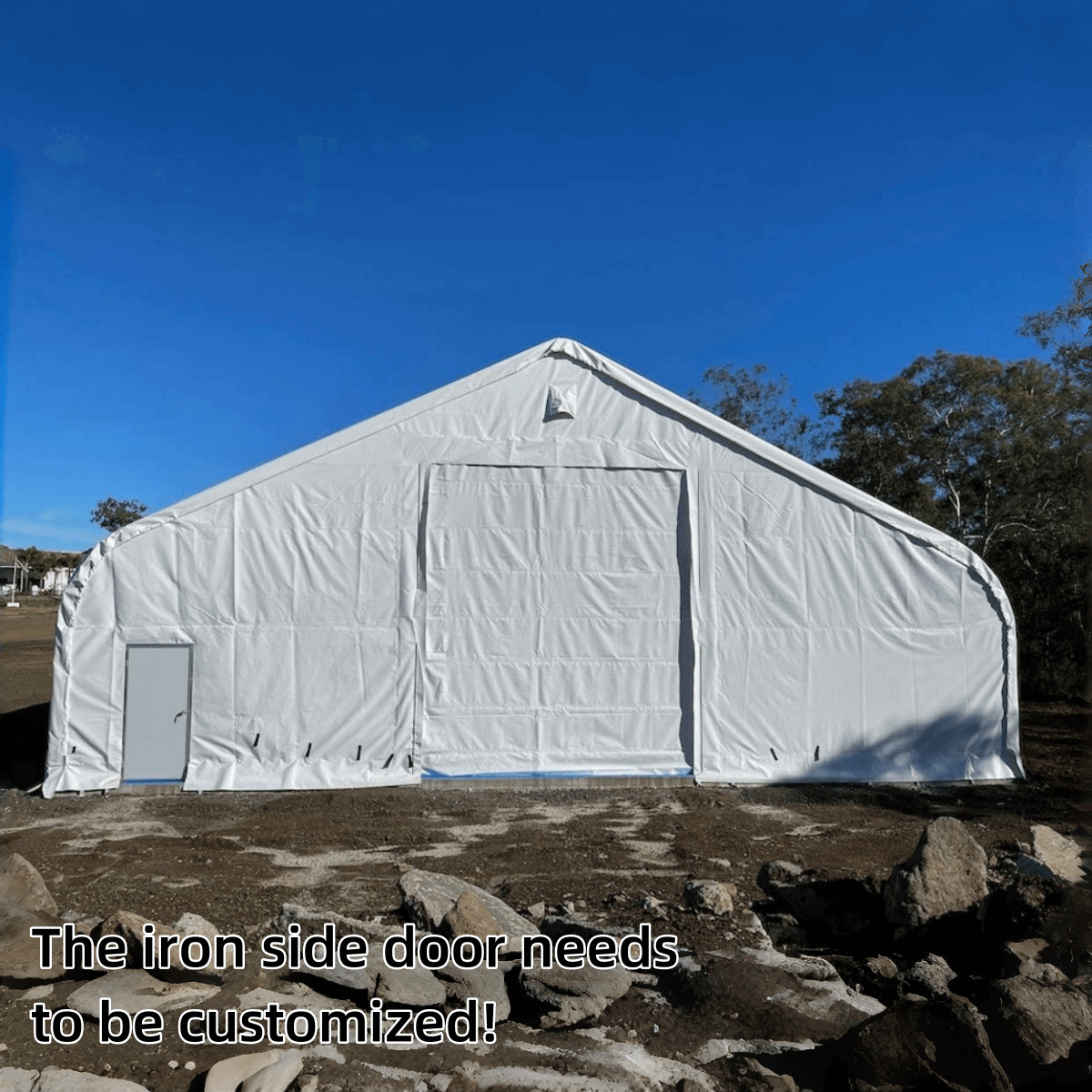

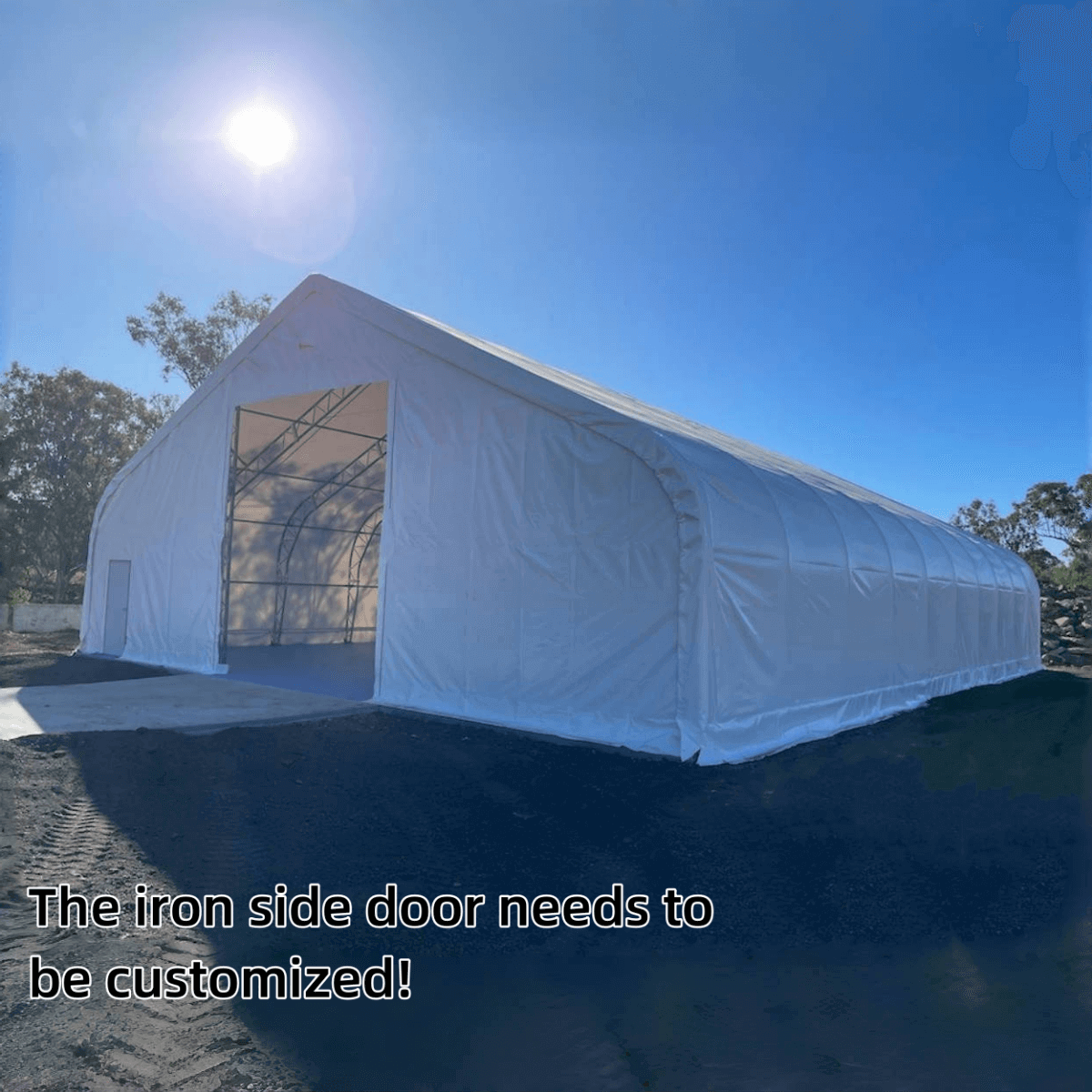

| Man Door (WxH) | 2.6’x6.6′ |

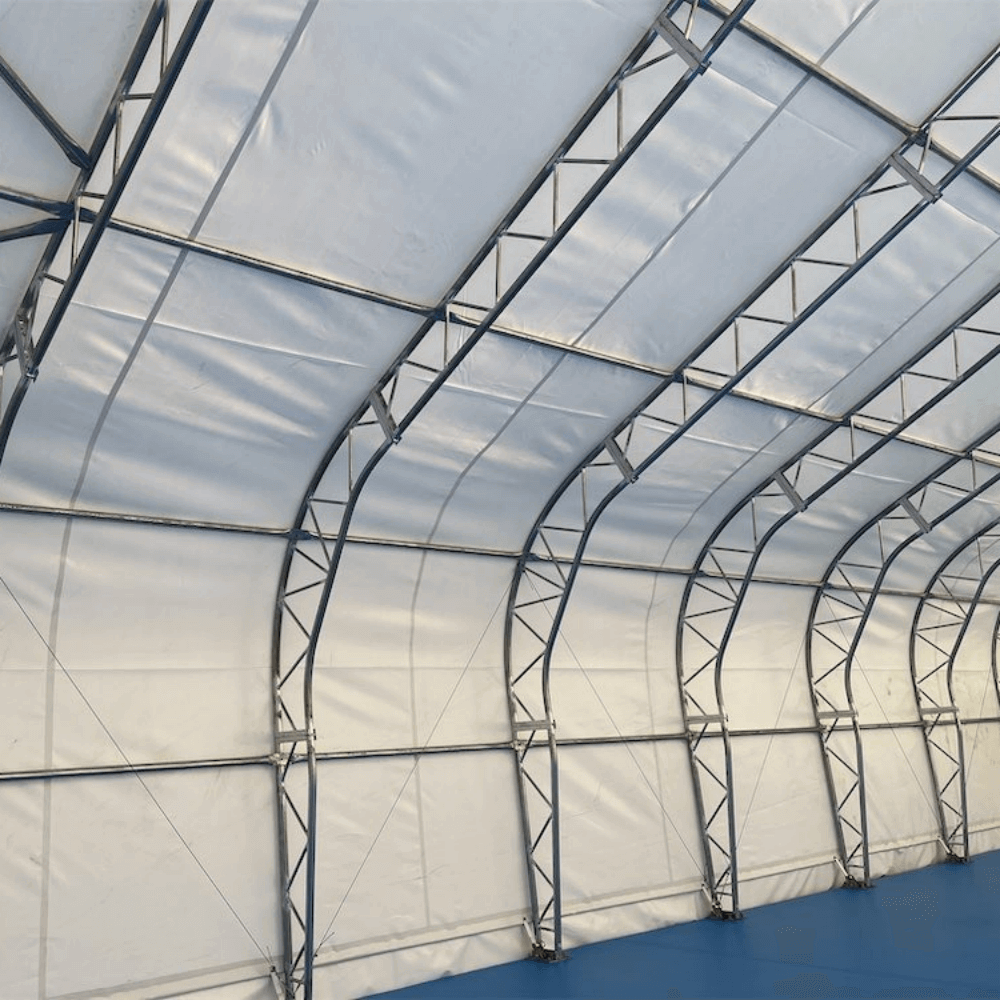

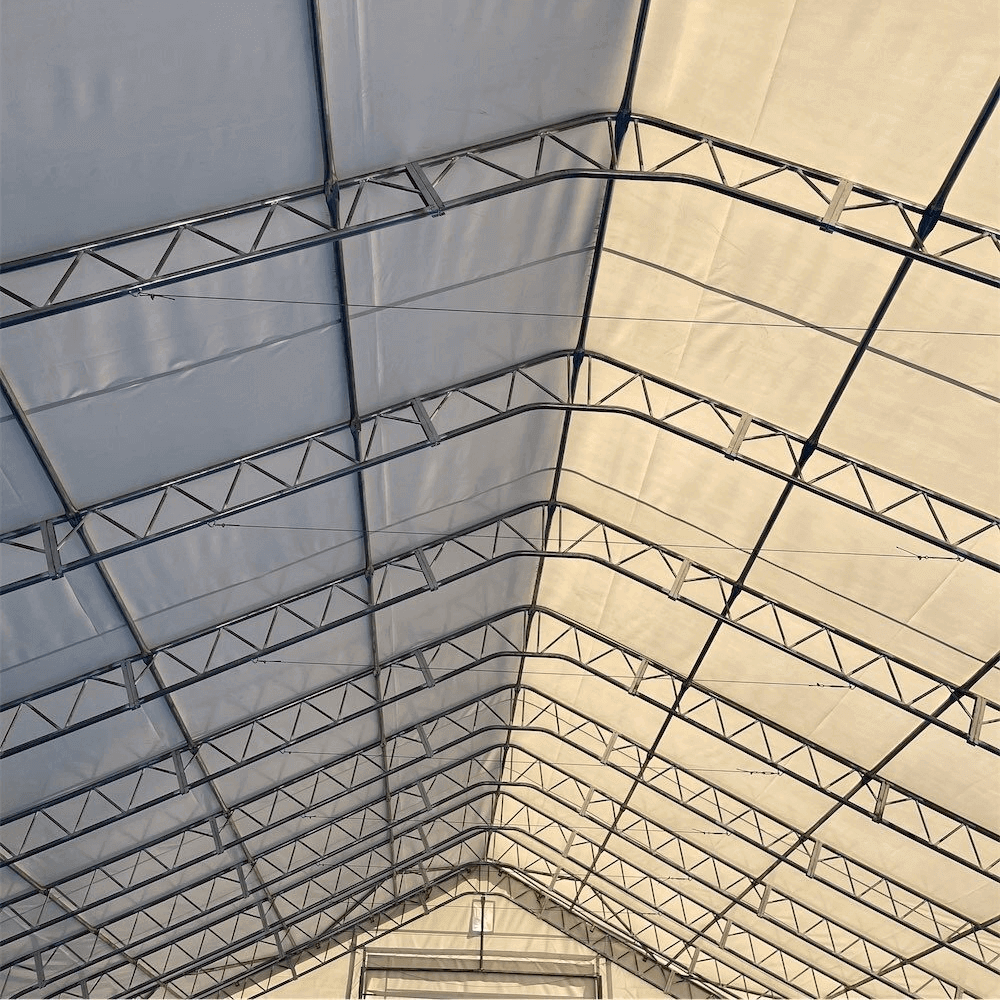

| Frame | Double Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 15 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Φ 60×1.8mm |
| Purlin Ø | Φ 60×1.5mm |
| Arch Spacing | 10 ft |
| Number of Arch | 9 |

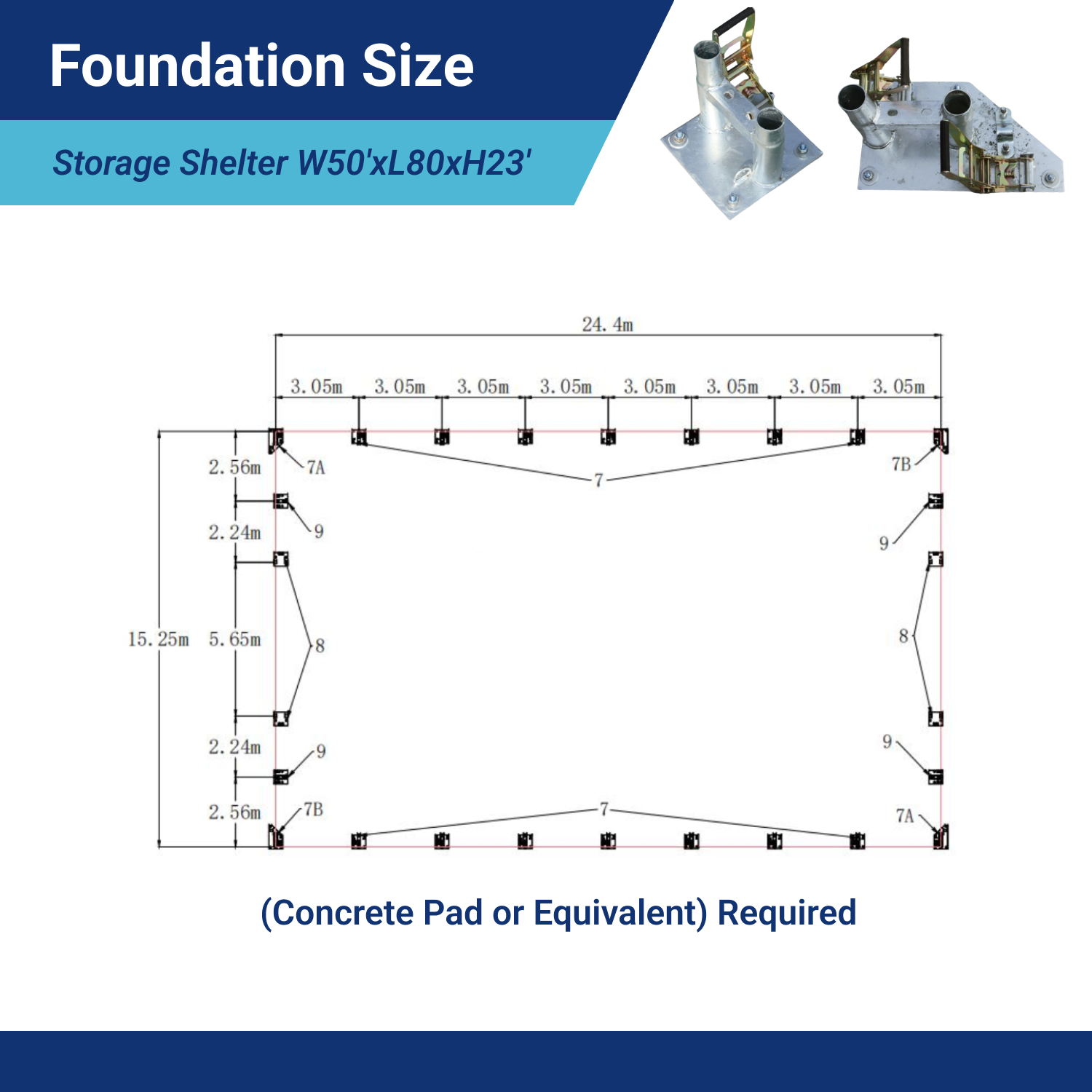

| Number of Anchor plates | 18 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 5 Days |

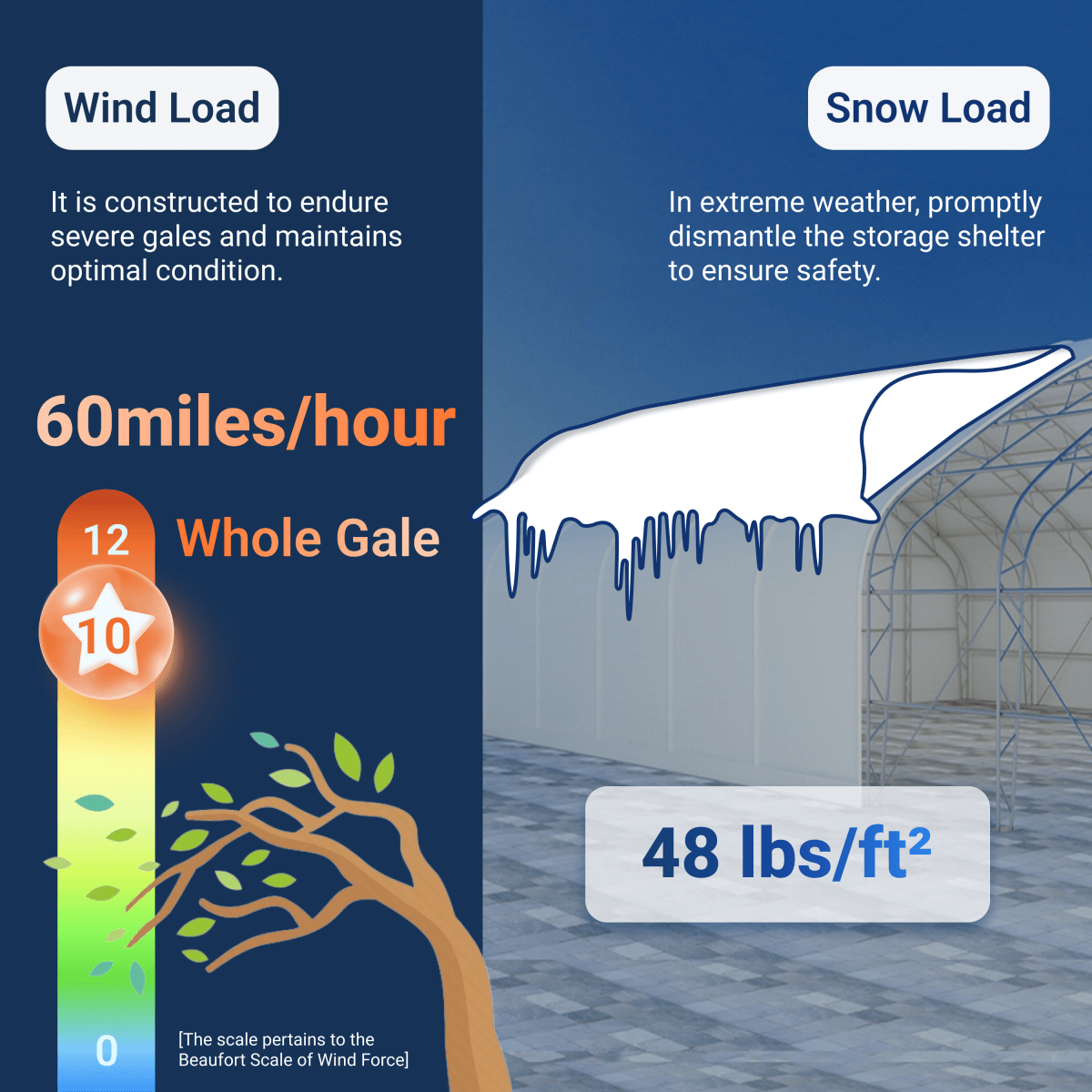

| Snow Load | 48 lbs/ft² |
| Wind Load | 60 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
- Temporary placement usually does not require a permit. For semi-permanent installations, check with your local municipality.
- Tighten the roof fabric to prevent sagging (“hammocks”) and re-tighten after a few months, especially after cold weather.
Features
- No building permits required*
- Provides 50’ wide, 80’ long, and 23’ high storage space
- Suitable for residential, commercial, and industrial use
- Galvanized steel structure resists rust and corrosion
- Weatherproof (snow, storm, wind, water), UV-resistant, and fire-retardant
- PVC fabric allows natural light during the day, reducing electricity use
- Double doors at both ends for easy access
- Easy to assemble, dismantle, and relocate
Package Size & Weight (32oz PVC)
- Box 1: 124″x44″x47″, 3,428 lb
- Box 2: 124″x44″x49″, 2,062 lb
- Box 3: 124″x44″x47″, 3,060 lb
- Box 4: 100″x44″x47″, 1,800 lb
Forklift: Required for unloading
Delivery: Loaded onto a box or flatbed truck depending on size; forklift or equivalent required for unloading.
