Greatbear Hydraulic Breaker
Original price was: $5,517.85.$3,310.71Current price is: $3,310.71.
This Greatbear Hydraulic Breaker is a heavy-duty skid steer attachment designed for demolition of concrete structures, rocks, and pavement. Also known as a hoe ram, pecker, or hammer, it delivers powerful percussive force for construction and demolition projects. Its durable construction and high-performance specifications make it suitable for a wide range of carriers and applications.
Specification
Â
| Model | Unit | 750 |
| Weight | kg | 375 |
| Length | mm | 1719 |
|
Working Flow Rate |
liter/min | 50-90 |
| Oil Relief Pressure | kg/cm2 | 170 |
| Working Pressure | kg/cm2 |
120-170 |
| Impact Rate | bpm | 400-800 |
| Chisel Diameter | mm | ¢75 |
| Hose Diameter | inch | ‘1/2 |
| Back Head Pressure | kg/cm2 | 16±0.5 |
| Accumulator Pressure | kg/cm2 | / |
| Suitable Carrier | ton | 6-9 |

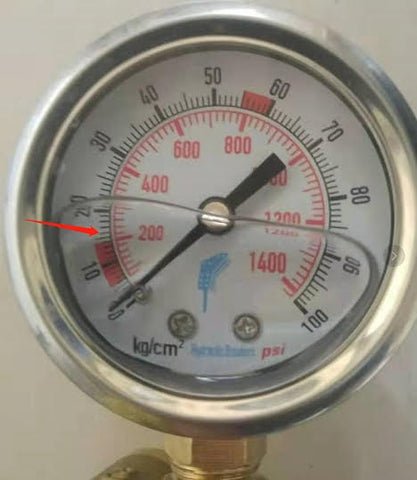

- Pressure gauge – Pressure of nitrogen gas: 220 PSI
Also Available in
Â
| Model | Unit | 450 | 530 | 680 | 850 | 1000 |
| Weight | kg | 120 | 190 | 300 | 510 | 840 |
| Length | mm | 1000 | 1100 | 1300 | 1737 | 1900 |
|
Working Flow Rate |
liter/min | 25-50 | 25-60 | 36-60 | 45-85 | 80-120 |
| Oil Relief Pressure | kg/cm2 | 160 | 160 | 170 | 190 | 190 |
| Working Pressure | kg/cm2 |
90-100 |
90-120 |
110-140 |
127-147 |
150-170 |
| Impact Rate | bpm | 500-1000 | 500-1000 | 500-900 | 400-800 | 400-650 |
| Chisel Diameter | mm | ¢45 | ¢53 | ¢68 | ¢85 | ¢100 |
| Hose Diameter | inch | 1/2 | 1/2 | ‘1/2 | ‘3/4 | ‘3/4 |
| Back Head Pressure | kg/cm2 | 16 | 16 | 16 | 16±0.5 | 16±0.5 |
| Accumulator Pressure | kg/cm2 | / | / | / | / | / |
| Suitable Carrier | ton | 1-1.5 | 1.5-3 | 3-7 | 7-14 | 10-15 |
| Model | Unit | 1350 | 1400 | 1550 | 1650 | 1750 |
| Weight | kg | 1510 | 2029 | 2900 | 3500 | 4500 |
| Length | mm | 2300 | 2420 | 2620 | 3015 | 3055 |
|
Working Flow Rate |
liter/min | 130-170 | 150-190 | 150-230 | 200-260 | 210-280 |
| Oil Relief Pressure | kg/cm2 | 210 | 210 | 230 | 240 | 240 |
| Working Pressure | kg/cm2 |
160-185 |
160-185 |
170-200 |
180-200 |
180-200 |
| Impact Rate | bpm | 400-650 | 400-800 | 400-800 | 250-400 | 250-350 |
| Chisel Diameter | mm | ¢135 | ¢140 | ¢155 | ¢165 | ¢175 |
| Hose Diameter | inch | 1 | 1 | 1 | 5/4 | 5/4 |
| Back Head Pressure | kg/cm2 | 16±0.5 | 16c±0.5 | 16±0.5 | 16±0.5 | 16±0.5 |
| Accumulator Pressure | kg/cm2 | 60 | 60 | 60 | 60 | 60 |
| Suitable Carrier | ton | 18-25 | 20-30 | 27-36 | 30-45 | 40-55 |
Features
- Ideal for skid steer loader applications
- No back head charging required
- CD-designed side bolt threads for even load distribution
- Increased front head wall thickness for longer service life
- 25% greater impact energy with increased back head pressure
Package Size
- L x W x H: 75 x 50 x 30 in
- Weight: 1,323 lb
- A forklift or equivalent is required for unloading
Various models (450–1750 and 1350–1750 series) are available, each with specific working flow rates, pressures, impact rates, chisel diameters, and suitable carrier tonnage.
