iDEAL Side Downdraft Paint Booth Canopy Plenum Kit (PSB-SDD26B-PLENUM-KIT-ASY)

Description

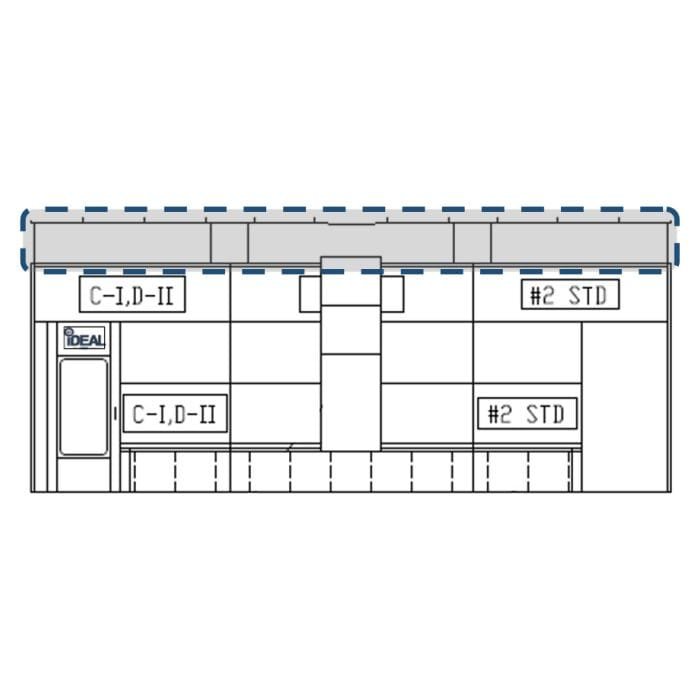

The iDEAL PSB-SDD26B-PLENUM-KIT-ASY is the canopy plenum kit required when running a direct gas-fired air makeup unit with the iDEAL semi side downdraft paint booth. The plenum sits on top of the booth roof and ducts heated, pressurized makeup air down into the cabin so the booth runs as a heated, pressurized cure environment instead of a draw-through configuration.

The kit installs on a new build or retrofits onto an existing iDEAL side downdraft booth in the field. Panels are 18-gauge precision-punched steel finished in bright white powder coat inside and out, joined with 5/16″ bolt-and-nut hardware. All assembly hardware and seam sealant ship in the box.

Features

• Required when using a direct gas-fired air makeup heater with the paint booth
• Installs on new or existing iDEAL side downdraft paint booths
• Bright white powder coat panel finish, inside and outside
• Heavy-duty 18-gauge precision-punched panel construction
• 5/16″ bolt-and-nut assembly
• All assembly hardware and seam sealant included

Compatibility

This canopy plenum kit is built for the iDEAL PSB-SDD26B series side downdraft paint spray booth:

• PSB-SDD26B-1PH (single-phase)
• PSB-SDD26B-3PH (three-phase)

The paint spray booth and the direct gas-fired heater are sold separately.

Specifications

Documents

• Plenum Kit Assembly Instructions (PDF)
• Side Downdraft Booth Accessories Brochure (PDF)

Questions on fitment or assembly? Email sales@mygaragesupplies.com or call 307-381-1810.
