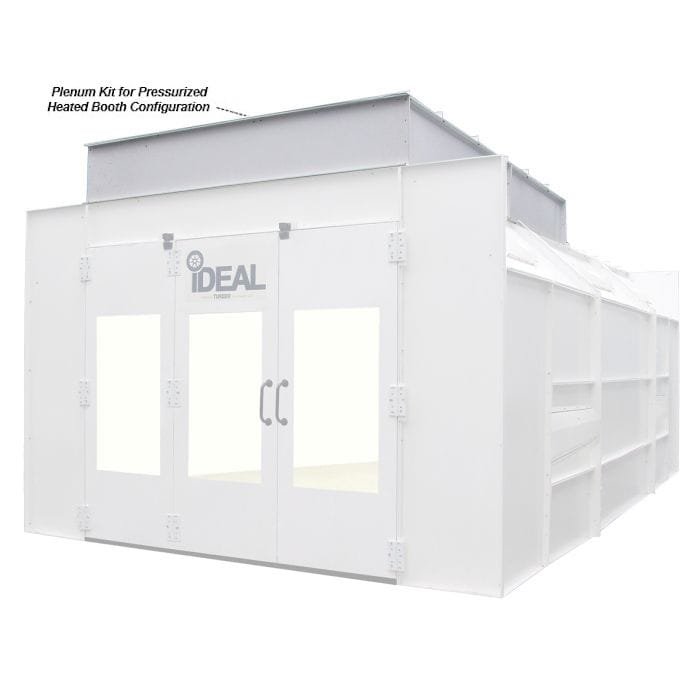

iDEAL Canopy Plenum Kit for PSB-SEMIDD26B Semi Downdraft Paint Booth (Direct Gas Fired Heater Configuration)

Description

The iDEAL Canopy Plenum Kit is the panel-and-ductwork assembly that converts a PSB-SEMIDD26B semi downdraft paint booth to pressurized heated configuration. It is required hardware whenever the booth is paired with a direct gas-fired air makeup heater — the kit captures heated supply air and distributes it across the booth’s intake plenum so the spray environment runs at the temperature the heater is delivering.

The kit installs to new or existing PSB-SEMIDD26B booths. Panels are heavy-duty 18-gauge steel, precision-punched, and finished in bright white powder coat inside and outside. Assembly uses 5/16″ nut-and-bolt hardware with sealant — both included in the box.

Sold separately from the booth and the heater. Order this kit when your build sheet specifies a direct gas-fired heater. If the booth is running unheated airflow, the canopy plenum kit is not required.

Features

• Required when pairing a direct gas-fired air makeup heater with a PSB-SEMIDD26B semi downdraft paint booth
• Installs to new or existing PSB-SEMIDD26B booths
• Bright white powder coat panel finish, inside and outside
• Heavy-duty 18-gauge precision-punched steel panel construction
• 5/16″ nut-and-bolt assembly
• All assembly hardware and sealant included

Compatibility

This canopy plenum kit fits the following iDEAL semi downdraft paint booth models:

• PSB-SEMIDD26B-1PH — single-phase
• PSB-SEMIDD26B-3PH — three-phase

The paint booth and the direct gas-fired heater are sold separately.

What’s Included

• Powder-coated 18-gauge steel canopy plenum panels
• 5/16″ nut-and-bolt assembly hardware
• Sealant for panel joints

Shipping & Delivery

Ships via freight. Contact MGS to confirm scheduling, accessorial requirements, and lead time before placing the order: sales@mygaragesupplies.com or 307-381-1810.

Documents

• Plenum Kit Assembly Manual (PDF)
• Semi Downdraft Paint Booth Accessories Brochure (PDF)
