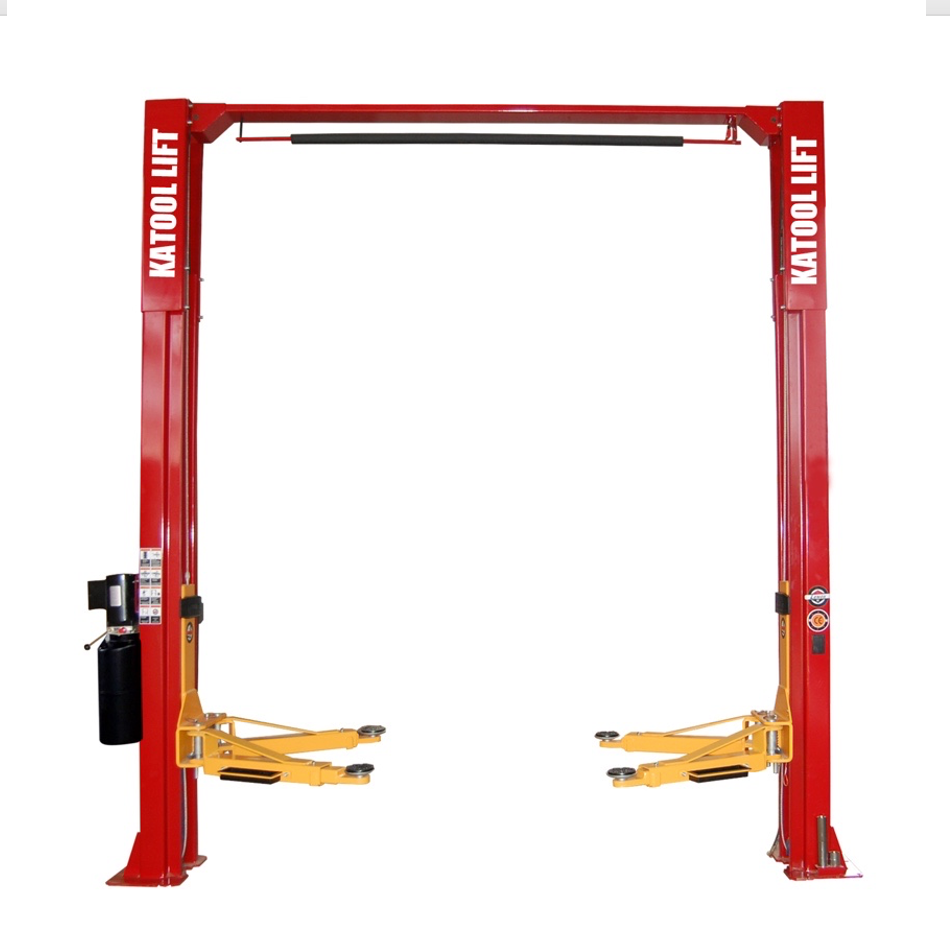

Katool KT-M110, 2 Post Clear-floor Vehicle Lift 11,000lbs

KT-M110 2-Post Clear-Floor Vehicle Lift by Katool

Simplify demanding lifting tasks with the Katool KT-M110, designed for professional workshops and serious automotive enthusiasts. With an 11,000 lb lifting capacity, this two-post lift supports a wide range of vehicles with confidence. Its symmetric clear-floor design maximizes usable workspace, while the dual-side manual safety release provides added control and convenience. Integrated rubber pad door guards help protect vehicles during lifting and servicing.

Performance and Design

The KT-M110 uses dual hydraulic chain-drive cylinders and symmetric lifting arms to deliver smooth, balanced operation. It supports 220V power, with an optional 110V configuration for flexible installation. Included extension support adapters (1.2″ and 4.75″) allow compatibility with various vehicle types. An overhead safety shutoff bar prevents overextension, and foot-protection guardrails with an integrated toolbox improve safety and organization. Built for reliability and daily use, the KT-M110 is well suited for busy shop environments.

KT-M110 Specifications

• Lifting Capacity: 11,000 lbs (5,000 kg)
• Max Lifting Height: 70.75″
• Min Height: 4.25″
• Overall Height: 141.25″
• Overall Width: 142.25″
• Outside Column: 128″
• Inside Column: 110.25″
• Drive-Thru Clearance: 94.5″
• Front Arm Reach (Min): 30.75″ (2 stages)
• Front Arm Reach (Max): 50.5″ (2 stages)
• Rear Arm Reach (Max): 50.5″ (2 stages)
• Motor: 220VAC / 60HZ / 1PH / 2.2KW
• Oil: AW-46 or AW-32 (recommended for colder climates)

Special Features

• CE approved and certified, tested to 115% dynamic and 150% static load standards
• Symmetric clear-floor design for improved access and workflow
• Manual dual-side safety release
• Symmetric lifting arms for balanced support

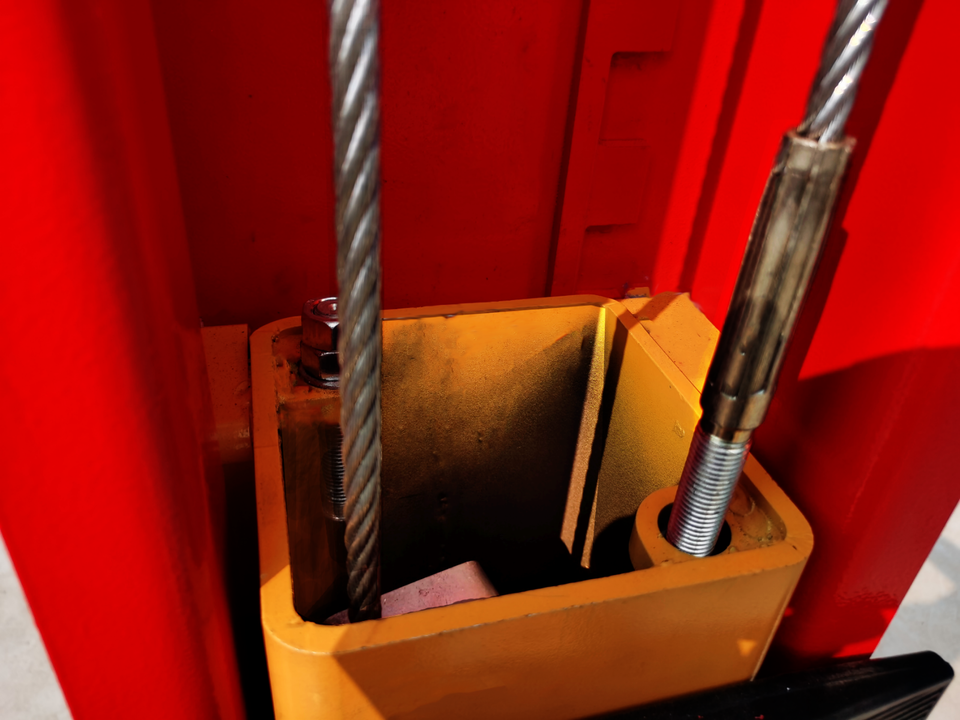

• Cable thickness: 3/8″
• Dual hydraulic chain-drive cylinders
• Rubber pad door guards to protect vehicle doors

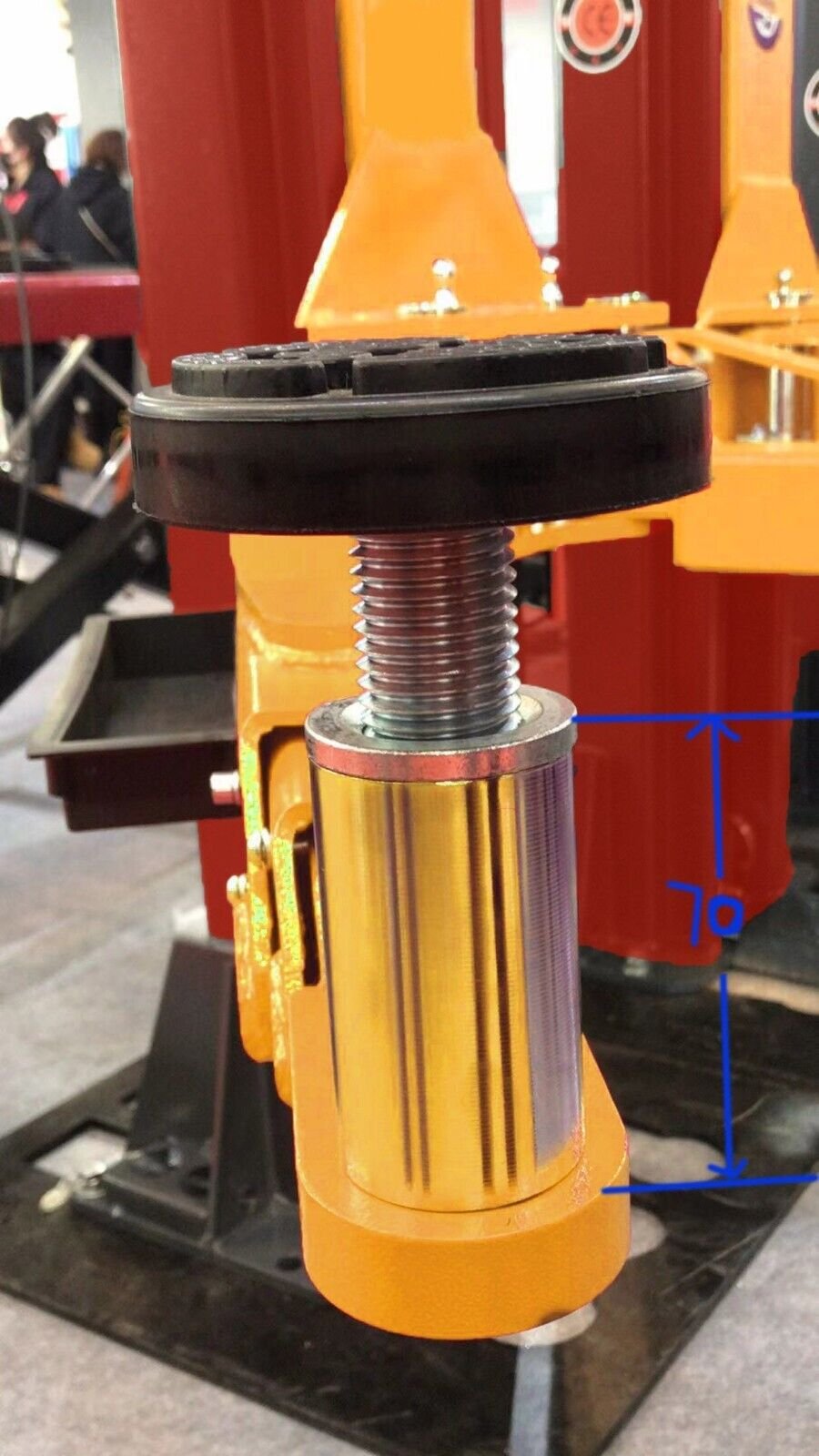

• Includes support adapters: 1.2″ and 4.75″
• Overhead safety shutoff bar
• Foot-protection guardrails with integrated toolbox
• Power: 220V / 60HZ / 1PH

Katool Warranty

• 1-year (12 months) warranty on all parts and manufacturing defects
• Additional 3-year (36 months) warranty on structural lift components

Installation Requirements and Notes

• Must be connected to a circuit with 10-gauge wiring and a 30-amp breaker
• Concrete floor must be at least 5.9″ thick with a minimum 3,000 PSI rating
• Customers are responsible for verifying site suitability prior to installation

Warehouse Pickup Locations

• Azuza, CA 91702
• Brookshire, TX 77423
• City of Industry, CA 91744
• Deer Park, TX 77536
• Kalamazoo, MI 49048
• Linden, NJ 07036
• Pooler, GA 31322
• Romeoville, IL 60446

Warehouse pickup available — contact us for details.

Pallet Dimensions

• 112″ x 18″ x 36″
• Weight: 1,367 lbs
