Katool KT-T810 Tire Changer With KT-B760 Wheel Balancer Combo

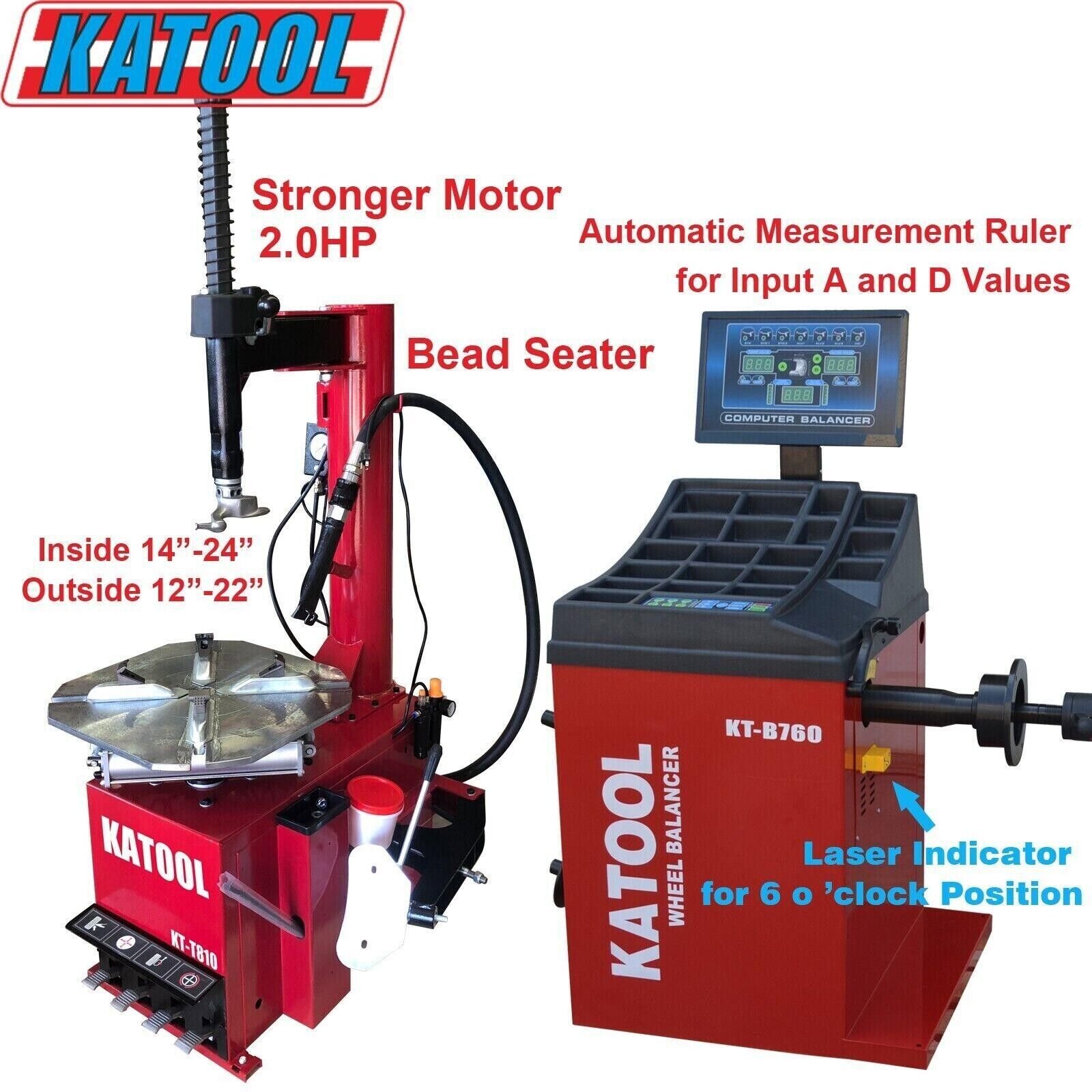

 T810 Tire Changer and B760 Wheel Balancer Combo by Katool

Eliminate the inefficiency of separate tire changing and balancing processes with the Katool KT-T810 Tire Changer and KT-B760 Wheel Balancer Combo. This integrated solution is designed to streamline tire service operations while delivering speed, accuracy, and reliability. The KT-T810 supports tires up to 41 inches in diameter, while the KT-B760 provides precise balancing with ±1g accuracy. Powered by a robust 2.0HP motor, this combo helps increase productivity and ensures consistent tire performance for a wide range of vehicles.

Productivity and Workflow Advantages

With the KT-T810, tires can be mounted and removed quickly and efficiently, while the KT-B760 completes accurate balancing cycles in just 7 seconds. Together, they create a smooth workflow that reduces service time without sacrificing quality. This combination delivers efficiency, precision, and convenience, making it an ideal upgrade for professional workshops aiming to provide faster turnaround times and high-quality results.

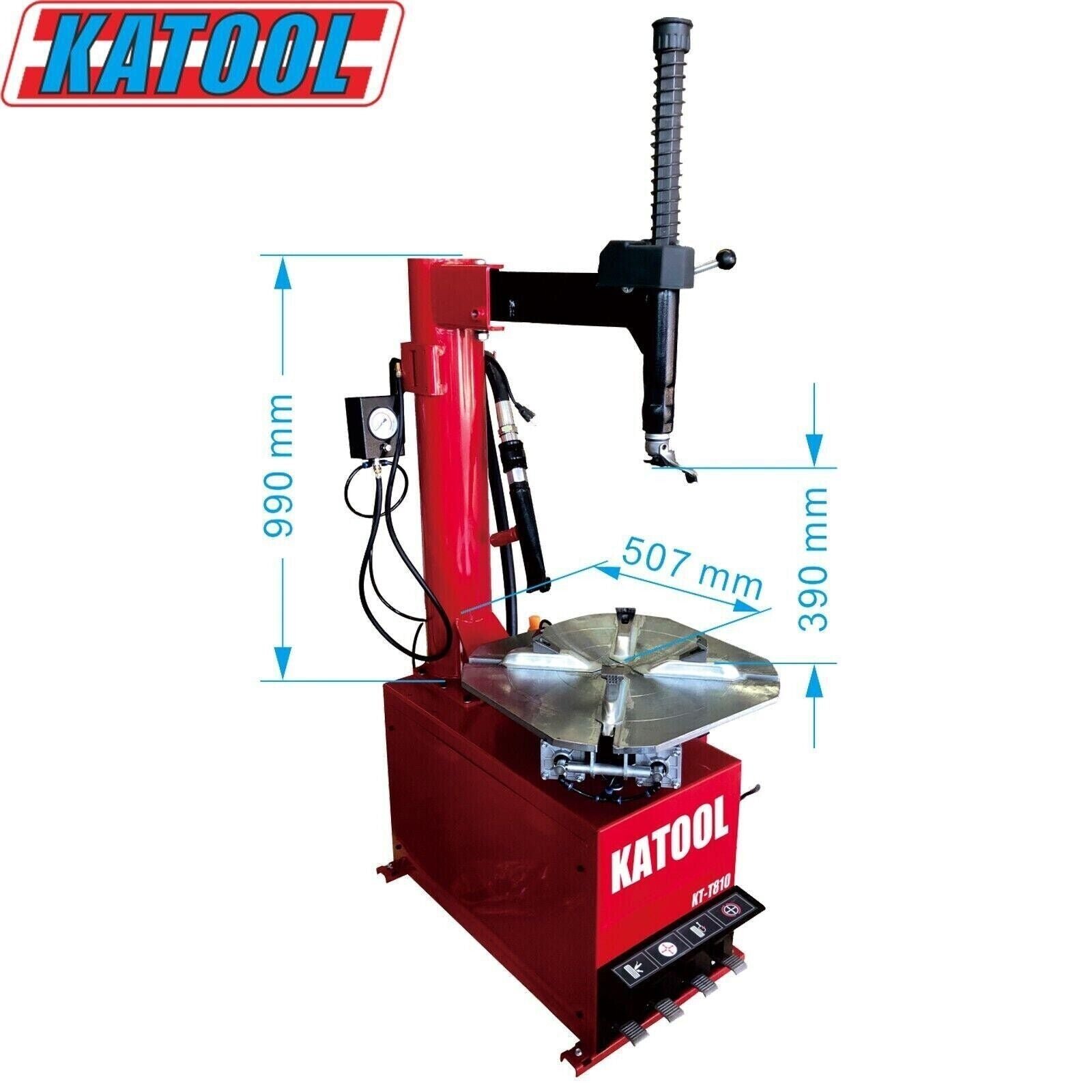

Tire Changer T810 Specifications

• Max Wheel Diameter: 41″ / 1040 mm
• Max Wheel Width: 15″ / 380 mm
• Outside Clamp: 12″–22″
• Inside Clamp: 14″–24″
• Power Supply: 120V 1PH
• Motor Power: 2.0HP / 1.5KW
• Rotation Speed: 6.8 r/min
• Air Pressure: 0.8–1.0 MPa (116–145 PSI)
• Net Weight: 186 kg

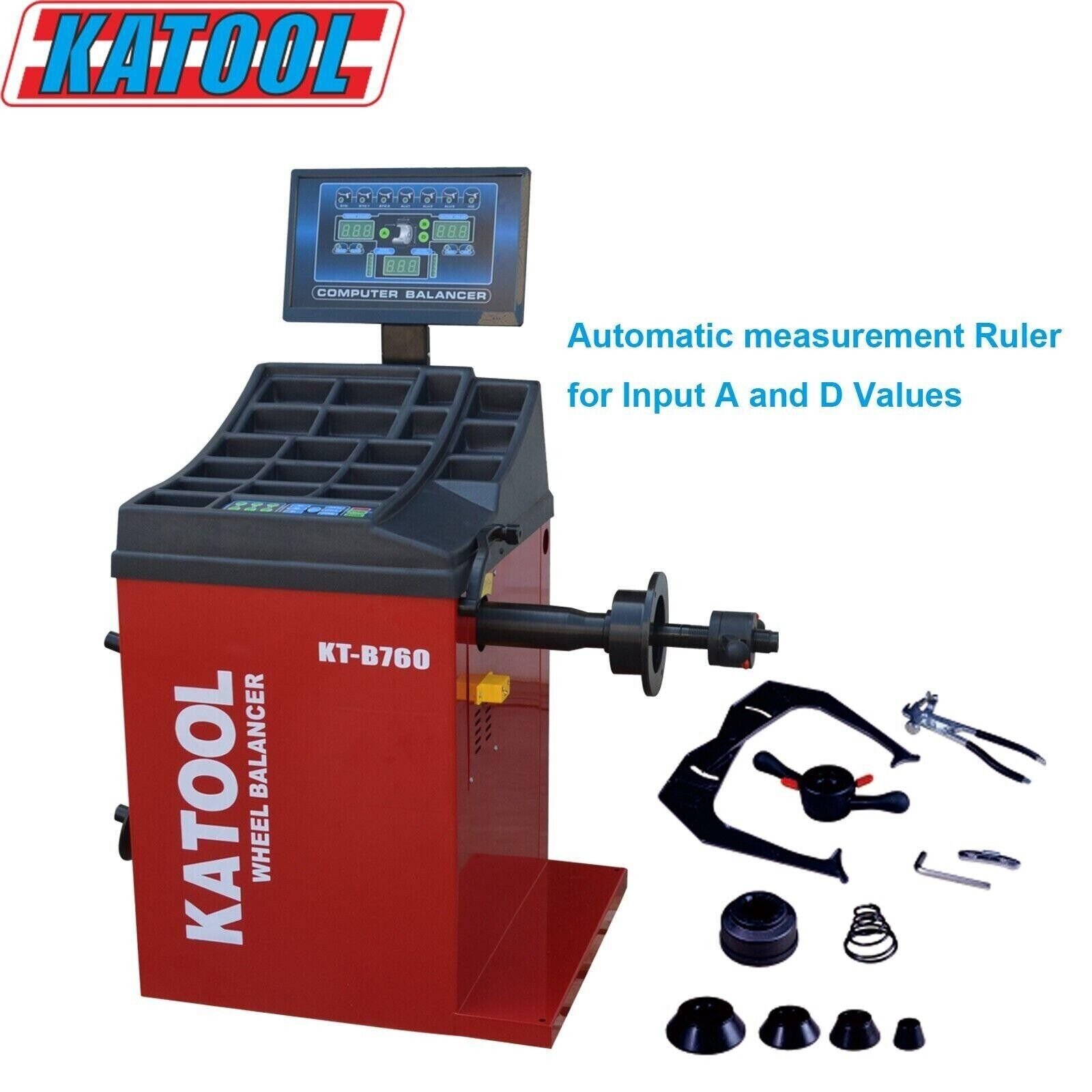

Wheel Balancer B760 Specifications

• Rim Diameter: <30"
• Wheel Width: 3″–12″
• Wheel Diameter: <880 mm / 34.64"
• Balancing Speed: 180 rpm
• Power Supply: 110V 1PH
• Motor Power: 0.25 KW
• Rim Center Hole Diameter: <135 mm / 5.31"
• Wheel Weight: 143 lbs
• Balancing Accuracy: ±1g
• Measuring Time: 7 seconds

KT-T810 Special Features

• Alloy steel jaws with interface carburization treatment (0.8–1.1 mm depth)
• Stainless steel mounting head with solution treatment and interface polishing
• Pedal-controlled inflation gauge
• High-quality spade cover for rim protection
• Pull-type pedal control system for easier operation
• Top-level motor with pure copper winding
• Bead blast seater head with post tank
• High-quality pneumatic system filter
• 120V / 1PH / 2.0HP motor designed for the North American market
• Fully closed body design to protect internal components

KT-B760 Special Features

• Body constructed from 3 mm thick high-strength steel for durability and stability
• Integrated pressure sensor support with 8 mm thick bottom and side boards
• Top-level motor with pure copper winding for higher power and longer lifespan
• 36 mm quenched shaft thread for increased strength
• Moisture-proof, dust-proof, and anti-static computer board
• Multiple balancing modes for different rim types
• Built-in fault diagnosis and self-calibration with double-side calibration
• Unit selection options: Ounce/Gram and MM/Inch
• High-quality integrated power board for stable operation
• Optional wheel guard for added operational safety
• Extended shaft design to accommodate wider wheels

Katool Warranty

• One-year (12 months) warranty on all parts
• Full coverage against manufacturing defects at no cost to the customer

Sold Separately

• KT-T810 Wheel Clamp Tire Changer Machine
• KT-B760 Wheel Balancer
