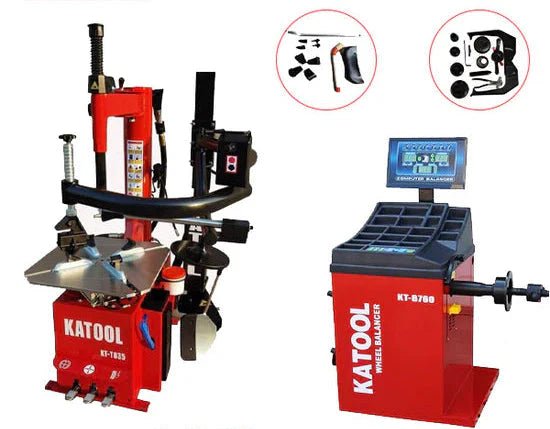

Katool KT-T835 Tire Changer with Wheel Balancer KT-B760 Combo

T835 Tire Changer and B760 Wheel Balancer by Katool

Leave behind outdated equipment, lost time, and dissatisfied customers. Traditional tire service can slow operations and lead to imbalanced wheels that cause vibration and uneven wear. The Katool KT-T835 Tire Changer and KT-B760 Wheel Balancer combo is designed to improve efficiency, accuracy, and overall customer satisfaction.

This professional pairing is built to handle demanding tire jobs with confidence. The KT-T835 Tire Changer supports wheels up to 41″ in diameter and features a wide clamping range for compatibility across many vehicle types. Its powerful 2.0HP motor and intuitive controls allow technicians to complete tire changes quickly and consistently. Complementing it is the KT-B760 Wheel Balancer, which delivers precise ±1g accuracy with a fast 7-second measuring cycle. Simple operation with no preset parameters ensures smooth, balanced results and easier workflow. This combo is an investment in productivity and quality service.

Tire Changer T835 Specifications

• Max wheel diameter: 41″
• Max wheel width: 15″
• Outside clamp range: 13″–26″
• Inside clamp range: 14″–28″
• Power supply: 110V / 1PH / 60Hz
• Motor power: 2.0 HP / 1.5 kW
• Rotation speed: 6.1 r/min
• Air pressure: 0.8–1.0 MPa (116–145 psi)
• Net weight: 582 lbs

Wheel Balancer B760 Specifications

• Rim diameter: < 30"
• Wheel width: 3″–12″
• Wheel diameter: < 880 mm / 34.64"
• Balancing speed: 180 rpm
• Power supply: 110V / 1PH
• Motor power: 0.25 kW
• Rim center hole diameter: < 135 mm / 5.31"
• Max wheel weight: 143 lbs
• Balancing accuracy: ±1 g
• Measuring time: 7 seconds

KT-T835 Special Features

• Alloy steel jaws with 0.8–1.1 mm carburized interface and full quenching process for enhanced toughness, with jaw covers to protect rims
• Stainless-steel mounting head with solution treatment and polished interface, engineered shape, and plastic rim protection cover
• Pedal-controlled inflation gauge
• High-quality spade cover to help prevent rim damage
• Pull-type pedal control system for easier operation and maintenance
• Premium motor with pure copper windings for fast heat dissipation, low defect rate, and long service life
• High-quality filter for reliable oil delivery, effective air filtration, and extended pneumatic system lifespan
• North America configuration using 110V / 1PH / 2.0HP motor for higher power and efficiency
• Dual-side assist arms for additional tire handling support
• Bead blast seater head with integrated air tank
• φ186 mm stainless-steel bead breaker cylinder
• Closed-body design to protect internal components

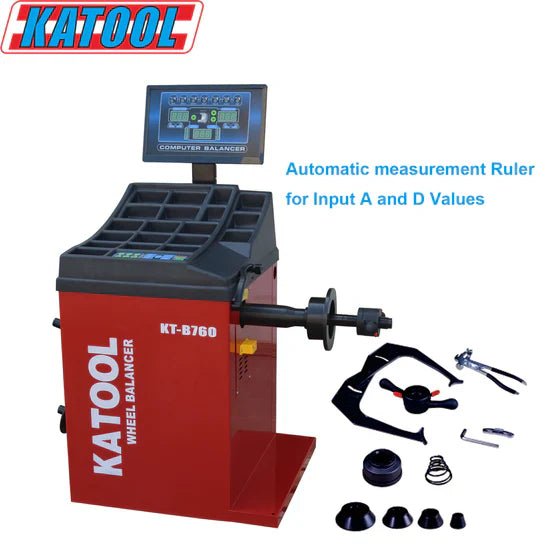

KT-B760 Special Features

• Automatic measurement ruler for quick input of A and D values
• 3 mm thick steel body with high strength, solid welding, and low vibration
• Integrated pressure sensor support with 8 mm thick bottom and side boards for stable, high-precision operation
• High-grade motor with pure copper windings for increased power, faster cooling, and longer service life
• 36 mm shaft thread with quenching treatment for added strength
• Advanced circuit board welding technology that is moisture-proof, dust-proof, and anti-static
• Multiple balancing modes to suit different rim types for greater precision
• Built-in fault diagnostics and double-side self-calibration with no preset parameters for easy operation
• Unit selection options: Ounce/Gram and MM/Inch
• High-quality integrated power board for stable and reliable performance
• Optional wheel guard available
• Extended shaft design compatible with wider wheels

Katool Warranty

• One-year (12 months) warranty on all parts and against manufacturing defects, provided free of charge

Sold Separately

• Katool KT-T835 Tire Changer
• Katool KT-B760 Wheel Balancer
