Katool KT-X90E 8,000 lb Mid Rise Scissor Lift – Electric Lock

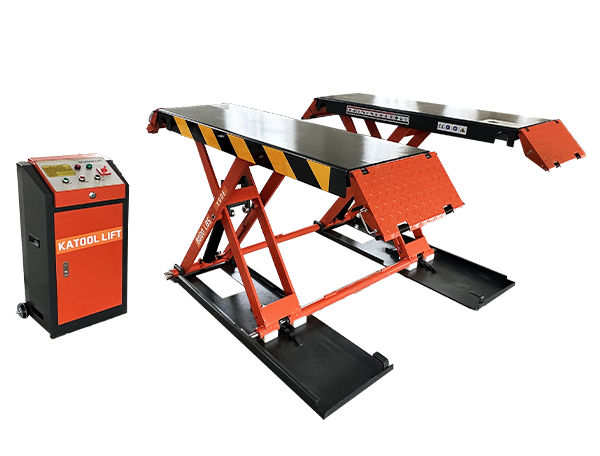

KT-X90E Scissor Lift by Katool

Having issues with lifts that fall short on power, safety, or versatility? The Katool KT-X90E Scissor Lift is engineered to address those challenges with a durable structure, safety-driven design, and flexible power options suited for professional workshops. It is built to improve efficiency while maintaining reliable performance in daily operations.

Offering an 8,000 lb lifting capacity and a maximum rise of 47 inches, the KT-X90E easily supports heavy-duty vehicles. Safety is reinforced through a height limit switch and long-lasting composite rubber lifting blocks. Operational convenience is enhanced by dual voltage compatibility (110V or 220V) and self-lubricating components that minimize maintenance. Drive-up ramps support larger vehicles and extend the working platform, while the advanced hydraulic system with an aluminum motor and cooling fan ensures stable, cool operation during extended use. The KT-X90E delivers an effective balance of strength, safety, and adaptability for busy shops.

Scissor Lift KT-X90E Specifications

• Max. Lifting Capacity: 8,000 lbs
• Max. Lifting Height: 47″
• Min. Lifting Height: 4.3″
• Lifting Time: 30 seconds
• Platform Length: 81.5″
• Platform Width: 20.1″
• Width Between Platforms: 32.2″
• Rated Oil Pressure: 20 MPa
• Power: 110V (30 amp) or 220V
• Oil: AW-46 or AW-32 (for colder climates)

Pallet Dimensions

• (1) 78″ x 67″ x 9″ — 1,179 lbs
• (1) 37″ x 16″ x 16″ — 110 lbs

Optional Support Bars

• Overall Length: 73″
• Pin Distance: 48″–59″ wide
• Adapter Height: 6.2″–8″ tall

KT-X90E Special Features

• 8,000 lb (3,500 kg) lifting capacity
• CE certified, tested to 115% dynamic and 150% static load capacity
• Flush-mount design for clean installation
• Easy start-up system for quick operation

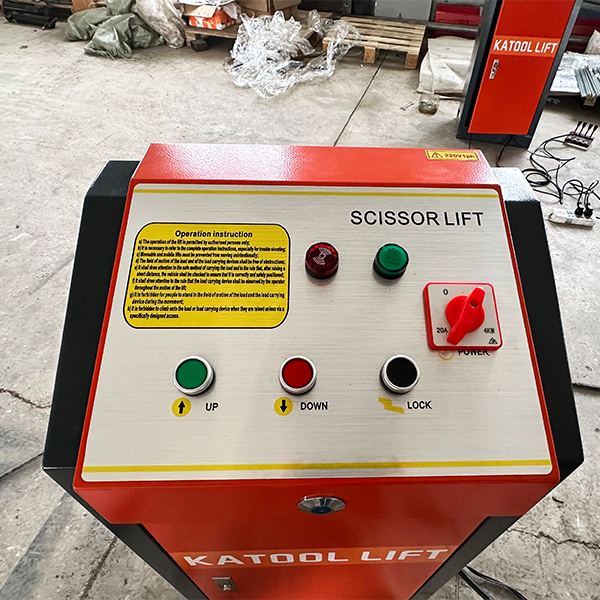

• 24V safety control system
• Height limit switch for enhanced operator protection

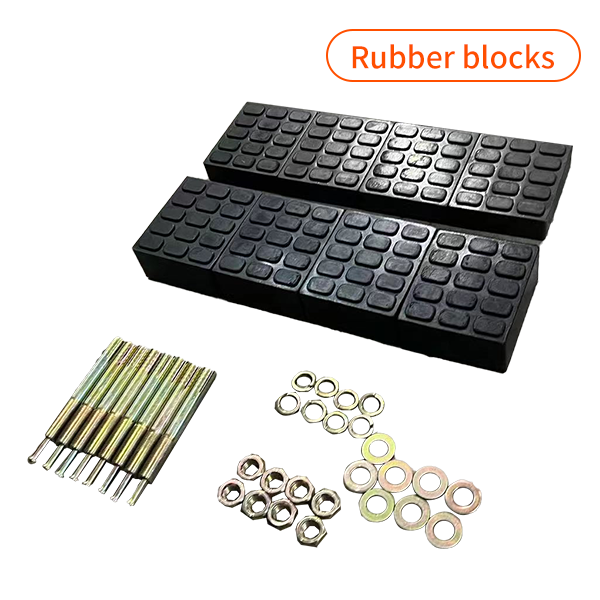

• Composite rubber lifting blocks included
• Self-lubricating bushings and bearings to reduce maintenance
• Drive-up ramps that double as platform extensions for longer vehicles

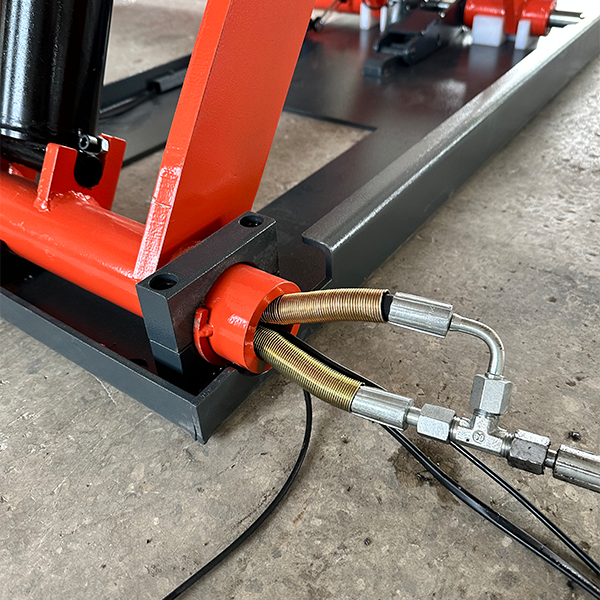

• High-grade hydraulic system with aluminum motor and cooling fan for continuous operation
• Power options: 110V / 220V / 60Hz, single phase
• Includes caster kit for improved mobility

Katool Warranty

• One-year (12 months) warranty on all parts and product defects
• Additional three-year (36 months) warranty on lift structural components

Optional Support Bars (Sold Separately)

• Improve weight distribution and adjustment for SUVs and full-frame vehicles
