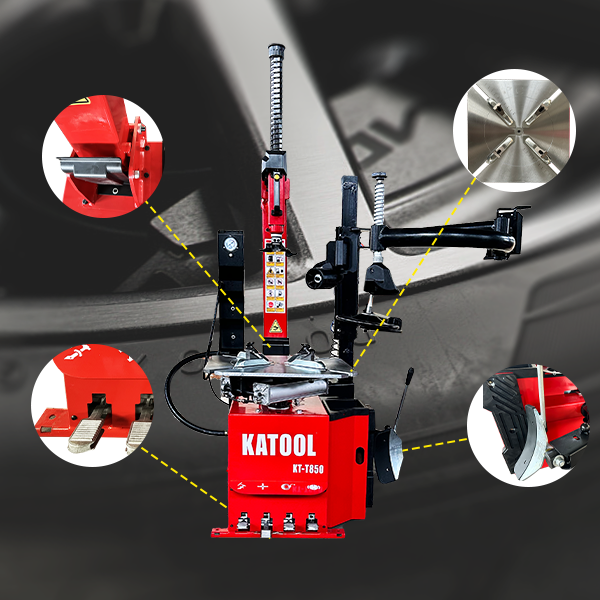

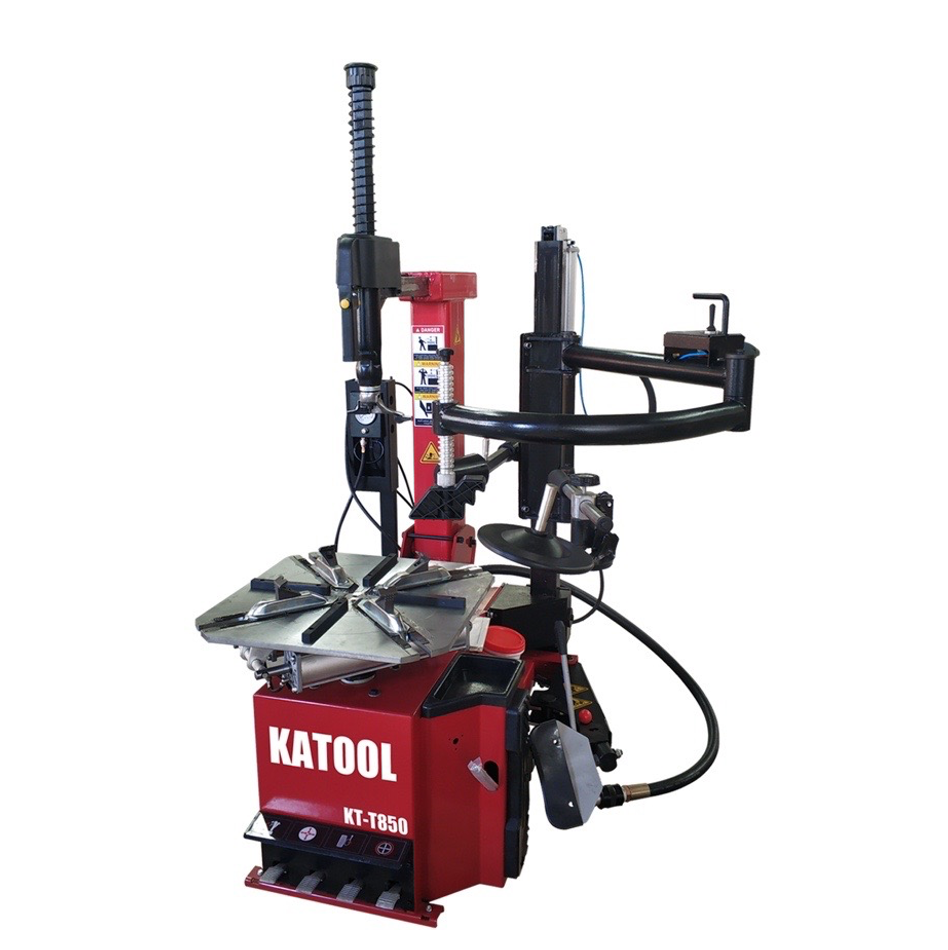

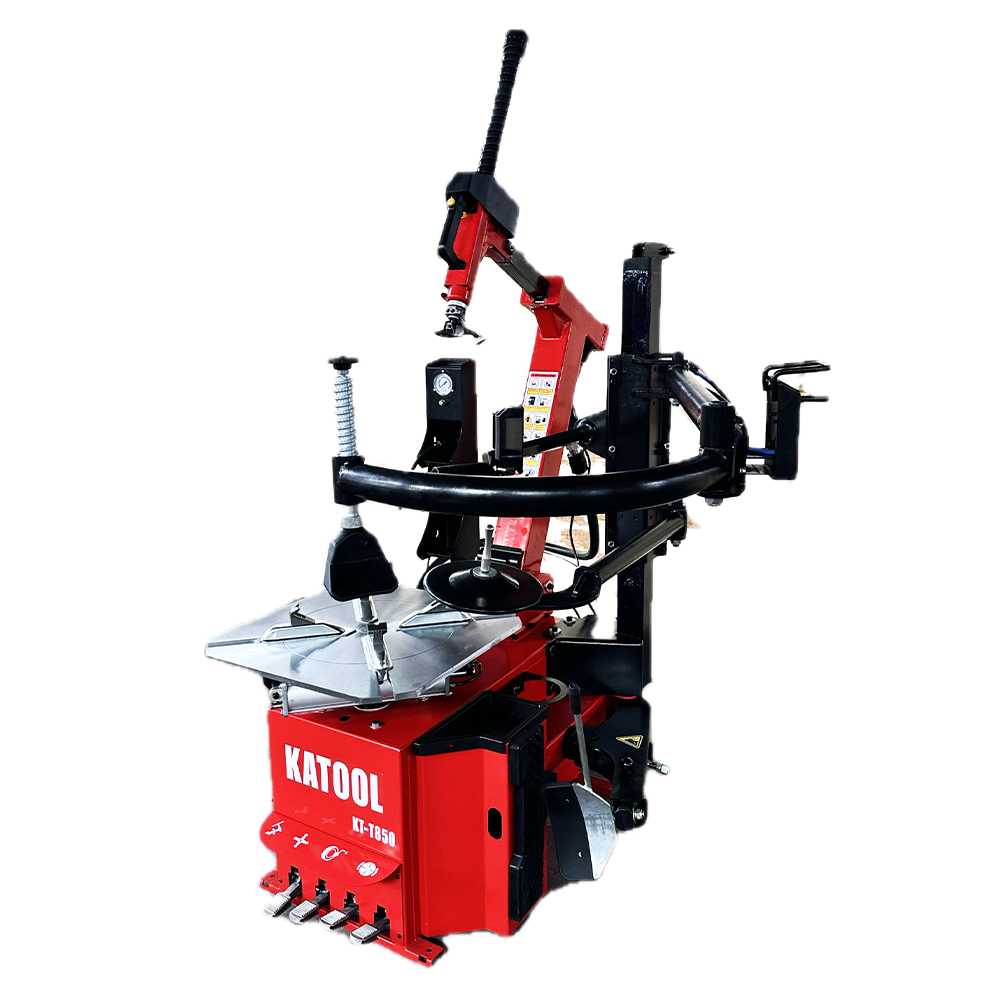

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

T850 Tire Changer by Katool

Designed for versatility and demanding shop environments, the Katool KT-T850 Tilt-Arm Tire Changer supports wheels up to 47 inches in diameter and 15 inches in width. Its wide clamping range accommodates both outside rims (14″–26″) and inside rims (16″–28″), making it suitable for a broad range of vehicles. Powered by a 2.0HP motor with a rotation speed of 6.8 rpm, the KT-T850 delivers fast, consistent tire-changing performance. Operating within an air pressure range of 0.8–1.0 MPa and weighing 750 lbs, it offers excellent stability for high-volume workshop use.

Performance and Productivity

The KT-T850 is engineered to improve efficiency while protecting wheels during service. Durable alloy steel jaws and a stainless steel mounting head help prevent rim damage, while the high-performance motor ensures reliable, continuous operation. A user-friendly pull-type pedal control system simplifies handling, and the integrated lubricator minimizes maintenance by ensuring clean, properly lubricated air flow. For advanced tire service capability, the machine is equipped with assist arms, a bead blast seater, and a heavy-duty bead breaker cylinder.

Tire Changer T850 Specifications

• Maximum Wheel Diameter: 47″
• Maximum Wheel Width: 15″
• Outside Clamp: 14″–26″
• Inside Clamp: 16″–28″
• Power Supply: 110V 1PH
• Motor Power: 2.0HP / 1.5KW
• Rotation Speed: 6.8 r/min
• Air Pressure: 0.8–1.0 MPa (116–145 PSI)
• Net Weight: 340 kg / 750 lbs

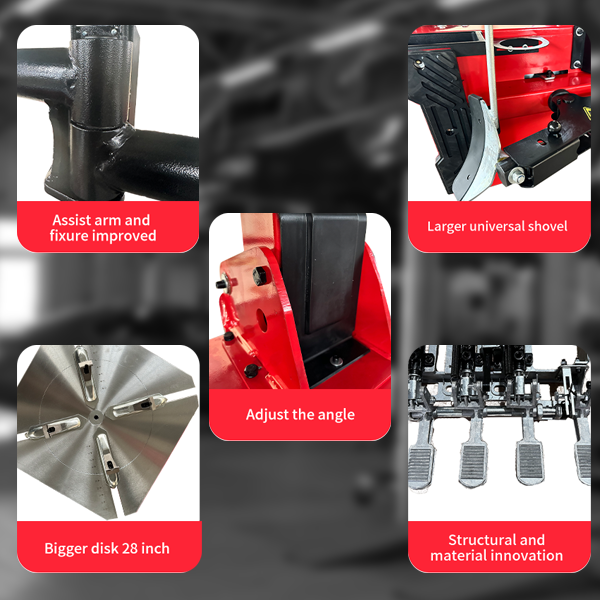

KT-T850 Katool Key Features

• Alloy steel jaws with 0.8–1.1 mm carburized depth and full quenching for long-term durability; protective covers included to safeguard rims
• Stainless steel mounting head, solution-treated and polished for ergonomic performance, with protective plastic cover

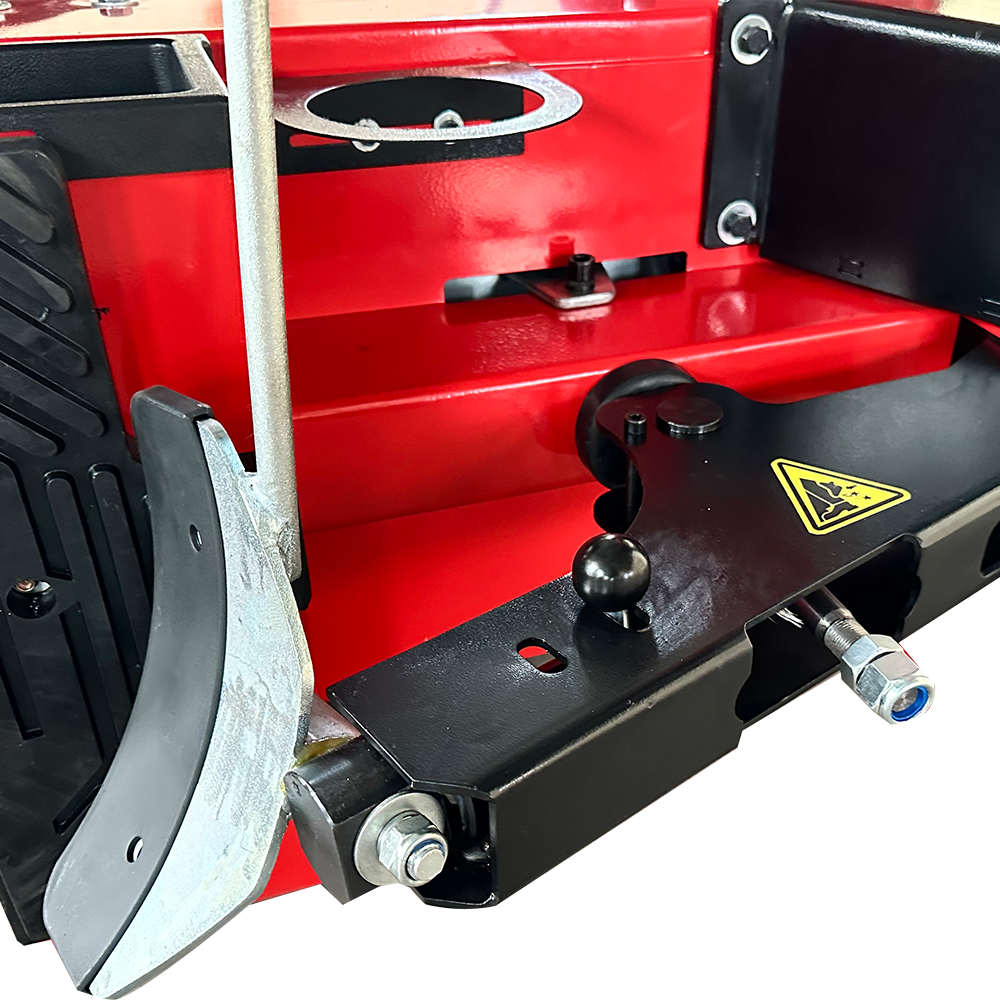

• High-quality spade cover to reduce the risk of rim damage

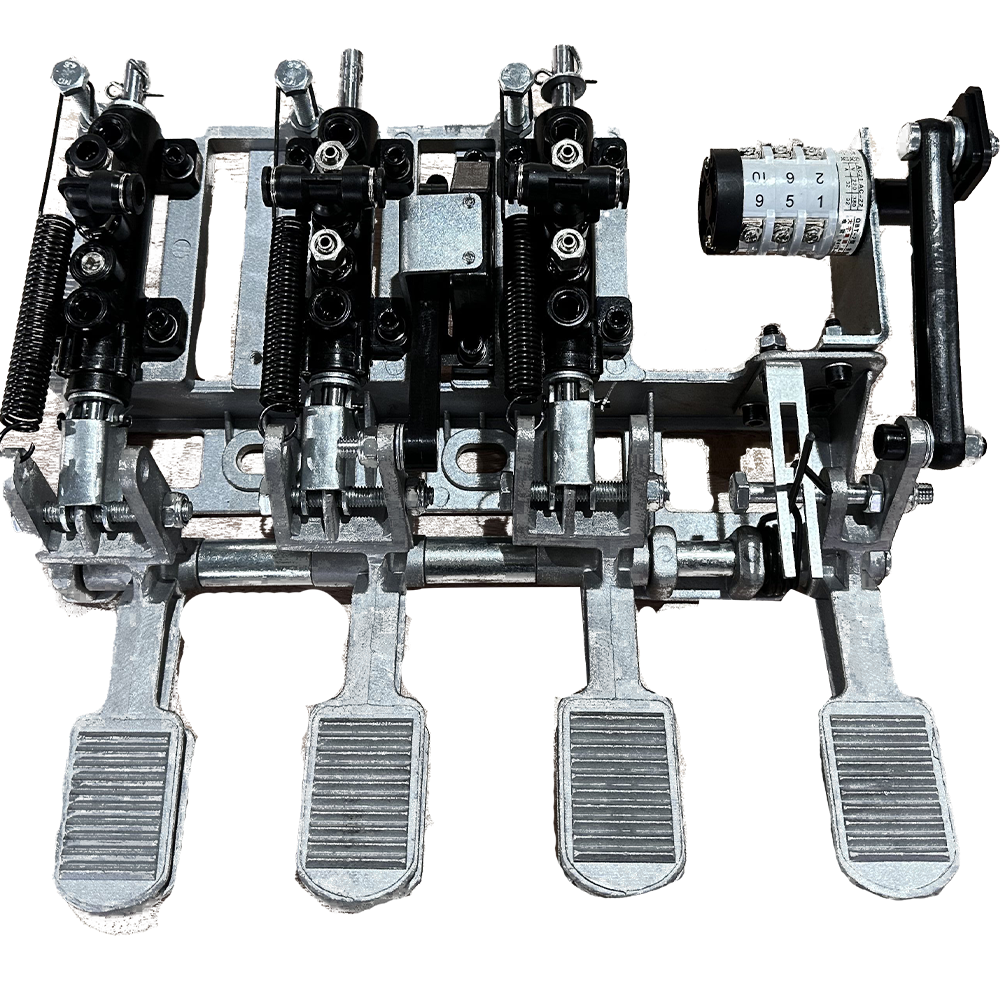

• Pull-type pedal control system for easier operation and servicing
• Premium motor with pure copper winding for higher power, faster cooling, reduced defect rates, and extended service life
• Integrated lubricator to ensure proper oil delivery and filtered compressed air, extending pneumatic system lifespan
• Designed for North America with 110V / 1PH / 2.0HP motor support for optimal efficiency
• Assist arms included for improved handling of stiff or low-profile tires

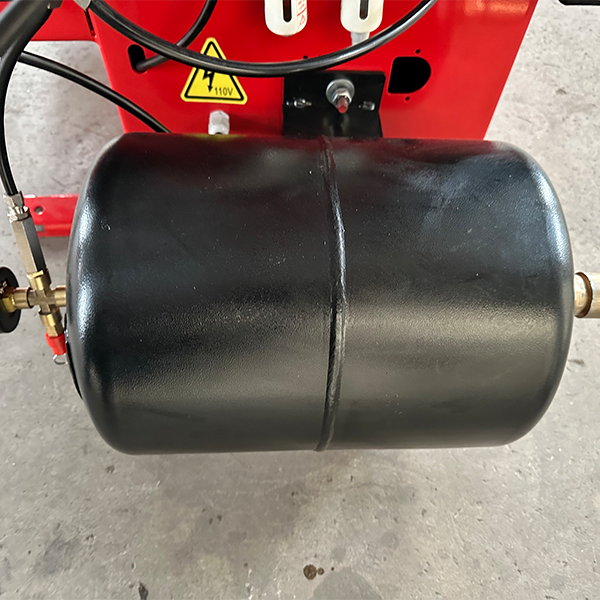

• Bead blast seater included for secure tire seating
• 200 mm aluminum bead breaker cylinder for strong, reliable bead breaking

Katool Warranty

• 1-year warranty on all parts and protection against product defects, provided free of charge

Optional Accessories (Sold Separately)

• Wheel Balancer KT-B700
• MC1 Motorcycle Adapter
