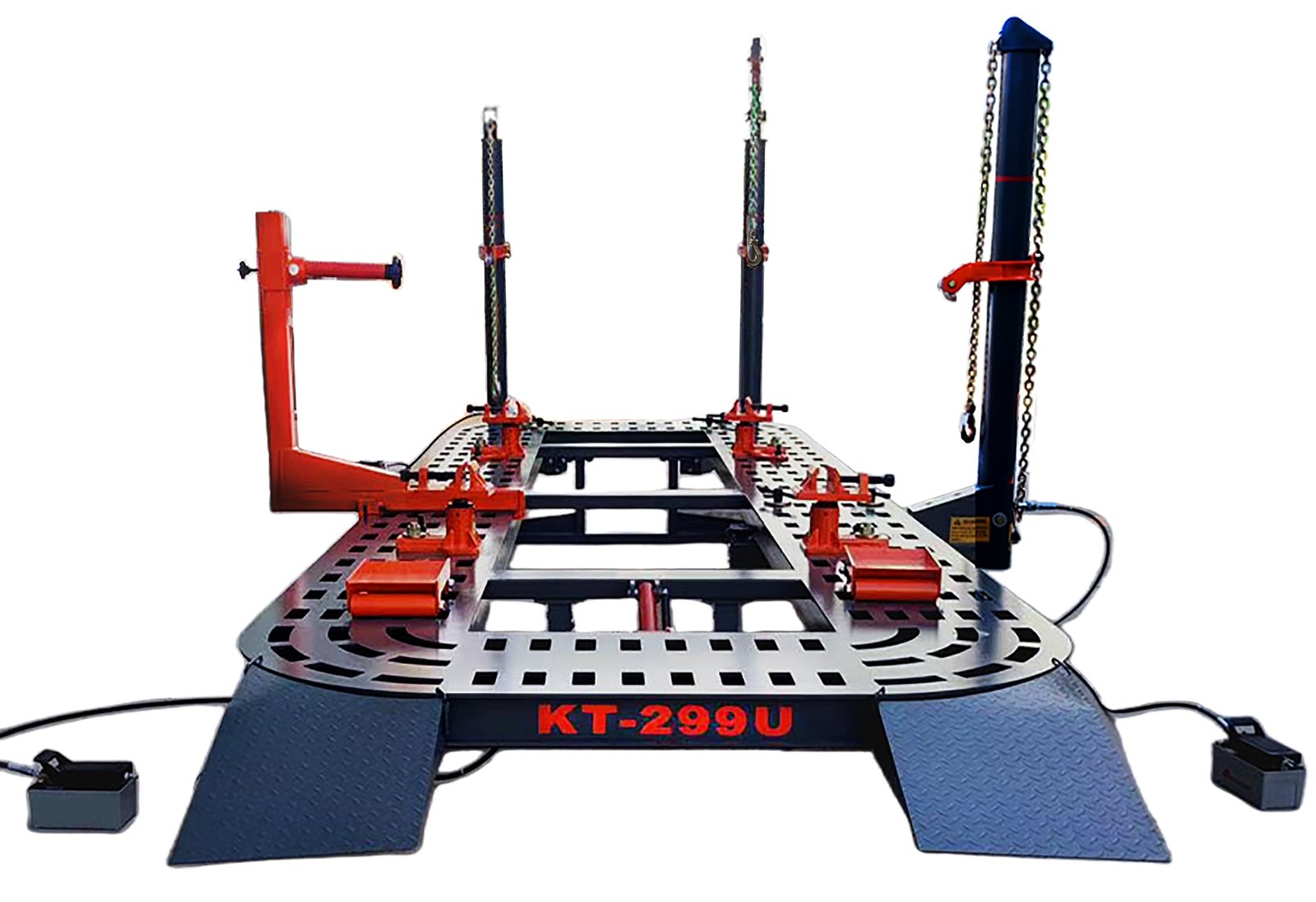

Katool KT-299U Auto Body Frame Machine
Original price was: £8,205.84.£4,923.50Current price is: £4,923.50.
KT-299U Auto Body Frame Machine By Katool
The Katool KT-299U Auto Body Frame Machine is a heavy-duty collision repair system engineered for serious structural work. Built with a massive platform and a powerful 100 kN pulling capacity, it is designed to straighten severely damaged frames with precision and control. With a maximum loading capacity of 7,700 lbs, the KT-299U easily accommodates trucks, SUVs, and commercial vehicles, making it a dependable solution for professional body shops.
Power, Precision, and Control
Despite its strength, the KT-299U is engineered for accuracy and ease of use. A dedicated positioning slot eliminates dead zones, allowing precise pulling from virtually any angle. The high-pressure pneumatic pump delivers controlled force for consistent results, while 360-degree rotating towers and a tilt hydraulic lifting platform provide exceptional maneuverability. The spiral-movement main clamp design ensures a secure grip during pulls, reducing setup time and improving repair accuracy. Heat-forged accessories and industrial-grade construction ensure durability under continuous heavy use.
Auto Body KT-299U Specifications
- Length: 256.1″
- Width: 86.68″
- Height: 4.3″–67″
- Pulling Capacity: 100 kN
- Rated Voltage: 220V
- Radius of Pulling: 360 degrees
- Air Supply Required: 0.8 MPa
- Max Loading Capacity: 7,700 lbs (CE Certified)
KT-299U Special Features
- Pulling towers with 10-ton pulling capacity
- Precision positioning slot design to eliminate dead spots
- High-pressure pneumatic pump for controlled pulling force
- High-quality manganese steel construction with CNC plasma cutting
- COâ‚‚ welding (Panasonic), shot blasting, and powder coating for durability
- Tilt hydraulic lifting platform for easier vehicle positioning
- Towers constructed from 10 mm seamless steel pipe with full 360-degree rotation
- Unique spiral-movement design for main clamps to ensure a secure grip
- All accessories and tools are multi-heated and forged for maximum strength
Katool Warranty
- One-year (12 months) warranty on all parts
- Full coverage against manufacturing defects at no additional cost
Warehouse Pickup Locations
- Azuza, CA 91702
- Brookshire, TX 77423
- City of Industry, CA 91744
- Deer Park, TX 77536
- Kalamazoo, MI 49048
- Linden, NJ 07036
- Pooler, GA 31322
- Romeoville, IL 60446
Warehouse pickup available — contact us for details.
