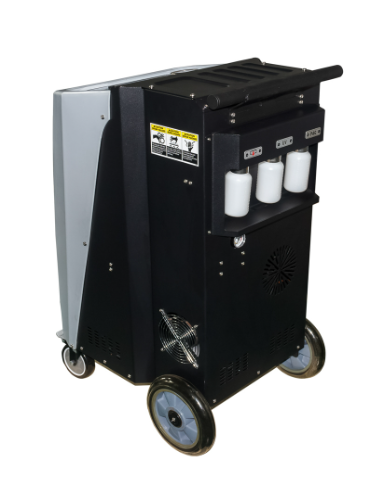

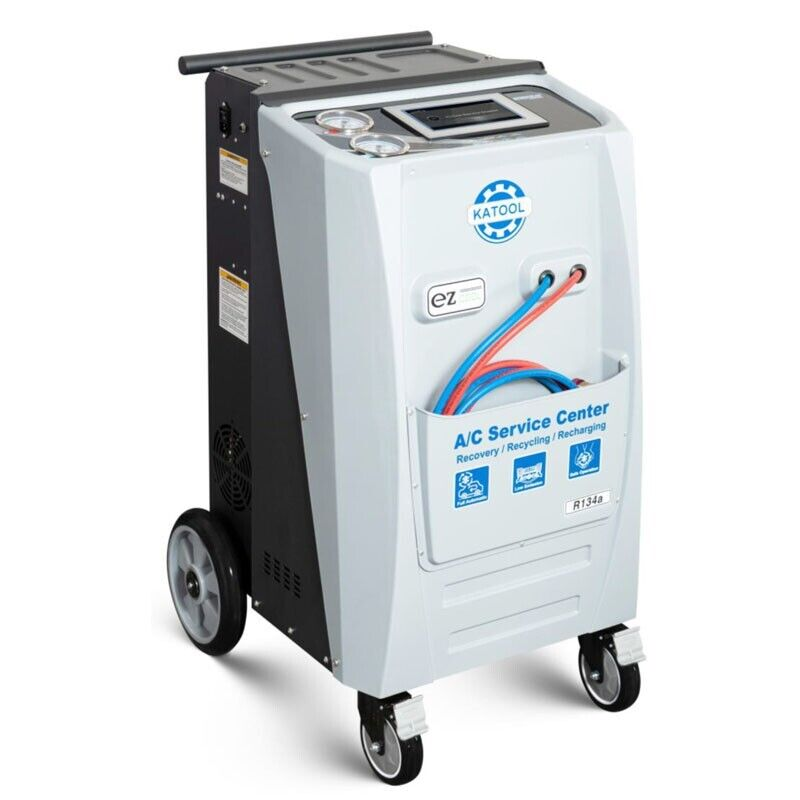

Katool R-134A, DUAL AC1800 Machine – Recovery, Recycle & Recharge

R-134A Recovery Machine by Katool

Improve shop efficiency and deliver reliable A/C service with the Katool R-134A Recovery Machine. Engineered for accurate and efficient handling of R-134a refrigerant, this unit provides fast recovery and precise charging to streamline automotive A/C service. Its twin-cylinder compressor combined with a high-performance vacuum pump enables recovery rates of up to 39.7 lbs per hour, helping reduce service time and improve overall workflow.

Precision Control & User-Friendly Operation

Advanced load cell technology ensures highly accurate measurements down to 0.04 oz, removing uncertainty during refrigerant recovery and recharging. A 7-inch touchscreen interface simplifies operation, while the rugged HDPE housing offers durability and easy mobility around the shop. Supplied with hoses for both R-134a and R-1234YF systems, along with an oil separator and high-efficiency cooling fan, this machine is built for consistent performance in demanding service environments.

R-134A Recovery Machine Specifications

• Refrigerant type: R-134a
• Voltage: 110V AC, 60 Hz
• Recovery efficiency (70–75°F): Minimum 95% in under 30 minutes
• Charging accuracy (70–75°F): ±0.5 oz (15 g)
• Operating temperature range: 41–122°F (5–50°C)
• Max pressure: 18 bar
• Filter-drier capacity: 175 lbs (80 kg), spin-on type
• Gas load cell accuracy: 0.04 oz / 66 lbs (1 g / 30 kg)
• Oil load cell accuracy: 0.04 oz / 66 lbs (1 g / 30 kg)
• Vacuum transducer accuracy: 1 mBar / 1000 mBar
• Recovery speed: 39.7 lbs/h (18 kg/h)
• Charge speed: 2.2 lbs/min (1 kg/min)
• Hose length: 9.8 ft (3 m), SAE J2788
• Compressor: 1/3 hp (246 W), oil-sealed, thermally protected
• Vacuum pump: 3.6 CFM (120 L/min), dual-stage
• Display: 7″ HQ touchscreen
• Tank capacity: 0.5 cu ft (14.3 L)
• Oil bottle: 15 cu in (250 mL)
• Printer: Yes
• Heating belt: Optional
• SD database: Yes
• Vacuum test: Yes
• Fan & condenser: Yes
• Packing size: 22″ x 28″ x 41″ (550 x 700 x 1050 mm)
• Gross weight: 240 lbs (110 kg)

R-134A Recovery Machine Special Features

• Twin-cylinder oil-less compressor with gravity-drain condenser
• Capable of handling both liquid and vapor refrigerants without inlet regulation
• “Y” hose configuration for simultaneous low- and high-side recovery

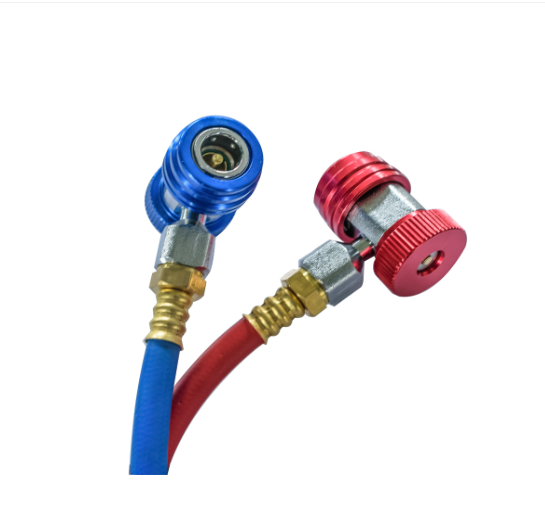

• Includes hoses and couplers for R-134a and R-1234YF MVAC systems
• Case interior is safely vented prior to startup
• Low-pressure bypass for efficient recovery from sealed systems
• Low-pressure switch prevents air ingress during system leaks
• Automatic 80% tank-full shutoff protection
• Integrated oil separator and bottle for accurate oil measurement
• High-pressure shutoff switch activates above 350 psi
• Inlet filter protects internal components from contaminants
• High airflow design for cooler operation under heavy use
• Durable HDPE housing for portability and rugged service conditions
• LED indicators for clear recovery status information
• Certified to SAE J2851 and compliant with UL 1963 standards
• Designed and manufactured in the U.S.A.
