Rotary R1070 Pro CCD Wheel Alignment System

Rotary R1070 Pro CCD Wheel Alignment System
Total Drive Auto and Light Truck Aligner

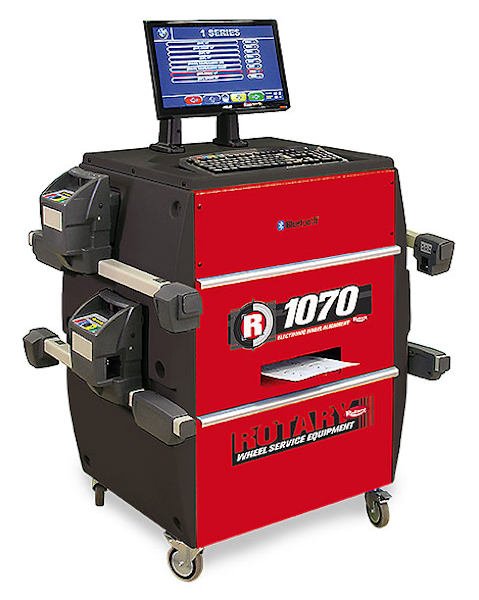

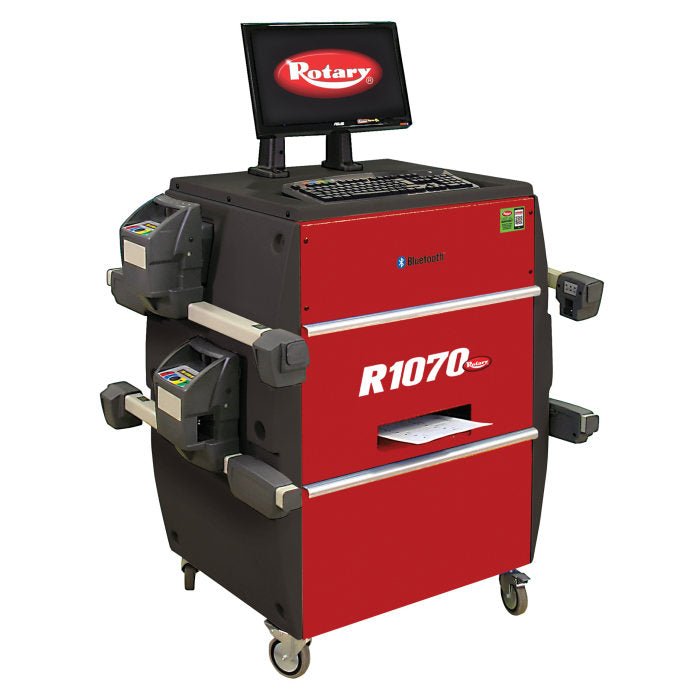

Rotary’s R1070 Pro CCD Wheel Alignment System is the total package when it comes to 3D wheel alignment. Simply access programs by selecting 5 command keys that guide the alignment tech through the step by step measuring process. It’s equipped with a powerful PC, an A4 printer and a robust mobile cabinet for attaching and charging the wheel clamps. This 8-CCD sensor wheel alignment system uses infrared transmission among measuring heads and Bluetooth communication between the front head and the control unit. Quickly enter vehicle information by model or VIN number and begin the process via a 3D animated workflow.

ALIGNMENT SPEED WITH 8-CCD SENSOR SYSTEM
Infrared transmission among measuring heads and Bluetooth communication between the front head and the control unit. Access programs through 5 command keys that guide the alignment tech through the step by step measuring process. Enter vehicle information and begin the process via a 3D animated workflow. Programs and data are displayed in easy to use graphics.

PORTABLE TOWER-FREE SYSTEM
Maximize available workspace without obstructions. Position wheeled aligner console anywhere it is convenient.

EASY VEHICLE SELECTION
Enter vehicle by model or V.I.N. number. Summary and comparison of diagnosis / repair values on a single screen.

EASY DATA
Data management and display program with more than 90,000 vehicle data sheets. Includes a customer data bank for recording 20,000 jobs. Can search by customer name or vehicle plate.

ANIMATED INSTRUCTIONS / 3D ANIMATION
User’s instructions by animated graphics.

EASY ALIGNMENT DISPLAYS

QUICK RUN OUT*
Measure wheel run out by moving the vehicle by only 30°. *Run out not required on most vehicles.

QUICK DIAGNOSTIC
The quick measurement of axle set back, wheelbase and track width, may highlight any errors in the vehicles chassis symmetry.

10° / 20° CCD STEERING ACKERMANN
The steering procedure is carried out electronically through the CCD sensors. Caster and SAI are precisely measured.

VEHICLE SPOILER PROGRAM
Automatically activated to measure sport and tuned car bodies.
