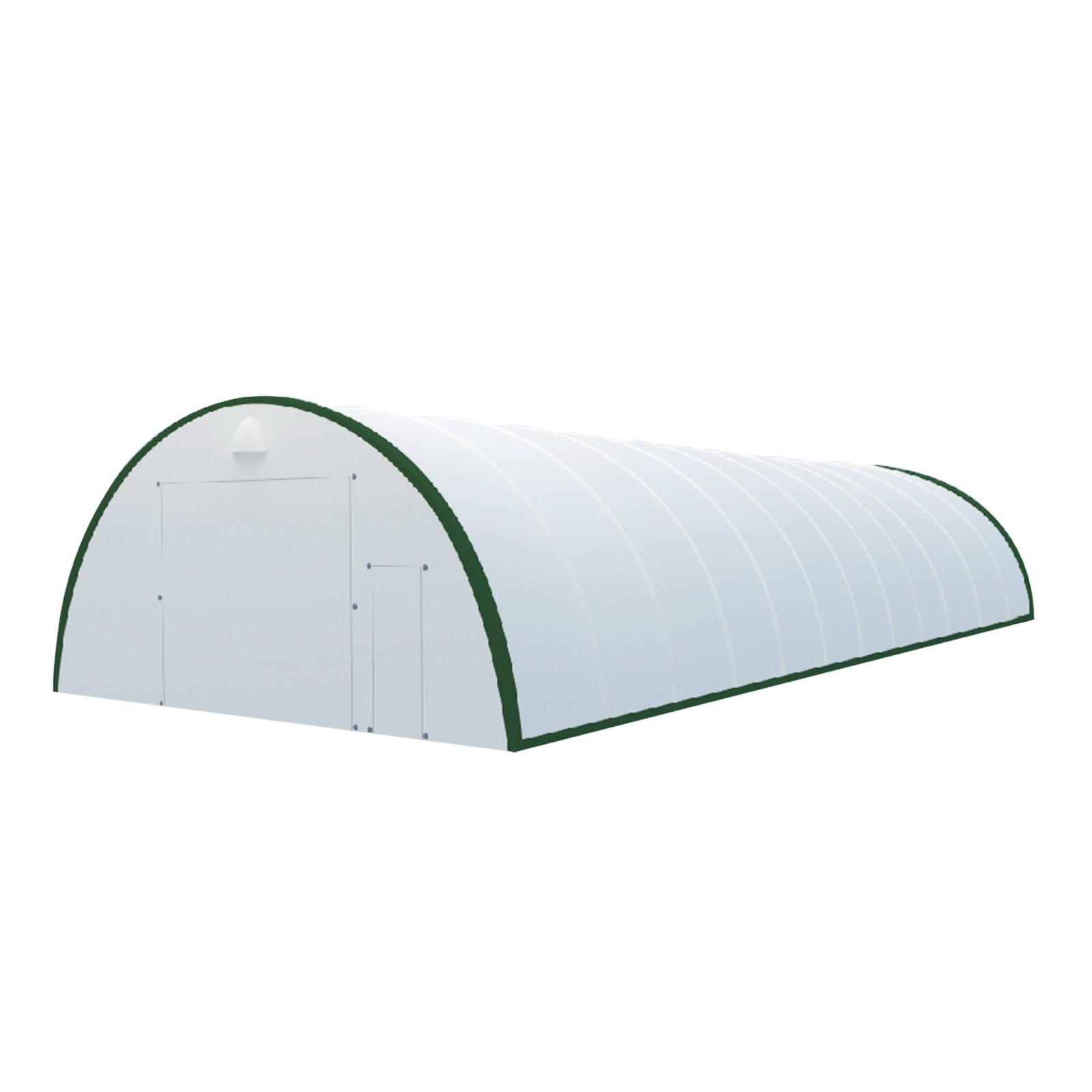

Single Truss Arch Storage Shelter W40’xL80’xH20′
Original price was: £9,183.22.£5,509.93Current price is: £5,509.93.
Gold Mountain Single Truss Arch Storage Shelter W40’xL80’xH20’
The Gold Mountain Single Truss Arch Storage Shelter is perfect for outdoor agricultural and industrial storage. Ideal for warehouses, workshops, and storing grain, sand, coal, raw materials, equipment, or livestock, it maximizes space with a 100% storage rate. Measuring 40 ft wide, 80 ft long, and 20 ft high, it offers reliable quality for all your storage needs.
Note: Owners are responsible for removing snow immediately if it does not slide off naturally.
Please Note: Stake pegs have been replaced with expansion bolts. If you need stake pegs, contact customer service to place an order.
Your browser does not support the video tag.
How to build a Storage Shelter?
Specification
| Description | Specifications |
| Dimensions (WxLxH) | 40’x80’x20′ |
| Door size (WxH) (Front & Rear) | 13.1’x14.8′ |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6’x6.6′ |

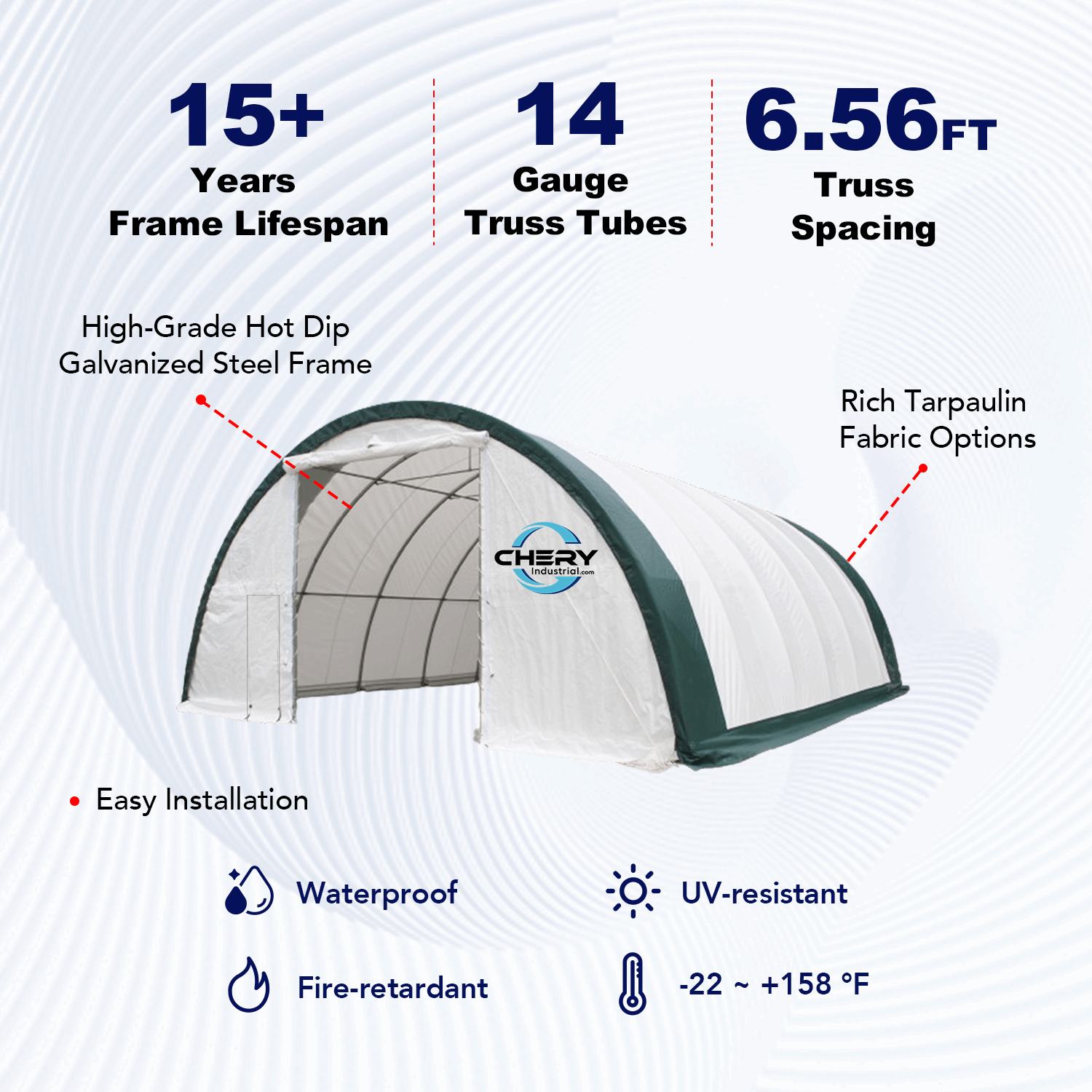

| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 – +158 °F |
| Arch Ø | Ф 56x86x2mm |
| Purlin Ø | Φ 48×1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 13 |
| Number of Anchor plates | 26 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 4 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15+ Years |
|
Warranty |
– PE: 2 Years Warranty. – PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
-
Permit requirements depend on local regulations. Temporary placement usually does not require a permit. For semi-permanent or permanent setups, contact your municipality.
-
Tighten the roof fabric adequately to prevent sagging (“hammocks”) and re-tighten once or twice after a few months. This is especially important in cold weather (autumn/winter) as the fabric stiffens and may loosen when warmed by sunlight.
Features
- No building permits required*
- Resistant to water, UV, and fading
- Cover lifespan: 7–10 years on average, depending on environmental conditions
- Freestanding design
- Mechanical doors at both ends
- Large capacity for trucks, automobiles, and bulk storage
- Protects belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS Fabric Certificate

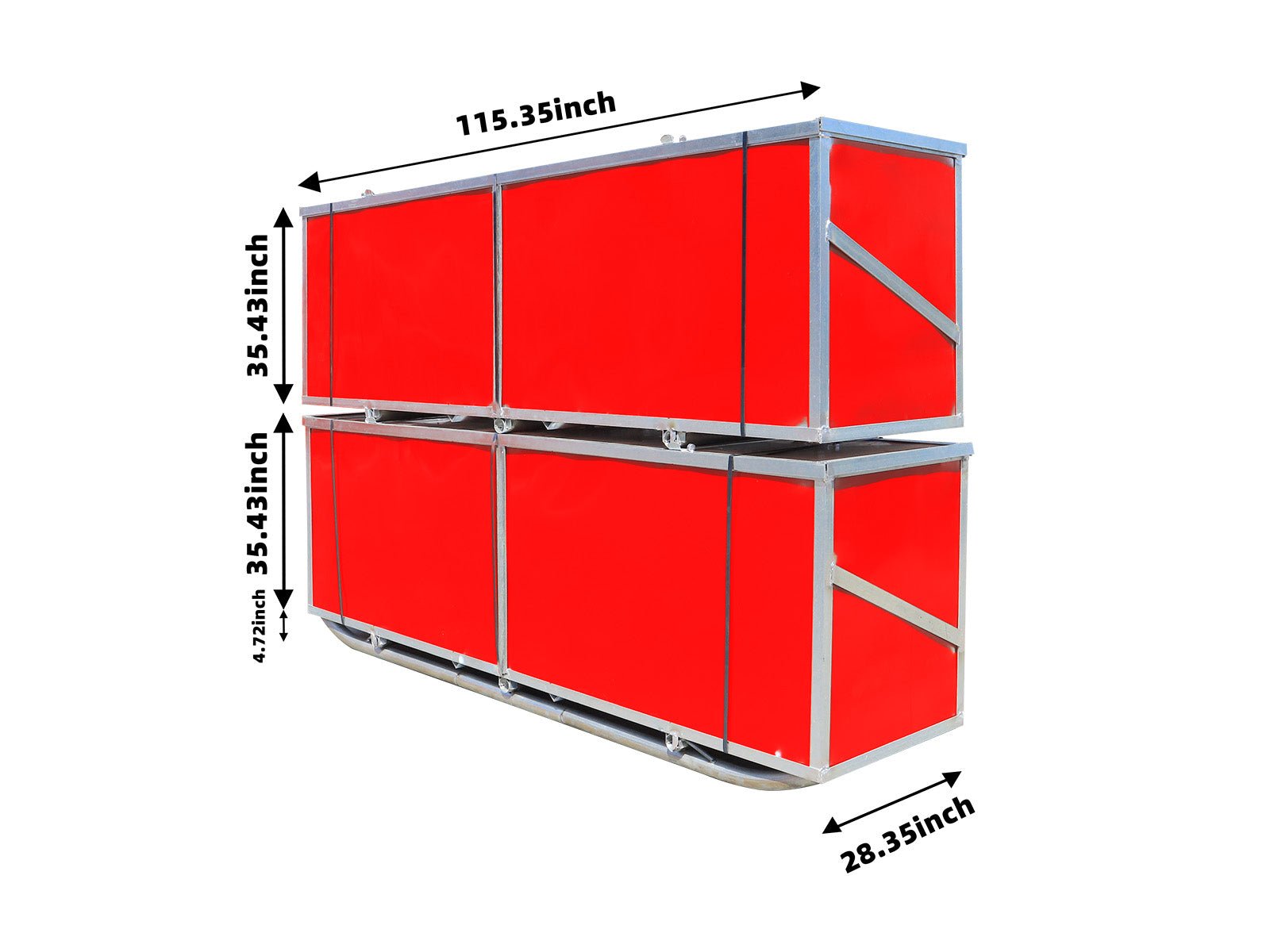

Package Size
- Box A (L×W×H, inch): 115.4 × 28.4 × 35.4
- Box B (L×W×H, inch): 115.4 × 28.4 × 35.4
- Weight (lb): 4,895
- A forklift or equivalent equipment is required for unloading
Replacement Parts
- Cover replacement
- Front panel
- Rear panel
- Ratchet
Delivery and Unloading
- The shelter will be loaded onto a box or flatbed truck depending on its size
- A forklift or equivalent equipment is required for unloading
