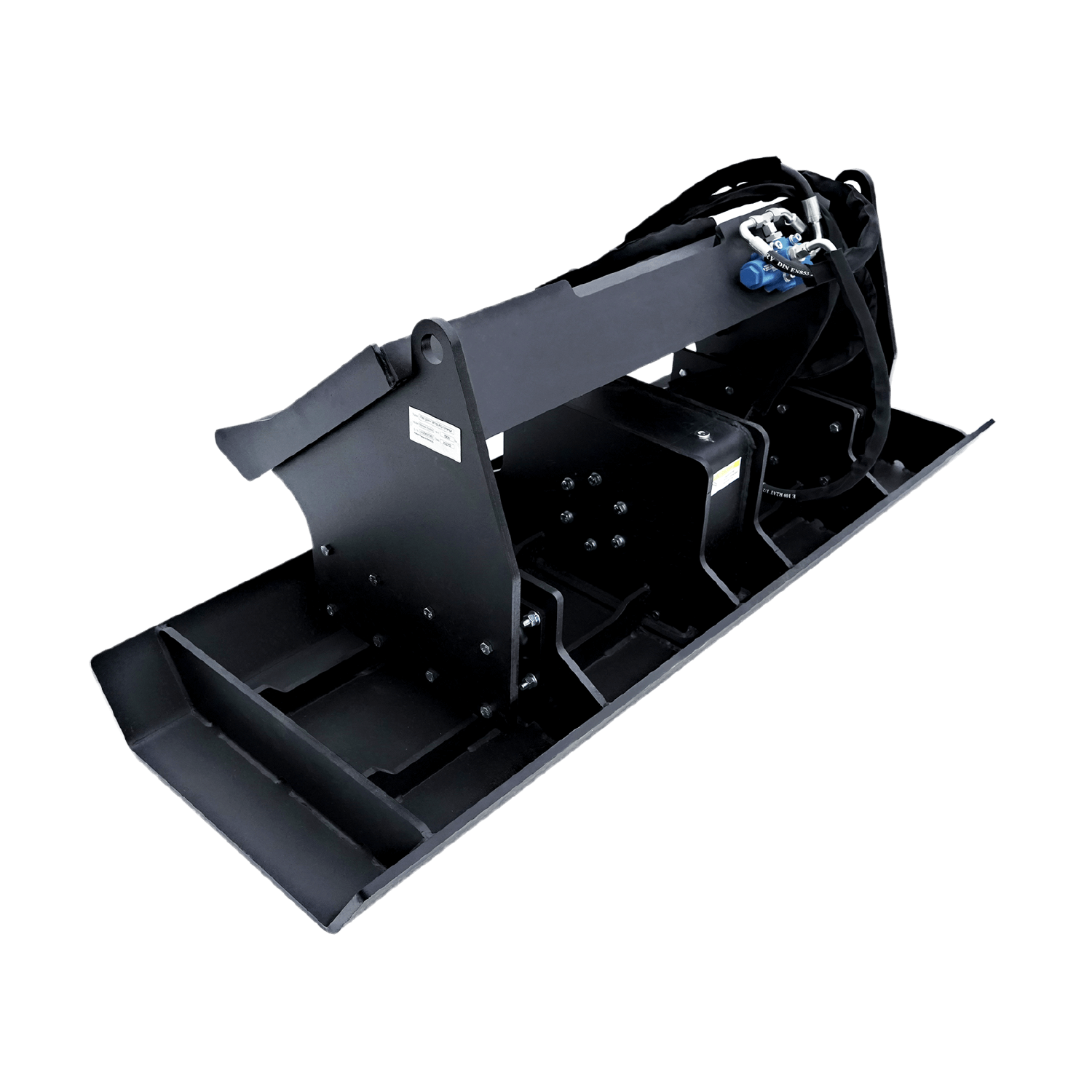

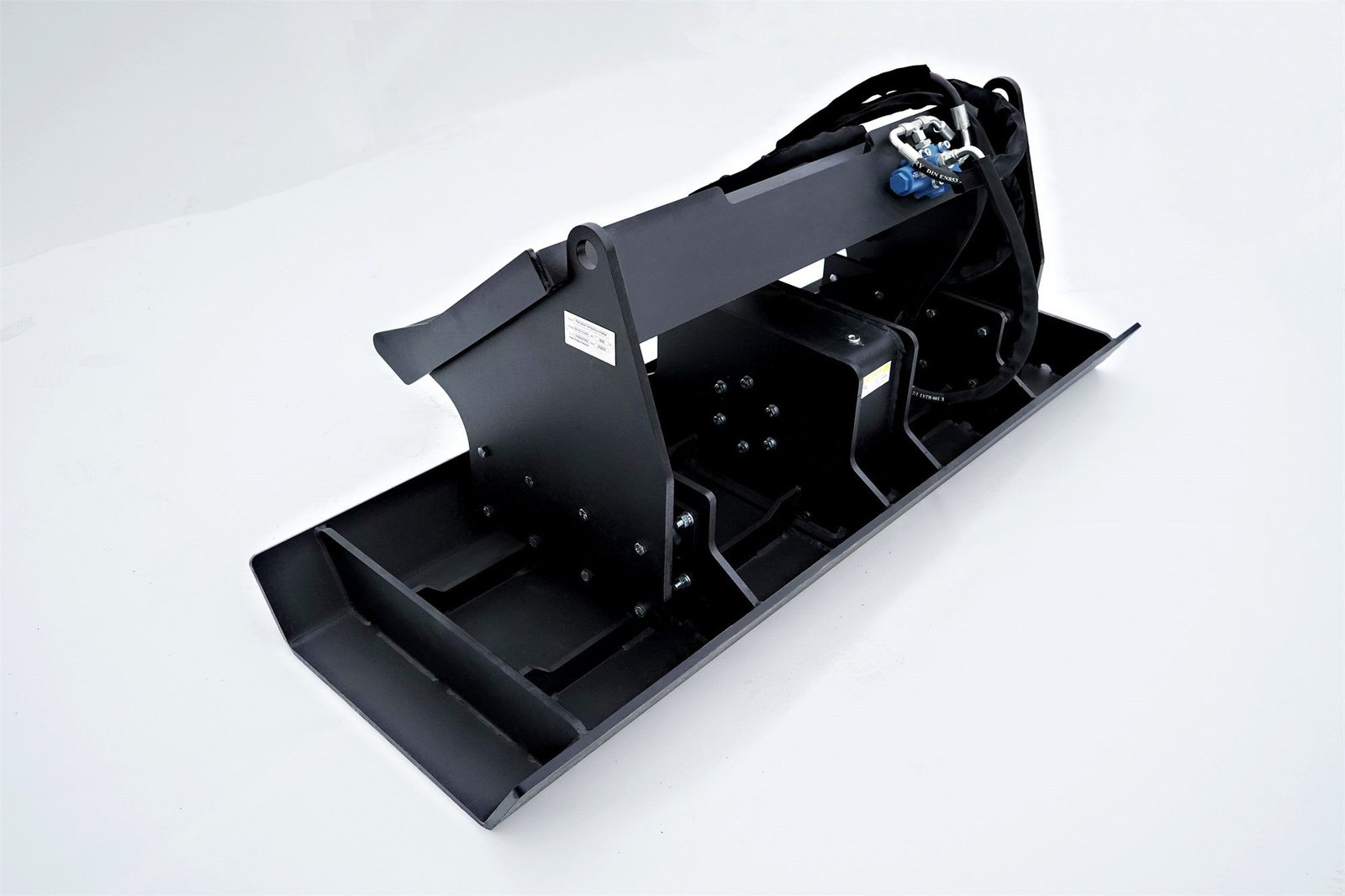

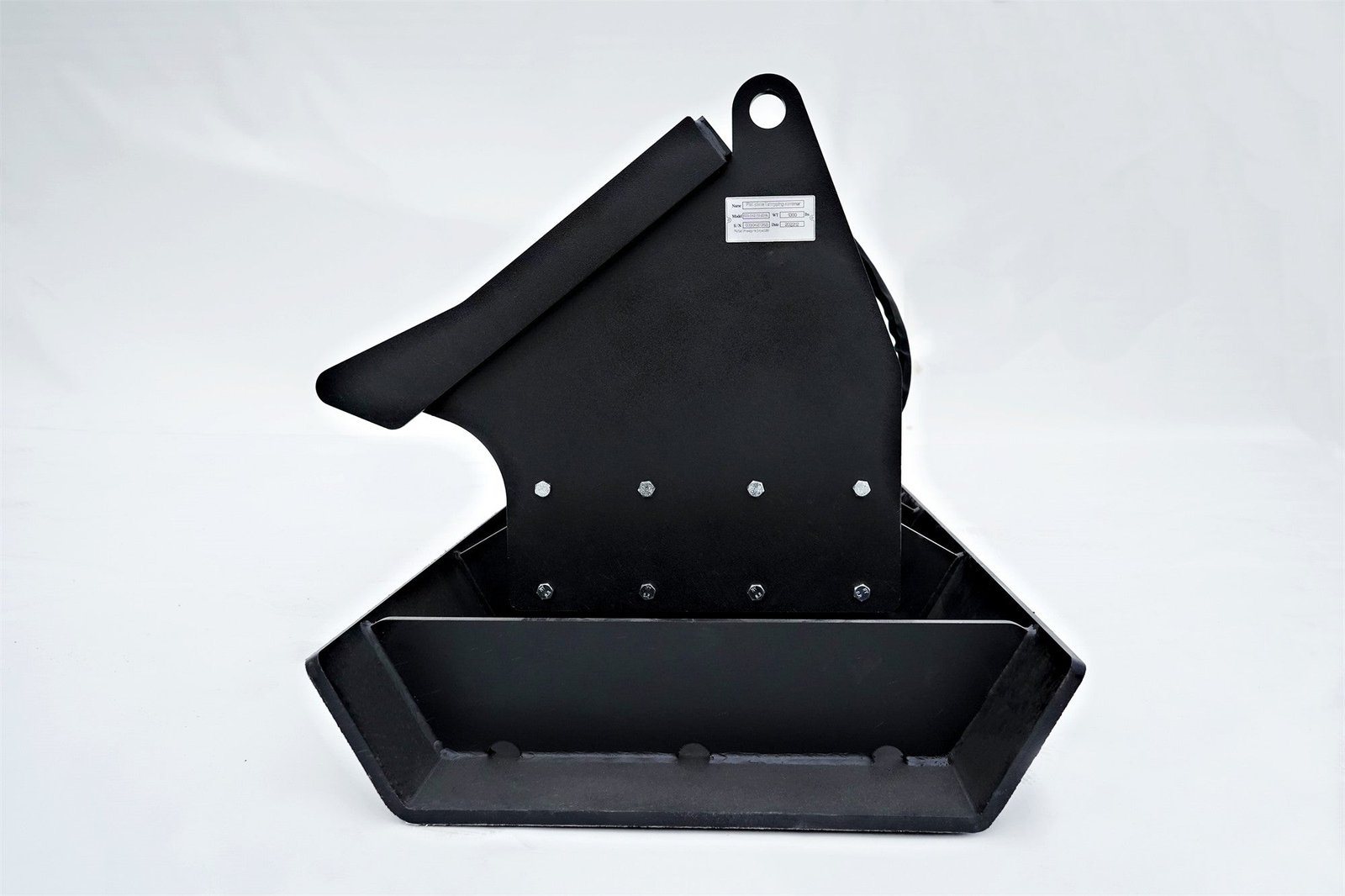

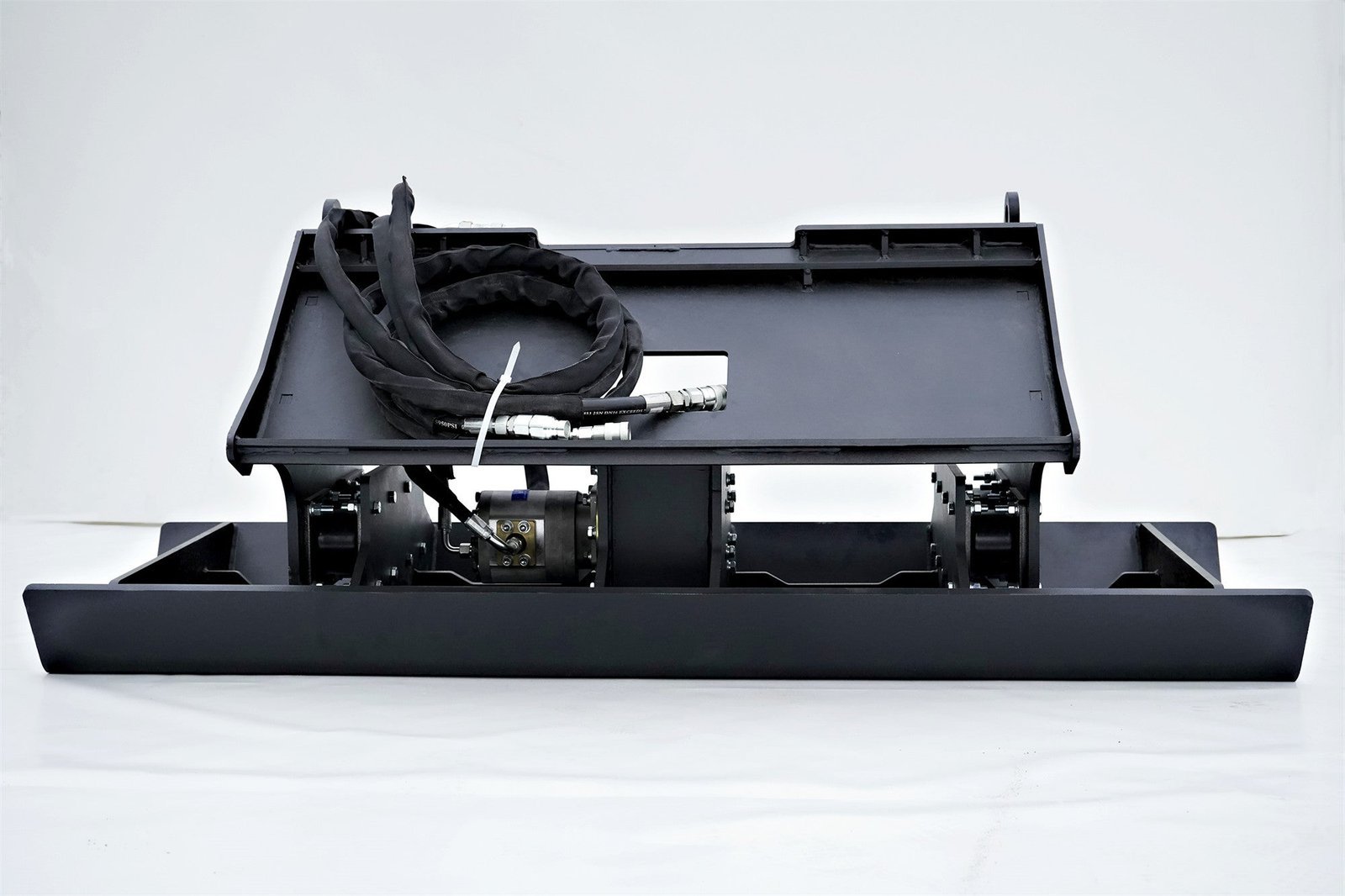

Skid Steer Plate Compactor

Plate Compactor

This Plate Compactor is designed for compacting engineering foundations, curbs, and asphalt pavements in the construction of roads, streets, buildings, canals, and bridges. It is especially suitable for compacting narrow roadways. The unit combines a reasonable design, attractive appearance, large impact depth, stable operation, no dead angles, and high efficiency.

Specification

• Dimensions (L×W×H): 72.1″ × 30.5″ × 30″
• Weight: 1,014.1 lbs
• Rack Weight: 101.4 lbs
• Motor Power: 17 HP
• Rotational Speed: 2,000 r/min
• Travel Speed (depending on soil): 6–25 M/min
• Compacted Area: 72.1″ × 17.7″
• Country of Origin: China

Features

• Strong compaction force
• Easy to move, suitable for restricted or uneven sites
• Wide and powerful base for effective compaction
• Durable hydraulic motor drives the eccentric block to generate high-frequency vibration, compacting the road surface efficiently

Operating Instructions

1. Fill the oil tank of the eccentric shaft with 10W wear-resistant engine oil (about 6L)

2. Check the oil tank, hydraulic pipeline connections, and bolts for looseness before use

3. During operation, increase the accelerator to the maximum

4. Adjust the travel speed according to actual working conditions to achieve proper compaction

5. Regular maintenance: add oil and check hydraulic pipelines

Package Size

• Dimensions (L×W×H, inch): 77.2 × 34.4 × 31.1
• Weight (lb): Not specified
• A forklift or equivalent equipment is required for unloading
