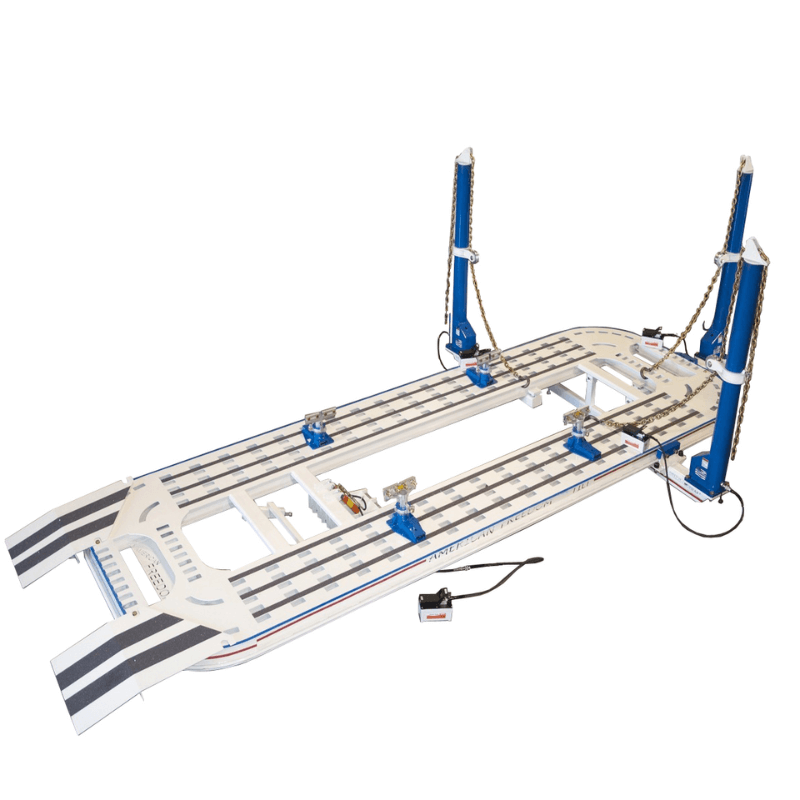

Signature American Freedom Tilt 22″ 2 Tower Frame Machine

Signature American Freedom 9014222T Tilt 22″ 2 Tower Frame Machine

The Star A Liner Signature AF 9014222T Tilt 22″ 2 Tower Frame Machine is proudly manufactured in the U.S.A., delivering exceptional durability and reliability for professional auto body shops. Designed with a traditional layout familiar to technicians, it ensures quick training and seamless integration into your workflow. This model offers a robust platform to handle a variety of vehicle frame repair tasks with accuracy and efficiency.

Equipped with a 22-foot treadway and an 88-inch total bed width, this tilt frame rack accommodates a wide range of vehicle widths, making it an ideal choice for both small passenger cars and larger trucks. Its 2-tower configuration provides strong pulling power while maintaining operator safety, helping you restore frames to factory specifications. The hydraulic 10-ton capacity, combined with air-powered operation, delivers consistent, controlled force for precise repairs.

Built to increase shop productivity, the Star A Liner Signature AF 9014222T is available with optional upgrades, including a dual ram system for a lift capacity of up to 12,000 lbs. Whether you’re performing structural straightening, collision repair, or complete frame realignment, this American-made machine provides the power, stability, and versatility you need for top-tier results.

2 Tower Frame Machine 9014222T Tilt 22″ Specification

• Length of Bed: 20 ft. (610 cm)

• Length with Towers Extended: 24 ft. 6 in. (750 cm)

• Width of Bed: 88 in. (224 cm)

• Width with Towers Extended: 11 ft. 4 in. (348 cm)

• Width of Treadway: 26.25 in. (67 cm)

• Width Between Treadways: 35.50 in. (98 cm)

• Overall Height: 9 ft. 4 in. (289 cm)

• Working Height: 21 in. (54 cm)

• Hydraulics: 10 ton

• Power Required: Air – 100 psi

• Tower Configurations: 2 (optional 3 or 4 towers)

• Lift Capacity: 9,000 lbs (up to 12,000 lbs with dual ram upgrade)

AF Tilt 22″ 2 Tower Frame Machine Special Features

• Proudly made in the U.S.A. for exceptional quality and longevity

• Traditional frame rack design for fast technician training

• 22-foot treadway accommodates a wide range of vehicle sizes

• 2-tower system provides reliable pulling power

• Heavy-duty 10-ton hydraulic system for precise frame repairs

• Air-powered operation for efficient and consistent performance

• Optional dual ram upgrade for increased lifting capacity

• Versatile design for collision repair, frame straightening, and realignment

• Warranty: 2 Years (Machine & Hydraulics)
