Greatbear Skid Steer Trencher

Original price was: $4,106.65.Current price is: $2,463.99.

Description

Greatbear Skid Steer Trencher

For construction worksites, a skid steer is essential, and for tasks like laying pipes or electrical cables, a skid steer trencher greatly simplifies the job. The Greatbear Skid Steer Trencher is designed to dig precise trenches for drainage, utilities, or other applications. Available in different sizes, it accommodates various trenching widths, depths, and surface hardness requirements.

Specifications



Unit

1000/200

Digging width

inch

8

Digging depth

inch

40

Operating pressure

Mpa

16

Operating flow

L/min

50

Weight

lb

727.53

Dimension

inch

84.4×45.5×33



For Model 1000/200:

  • Teeth: 20 Scorpion, 12 Double Cups
  • Power Requirement: 45–75 HP
  • Oil Pressure Range: 160–210 bar
  • Flow Rate: 13–24 GPM
  • Max Power: 19.60 kW
  • Can operate in light rock soil and frost soil; chainsaw teeth are knock-off resistant.
  • Not suitable for extremely rocky terrain.

Connector Specifications:

  • Part#: 50801000077
  • Specification: 1CB-22-08WDZ
  • Both ends threaded
  • Oil Pipe Connection: M22 x 1.5 mm
  • Quick Attach Connection: G1/2″ × 14

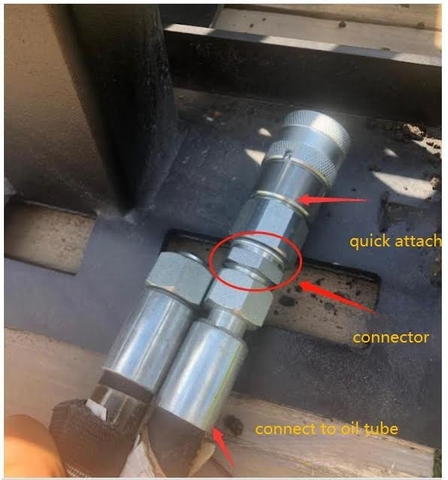

Skid Steer Trencher Preview Detail

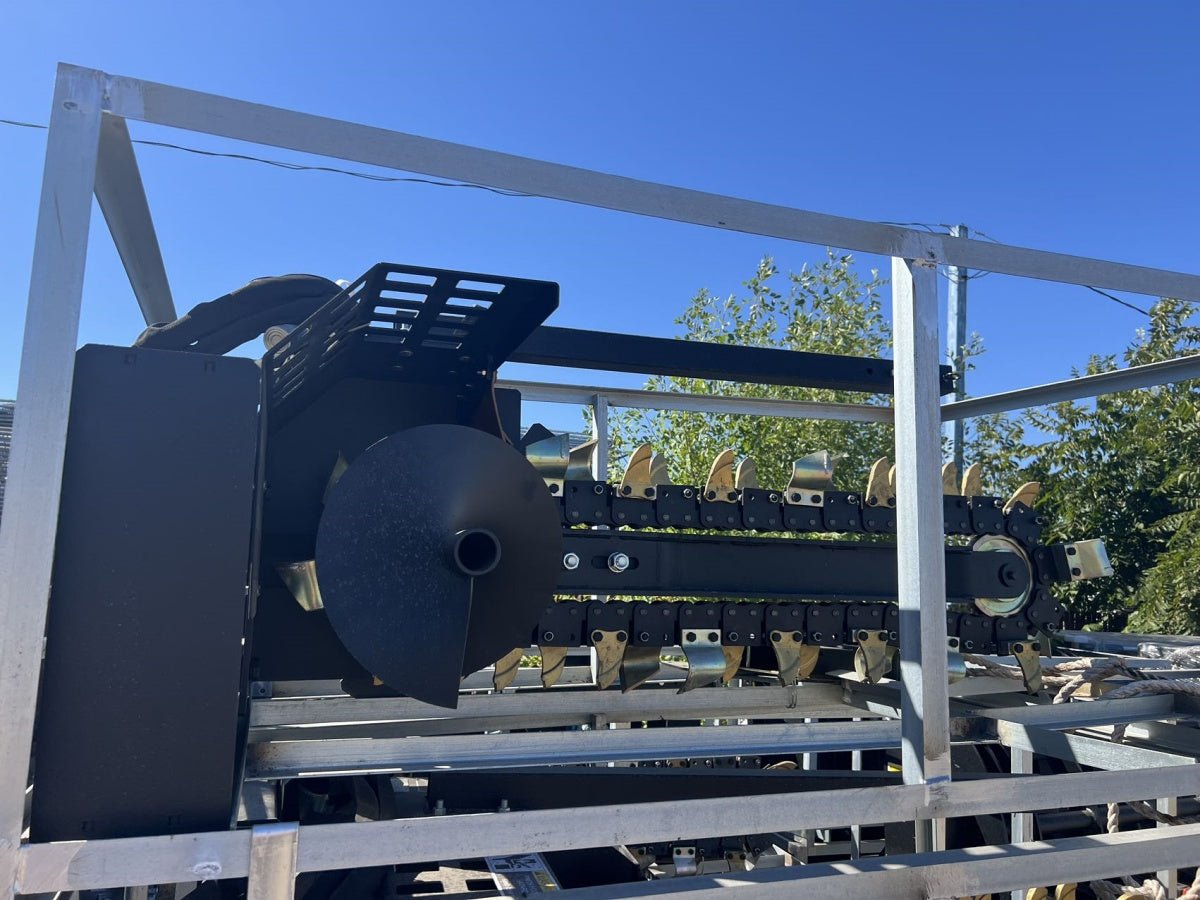

Package Size (Model 1000/200)

  • Dimensions (LxWxH): 96 x 49 x 35 in
  • Weight: 950 lbs
  • Forklift or equivalent equipment required for unloading


Part Service

Greatbear Skid Steer Trencher
Greatbear Skid Steer Trencher
