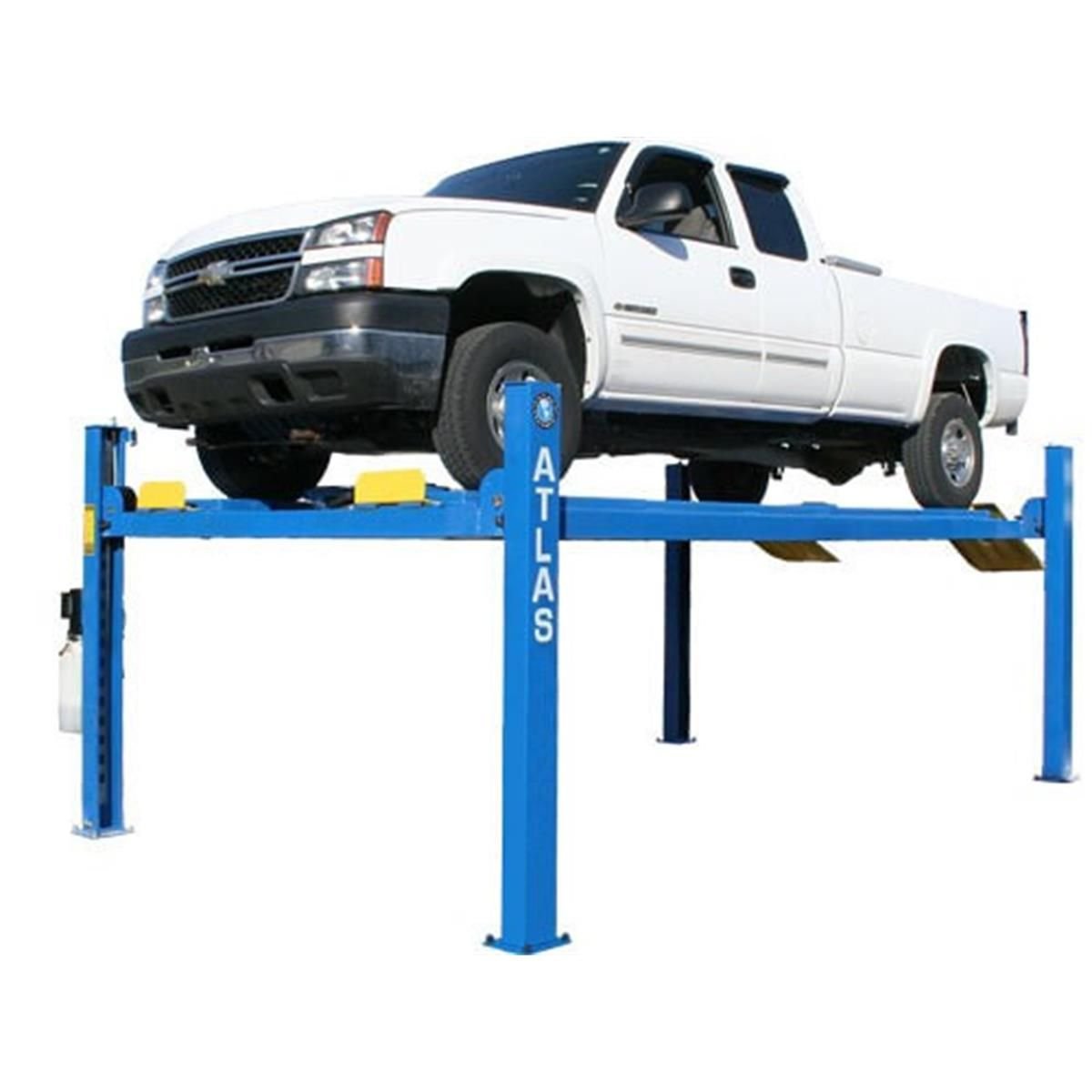

Atlas 412A 12,000 lb 4-Post Alignment Lift
Price range: £4,412.34 through £4,905.14
Commercial Grade 12,000 lb. Alignment Lift
The Atlas 412A is a 12,000 lb. capacity four-post alignment lift engineered and manufactured to commercial-grade standards for long-term durability and consistent performance. Atlas lifts incorporate exclusive design and structural features that are not commonly found on competing models.
The Atlas 412A integrates both structural reinforcements and refined design elements typically found on higher-priced lifts. Each unit is tested to ensure reliable operation at its full rated capacity.
The lift operates using a high-strength cable lifting system combined with an oversized hydraulic cylinder mounted beneath the runway, powered by a 220-volt single-phase power unit. Unlike traditional chain-driven systems with exposed hydraulic cylinders, this configuration simplifies leveling and reduces the risk of vehicle door damage caused by exposed components.
In addition to the heavy-duty characteristics of the Atlas 412—including tracks between the runways for compatibility with rolling bridge jacks such as the Atlas RJ6BK (sold separately)—the 412A includes built-in slip plates and alignment turntables. The slip plates are integrated and precisely aligned with the turntables to maintain level operation. The turntables can be positioned at multiple locations along the runway to accommodate various wheelbases. Metal cover plates are also included to replace the turntables when not in use, allowing the lift to function as a standard service lift beyond alignment applications.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- 12,000 lb. Capacity
- Heavy-Duty, Commercial-Grade Construction
- Extra Tall, Extra Wide, and Extra Long Design
- Built-In Slip Plates and Alignment Turntables Included
- Multiple Turntable Placement Positions
- Runway Cover Plates Included (When Turntables Are Removed)
- Air-Operated Single-Point Lock Release (External Air Supply Required)
- Lock Ladder System
- Double Lock Safety System
- Powder-Coated Finish
- Steel Approach Ramps Included
- Additional Drive-Off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220 Volt / 1 Phase Operation (30 Amp Breaker Required)
- Shipping Weight: 2,900 lbs.
- 5-Year Structural / 2-Year Hydraulic Warranty (Parts Only)
Atlas ATTD-412A Specifications
| Specification | Details |
|---|---|
| Capacity | 12,000 lb. |
| Lifting Height | 77 3/4″ (6′ 5 3/4″) |
| Overall Width of Columns (Without Motor) | 126 1/4″ (10′ 6 1/4″) |
| Overall Width of Columns (With Motor) | 135 1/4″ (11′ 3 1/4″) |
| Overall Length with Approach Ramp | 236 1/2″ (19′ 8 1/2″) |
| Length Between Columns | 183 1/4″ (15′ 3 1/4″) |
| Runway Length | 194 1/2″ (16′ 2 1/2″) |
| Runway Width | 20″ |
| Thickness of Runway | 7 1/2″ |
| Width Between Runways | 43 1/4″ (with Rail 39 3/4″) |
| Outside Runway to Outside Runway | 83 1/4″ (6′ 11 1/4″) |
| Clearance Under Runways | 70 1/4″ (5′ 10 1/4″) |
| Clearance Between Columns | 112 5/8″ (9′ 4 5/8″) |
| Height of Columns | 89 3/4″ (7′ 5 3/4″) |
| Maximum Wheel Base | 185″ (15′ 5″) |
| Drive-Thru | 98″ (8′ 2″) |
| Air Requirement | 85–115 PSI (External Air Supply Required) |
| Motor / Electrical Requirement | 220 Volt Single (1) Phase 30 Amp Breaker Recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 2,900 lbs. |
Requires a minimum 6″ concrete slab with a 3,000 PSI strength rating.
-
Atlas 412A Cylinder Bleeding Procedure (Must be completed immediately after installation)
