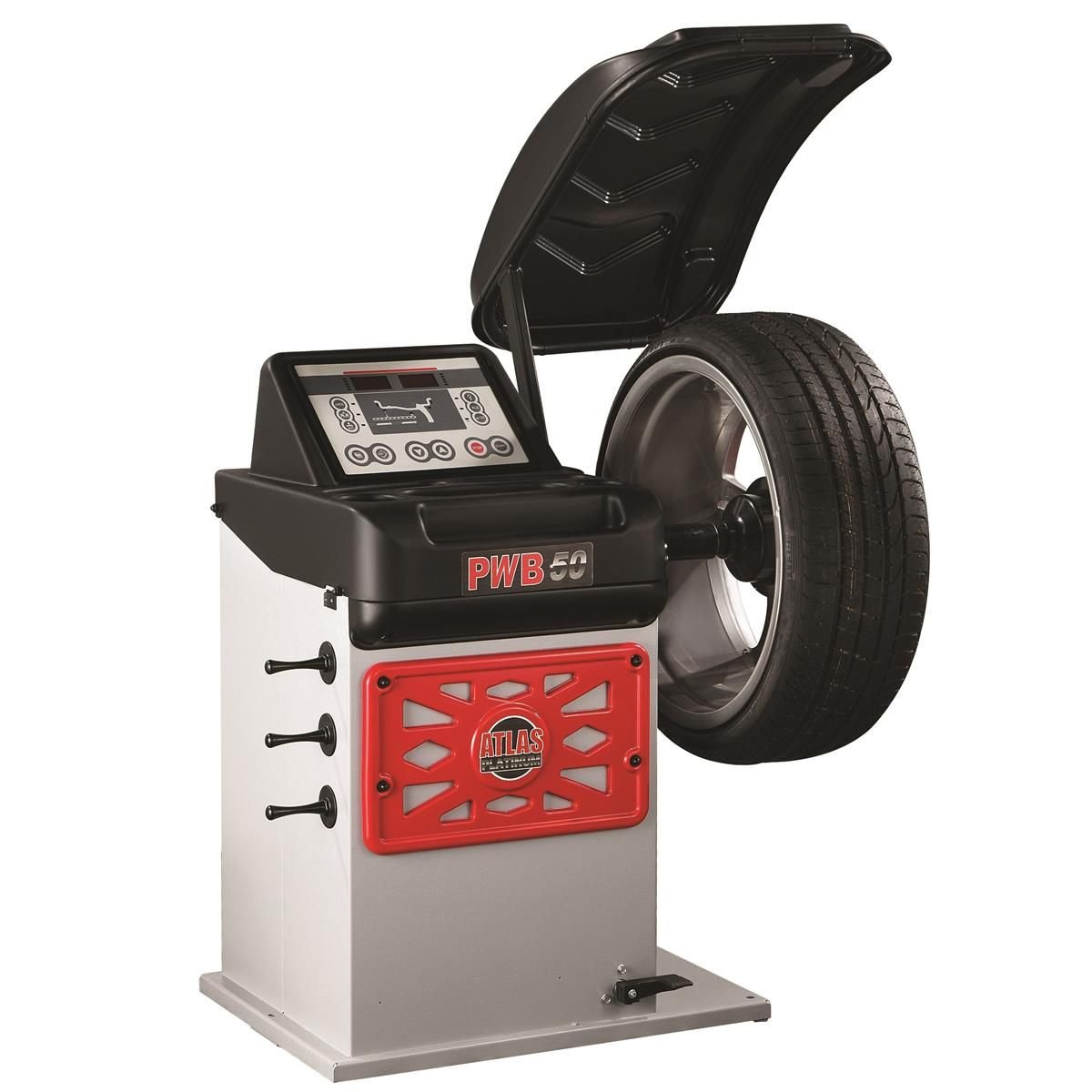

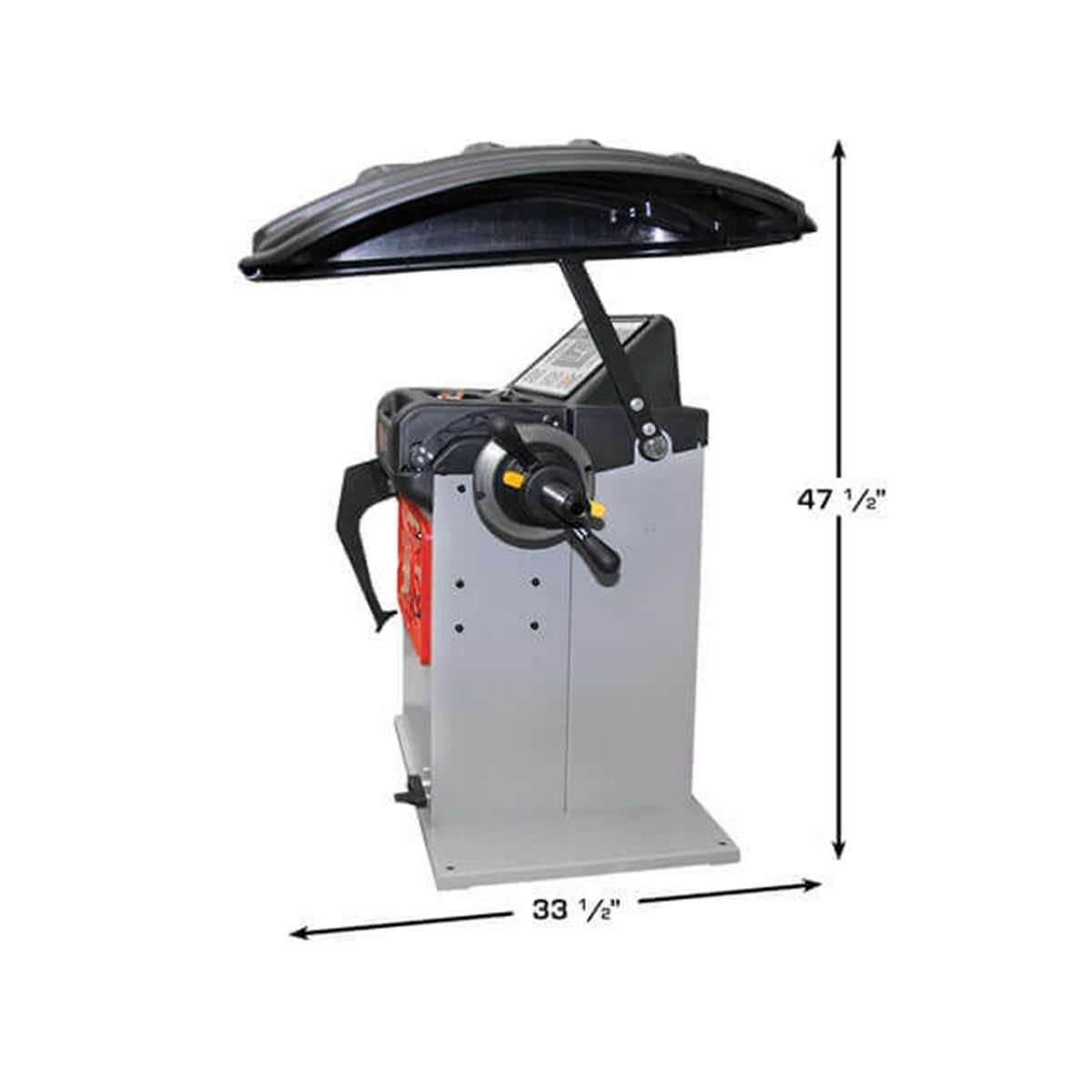

Atlas Platinum PWB50 Premium 2D Computer Wheel Balancer
Price range: £1,522.75 through £1,612.34
Description
The Atlas® Platinum PWB50 is an electronic wheel balancer equipped with a clear LED display and Automatic 2D Data Entry using a single measuring arm. It supports multiple ALU weight placement programs, and the weight placement arm allows the operator to select the most convenient adhesive weight location. After the spin cycle, the machine automatically returns to that exact position to ensure precise dynamic weight application.
The Fast & Easy Split (FES) function simplifies concealing adhesive weights behind wheel spokes, while the Opposite Weight Function (OWF) allows the operator to shift the weight application point from the 12 o’clock position to the 6 o’clock position for easier access. The OPTIMATCH software enables tire and wheel unbalance optimization (match mounting), improving balance performance on even the most challenging assemblies.
The Atlas® Platinum PWB50 is a feature-rich, high-volume passenger vehicle wheel balancer designed for speed, precision, and durability. By combining Italian engineering and components with Atlas® factory-direct value, the PWB50 delivers reliable performance for demanding service environments.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
- Platinum Computer-Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Automatic and Pedal-Operated Brake
- Automatic Start/Stop When Hood is Lowered or Raised
- Static and Dynamic Balancing Modes
- OPTIMATCH, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and Additional ALU Programs
- Automatic 2D Data Entry
- NWN (No Wheel Need) System
- Self-Diagnosing and Self-Calibrating
- USB Hub for Firmware Updates via PC/Notebook
- High Stability in Detecting Unbalance Between Planes
- Display in Grams or Ounces; Millimeters or Inches
- No Anchor-Down Installation Required

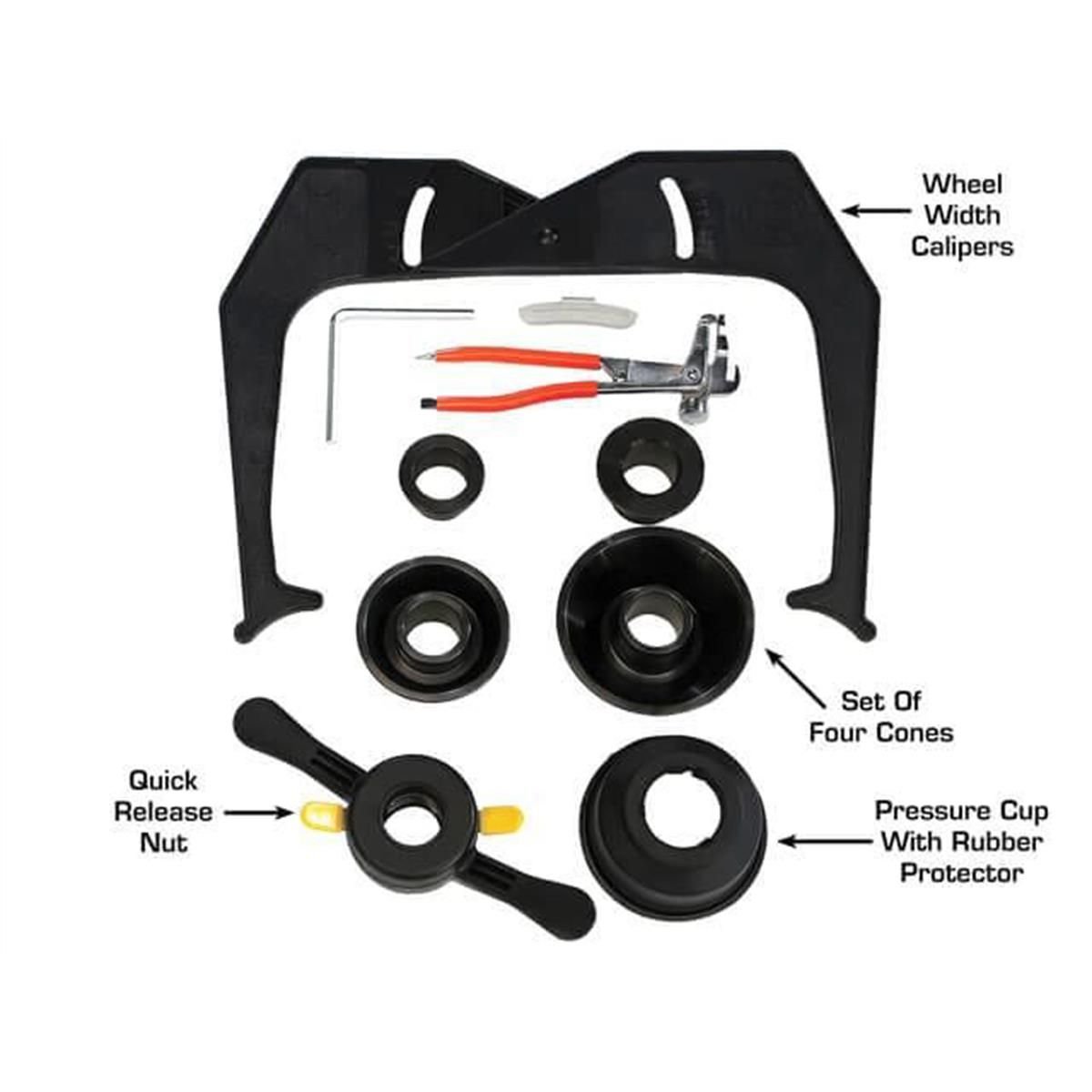

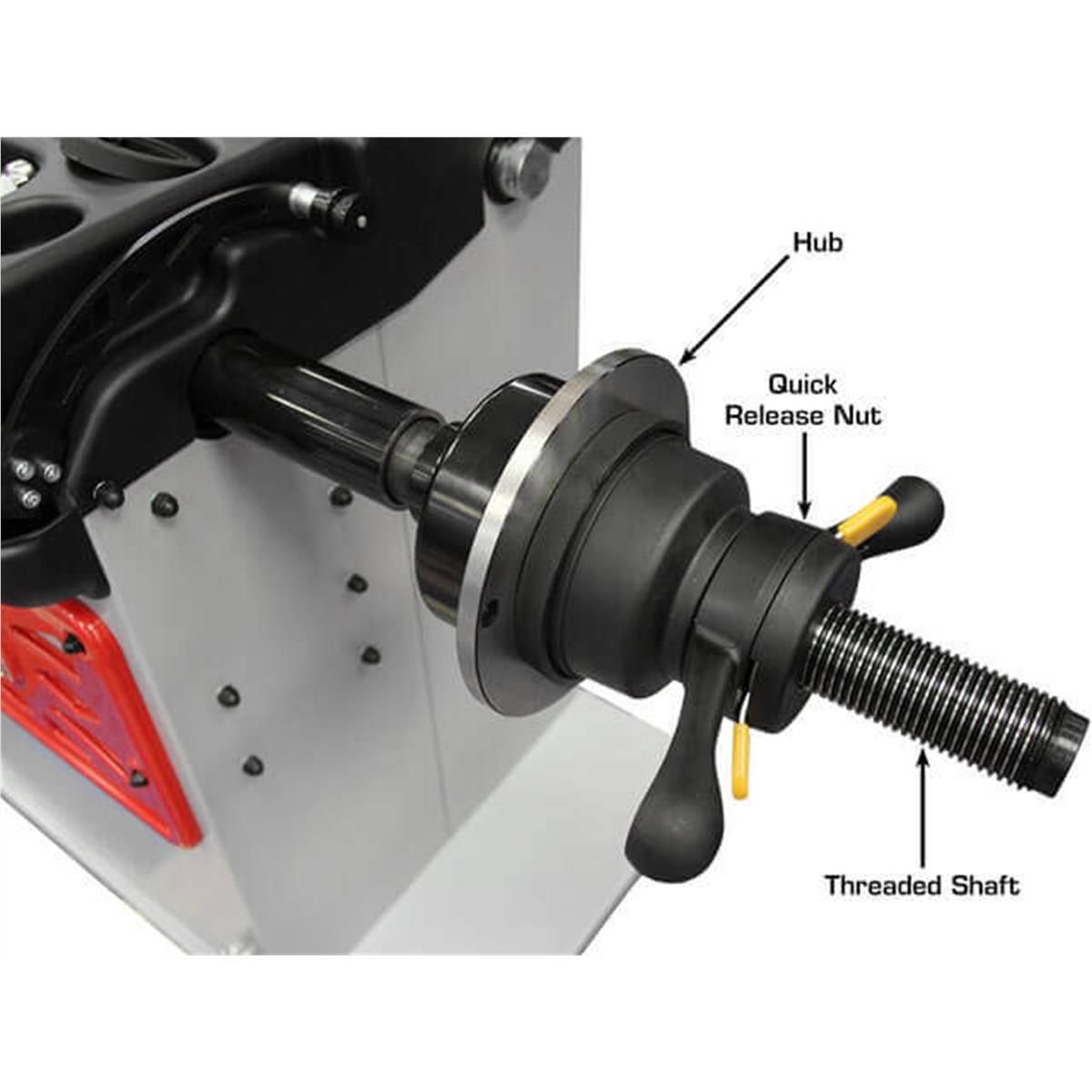

- Includes Plastic Quick-Release Nut, Four Centering Cones, Wheel Weight Pliers, and Measuring Calipers
- Replacement Parts and Wear Items Always in Stock
- 2-Year Parts-Only Warranty
Specifications
Atlas® Platinum PWB50 Specifications
| Specification | Details |
|---|---|
| Max Tire Diameter | 43″ |
| Rim Sizes (Cars and Light Trucks) | 10″ – 30″ |
| Rim Width | 1 1/2″ – 20″ |

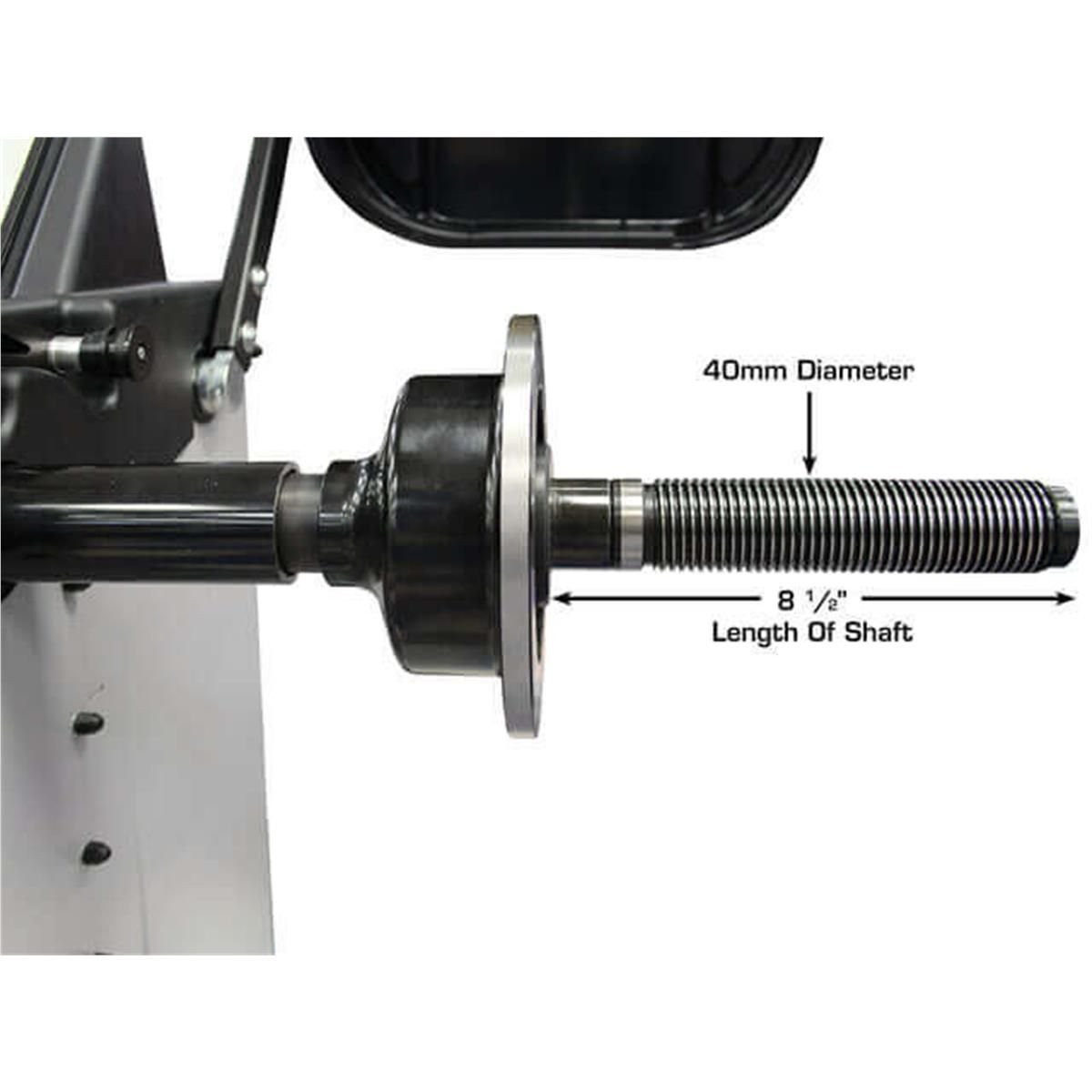

| Shaft Size | 40 mm |
| Max Wheel Weight | 165 lbs. |
| Balancing Speed | 130 RPM |
| Data Entry | Automatic 2D |
| Measurements | Standard or Metric |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Cycle Time | 7 Seconds |
| Power Supply | 110 Volt |
| Shipping Weight | 230 lbs. |
