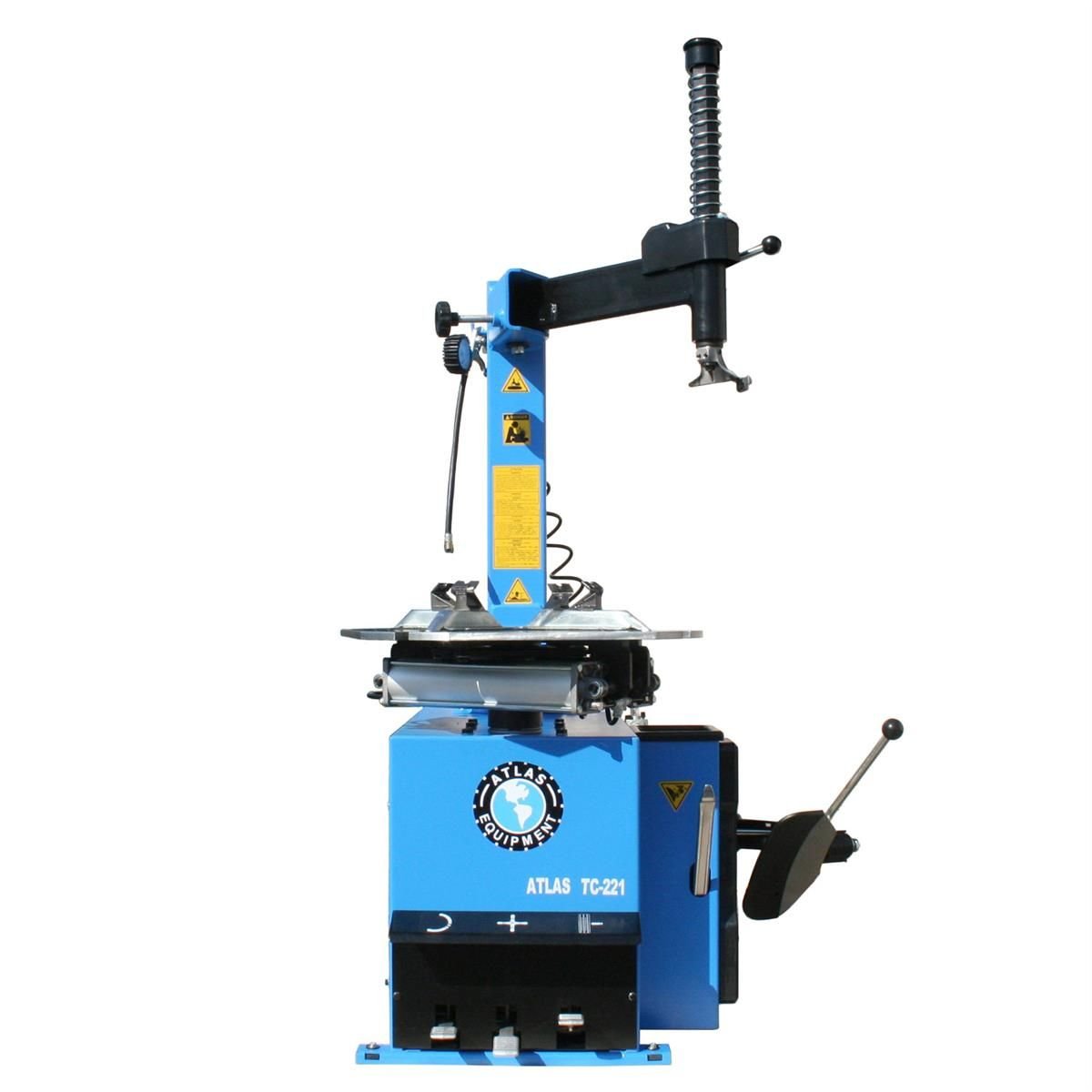

Atlas TC221 Rim-Clamp Tire Changer
Price range: £850.75 through £940.35
Description
The Atlas® TC221 rim clamp, swing arm tire changer is an excellent choice for homeowners, small commercial garages, and ATV or motorcycle dealerships. The TC221 shares the same core components and build quality as the Atlas® TC229 but does not include a built-in “Beadblaster” system.
Atlas® wheel clamp tire changers are engineered to service both premium alloy wheels and standard steel wheels without causing damage to the rim or tire. The heavy-duty bead breaker mounted on the side of the machine is designed to loosen even stubborn or rusted beads without harming the wheel. The turntable jaws, which can be fitted with plastic protective covers, securely grip the rim while preventing surface damage. These jaws can be adjusted to three different positions along the turntable slide, allowing the clamping range to be increased or decreased to accommodate a wide variety of tire sizes.
The Atlas® TC221 requires some assembly after purchase.
Please note: If ordering an Atlas item, the delivery location must be able to accommodate a 53′ truck.
Features

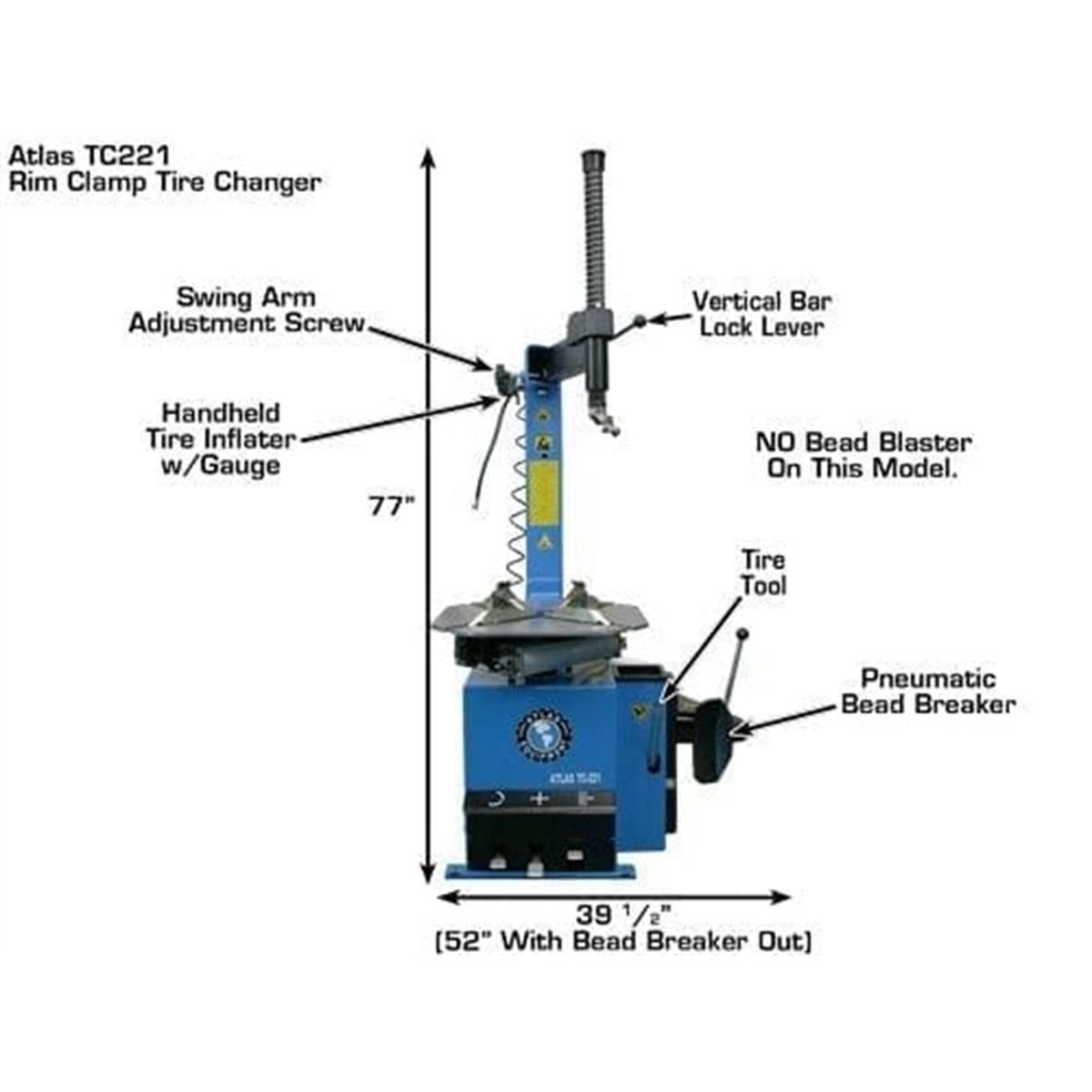

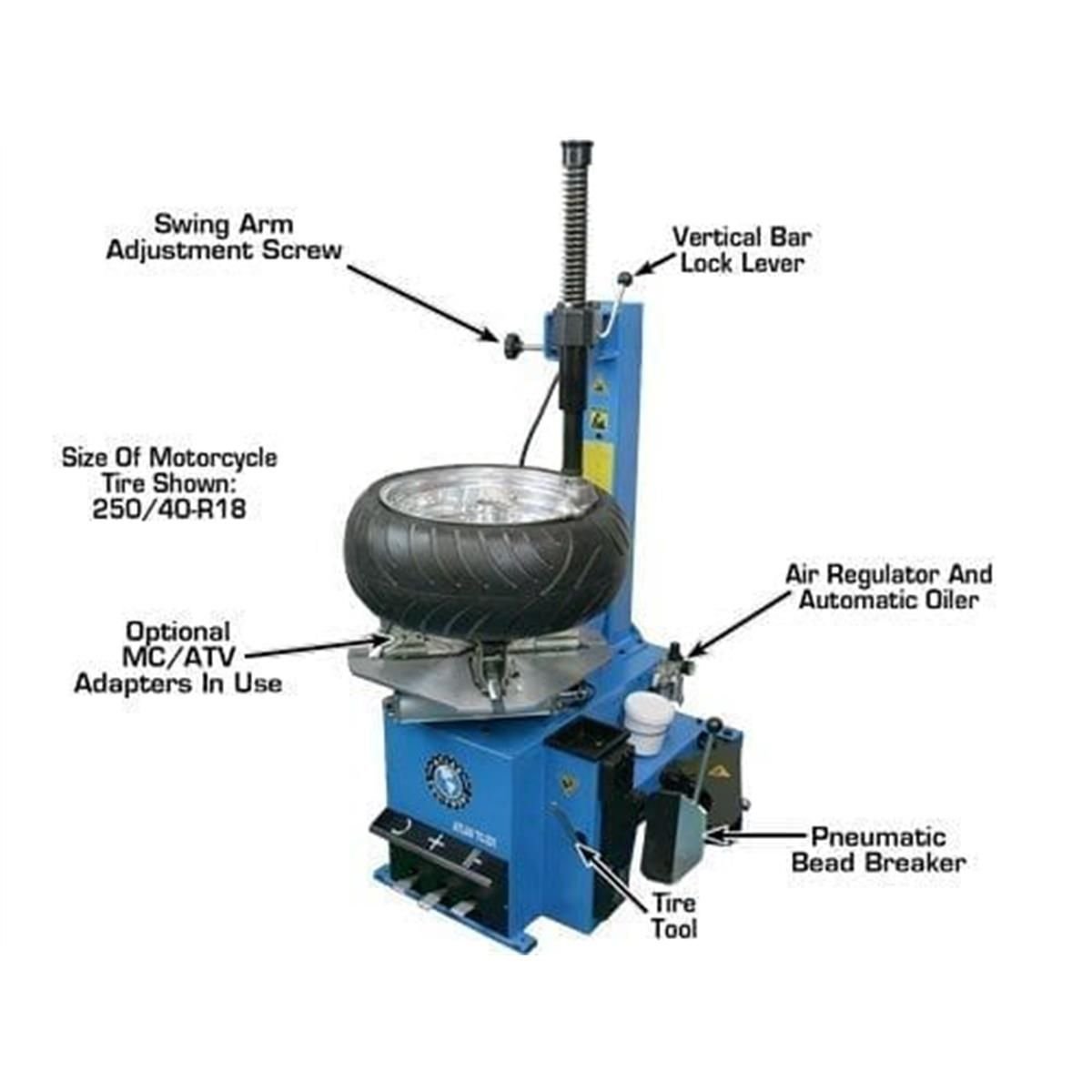

- Rim clamp / swing arm tire changer

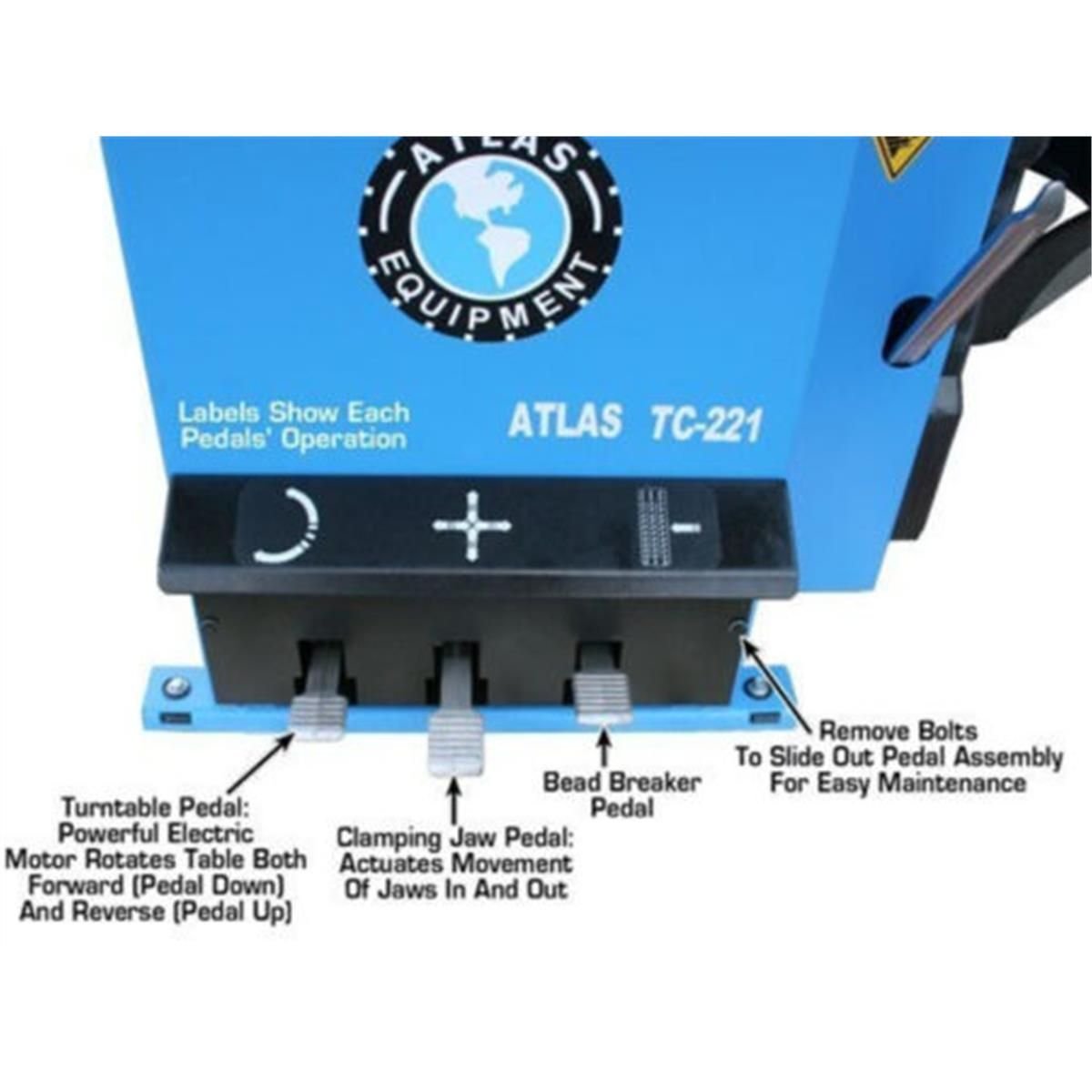

- Air-operated jaws and bead breaker (external air supply required)

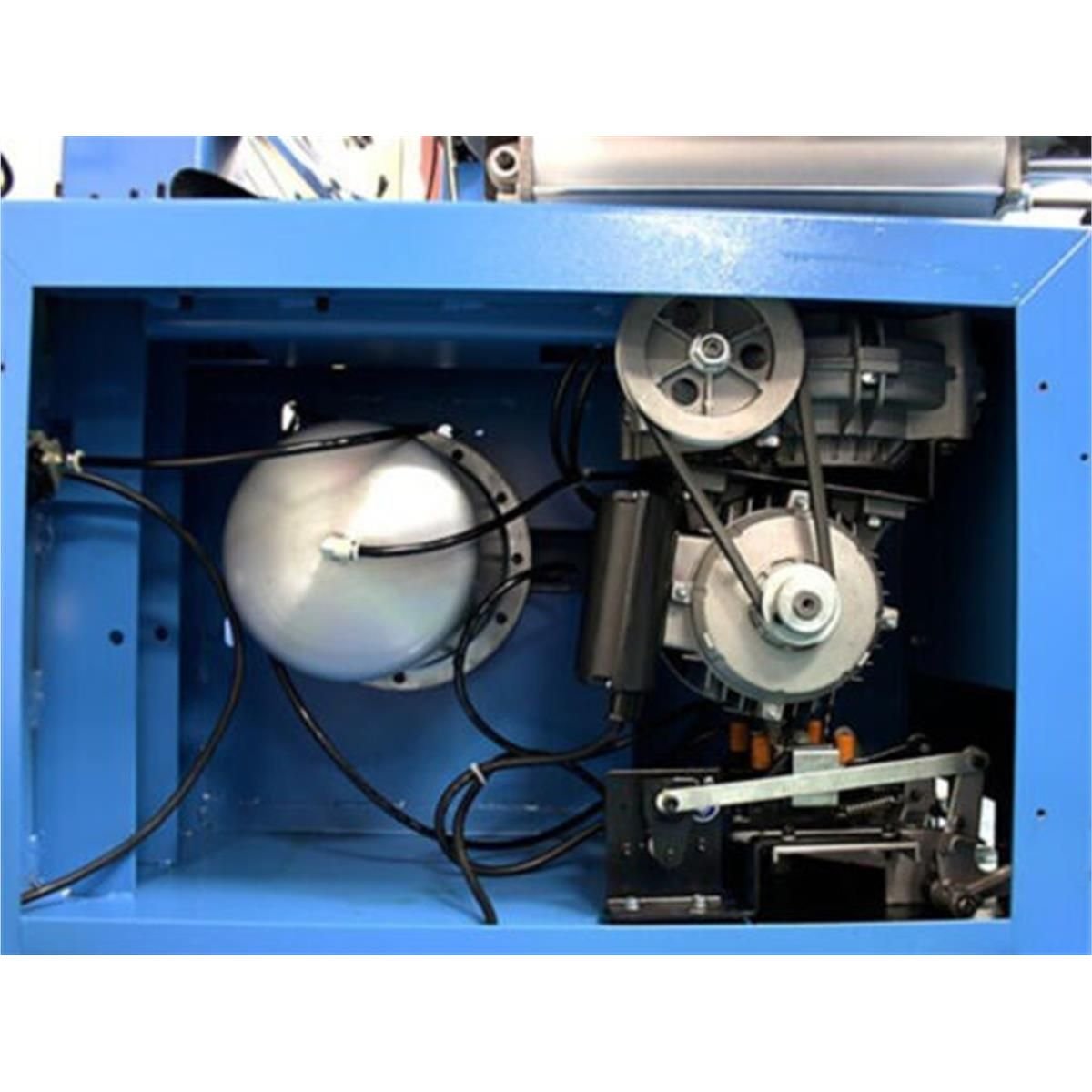

- Electric turntable

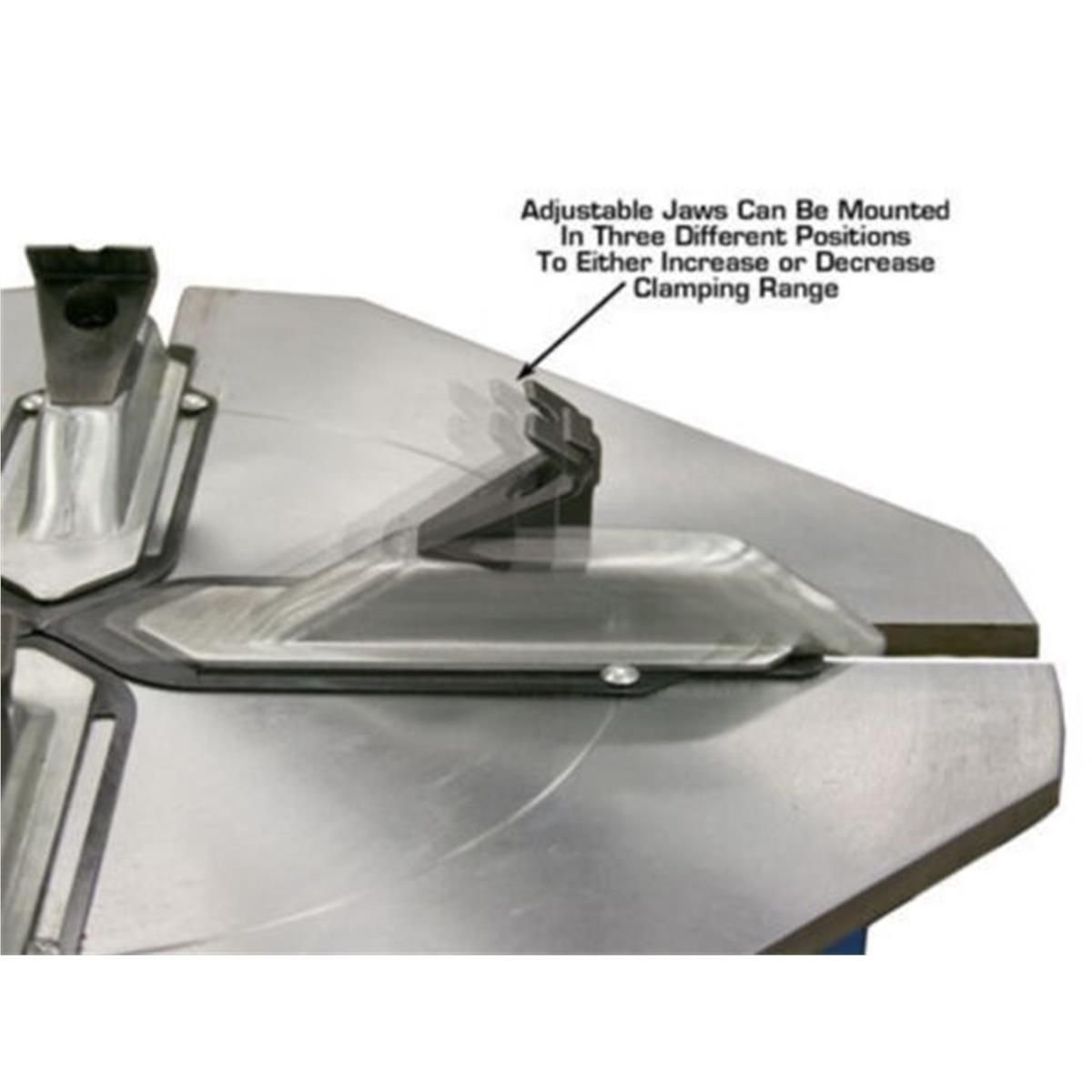

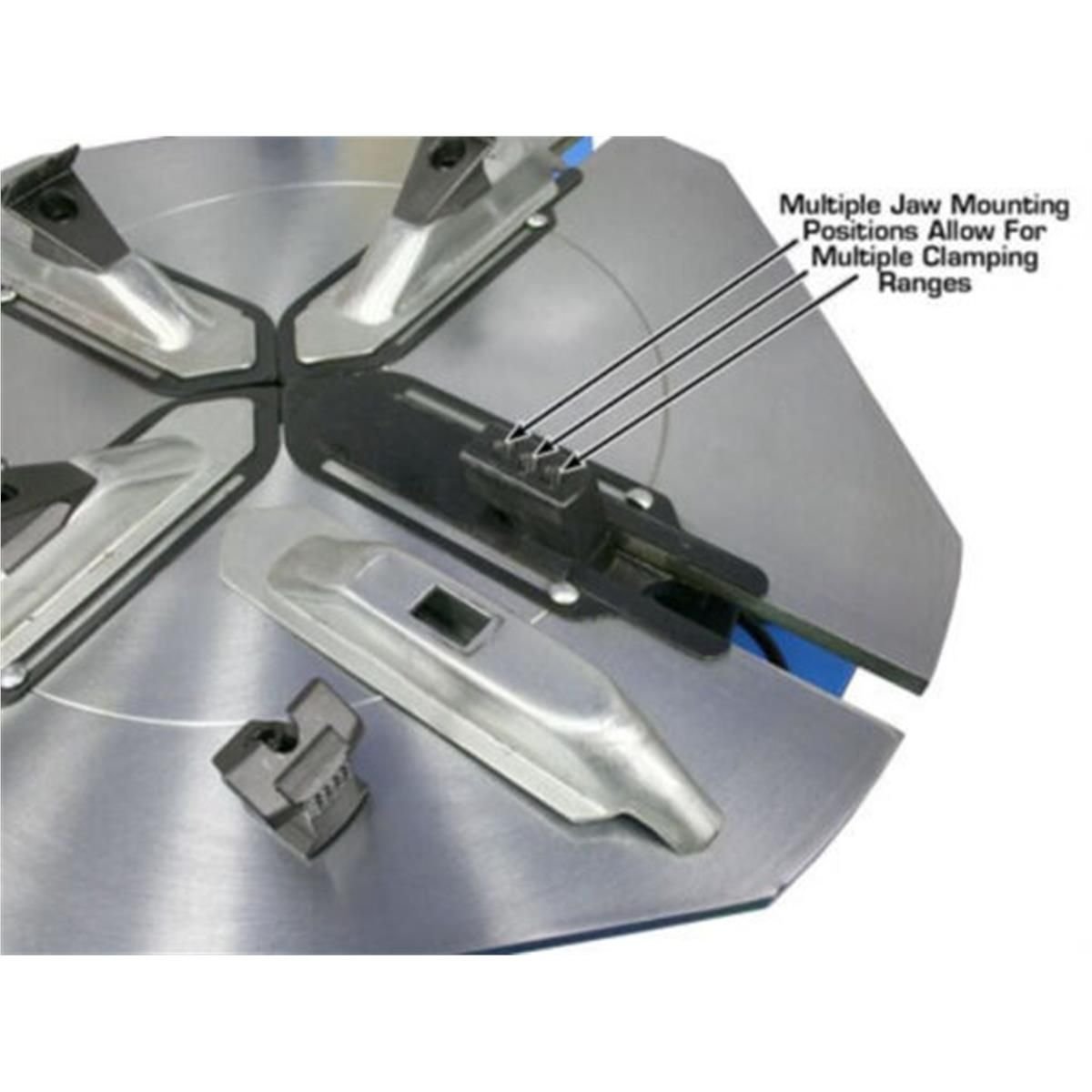

- Adjustable jaws with three mounting positions

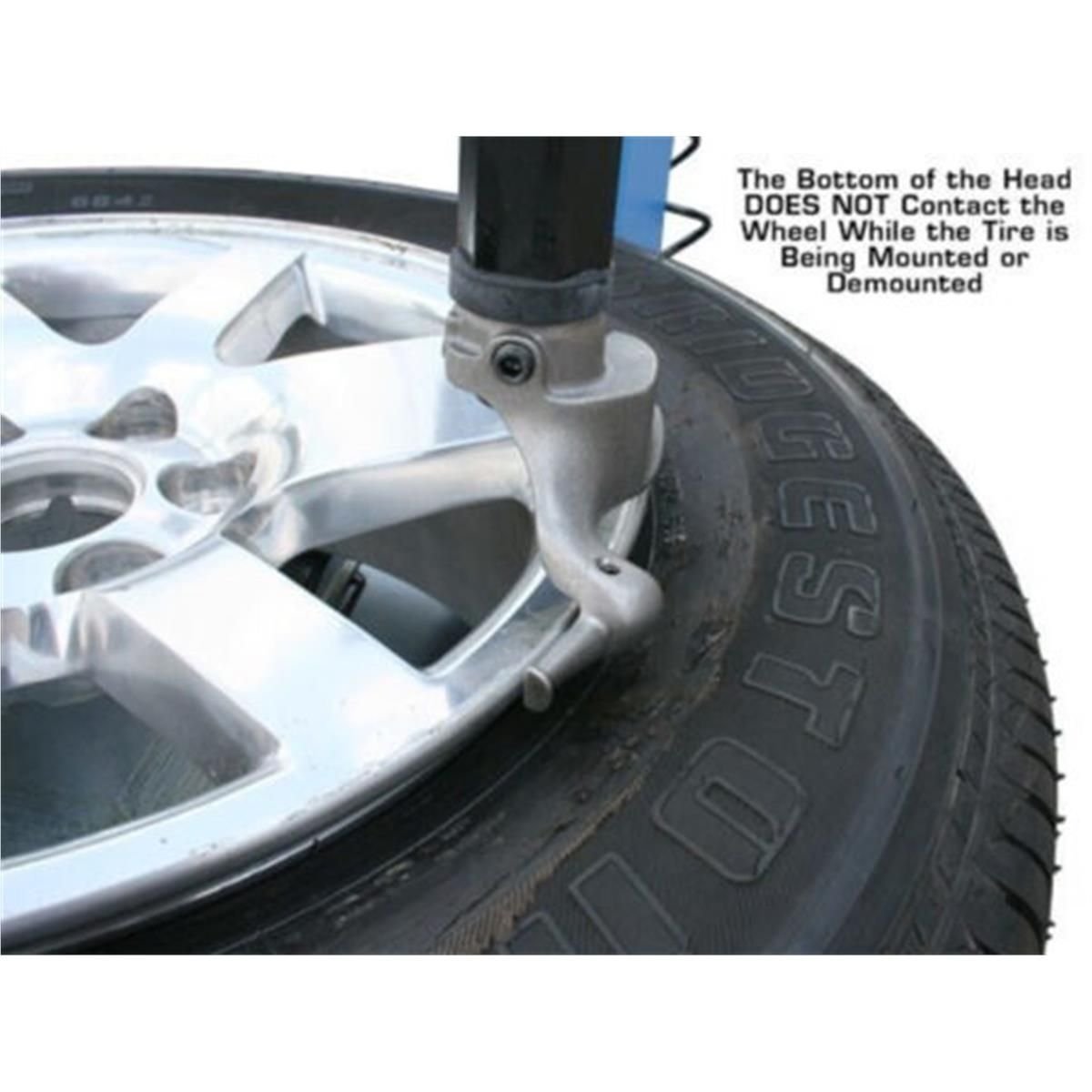

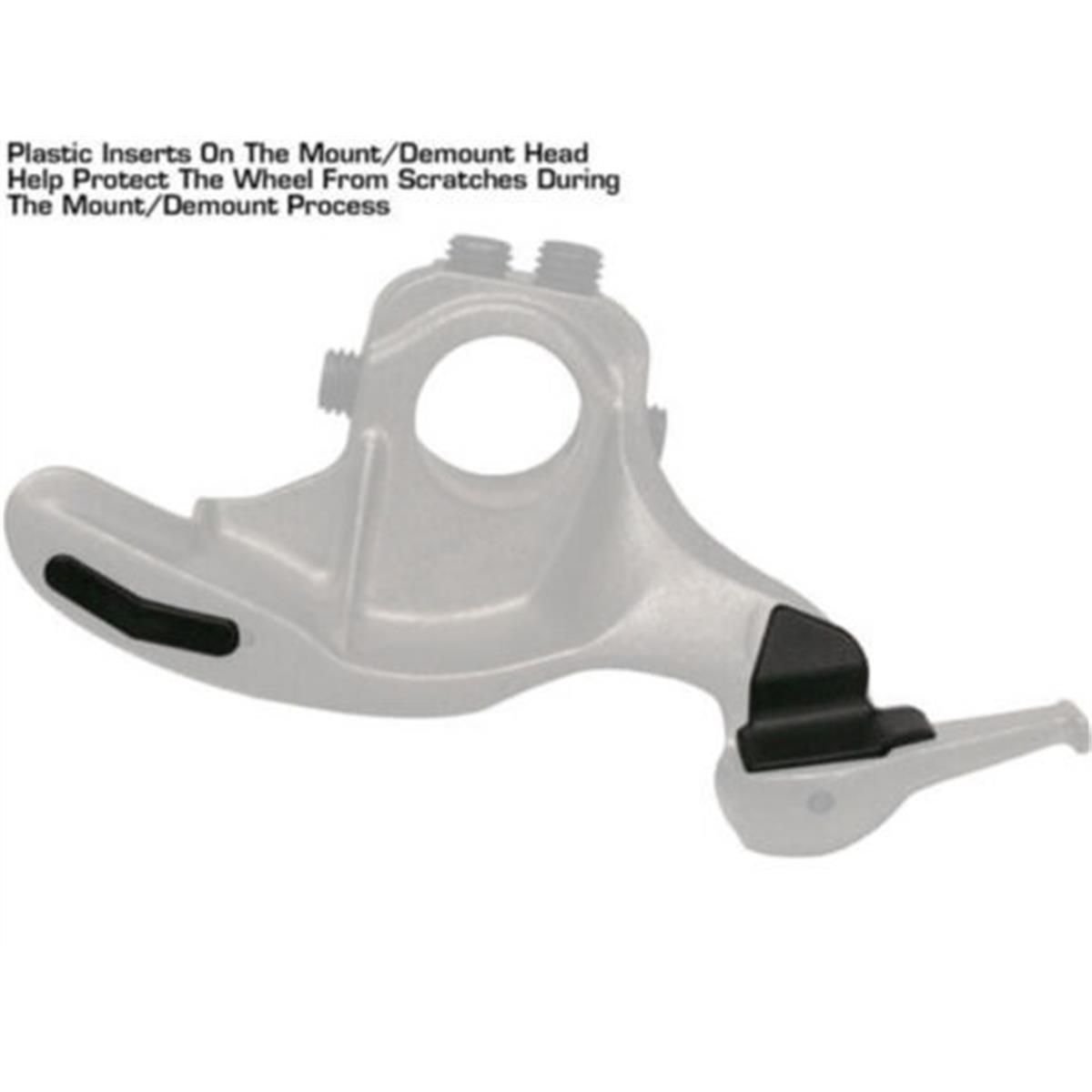

- Metal mount/demount head with metal roller or replaceable plastic inserts

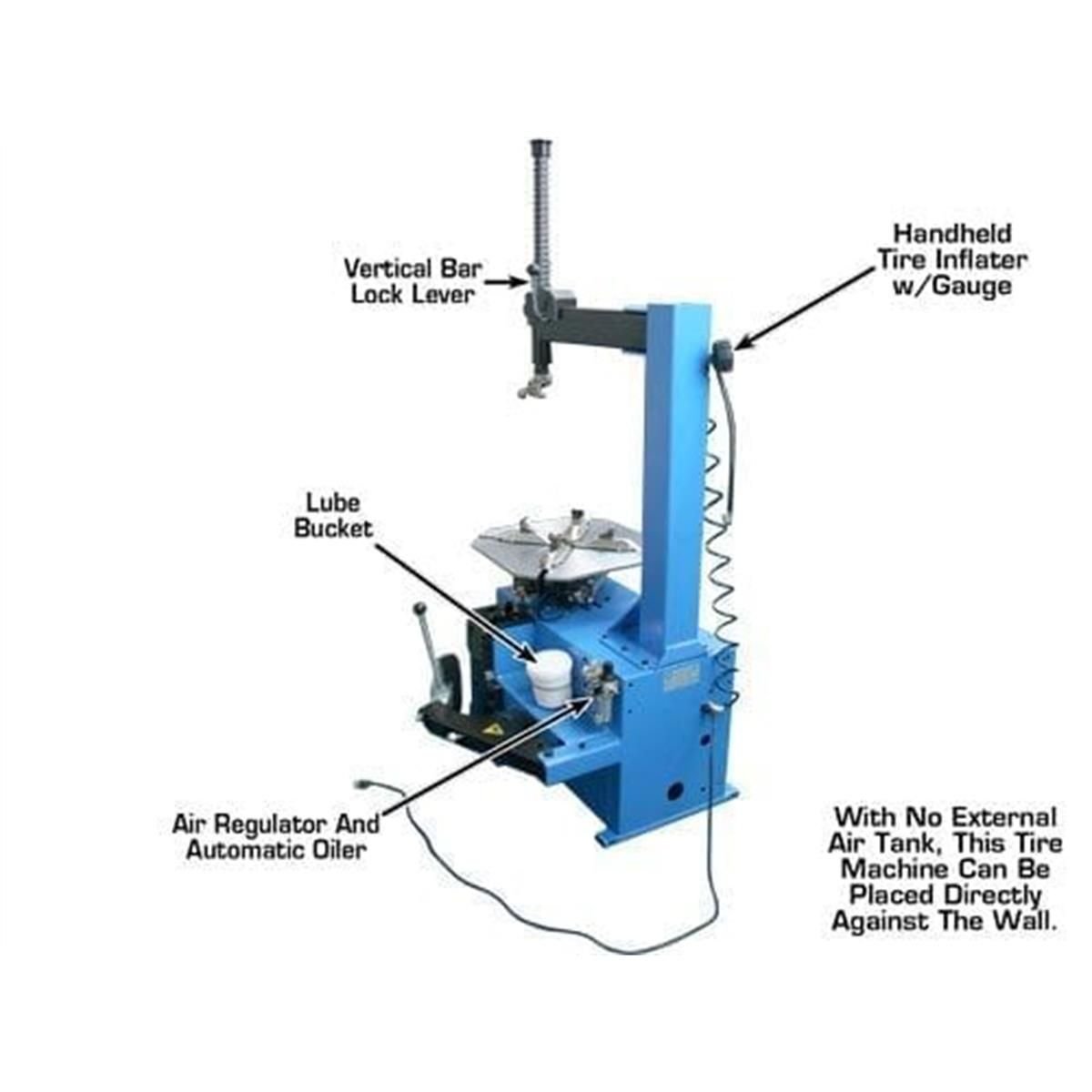

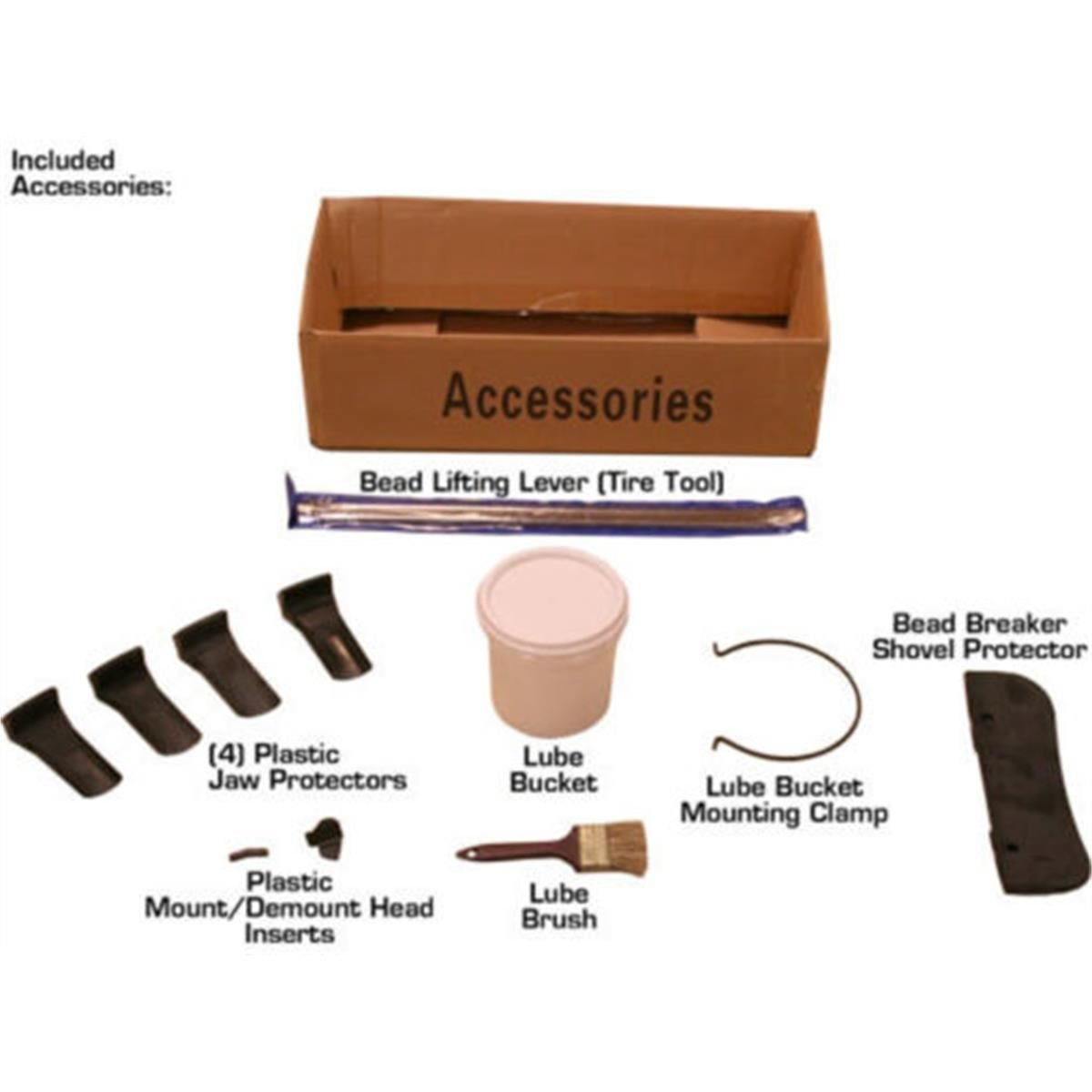

- Inflation gun with gauge included

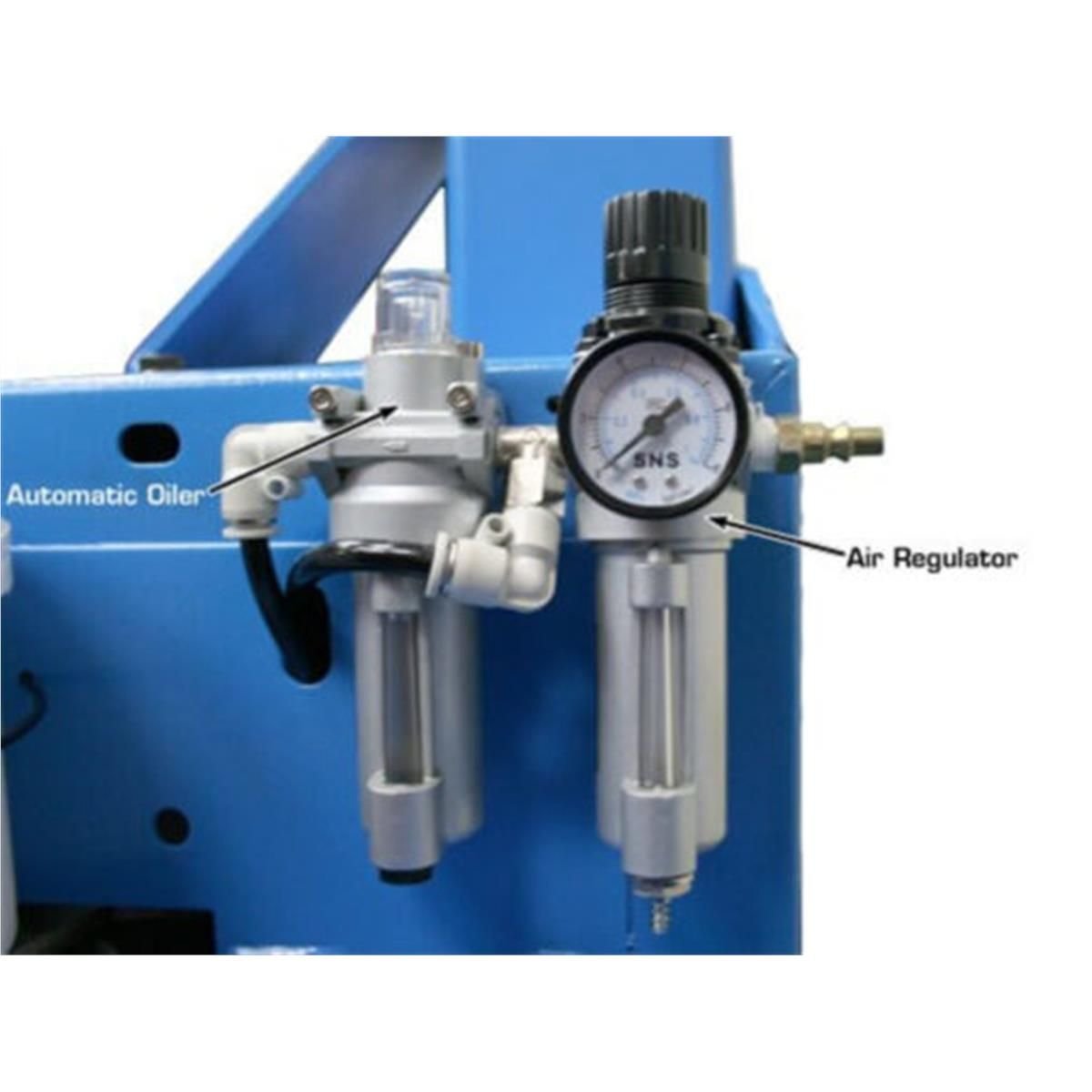

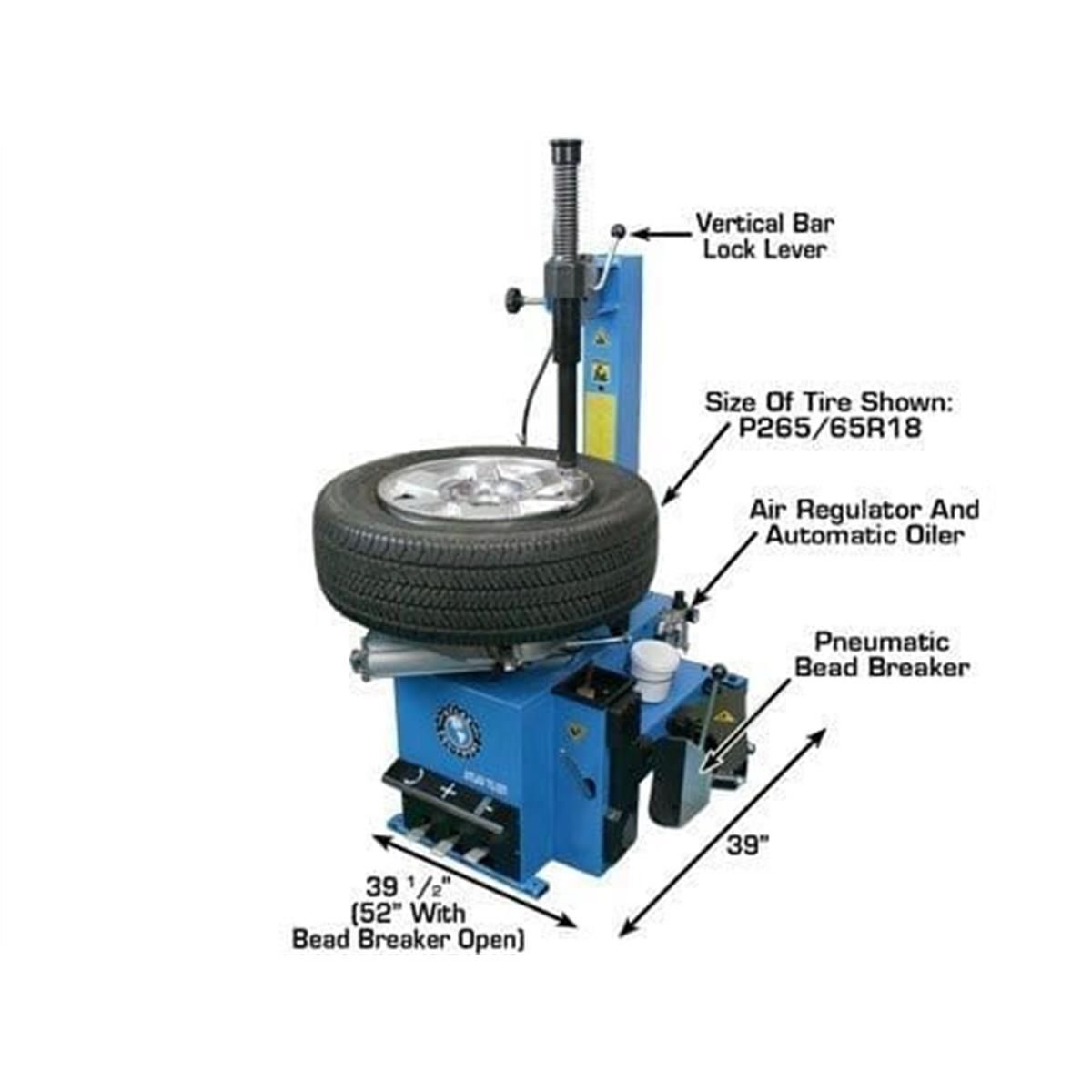

- Filter / Regulator / Lubricator included
- 20″ Tire tool included
- Lube bucket with brush included
- Set of large plastic jaw covers included
- Plastic cover for bead breaker shovel included
- Multiple replacement plastic inserts for mount/demount head included

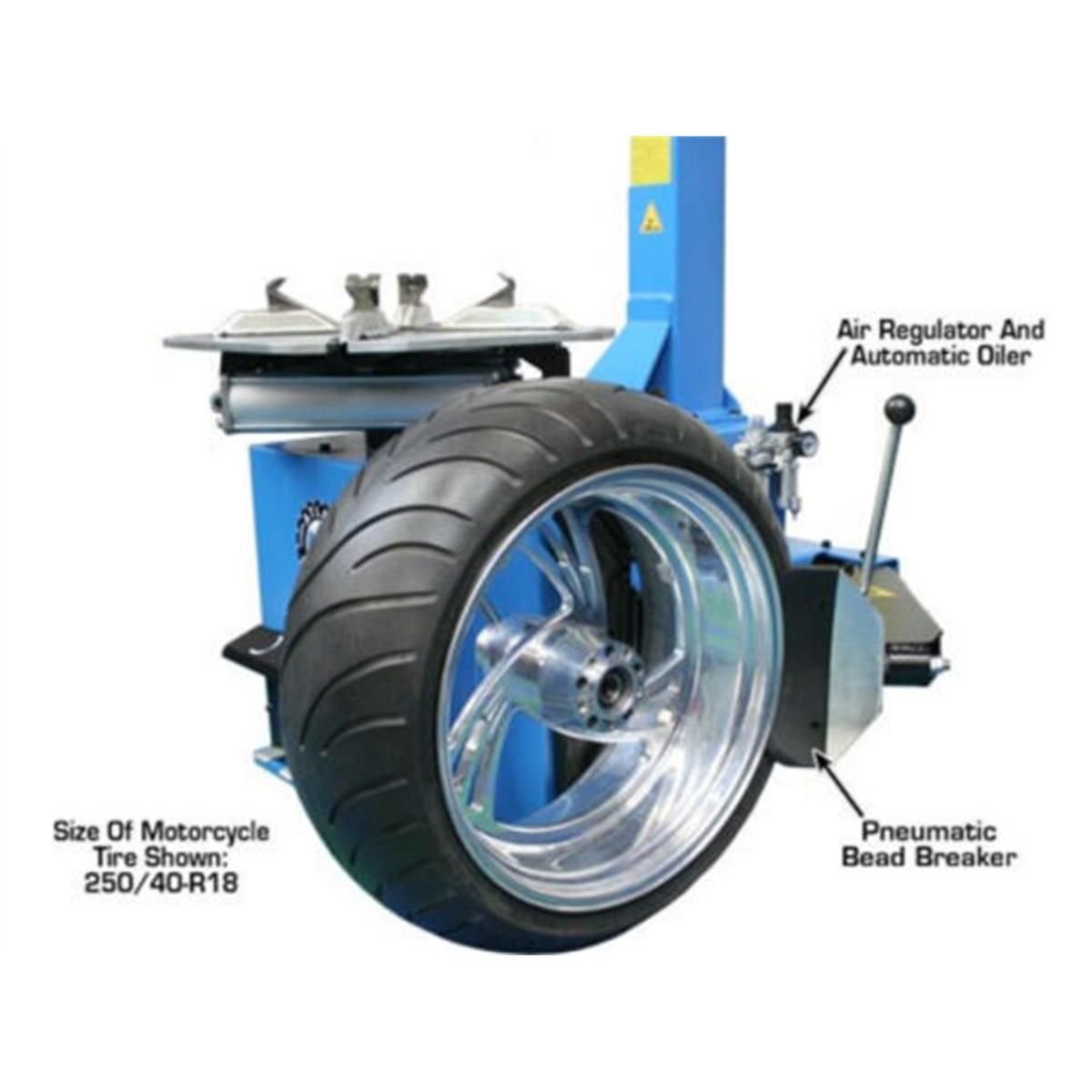

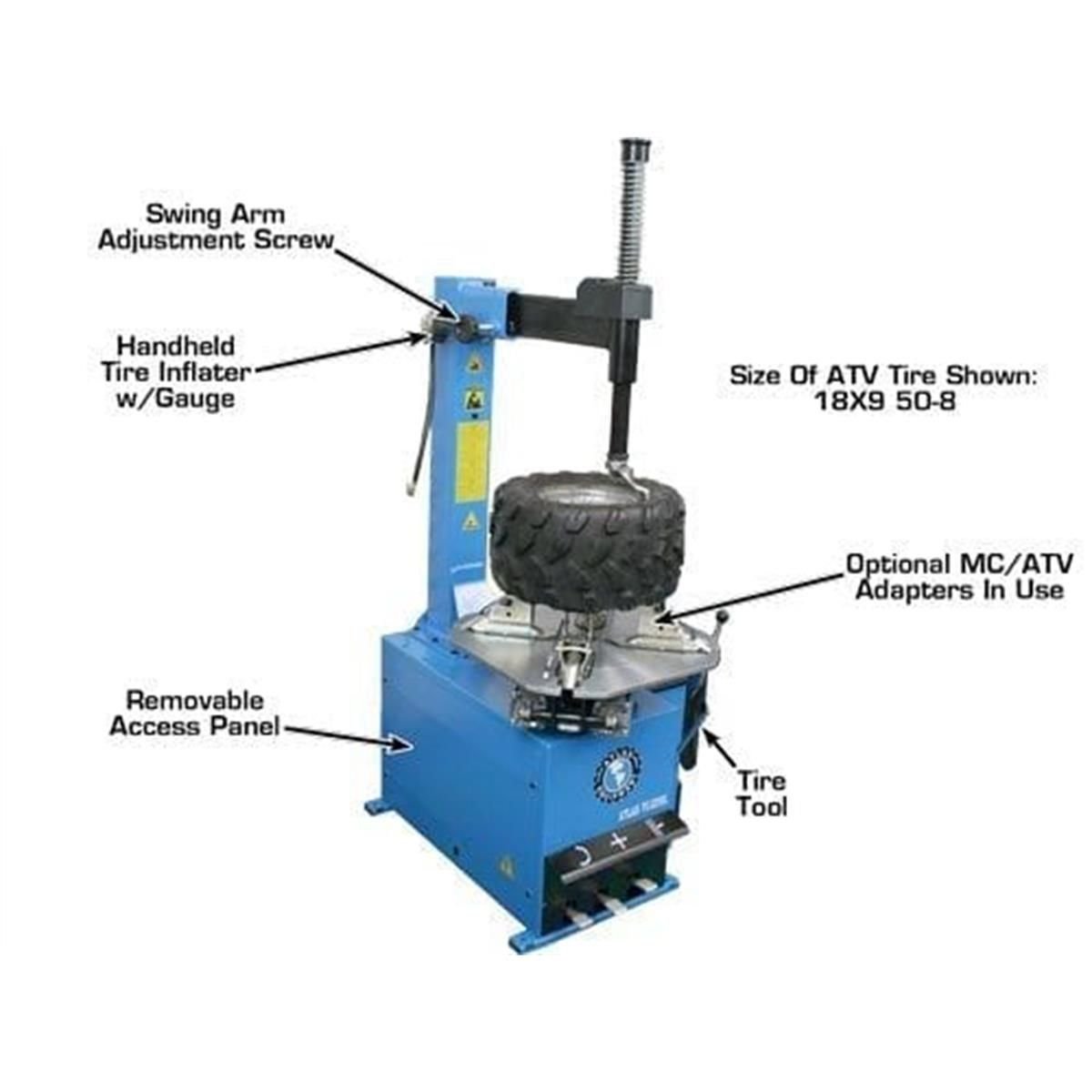

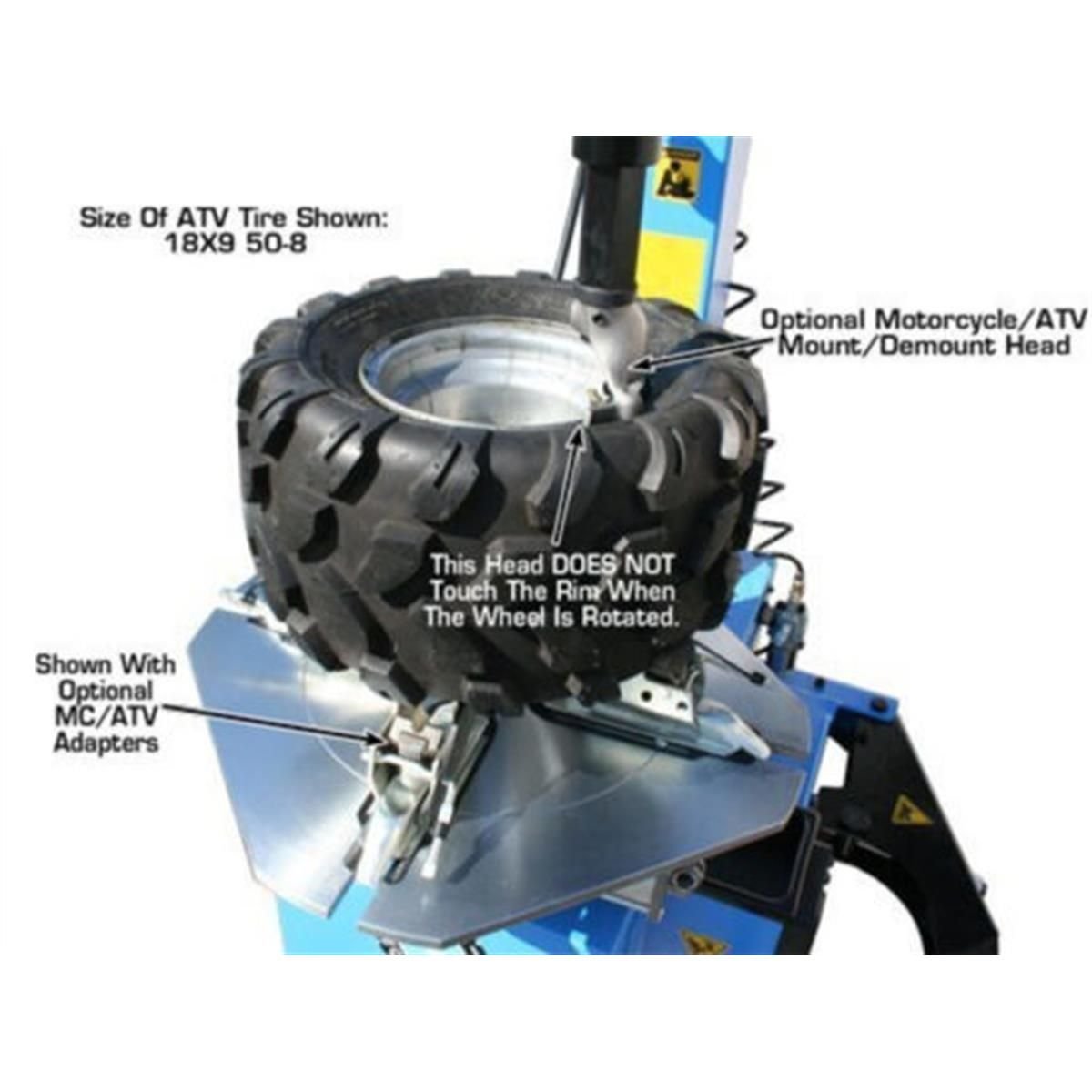

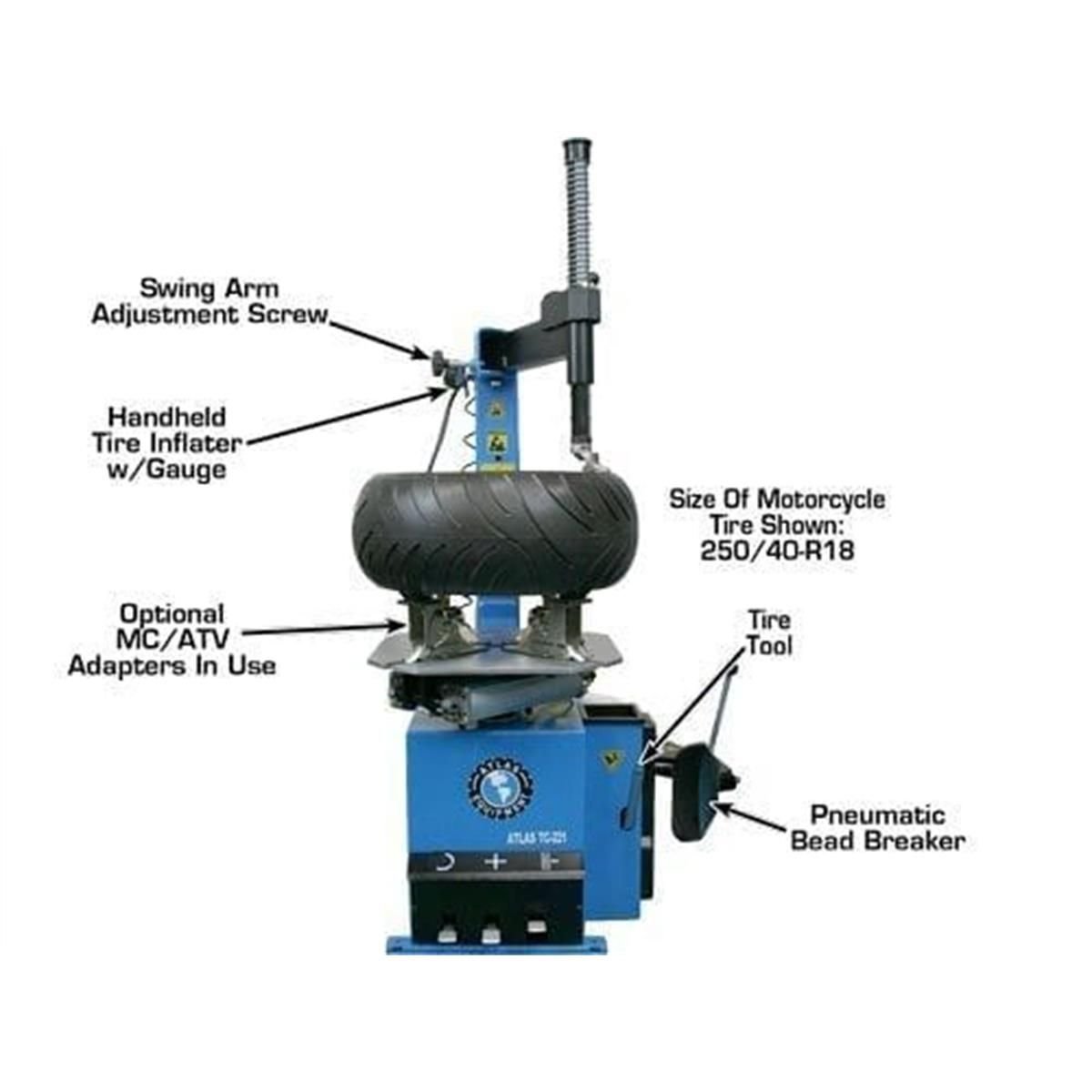

- Motorcycle and ATV adapters available (sold separately)
- Does not include a built-in “Beadblaster”

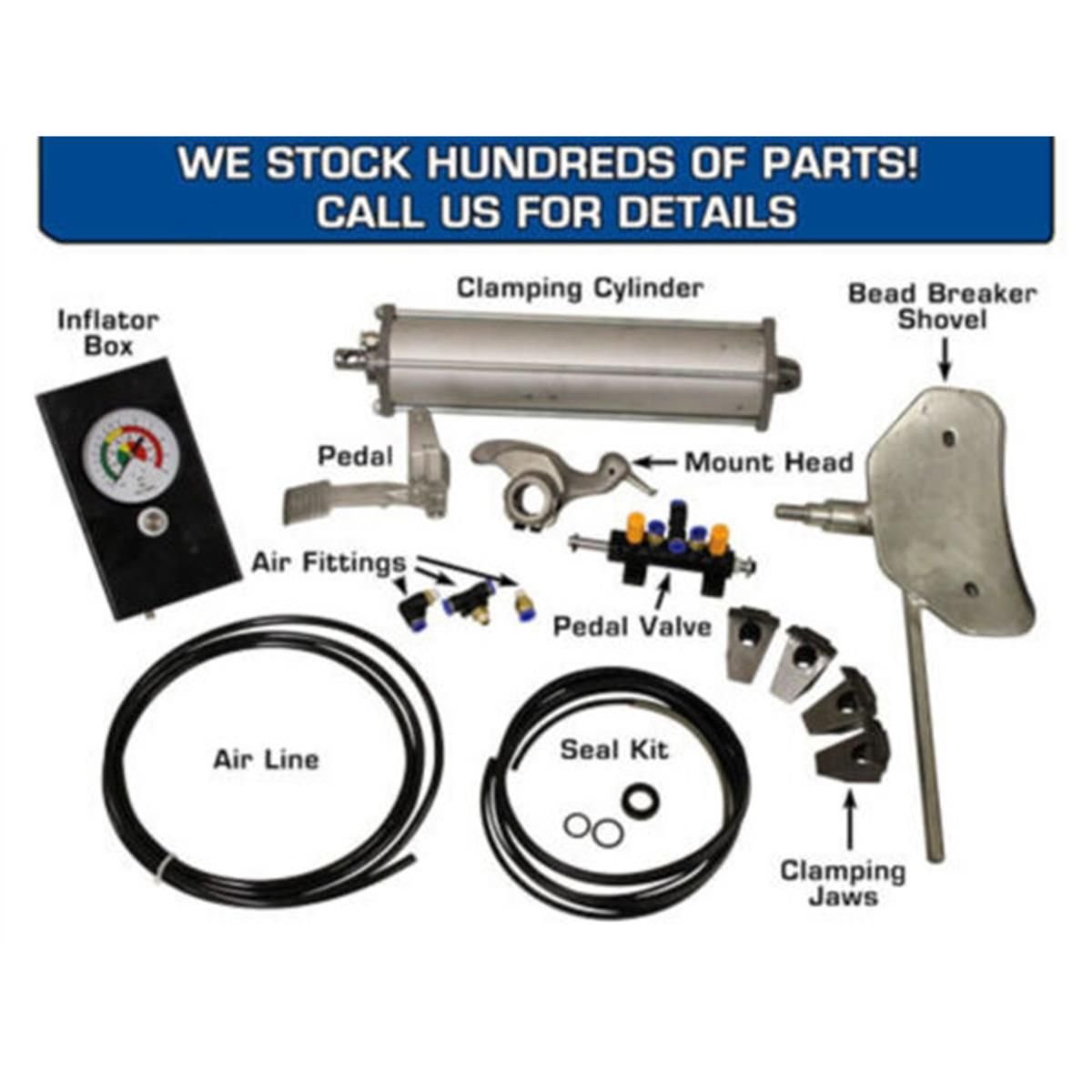

- Replacement parts and wear items always in stock
- 1-year parts-only warranty
Specifications
Atlas® TC221 Specifications
| Rims | Steel, Aluminum, Alloy |
|---|---|

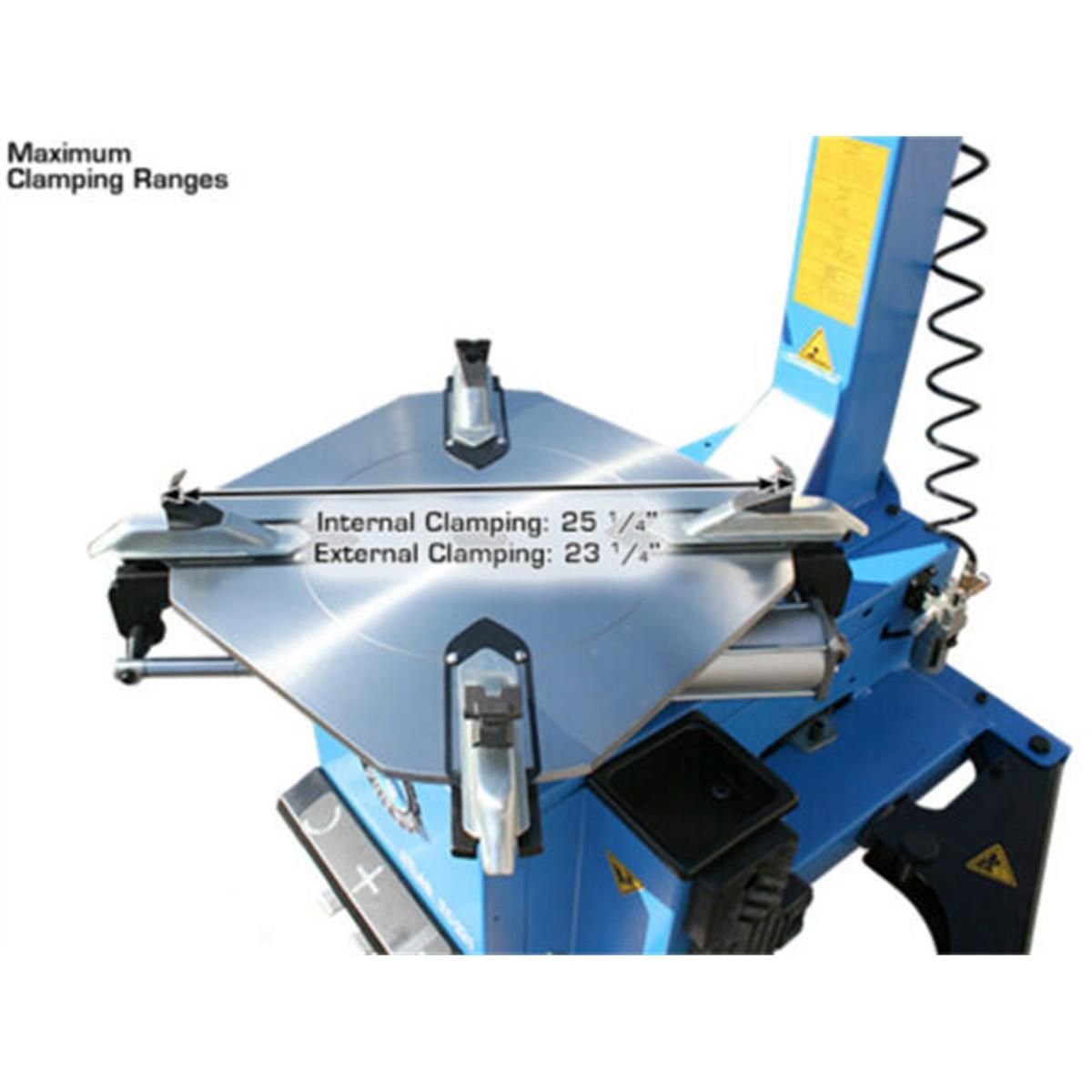

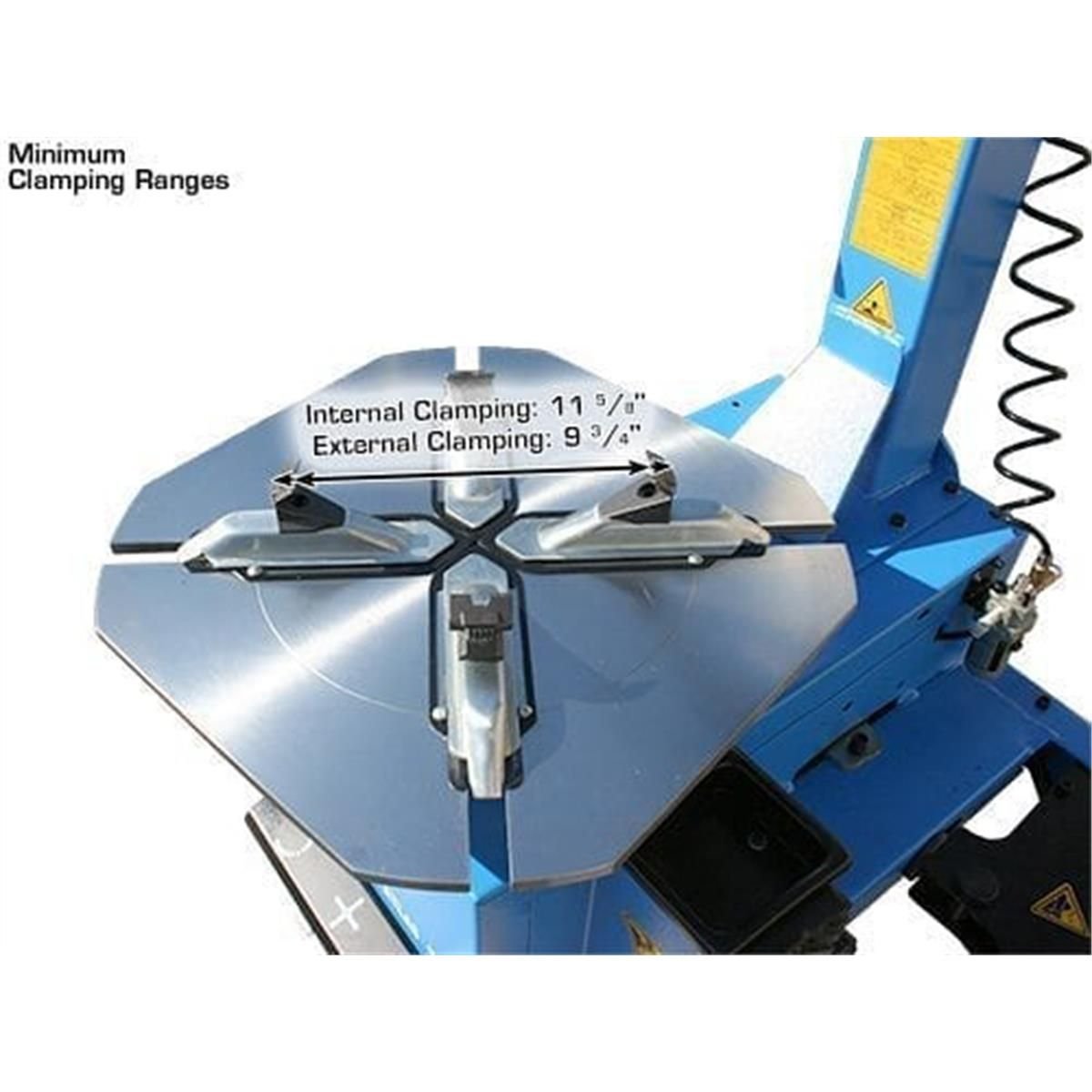

| External Locking Rim Dimension (3 Positions) | 1) 9 3/4″ – 21 5/8″ 2) 10 3/4″ – 22 1/2″ 3) 11 5/8″ – 23 1/4″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 11 5/8″ – 23 1/4″ 2) 12 5/8″ – 24 1/4″ 3) 13 1/2″ – 25 1/4″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 volt |

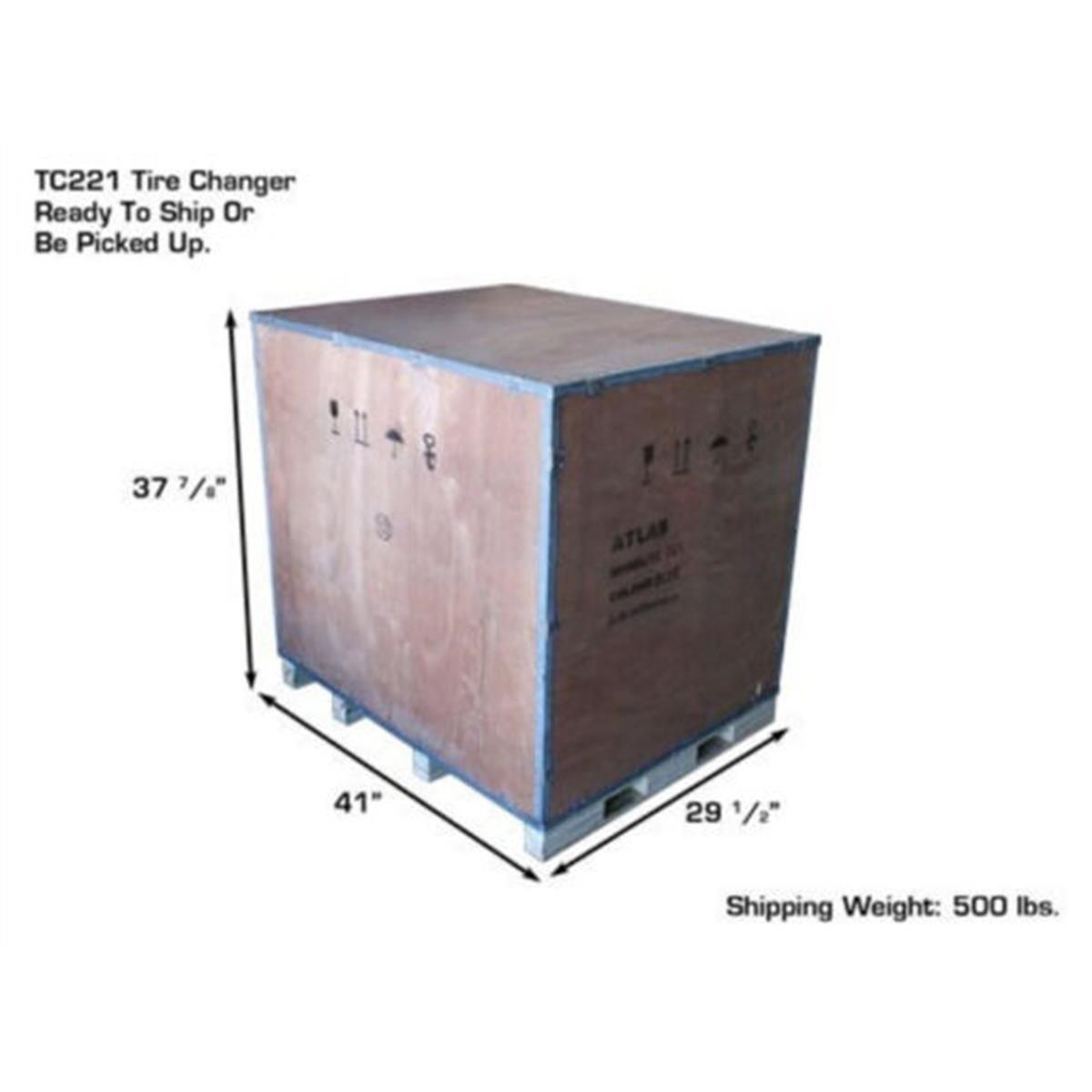

| Shipping Weight | 500 lbs. |
