Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift
Price range: $2,373.94 through $2,597.95
Description

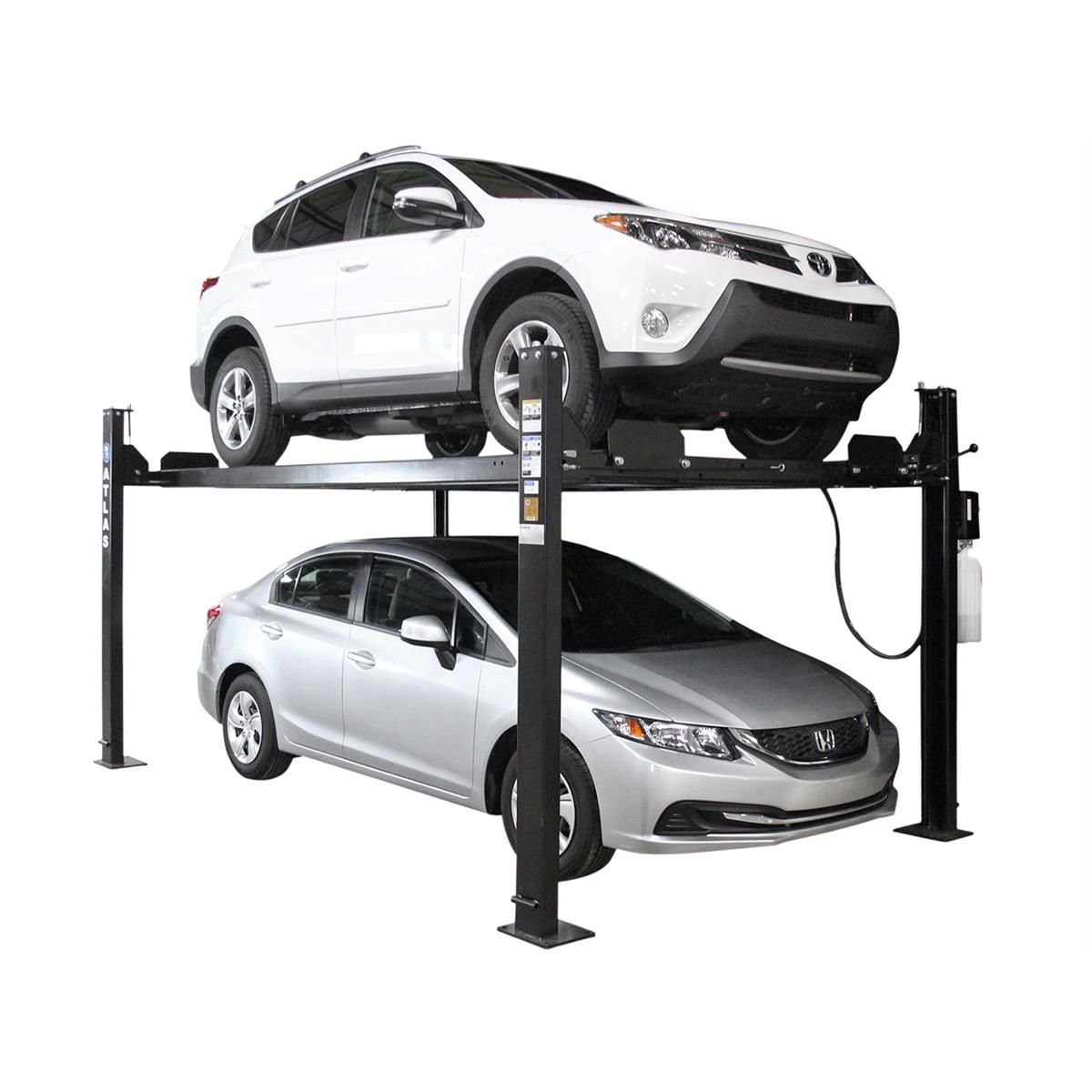

The Atlas ALI Certified 8,000 lb. Hobbyist Lift (APEX8) is the ALI-certified version of the popular Atlas Garage PRO8000 four-post lift. It is an ideal solution for customers with limited garage space who want to maximize storage capacity by stacking most passenger vehicles.
The Atlas APEX8 is engineered for homeowners and restoration shops. It is not intended for high-cycle commercial repair facilities where the lift would be raised and lowered multiple times per day.
Compared to many similar lifts on the market, the APEX8 is nearly 200 lbs. heavier, contributing to enhanced structural stability. It includes a free caster kit equipped with polyurethane wheels, allowing the lift to be repositioned easily. The caster kit can be installed or removed within minutes, enabling portability between service bays or even outdoor use. Combined with ALI certification, these features make the APEX8 one of the strongest values in the hobbyist four-post lift category.
Many customers who purchase this lift also choose the Atlas RJ35 rolling jack for expanded service capability.
Please note: If ordering an Atlas item, your delivery location must be capable of receiving a 53′ truck.
Features
- ALI Certified lift
- 8,000 lb. capacity
- Free-standing, portable design
- Powder coat finish
- Single-point lock release
- Lock ladder design
- Double-lock safety system
- Steel approach ramps included
- Wheel stops included
- Two wheel chocks included

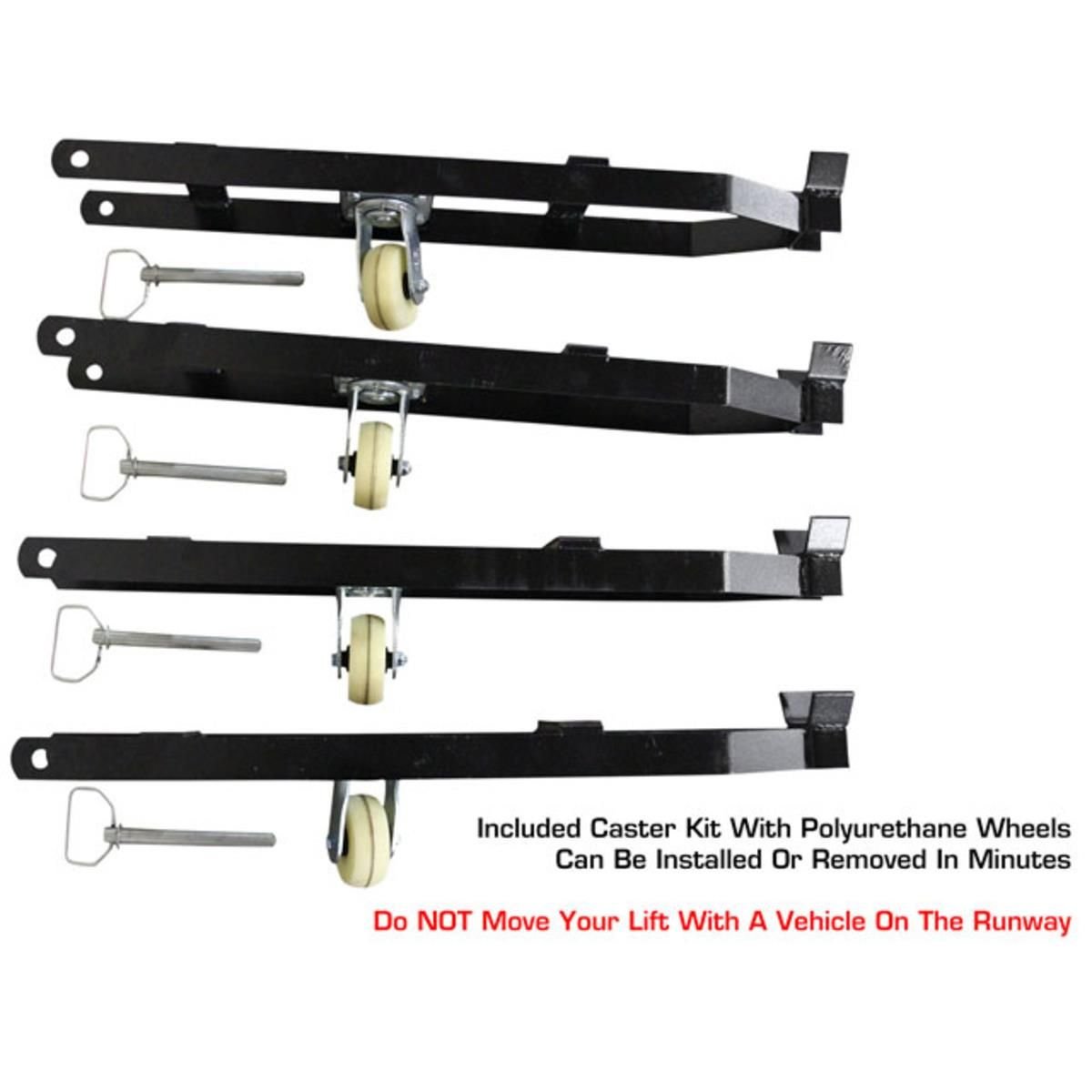

- Caster kit with polyurethane wheels included
- Anchor bolts optional (sold separately)
- Ideal for vehicle storage or light service work
- 110-volt electric operation (30 amp breaker required)
- Shipping weight: 2,000 lbs.
- 5-year structural – 2-year hydraulic warranty (parts only)

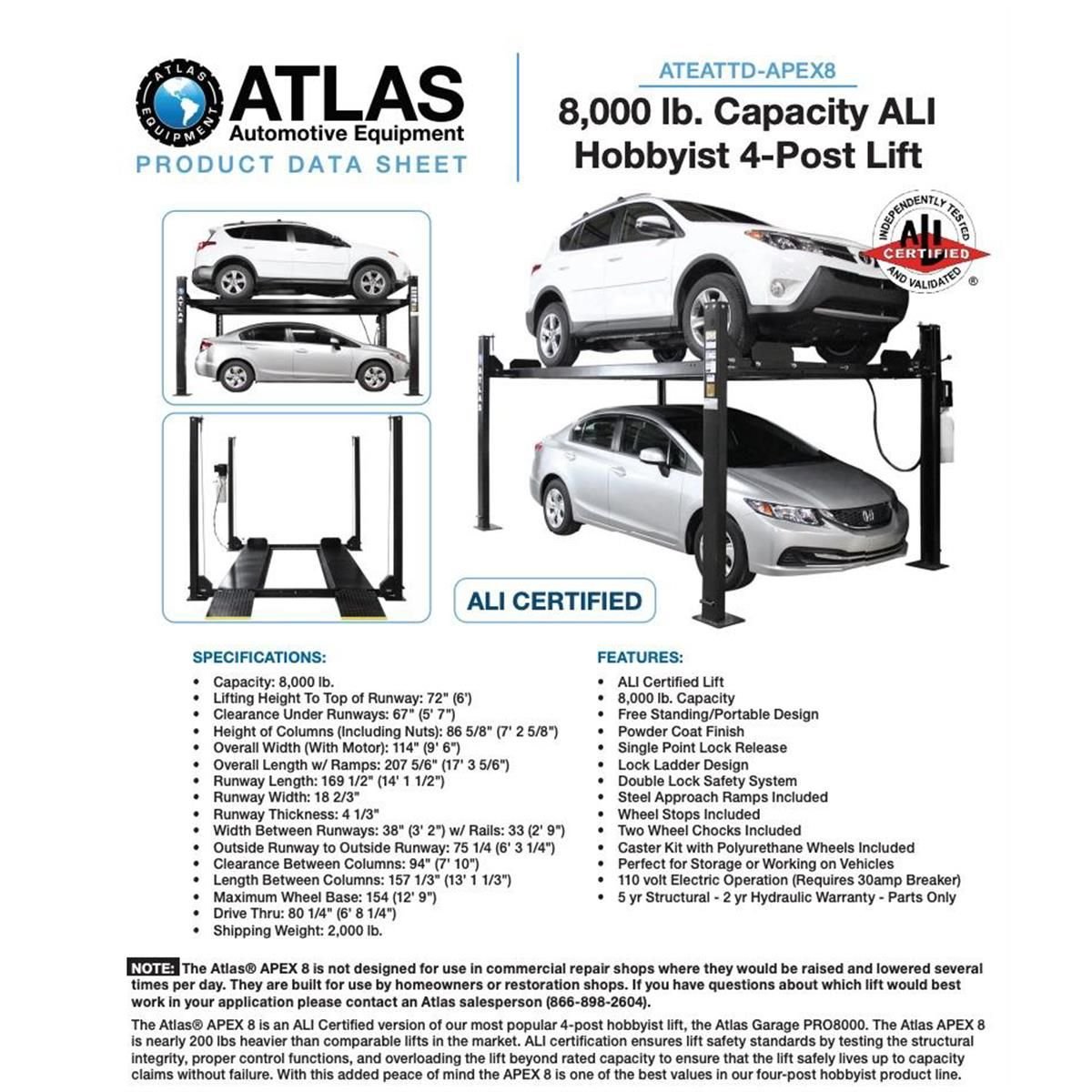

Specifications
Atlas Apex 8 Specifications
| Specification | Details |
|---|---|
| Capacity | 8,000 lbs. |

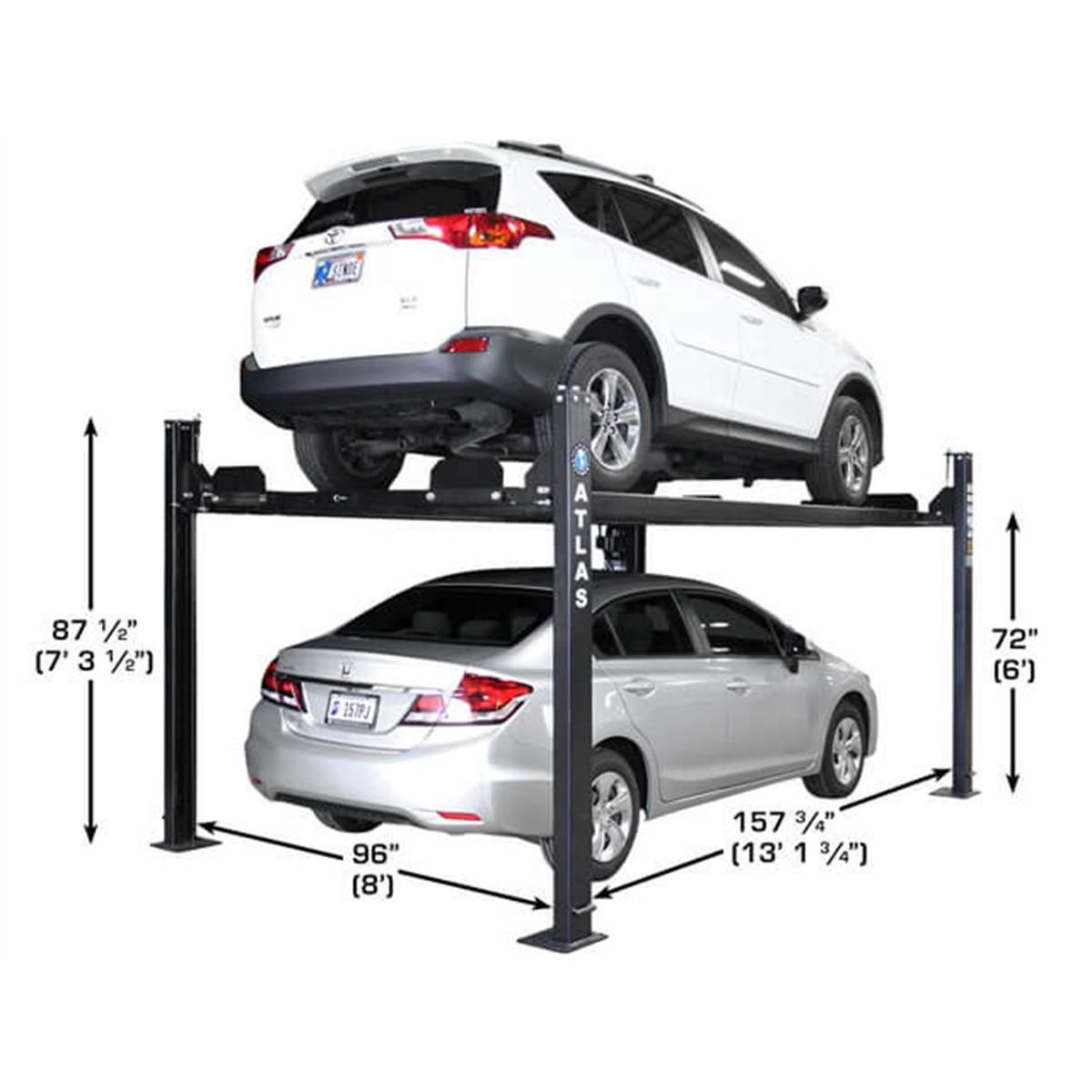

| Lifting Height to Top of Runway | 72″ (6′) |
| Clearance Under Runways | 67″ (5′ 7″) |
| Height of Columns (Including Nuts) | 86 5/8″ (7′ 2 5/8″) |
| Overall Width (Without Motor or Casters) | 104″ (8′ 8″) |
| Overall Width (With Motor) | 114″ (9′ 6″) |
| Overall Length Without Approach Ramps (Including Lock Release Bar) | 186 1/2″ (15′ 6 1/2″) |
| Overall Length With Approach Ramps | 207 5/6″ (17′ 3 5/6″) |

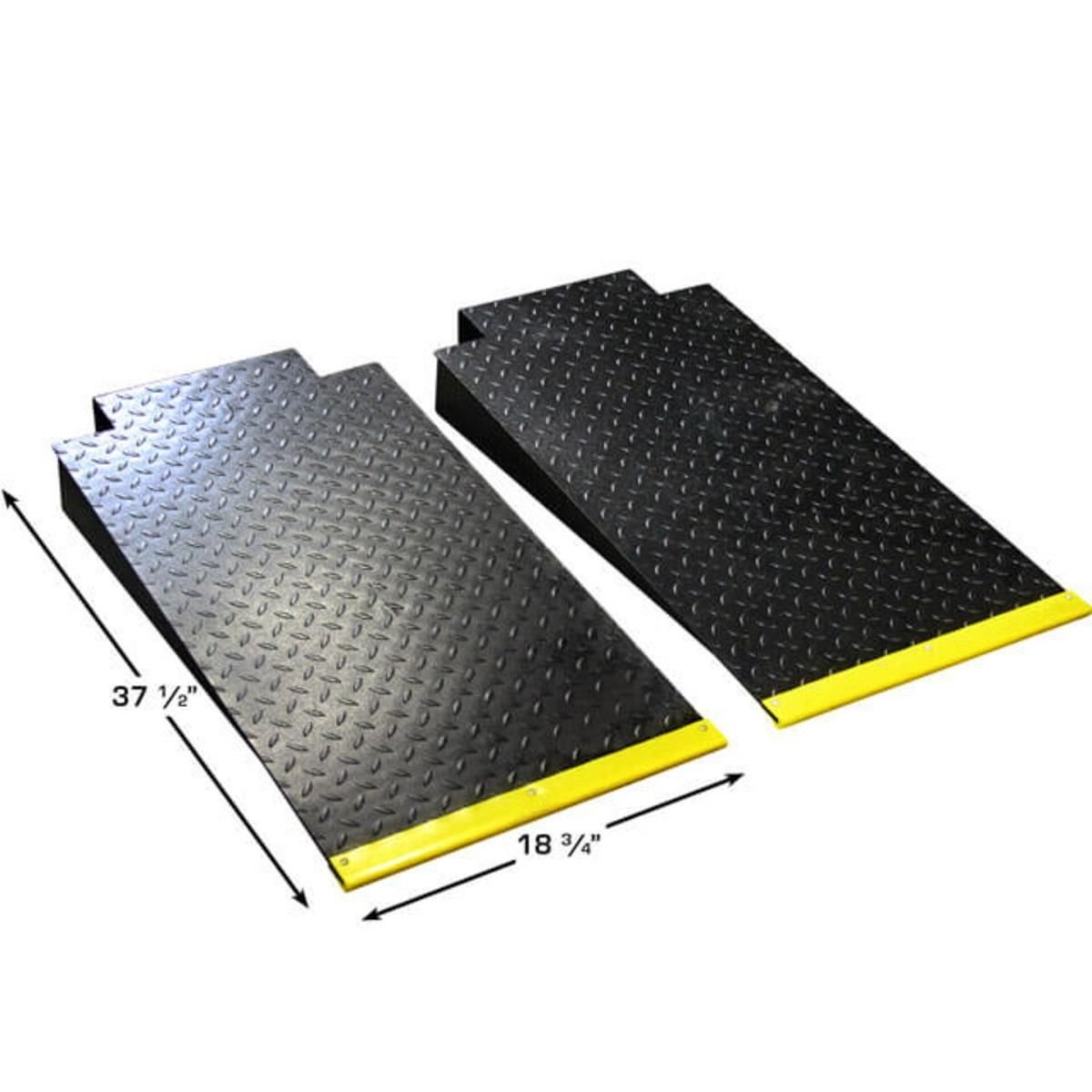

| Approach Ramp Length | 37 1/2″ (3′ 1 1/2″) |
| Runway Width | 18 2/3″ |
| Runway Rail Width | 2 1/2″ |
| Runway Length | 169 1/2″ (14′ 1 1/2″) |
| Runway Thickness | 4 1/3″ |
| Width Between Runways | 38″ (3′ 2″) |
| Width Between Runway Rails | 33″ (2′ 9″) |
| Outside Runway to Outside Runway | 75 1/4″ (6′ 3 1/4″) |
| Clearance Between Columns | 94″ (7′ 10″) |

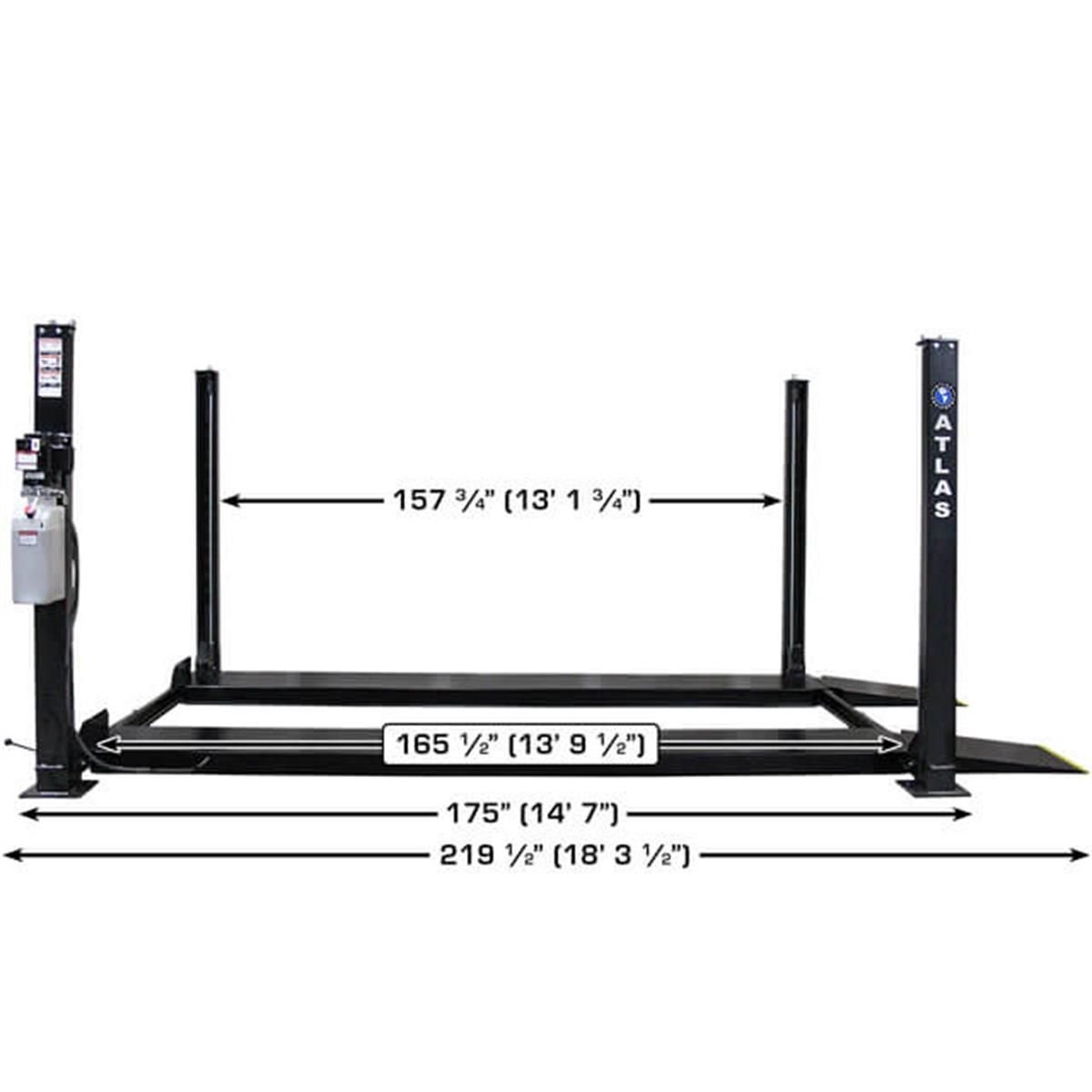

| Length Between Columns | 157 1/3″ (13′ 1 1/3″) |
| Maximum Wheelbase | 154″ (12′ 9″) |
| Drive-Thru (Outside Tire to Outside Tire) | 80 1/4″ (6′ 8 1/4″) |
| Motor / Electrical Requirement | 110 volt (30 amp breaker required) |
| Shipping Weight | 2,000 lbs. |
