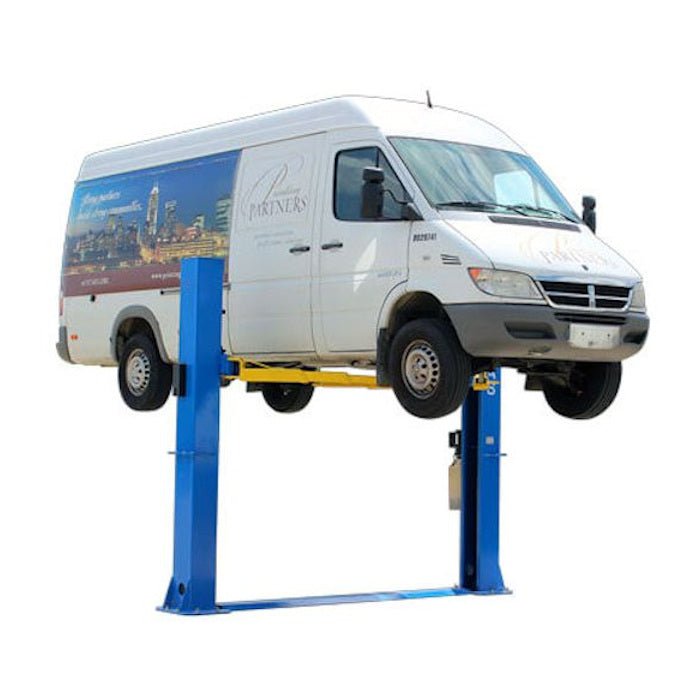

Atlas BP10000X Baseplate Two Post Vehicle Lift

Atlas BP10000X Baseplate Two Post Vehicle Lift
10,000 lbs. Capacity Commercial Grade

The Atlas BP10000 commercial grade 2 post base plate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas BP10000 incorporates the popular single point lock release. Columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a SMART CAR and only have an 11 foot ceiling, then this is lift for your shop.

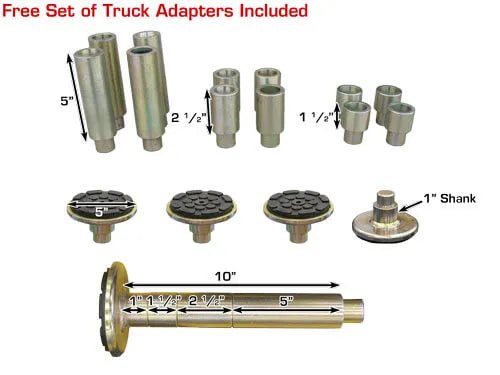

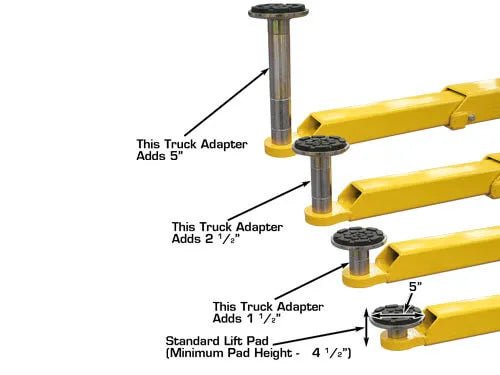

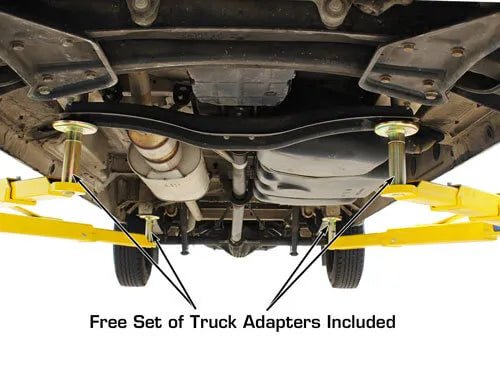

Free 12 Piece Truck Adapter Set:This lift comes standard with a twelve piece truck adapter set. The twelve piece truck adapter set offers many more lift height combinations than standard two piece truck adapter sets.

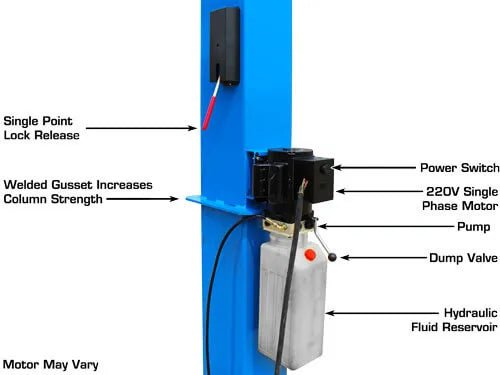

Single Point Lock Release: This Atlas Lift has a manual single point lock release that allows the operator to release all the safety locks at one time. The spring loaded lock handle and power unit dump valve must be activated at the same time. (two hand operation) If the lock handle is released and the dump valve handle is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

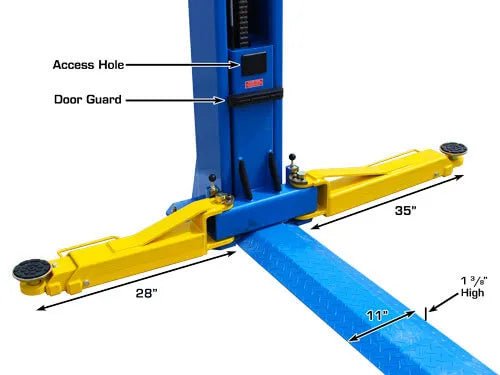

Two and Three Stage Arms: This lift includes 2-stage rear arms and 3-stage front arms which allows the operator to collapse the front arms to easily lift a short wheel based vehicle and extend the arms to raise a long wheel based vehicle.

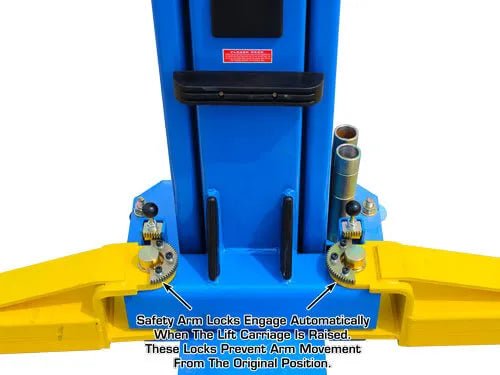

Automatic Arm Restraint: Automatic arm restraints are needed to keep the arm “locked” into a position relative to the carriage. When the arms are at rest in the lowest position, the arm restraint pin (which extends below the carriage) is pressed up and the lock (teeth) mechanism is disengaged.

The operator can then move the arms so that the lift pads can be properly positioned under the vehicle’s lift points. Once the carriage is raised (approximately 2 inches) the lock is reengaged and the arms cannot be moved. However, the operator may pull the knob or metal ring to manually unlock the arms. Lock restraints do not guarantee that a vehicle cannot be “moved” off of the lift pads. Operator should use care when working on vehicles that have an abundant amount of undercoating (lift pads may “slide”) or a significant weight imbalance of the vehicle may occur due to removal of an engine or transmission. Also, “HEAVY wrenching” may result in a vehicle shifting weight on the arm pads. We recommend the use of tall jack stands under the vehicle to add another layer of safety.

Double Lock System: This lock system incorporates two locking mechanisms for added safety. The double lock system is automatically activated as the lift is raised. When the vehicle reaches the desired height, the lift is raised just past that locking position and then lowered into that lock, which removes the hydraulic pressure from the cylinders. When the vehicle is ready to be lowered to the ground, the vehicle is raised an inch or two and the double lock system is disengaged by pulling a handle located near the power unit. There is no need for the operator to go to both columns and manually unlock both column locks. All lifting and lowering operations are controlled from one column post. Double safety locks built into each column that can be unlocked by one release lever make this lift one of the safest and easiest to operate base plate lift in the Industry. Two locks…one release…no hassle…available from ATLAS.

Super Symmetric Arm Configuration:Our super symmetric arm configuration is a great improvement over the traditional asymmetric or symmetric arm configuration.

Our most asked question about our arm configuration is: “Can I get in and out of the vehicle easily” ?
The Atlas super symmetric arm configuration allows the customer to get in and out of the vehicle with ease.

The real question should be: “Can I position the arms properly (arm pads under the correct lift points) and still get in and out of the vehicle easily” ?
The Super Symmetric arm design answers “YES” to this question.
