Description
The Atlas® 408SL Super Deluxe portable vehicle storage lift is engineered for car enthusiasts who expect premium appearance and superior build quality. While it shares the dependable features of the Atlas® Garage Pro Series 4-post hobbyist lifts, it also incorporates several enhancements typically found only on Atlas® commercial-grade 4-post lifts.

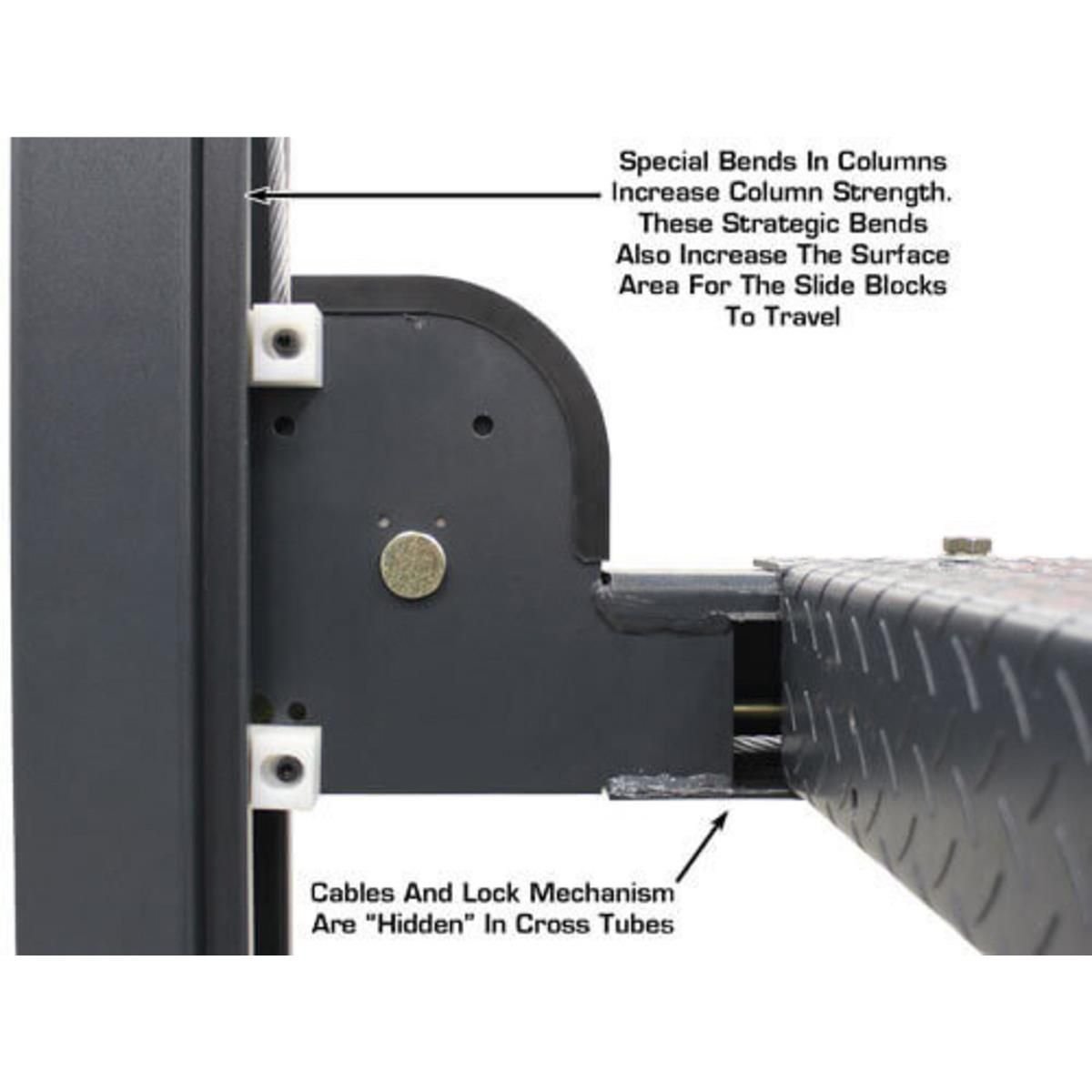

Each column is designed with two strategic bends that increase structural strength and expand the surface area for smoother slide block travel. The horizontal cables are concealed within the cross tubes, and professional-grade wheel covers minimize visibility of cables and the double lock system. With added steel construction, the Atlas® 408SL weighs over 100 lbs. more than comparable hobbyist lifts with similar column and runway dimensions.
Built to the same commercial lift standards as the Atlas® 412 and Atlas® 414 four-post lifts, the 408SL also offers portability with the included caster kit.
If you want a storage lift that stands apart from others available in the U.S., the Atlas® 408SL is an exceptional choice.

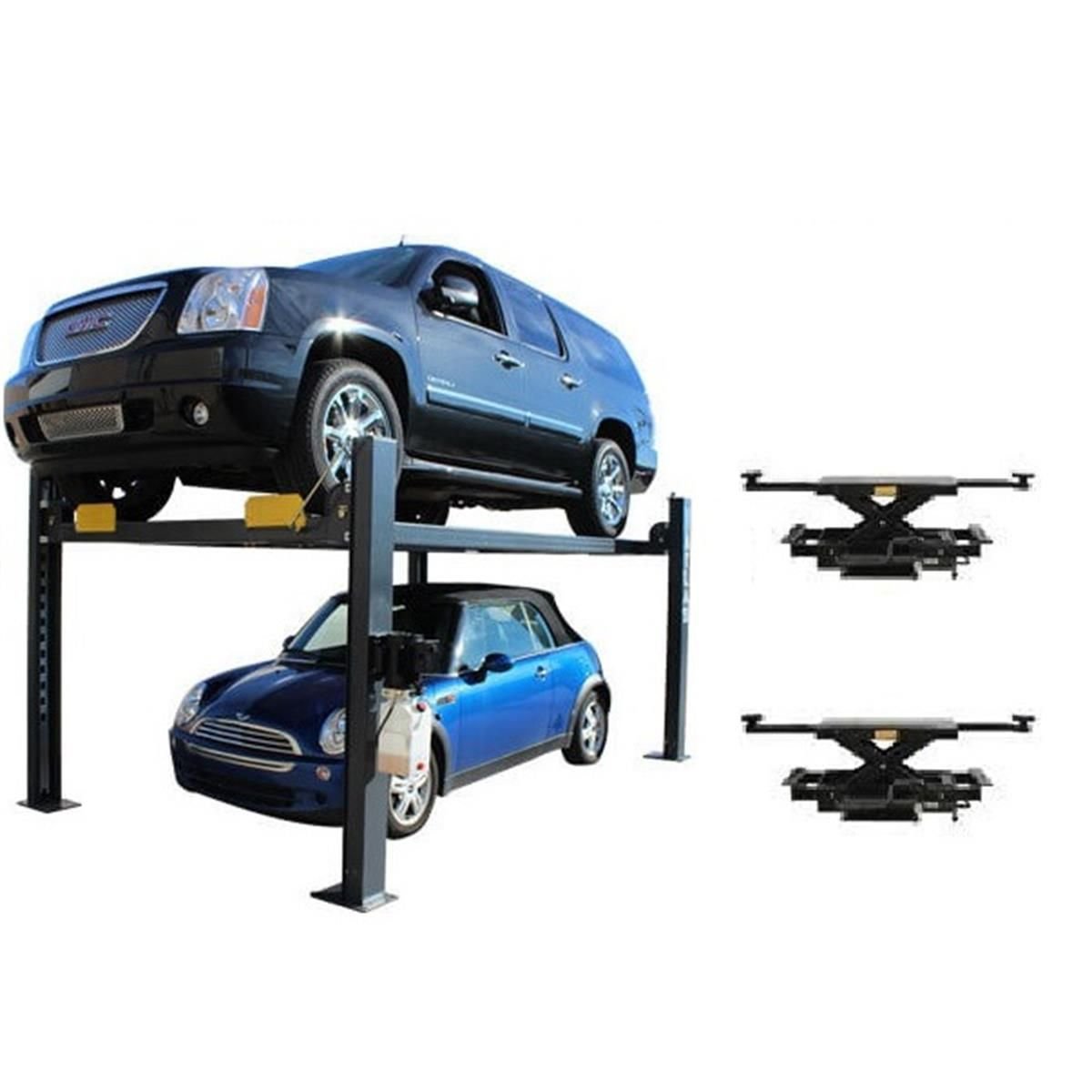

This package also includes two Atlas® RJ35 sliding bridge jacks. These jacks allow you to lift a vehicle’s wheels off the runways, making wheel service and brake work convenient and efficient.
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.
Features
DELUXE 408SL
- 8,000 lb. Capacity
- Free-Standing / Portable Design
- Diamond-Plated Runways
- Single-Point Lock Release

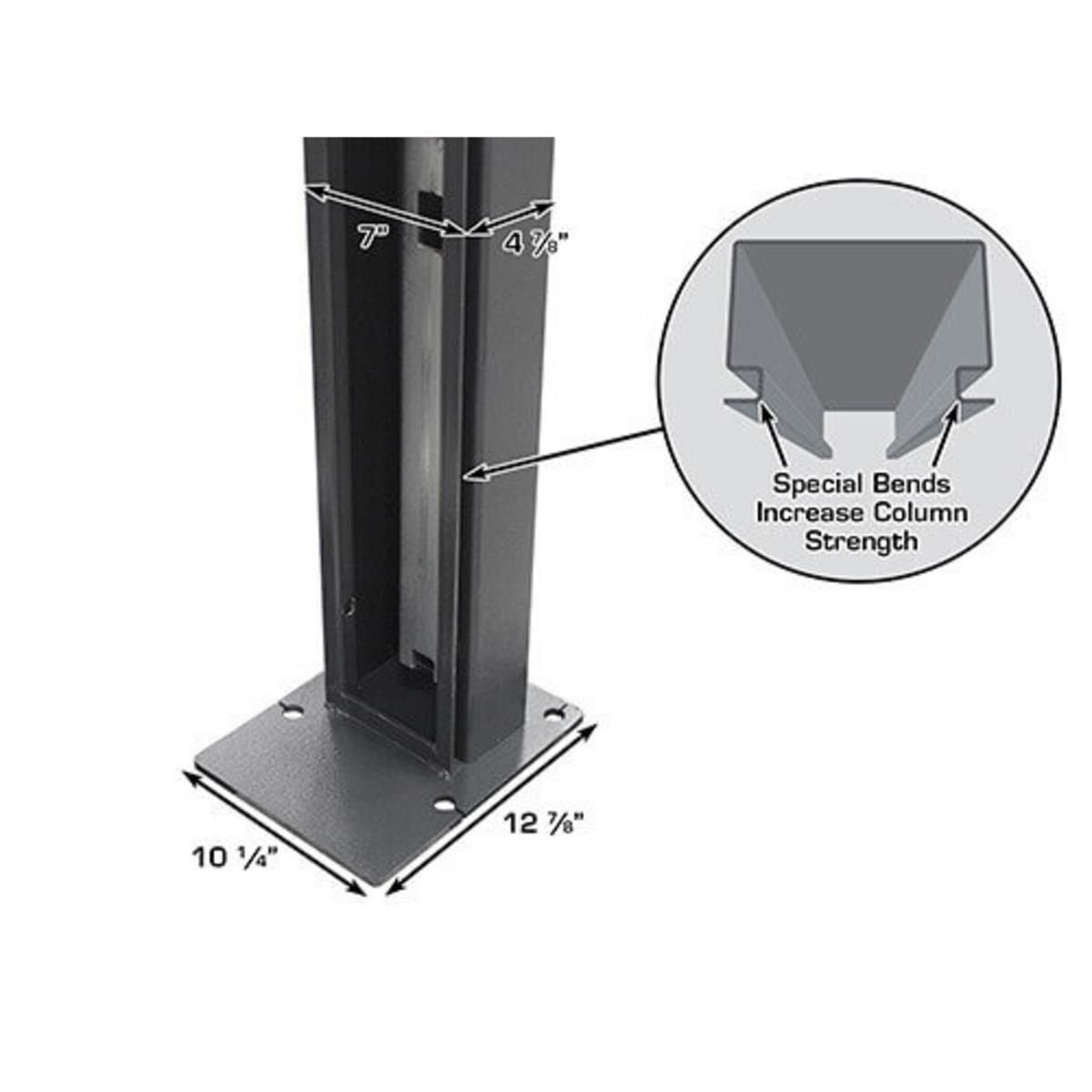

- Columns Designed with Dual Reinforced Bends for Added Strength
- Larger Column Dimensions
- Double Lock Safety System
- Premium Powder Coat Finish (Steel Gray)
- Cables Concealed Inside Columns & Cross Tubes
- Commercial-Grade Wear Blocks
- Power Unit Mountable at Any Corner
- Wider Access Between Runways
- Caster Kit with Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Wheel Stops Included
- Anchor Bolts Optional (Sold Separately)
- 110 Volt Operation – Plug Not Included (30 Amp Breaker Required)
- Shipping Weight: 1,965 lbs.
- 2-Year Structural – 2-Year Hydraulic Warranty – Parts Only

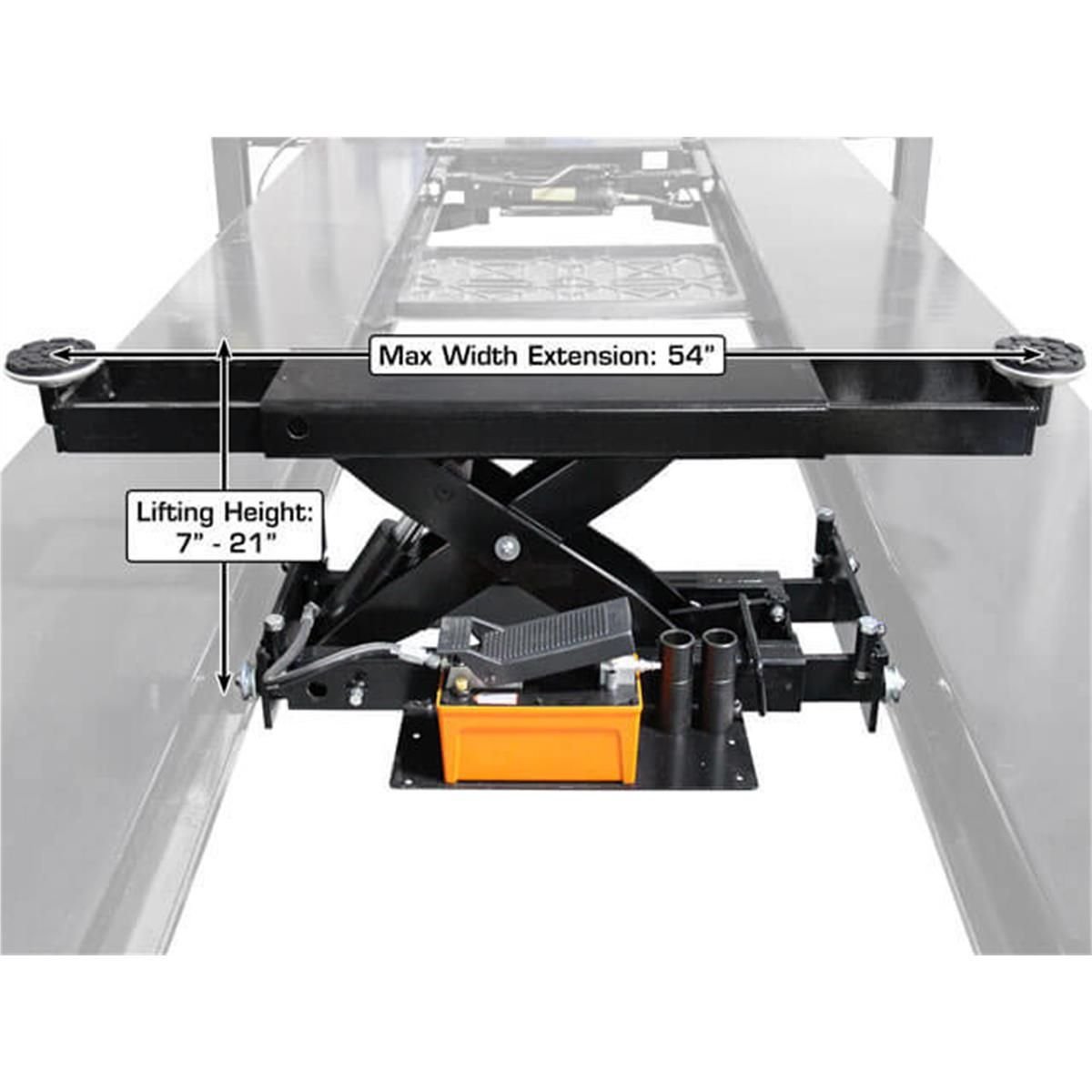

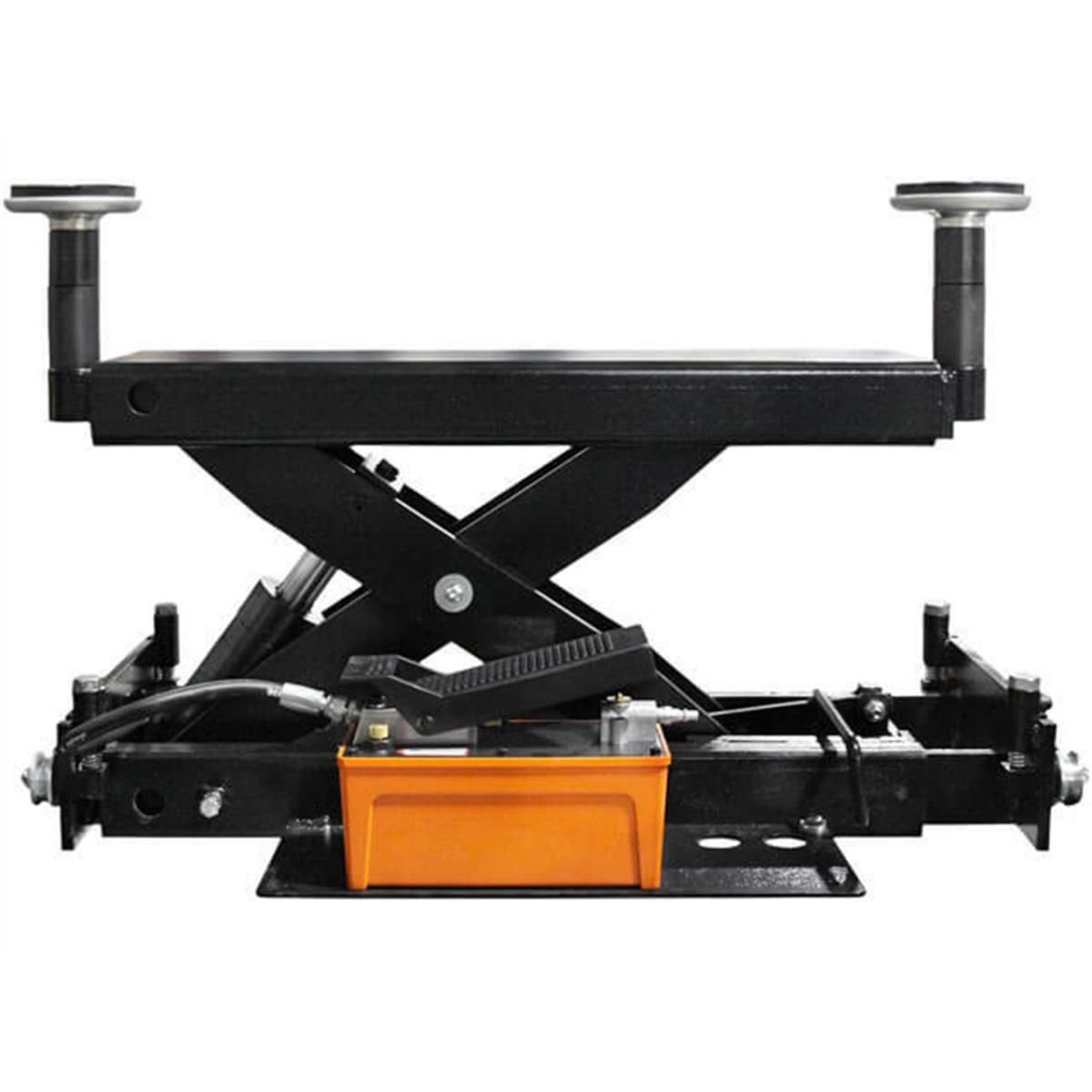

PROJACK35 (RJ35)

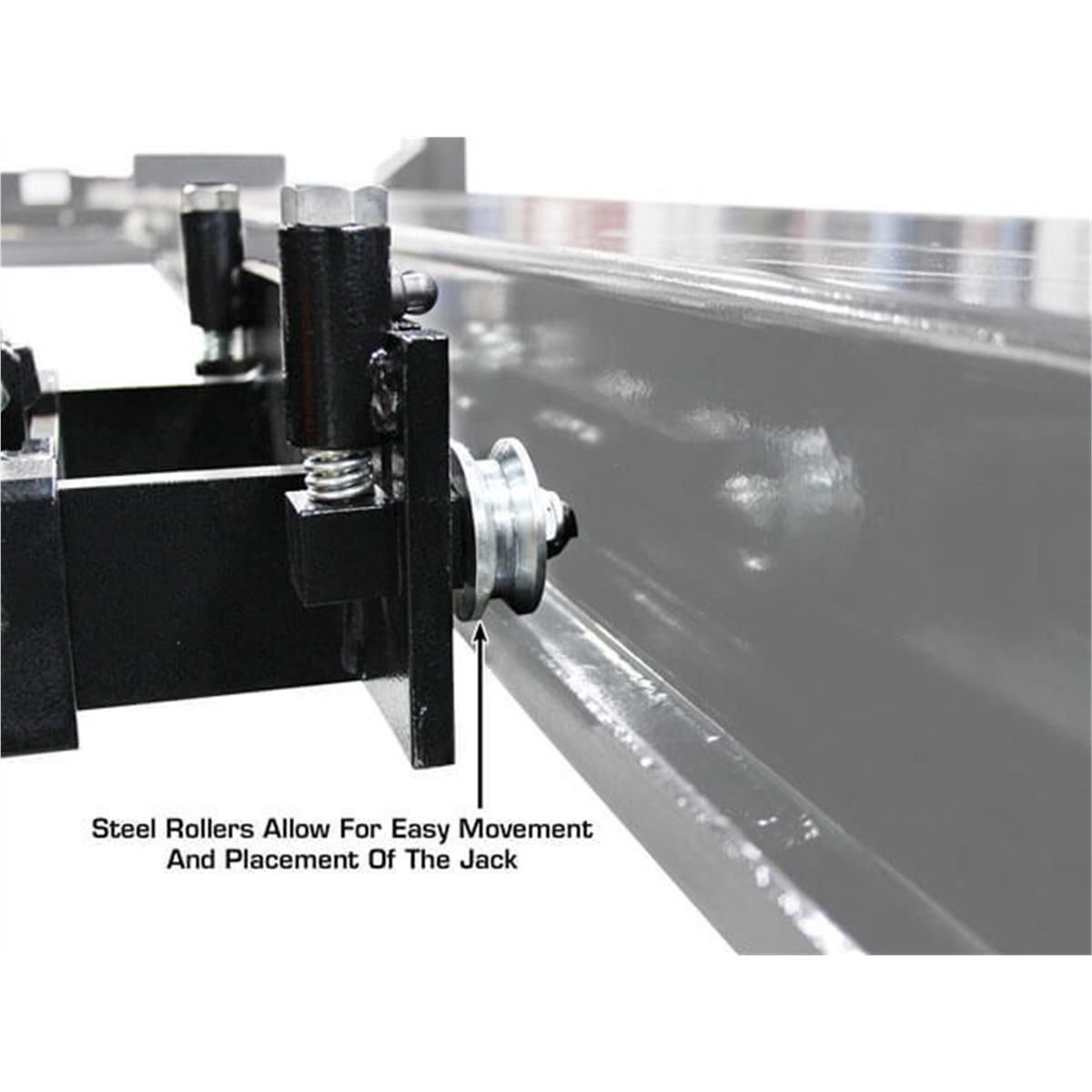

- Sliding Bridge Jack
- 3,500 lb. Capacity
- Manual Hand-Pump Operation
- Scissor Mechanism for Level Lifting
- Low-Profile, Compact Design
- Adjustable Width to Fit Many 4-Post Lifts
- Adjustable Lift Arms for Multiple Lifting Points
- Multiple Safety Lock Positions
- 4-Piece Truck Adapter Set Included
- 1-Year Parts-Only Warranty
Specifications
Atlas® 408SL Specifications
| Capacity |
8,000 lb. |
| Lifting Height to Top of Runway |
73 1/4″ (6′ 1 1/4″) (Not on Lock) |
| Clearance Under Runways |
68 1/2″ (5′ 8 1/2″) |
| Height of Columns |
83″ (7′ 11″) |
| Overall Width (Without Motor) |
109 5/8″ (9′ 1 5/8″) |
| Overall Width (With Motor) |
117 1/2″ (9′ 9 1/2″) |
| Overall Length with Approach Ramp |
205 3/8″ (17′ 1 3/8″) |
| Approach Ramp Length |
35″ (2′ 11″) |
| Runway Width |
21 1/2″ (with rails) or 18 3/4″ (driving surface) |
| Runway Length |
166 3/4″ (13′ 10 3/4″) |
| Runway Thickness |
4 3/4″ |
| Width Between Runways |
37 1/4″ (3′ 1 1/4″) |
| Width Between Runway Rails |
34 3/8″ (2′ 10 3/8″) |
| Outside Runway to Outside Runway |
74 3/4″ (6′ 2 3/4″) |
| Clearance Between Columns |
95 1/2″ (7′ 11 1/2″) |
| Length Between Columns |
156″ (13′) |
| Maximum Wheel Base |
154″ (12′ 10″) |
| Drive Thru (Outside Tire to Outside Tire) |
82″ (6′ 10″) |
| Motor/Electrical Requirement |
110 Volt (30 Amp Breaker Required) |
| Shipping Weight |
1,965 lbs. |

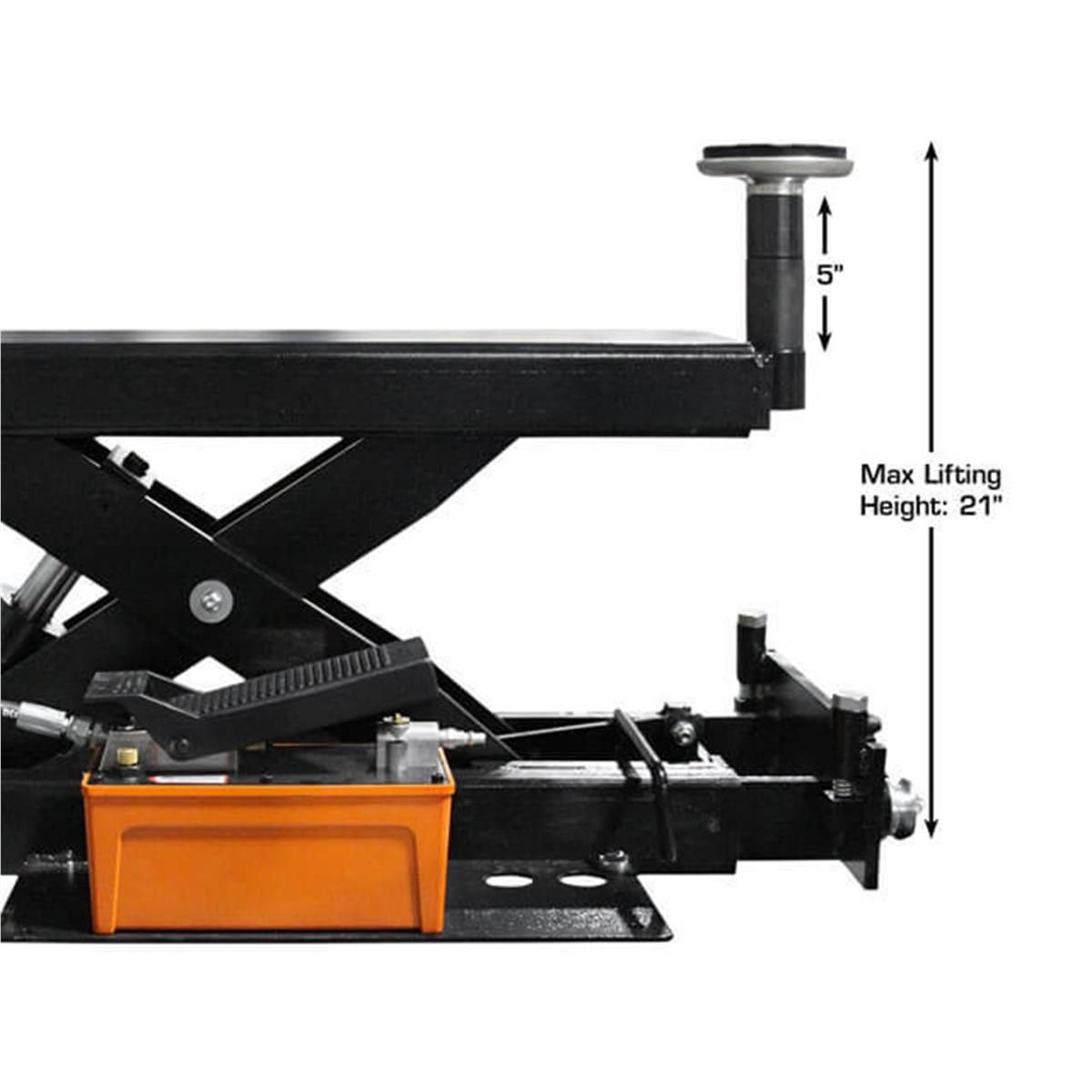

Atlas® RJ35 Specifications
| Maximum Capacity |
3,500 lbs. |
| Maximum Width |
64 3/4″ (5′ 4 3/4″) |
| Minimum Width |
29 1/2″ (2′ 5 1/2″) |
| Minimum Height with Lift Pad Above Runway |
3 1/2″ (May Vary by Lift) |
| Lift Pad Height Above Arm |
1 3/8″ |
| Maximum Raised Height (Without Adapters) |
11″ |
| Maximum Raised Height (With Adapters) |
17 1/4″ |
| Shipping Weight |
350 lbs. |

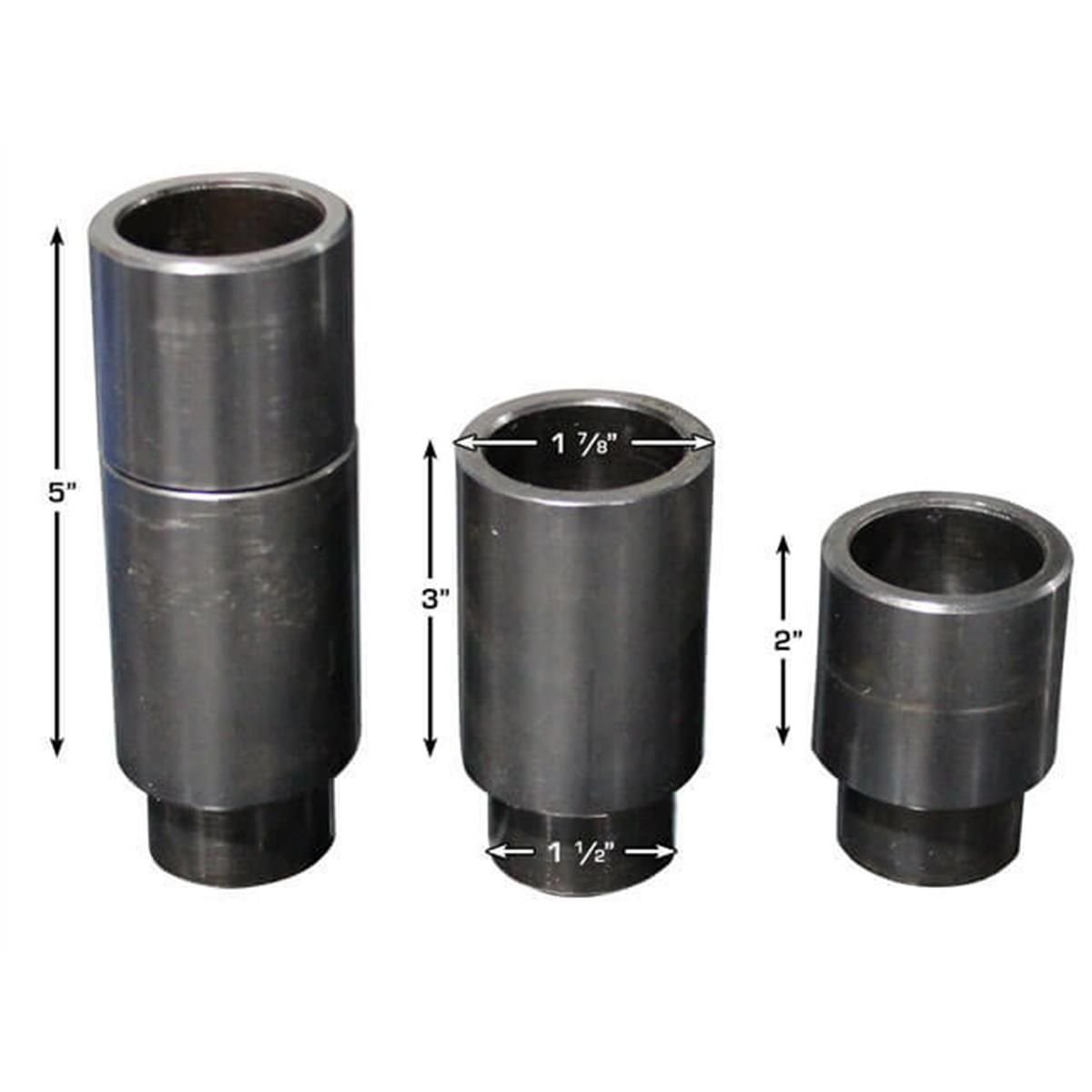

| Adapter Heights |
2 Each: 1.5″, 5″ |
| Arm Hole/Adapter Peg Size |
1.5″ |
Atlas® 408SL Cylinder Bleeding Procedure (Perform Immediately After Installation)
