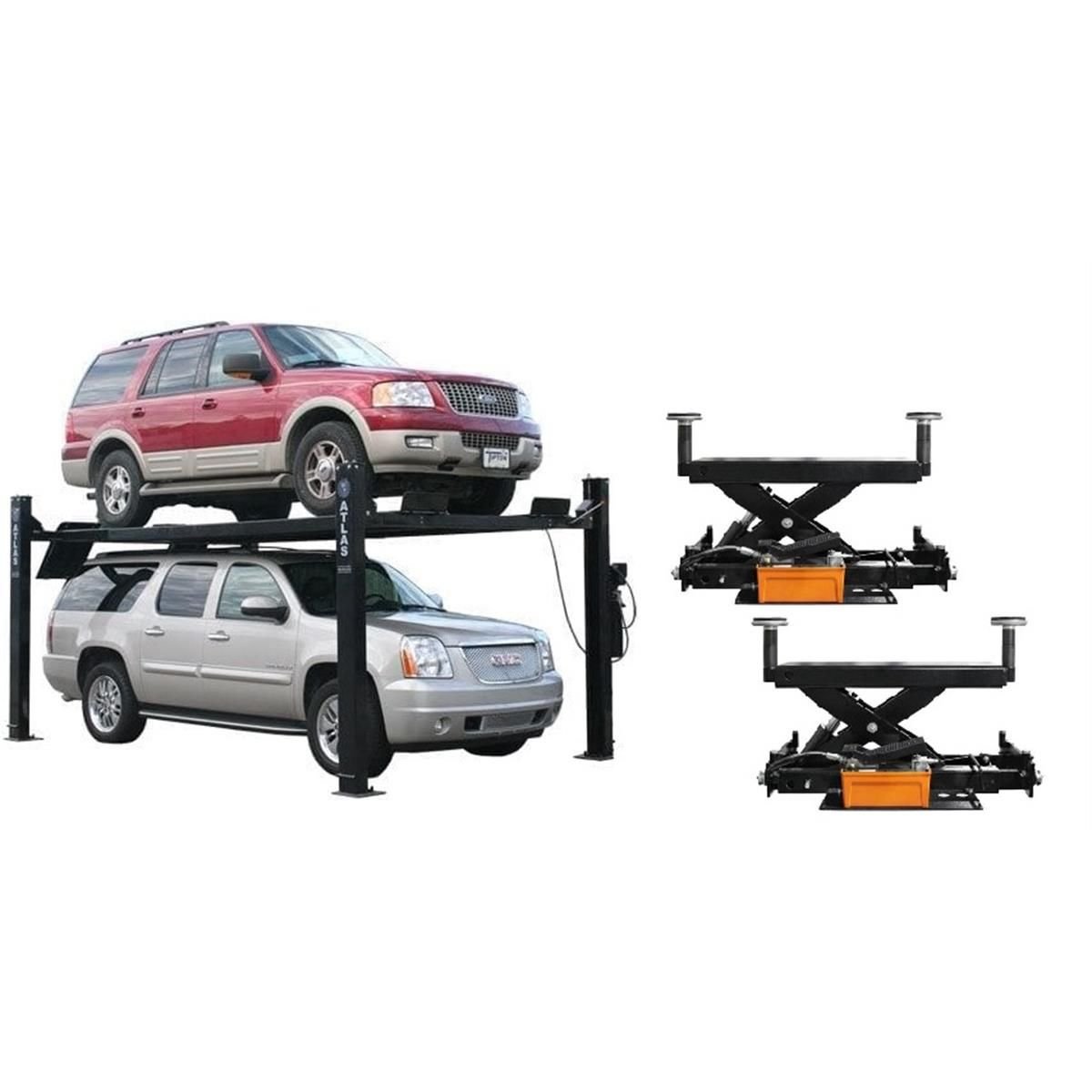

Atlas PRO9000 4 Post Lift + RJ6 Rolling Jacks Combo
Price range: £3,762.74 through £4,165.94
Description
The Atlas® Garage PRO9000 four-post lift is a heavy-duty hobbyist model offering the highest lifting capacity within the Garage PRO series. The PRO9000 features extended runway length—among the longest available in a portable 9,000 lb. four-post lift—allowing it to accommodate long wheelbase vehicles. Its extra-wide configuration enables diesel dually trucks to be driven onto the runways. With increased lifting height, it provides ample clearance for vehicles ranging from compact cars to full-size dually trucks, both on the platform and underneath.
The commercial-grade construction of the Garage PRO9000 makes it an excellent choice for automotive service centers or homeowners seeking a portable, professional-grade four-post lift at a competitive price.
This combo package also includes two Atlas® RJ6 rolling bridge jacks. These jacks allow the operator to lift the vehicle’s wheels off the runways for tire and brake service.
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
Features
PRO9000
- 9,000 lb. Capacity
- Free-Standing / Portable Design
- Heavy-Duty Construction
- Extra Tall / Extra Wide / Extra Long Configuration
- Single-Point Lock Release
- Lock Ladder System
- Double Lock Safety System

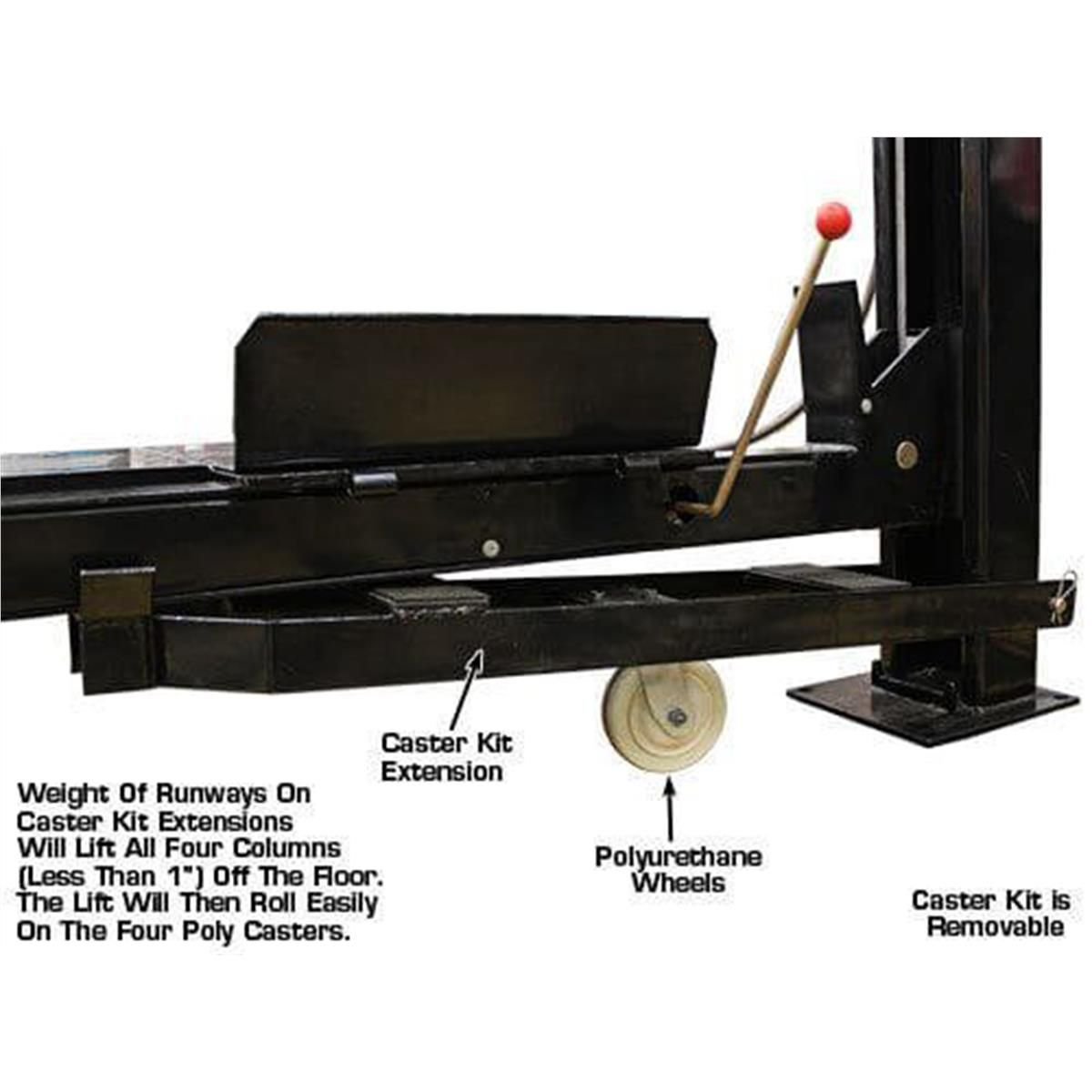

- Caster Kit with Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included

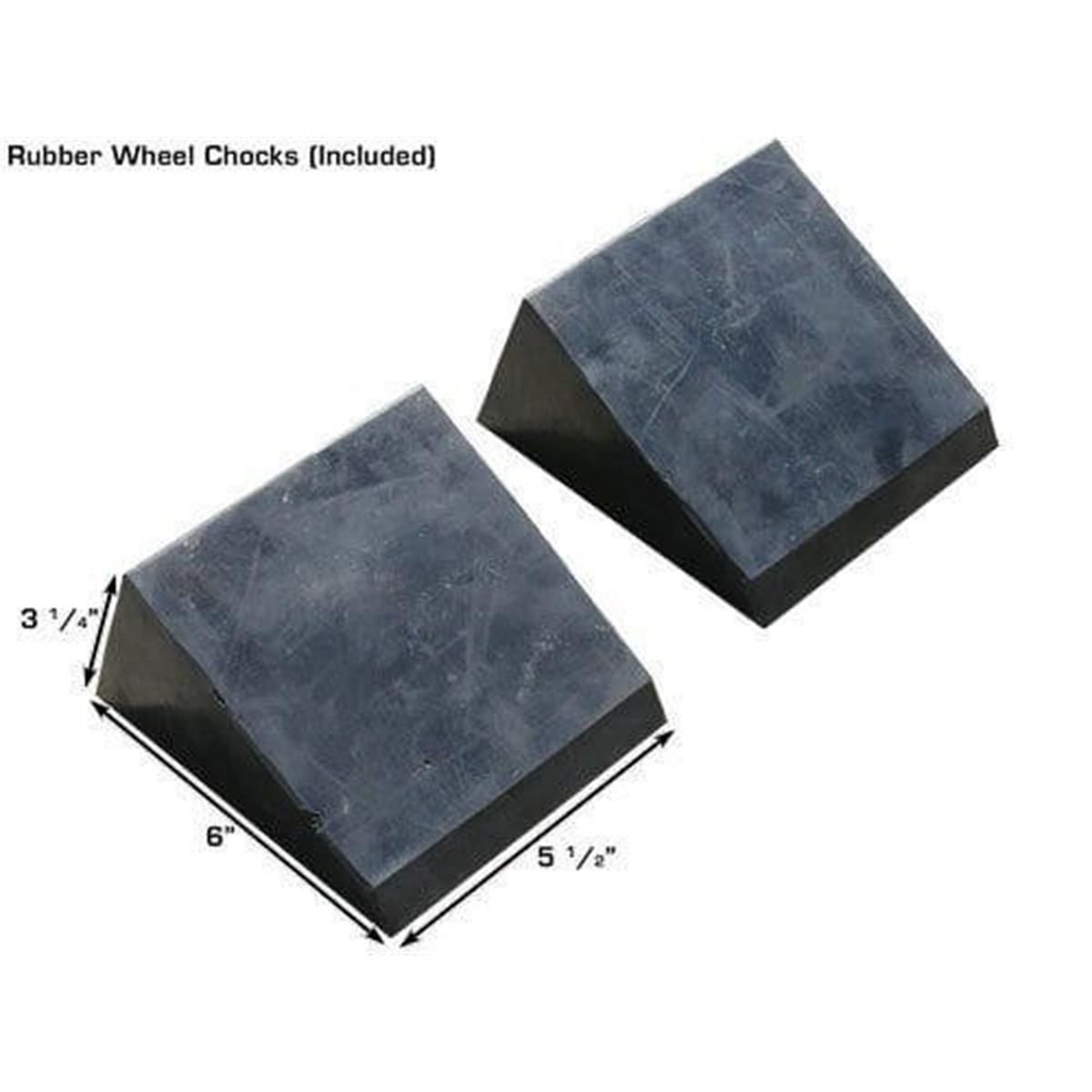

- Two Rubber Wheel Chocks Included
- Ideal for Storage or Service Applications
- 110 Volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight: 2,300 lbs.
- 2-Year Structural – 1-Year Hydraulic Warranty (Parts Only)
RJ6
- 6,000 lb. Capacity
- Air/Hydraulic Operation (External Air Supply Required)

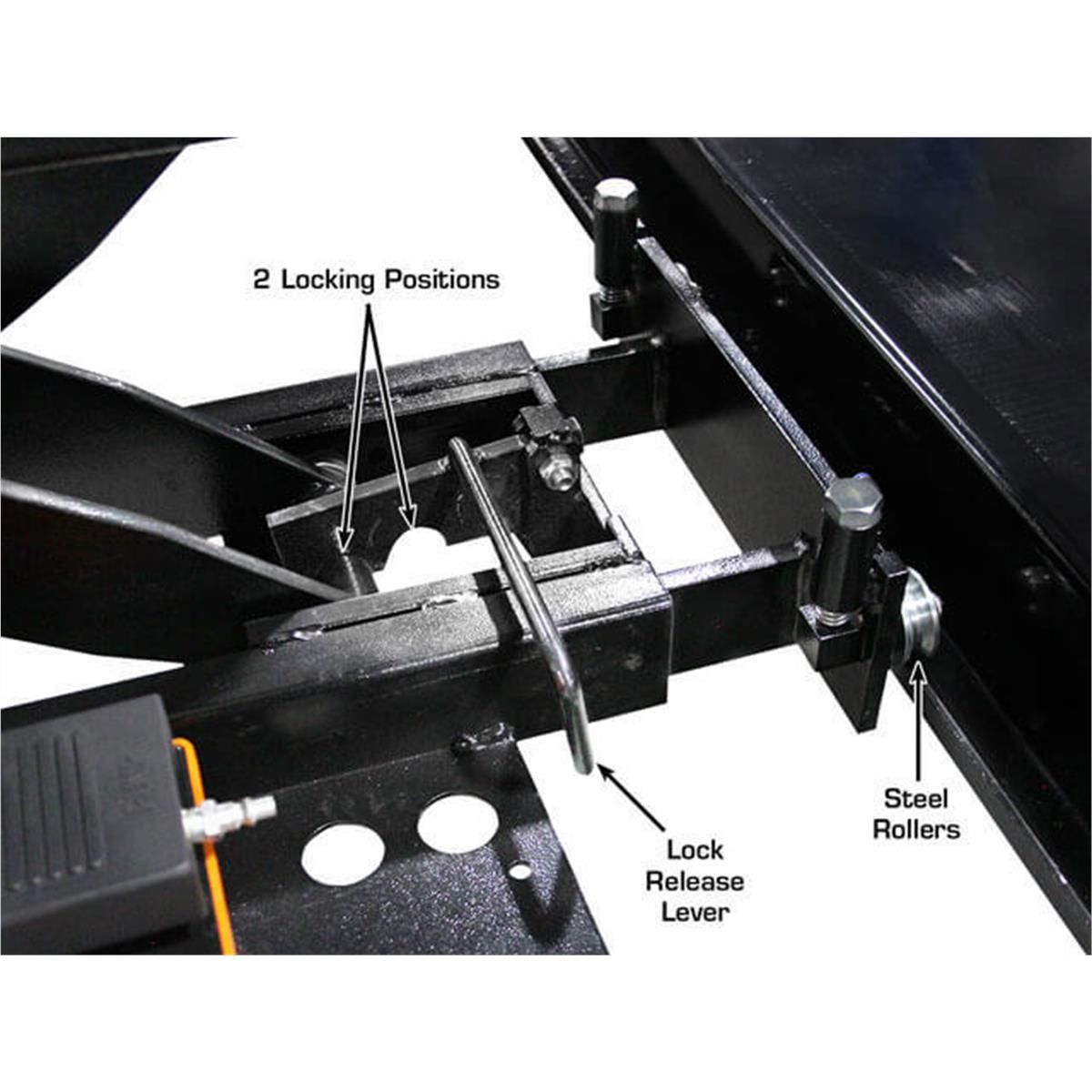

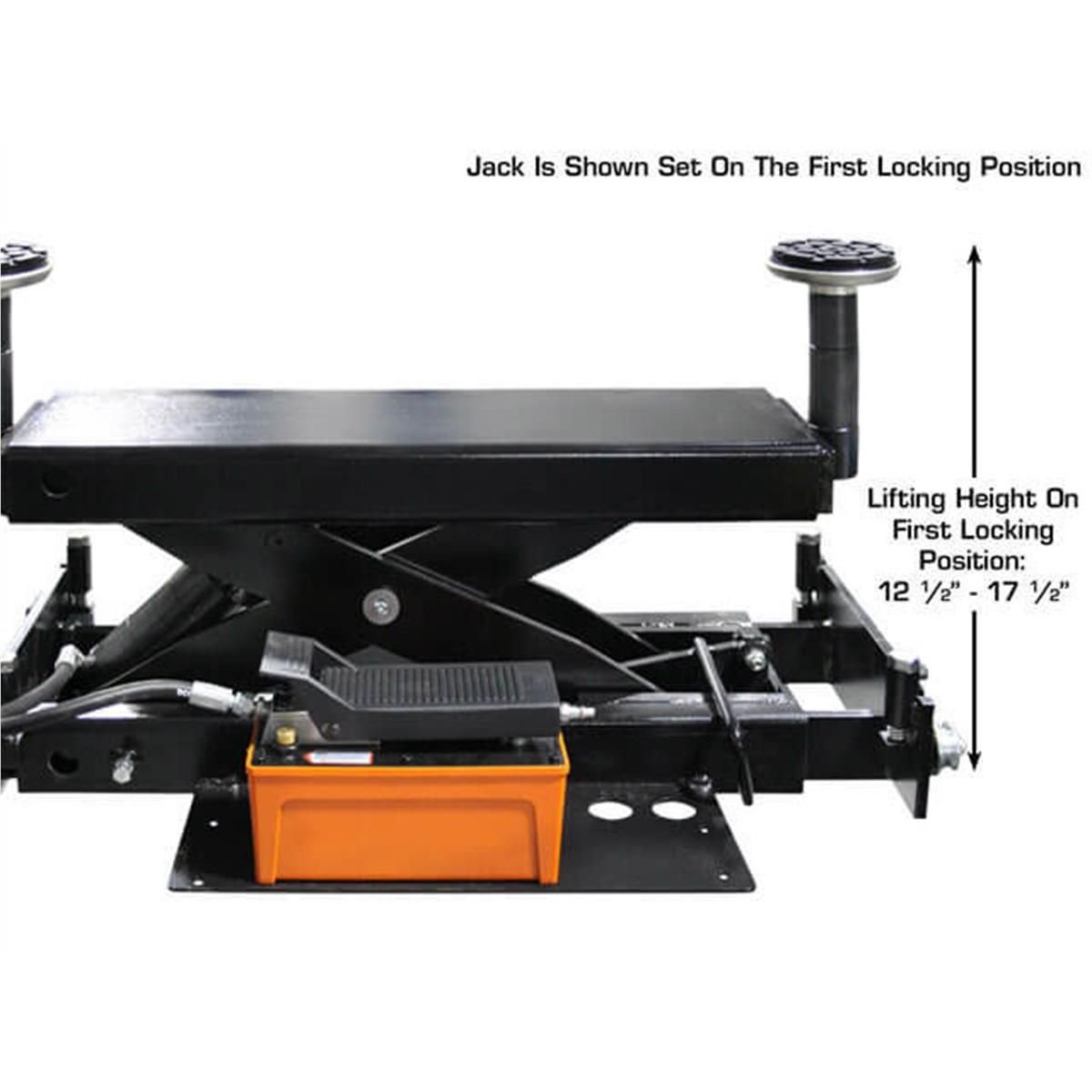

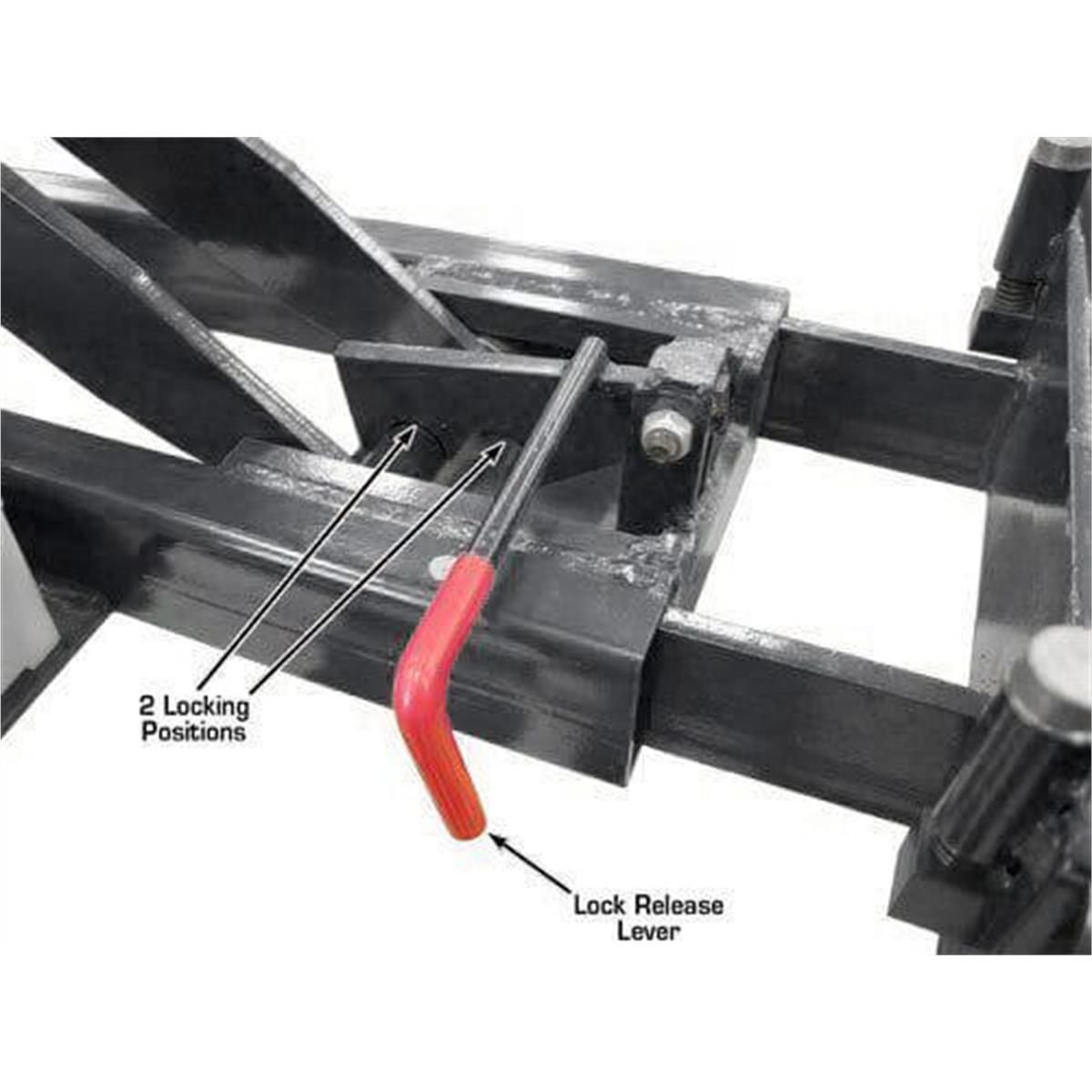

- Multiple Safety Lock Positions
- Compact, Low-Profile Design

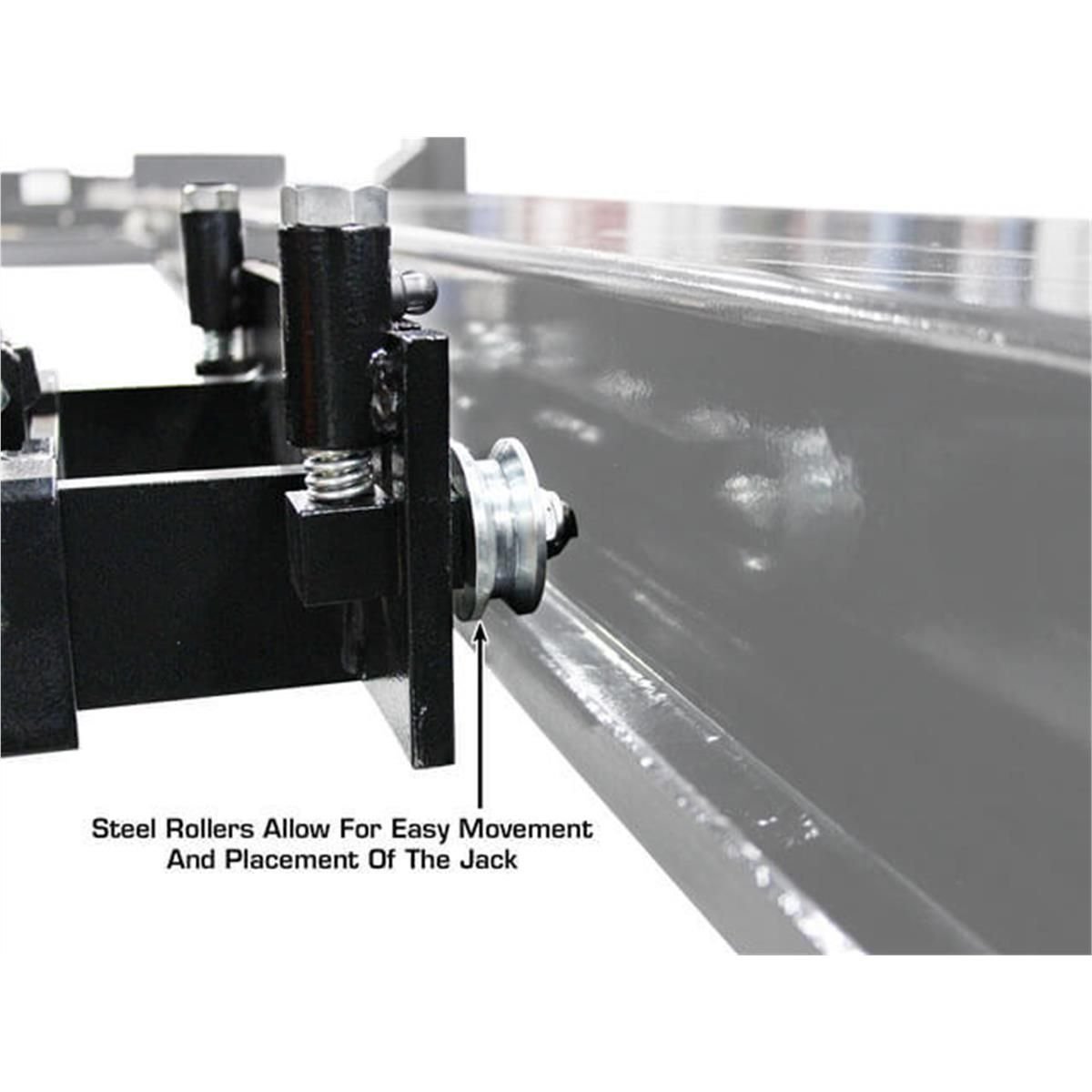

- Smooth Rolling Operation
- Scissor Mechanism for Level Lifting
- Powder-Coated Finish
- 4-Piece Truck Adapter Set Included
- 1-Year Parts-Only Warranty
Specifications
Atlas® Garage PRO9000 Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lb. |
| Lifting Height to Top of Runway | 85″ (7′ 1″) |
| Clearance Under Runways | 80 1/4″ (6′ 8 1/4″) |
| Height of Columns | 95 3/4″ (7′ 11 3/4″) |
| Overall Width (Without Motor) | 123 1/2″ (10′ 3 1/2″) |
| Overall Width (With Motor) | 131 1/2″ (10′ 11 1/2″) |
| Overall Length with Approach Ramp | 227 1/2″ (18′ 11 1/2″) |
| Approach Ramp | 31″ (2′ 7″) |
| Runway Width | 21 1/4″ (with Rails) or 20″ (Driving Surface) |
| Runway Length | 199 1/2″ (16′ 7 1/2″) |
| Runway Thickness | 4 3/4″ |
| Width Between Runways | 39 3/4″ (3′ 3 3/4″) |
| Width Between Runway Rails | 35 1/2″ (2′ 11 1/2″) |
| Outside Runway to Outside Runway | 79″ (6′ 7″) |
| Clearance Between Columns | 110 1/2″ (9′ 2 1/2″) |
| Length Between Columns | 184 1/2″ (15′ 4 1/2″) |
| Maximum Wheel Base | 187″ (15′ 7″) |
| Drive-Thru (Outside of Tire to Outside of Tire) | 97 1/4″ (8′ 1 1/4″) |
| Motor / Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 2,300 lb. |
Atlas® RJ6 Specifications
| Specification | Details |
|---|---|
| Maximum Capacity | 6,000 lb. |

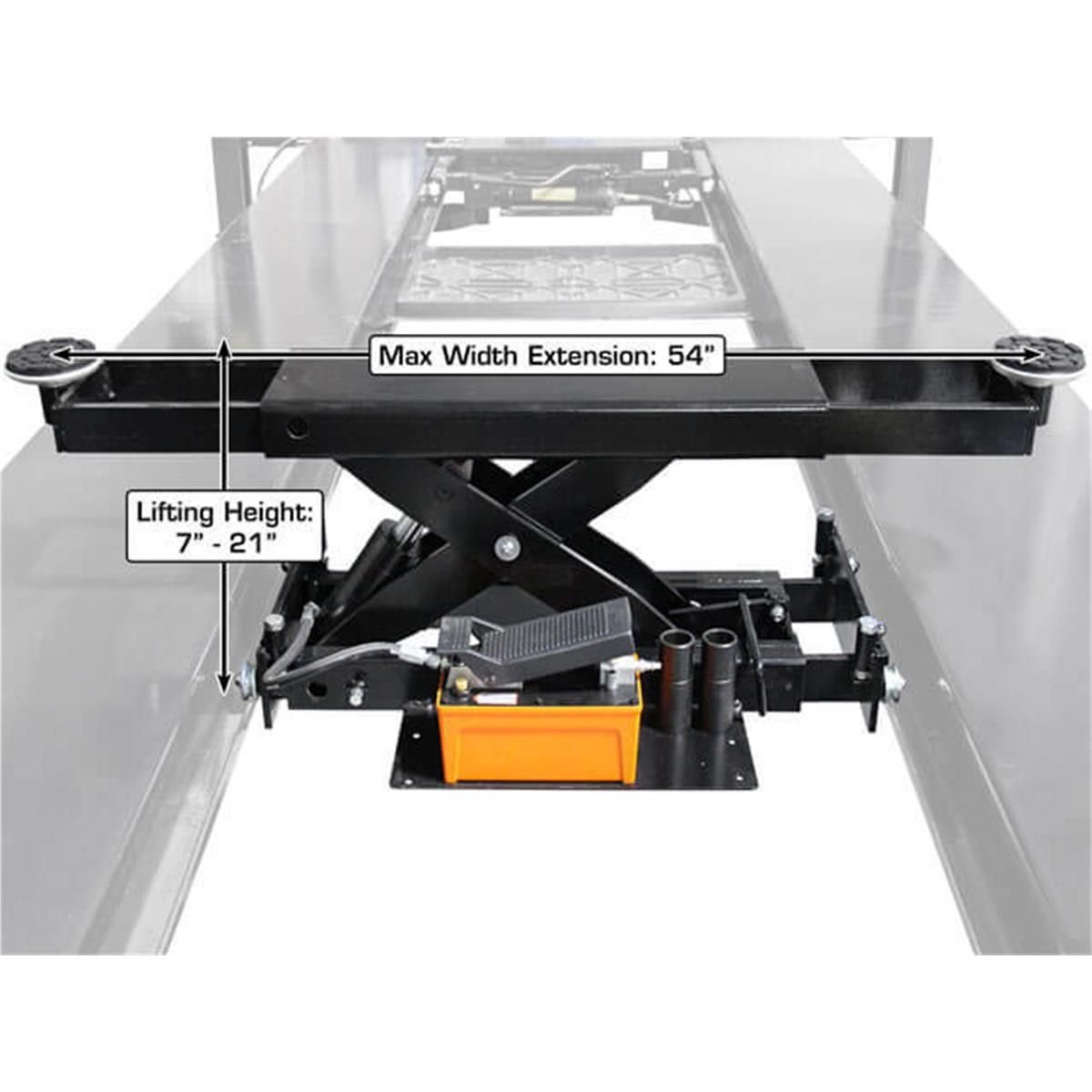

| Maximum Width | 55″ (4′ 7″) |

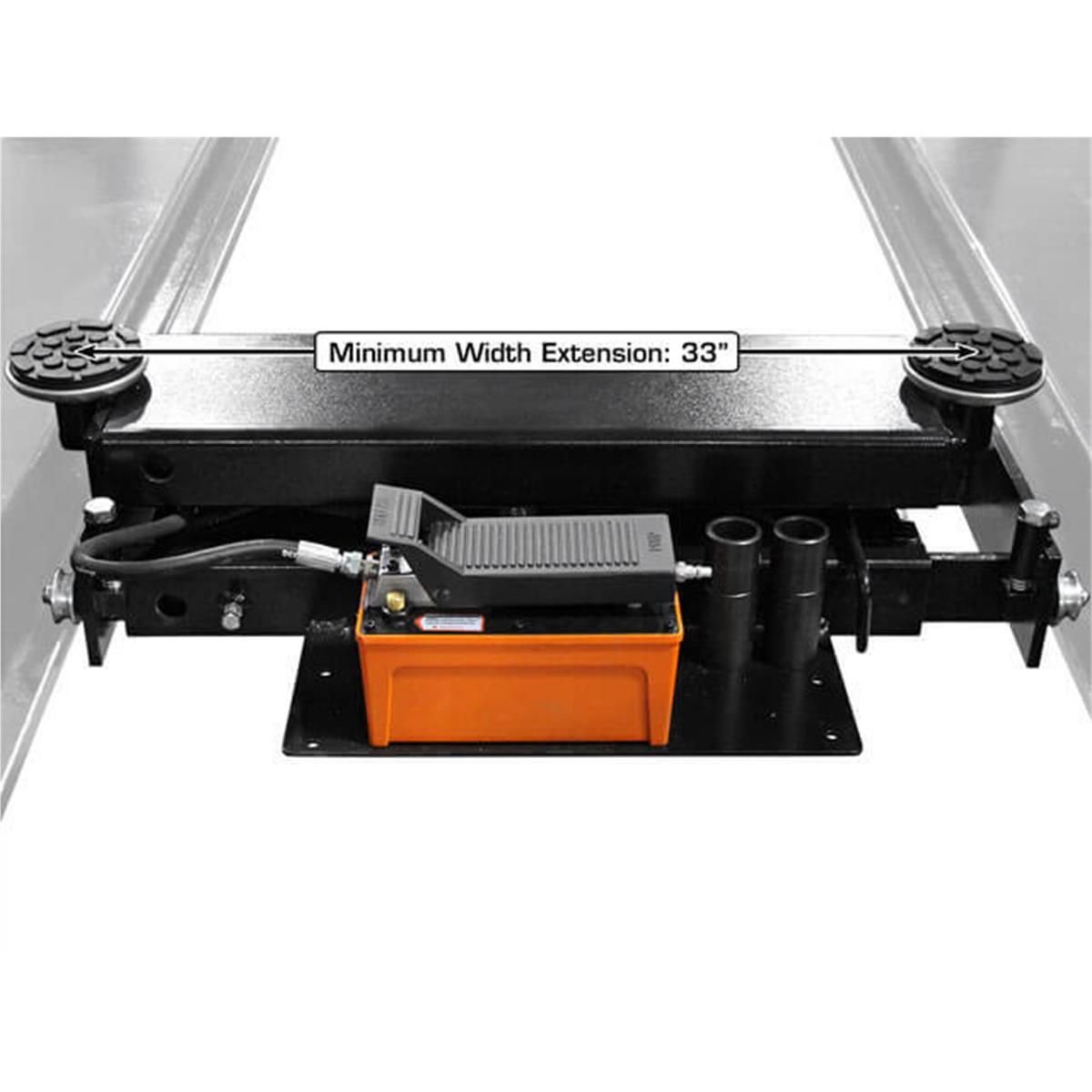

| Minimum Width | 35″ (2′ 11″) |
| Distance Between Runway Capability | 32″ – 52″ |

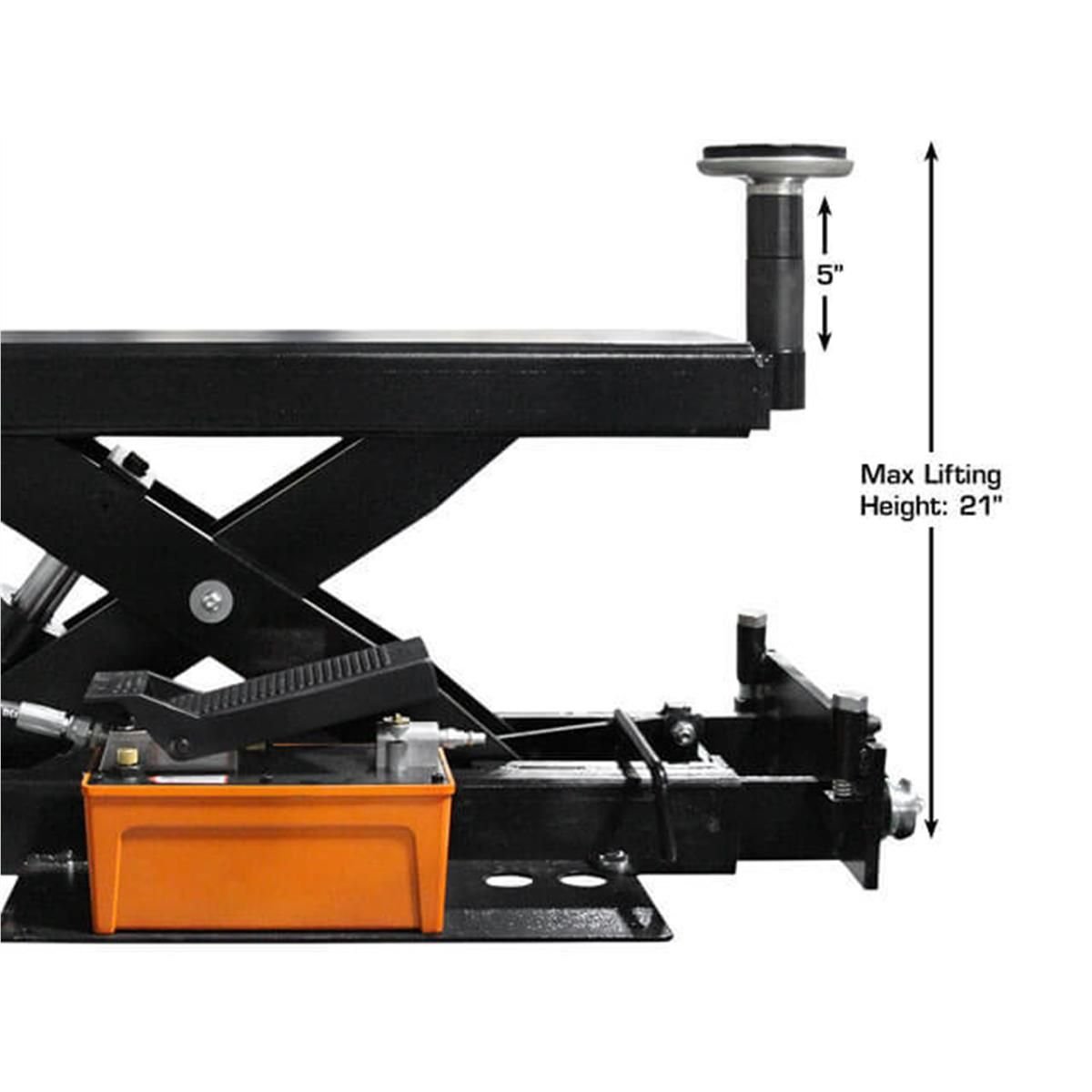

| Maximum Lifting Height (With Adapters) | 21″ (1′ 9″) |
| Air Requirement | 70–115 PSI |

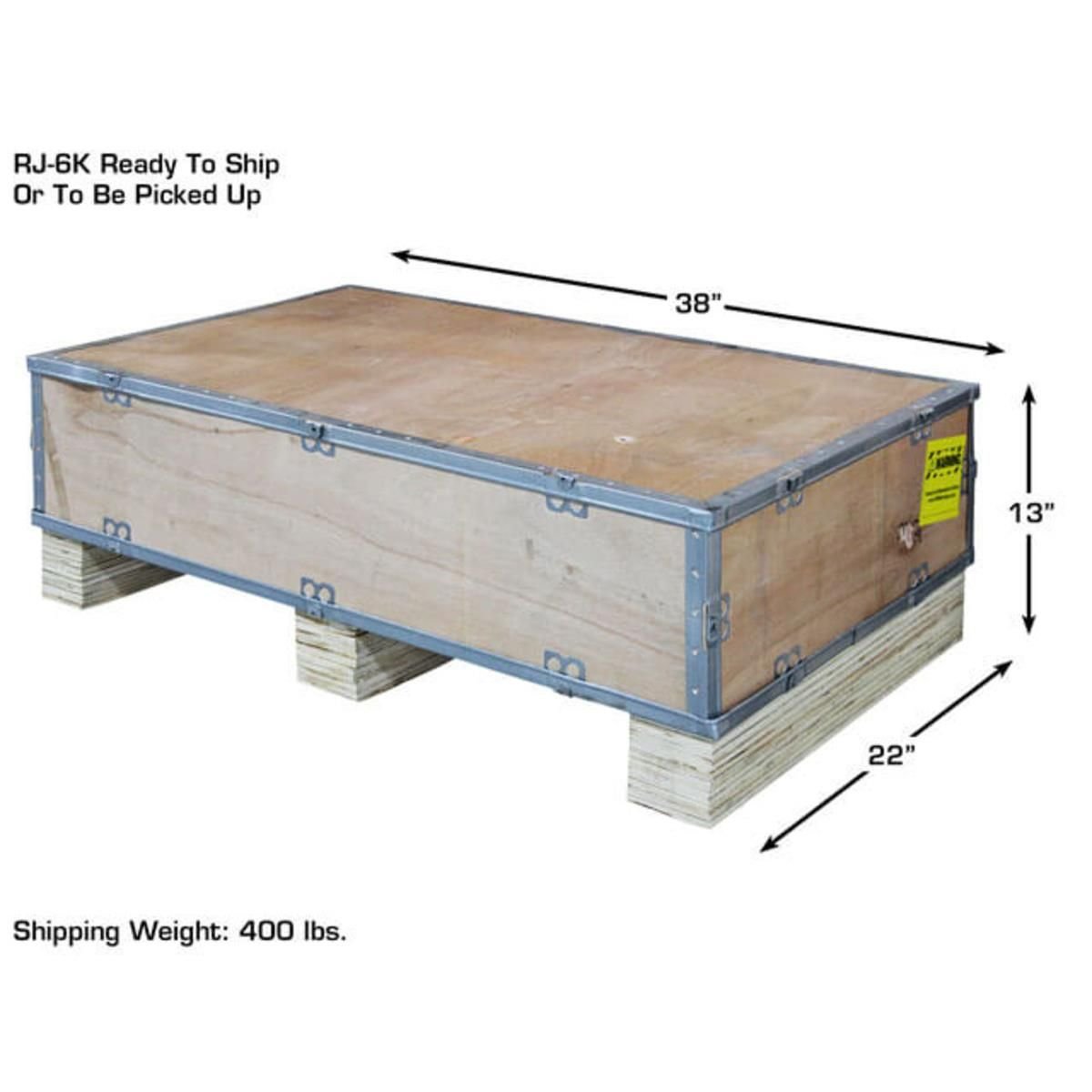

| Shipping Weight | 350 lbs. |
| Adapter Heights | 2 Each: 2″, 3″ |

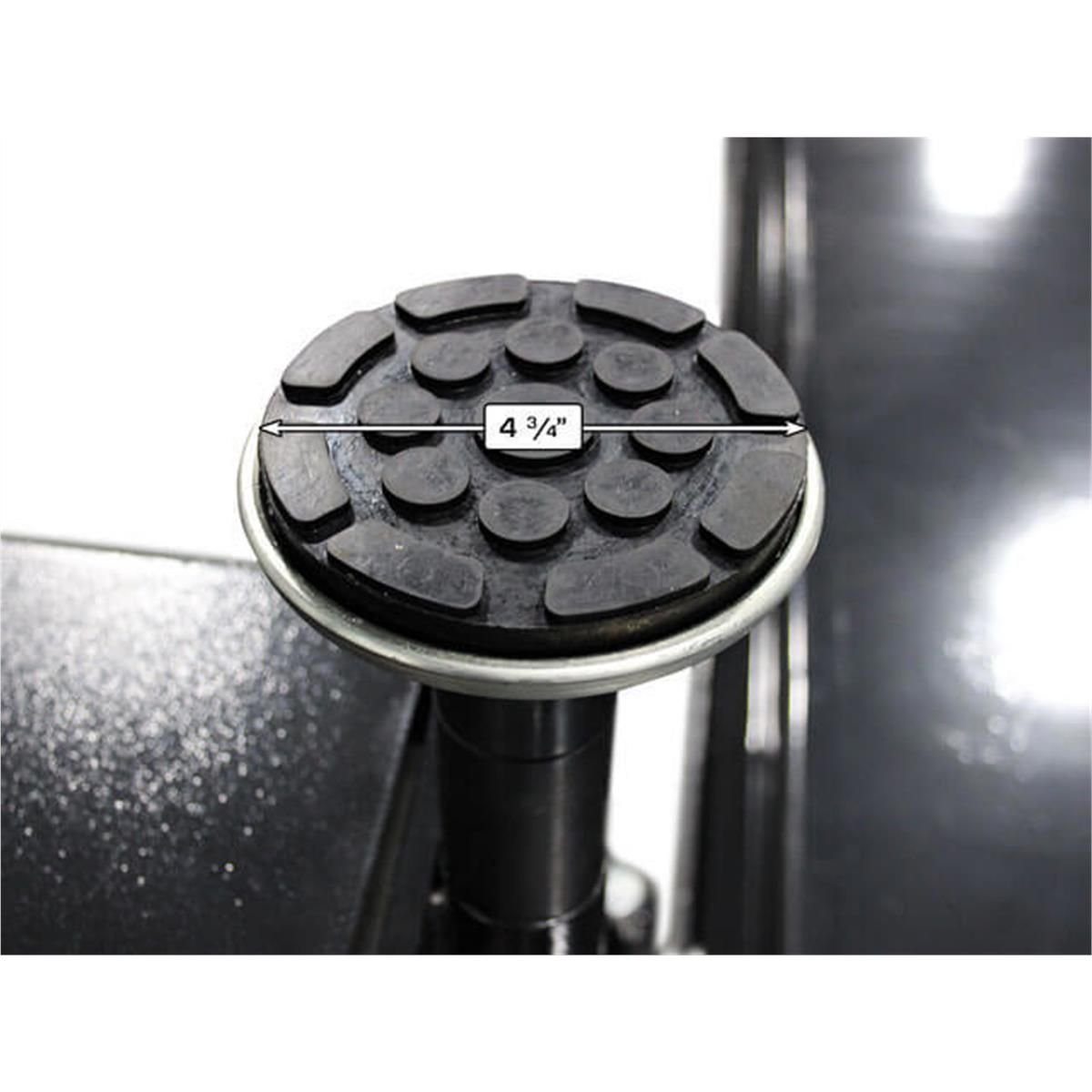

| Arm Hole / Adapter Peg Size | 1.5″ |
