Atlas TC221 Tire Changer + WB11 Motorcycle Wheel Balancer Combo Package
Price range: £1,679.54 through £1,858.75
Description

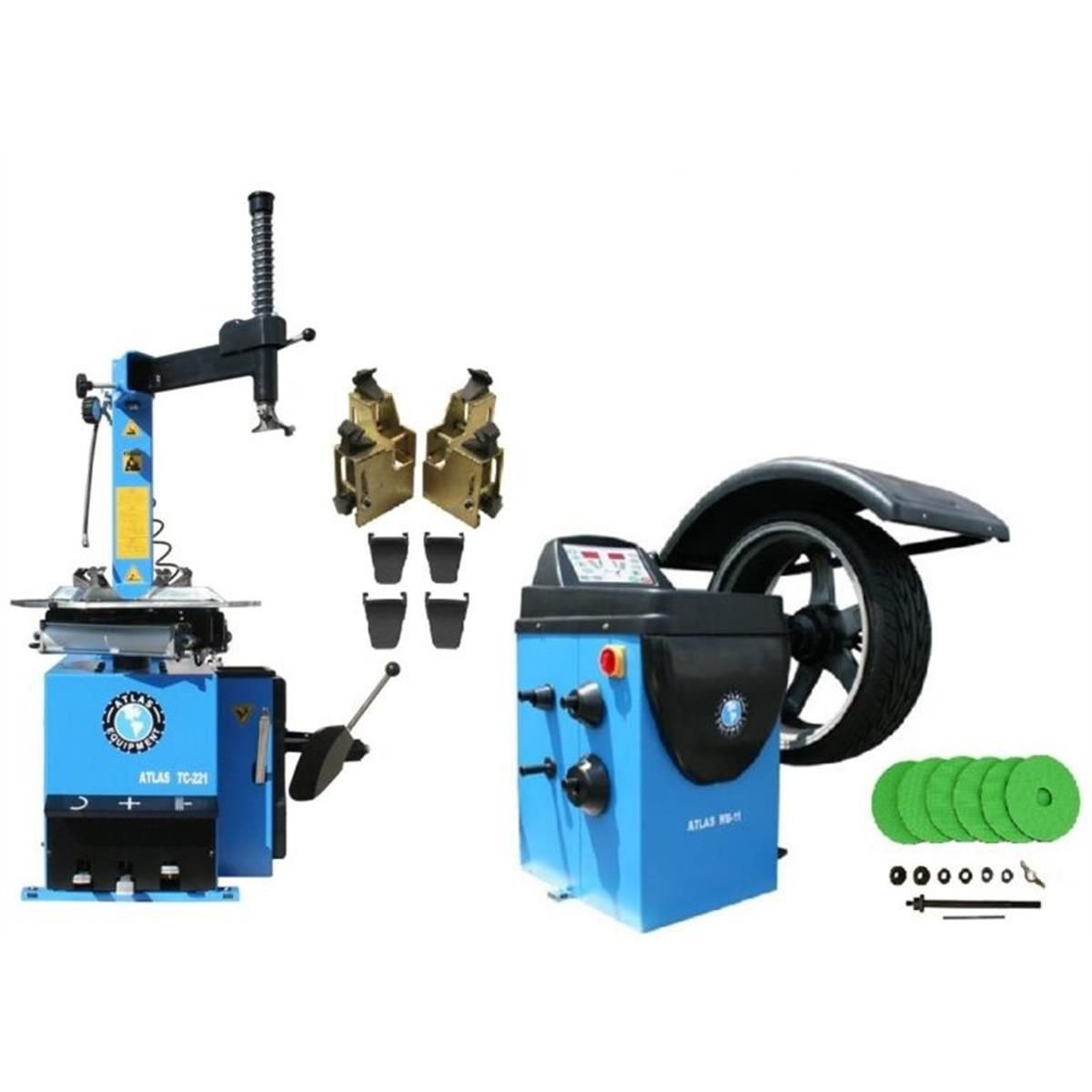

This combination package includes the Atlas® TC221 rim-clamp, swing-arm tire changer and the Atlas® WB11 computerized spin balancer, complete with the required motorcycle adapters for servicing standard motorcycle tires. It is an ideal solution for homeowners, small commercial shops, and ATV/motorcycle dealers who need reliable tire changing and balancing capabilities. Both machines operate on 110 volts, are CE approved, and are backed by the Atlas® 1-year parts-only warranty.
Features
TC221 Tire Changer
- Rim Clamp / Swing Arm Tire Changer
- Deluxe Motorcycle Adapters with Plastic Jaw Covers Included
- Air-Operated Jaws and Bead Breaker (External Air Supply Required)
- Electric Turntable
- Adjustable Jaws with Three Mounting Positions
- Metal Mount/Demount Head with Metal Roller or Replaceable Plastic Inserts
- Column-Mounted Inflator Gun with Gauge Included
- Filter / Regulator / Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for Mount/Demount Head Included
Please note: Delivery of any Atlas item requires access for a 53-foot truck.
WB11 Wheel Balancer
- Computer-Controlled Motorized Spin Balancer
- Standard 14 mm Motorcycle Adapter Kit Included
- Automatic and Pedal-Operated Brake
- Automatic Start/Stop When Hood is Lowered or Raised
- Static and Dynamic Balancing Modes
- Rapid Optimization (OPT)
- Self-Diagnosing and Self-Calibrating
- High Stability in Detecting Unbalance Between Planes
- Display in Grams or Ounces; Millimeters or Inches
- No Anchor-Down Installation Required
- Includes Plastic Quick-Release Nut, Four Centering Cones, Wheel Weight Pliers, and Measuring Calipers
Specifications
Atlas® TC221 Specifications
| Specification | Details |
|---|---|
| Rims | Steel, Aluminum, Alloy |
| External Locking Rim Dimension (3 Positions) | 1) 9 3/4″ – 21 5/8″ 2) 10 3/4″ – 22 1/2″ 3) 11 5/8″ – 23 1/4″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 11 5/8″ – 23 1/4″ 2) 12 5/8″ – 24 1/4″ 3) 13 1/2″ – 25 1/4″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 Volt |
| Shipping Weight | 550 lbs. |
Atlas® WB11 Specifications
| Specification | Details |
|---|---|
| Max Tire Diameter | 39″ (3′ 6″) |
| Rim Sizes (Cars and Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40 mm |
| Max Wheel Weight | 150 lbs. |
| Balancing Speed | 150 RPM |
| Data Entry | Manual Entry (All Dimensions) |
| Measurements | Standard or Metric |
| Accuracy | 1 Gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 Volt |
| Shipping Weight | 355 lbs. |
