Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package
Price range: £2,149.94 through £2,329.15
Description
This package includes the Atlas® TC229 rim-clamp swing arm tire changer and the Atlas® WB49-2 computerized spin balancer. It is an ideal solution for commercial shops that need dependable equipment for both tire changing and wheel balancing. Both machines operate on 110 volts, are CE approved, and are covered by the Atlas® 1-year parts-only warranty.
Features
TC229 Tire Changer
- Rim Clamp / Swing Arm Tire Changer
- Air-Operated Jaws & Bead Breaker (External Air Supply Required)
- Electric Turntable
- Adjustable Jaws with Three Mounting Positions
- Metal Mount/Demount Head with Metal Roller or Replaceable Plastic Inserts
- Column-Mounted Inflator Box with Gauge Included

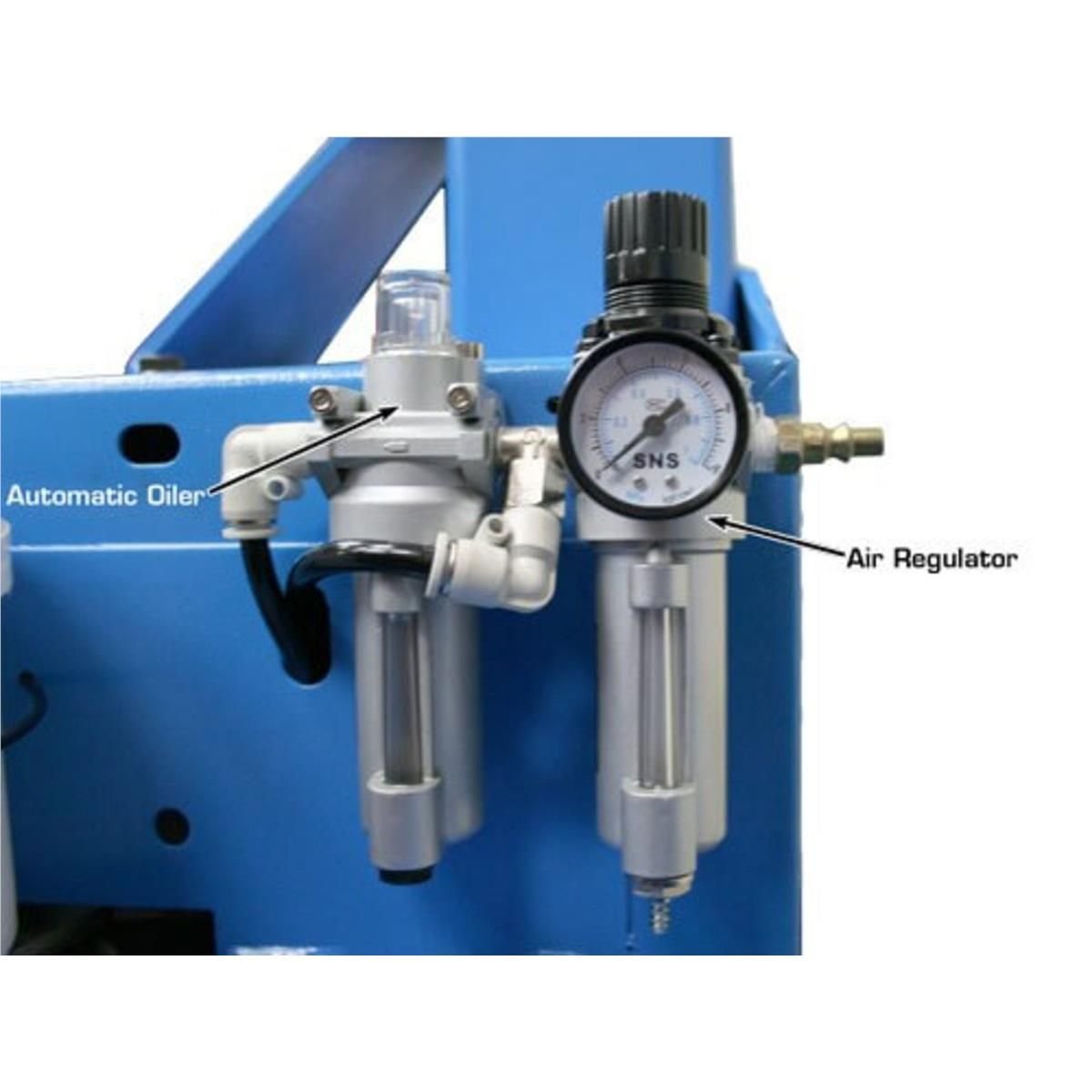

- Filter / Regulator / Lubricator Included

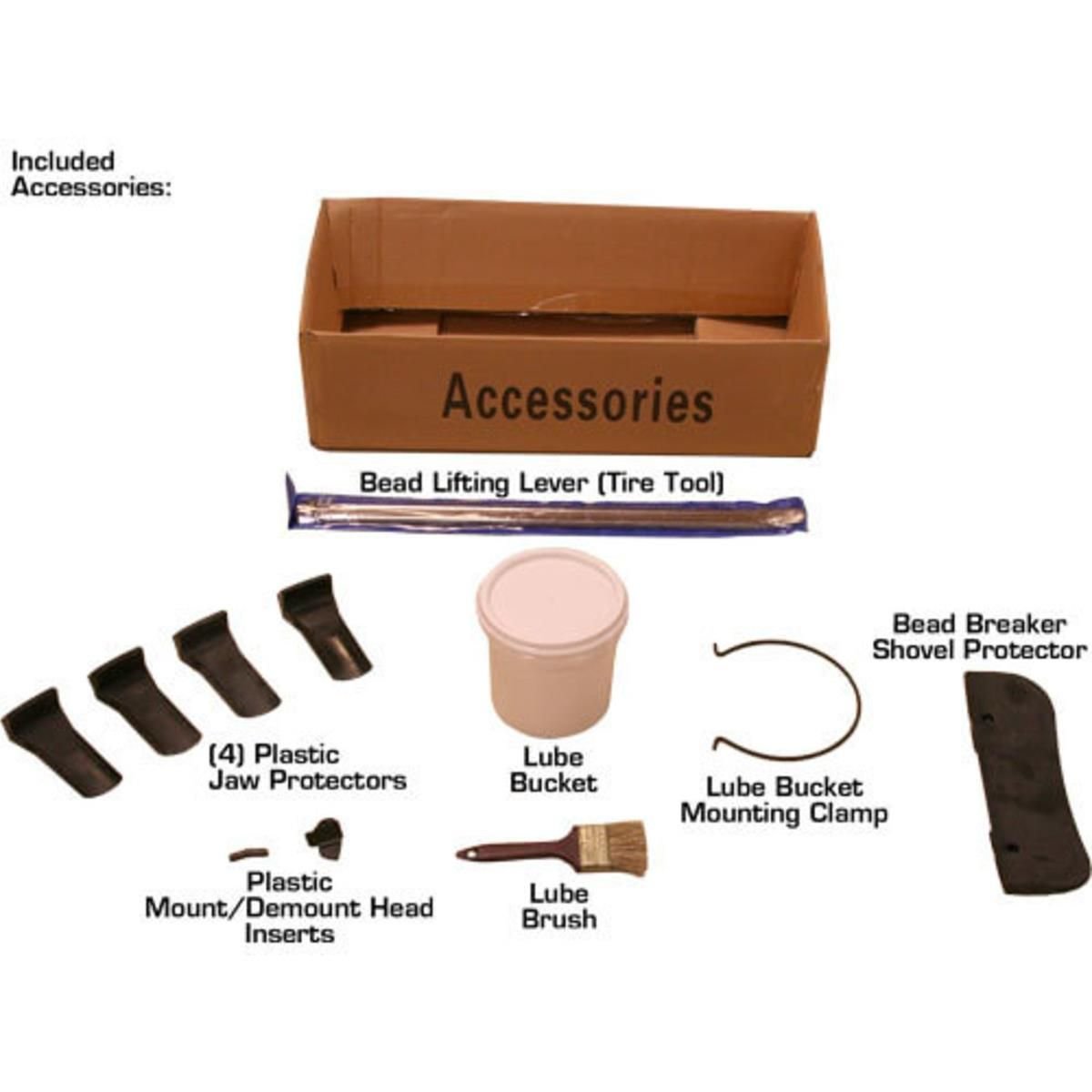

- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for Mount/Demount Head Included

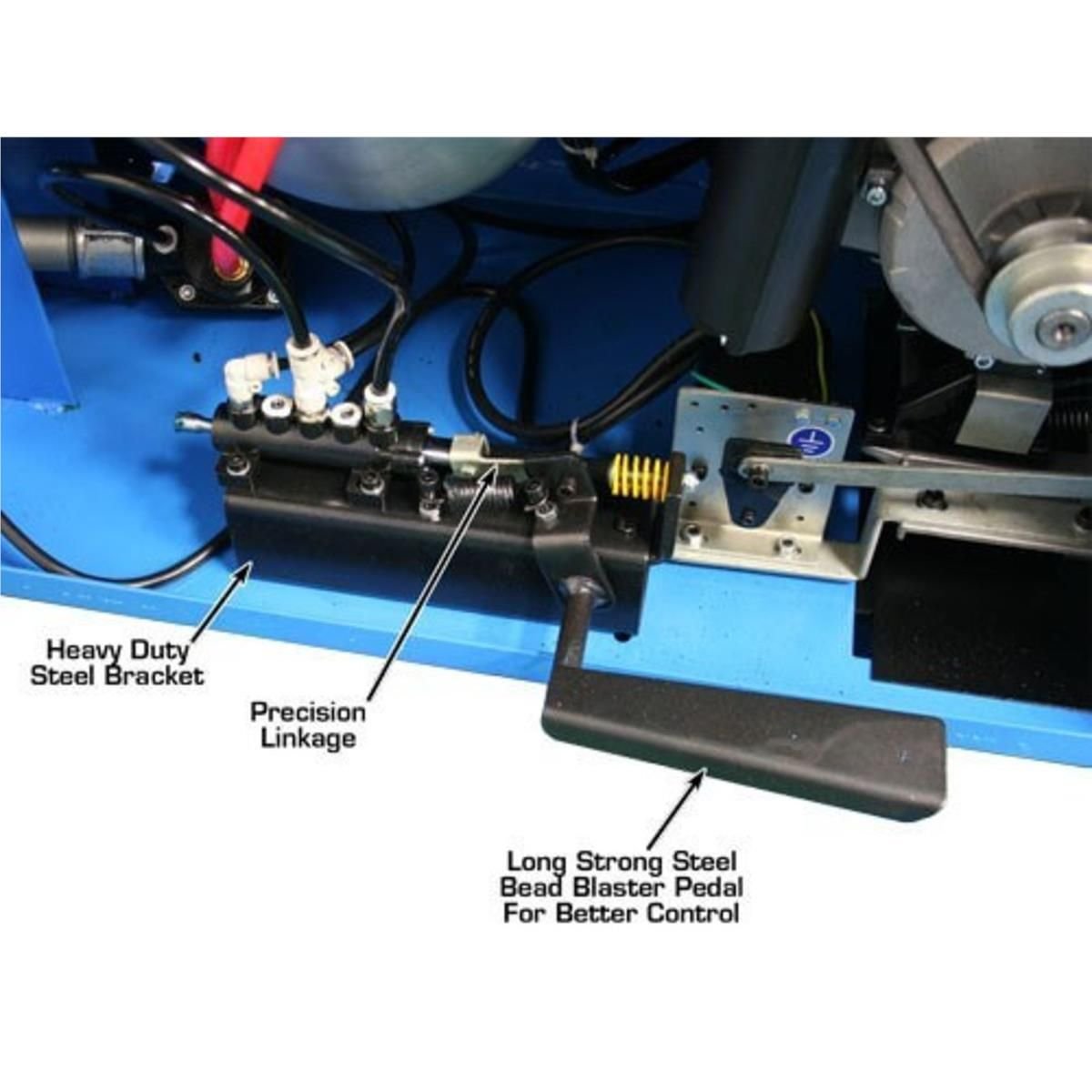

- Built-In “Beadblaster”
Please note that if you order an Atlas item, your delivery location must be accessible to a 53-foot truck.

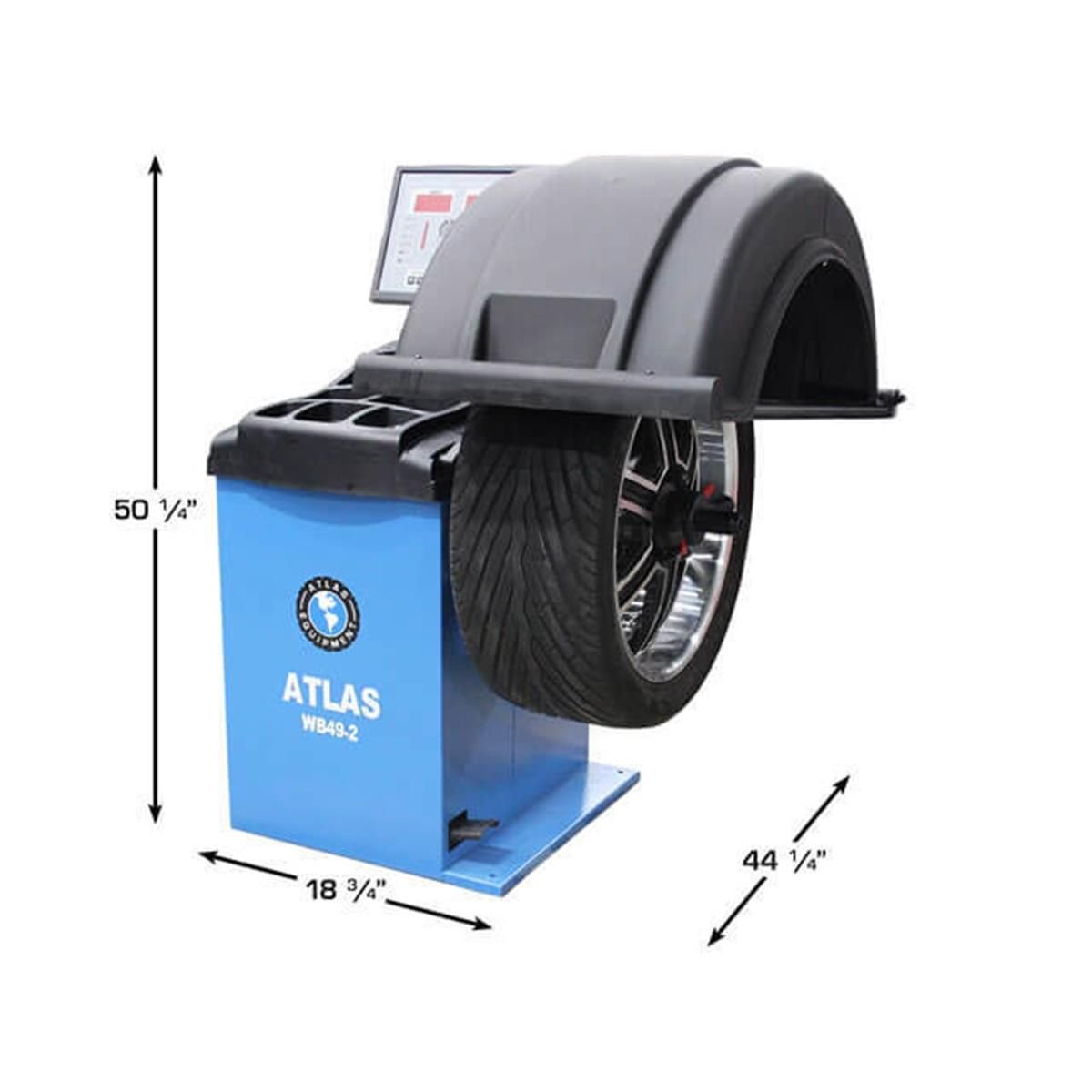

WB49-2 Wheel Balancer
- Computer-Controlled Motorized Spin Balancer

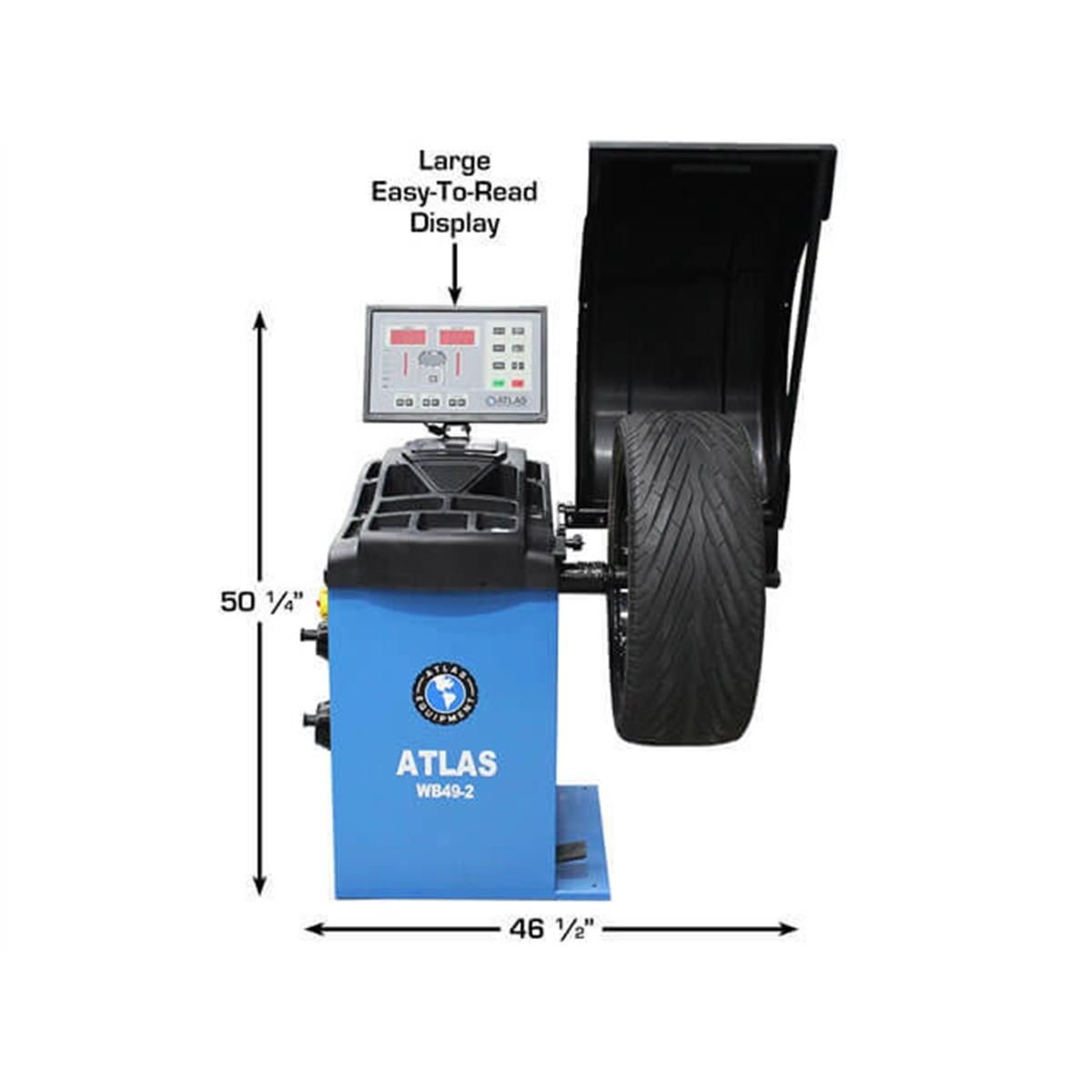

- Raised, Easy-to-Read Display
- Large Wheel Weight Tray
- Automatic 2D Data Entry
- Width Measuring Gauge for Automatic 3D Data Entry Available (Sold Separately)
- Split-Weight Function for Concealing Weights Behind Spokes
- Automatic LED Light
- Auto-Positioning
- Automatic and Pedal-Operated Brake
- Automatic Start/Stop When Hood is Lowered or Raised
- Static and Dynamic Balancing Modes
- Rapid Optimization (OPT)
- Self-Diagnosing and Self-Calibrating
- High Stability in Measuring Imbalance Between Planes
- Displays in Grams or Ounces, and in Millimeters or Inches
- No Anchor-Down Installation Required

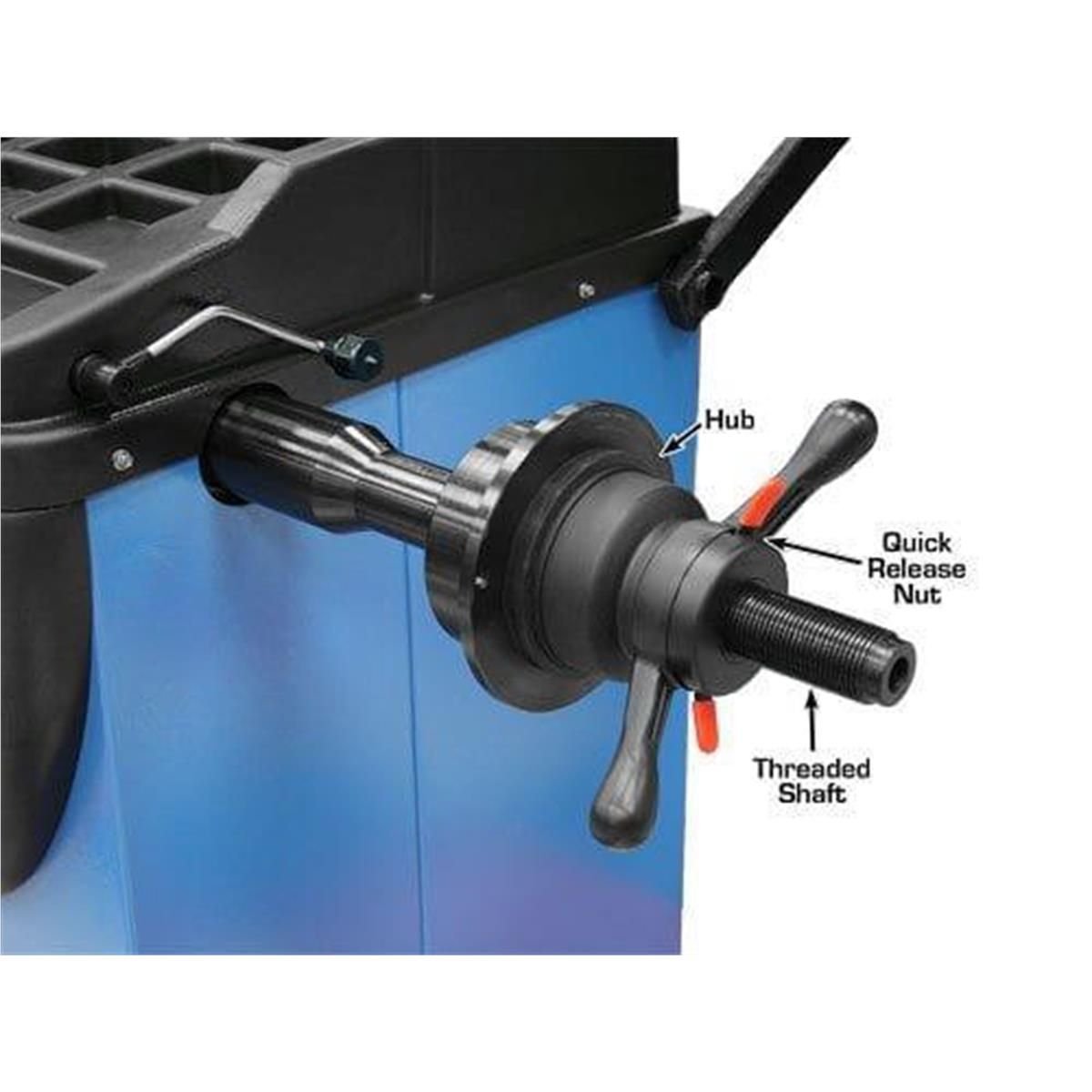

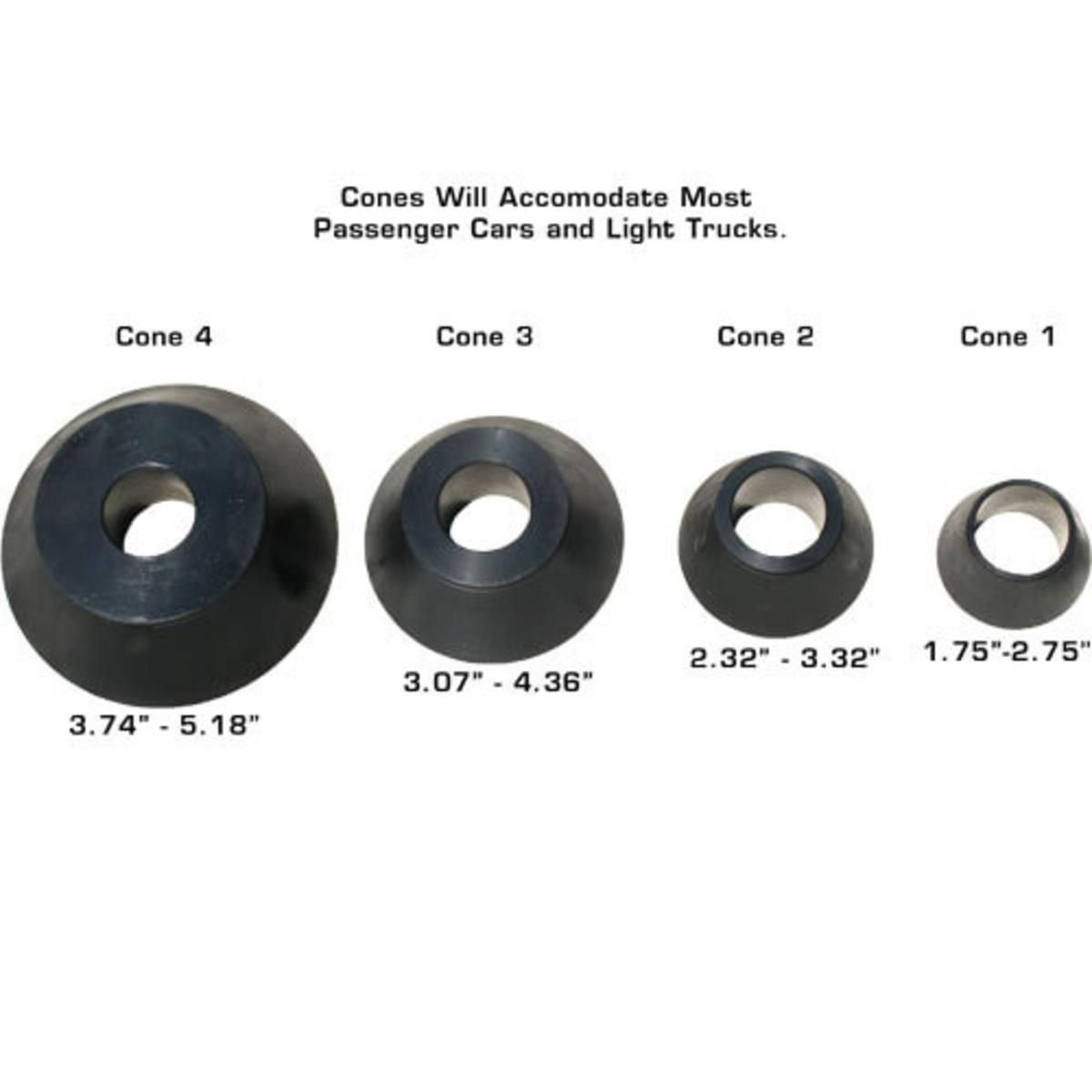

- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, and Measuring Calipers
Specifications
Atlas® TC229 Specifications
| Rims | Steel, Aluminum, Alloy |
|---|---|
| External Locking Rim Dimension (3 Positions) | 1) 9 3/4″ – 21 5/8″ 2) 10 3/4″ – 22 1/2″ 3) 11 5/8″ – 23 1/4″ |
| Internal Locking Rim Dimension (3 Positions) | 1) 11 5/8″ – 23 1/4″ 2) 12 5/8″ – 24 1/4″ 3) 13 1/2″ – 25 1/4″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker | 5,500 lb. Force |
| Air Requirement | 90–110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110 volt |

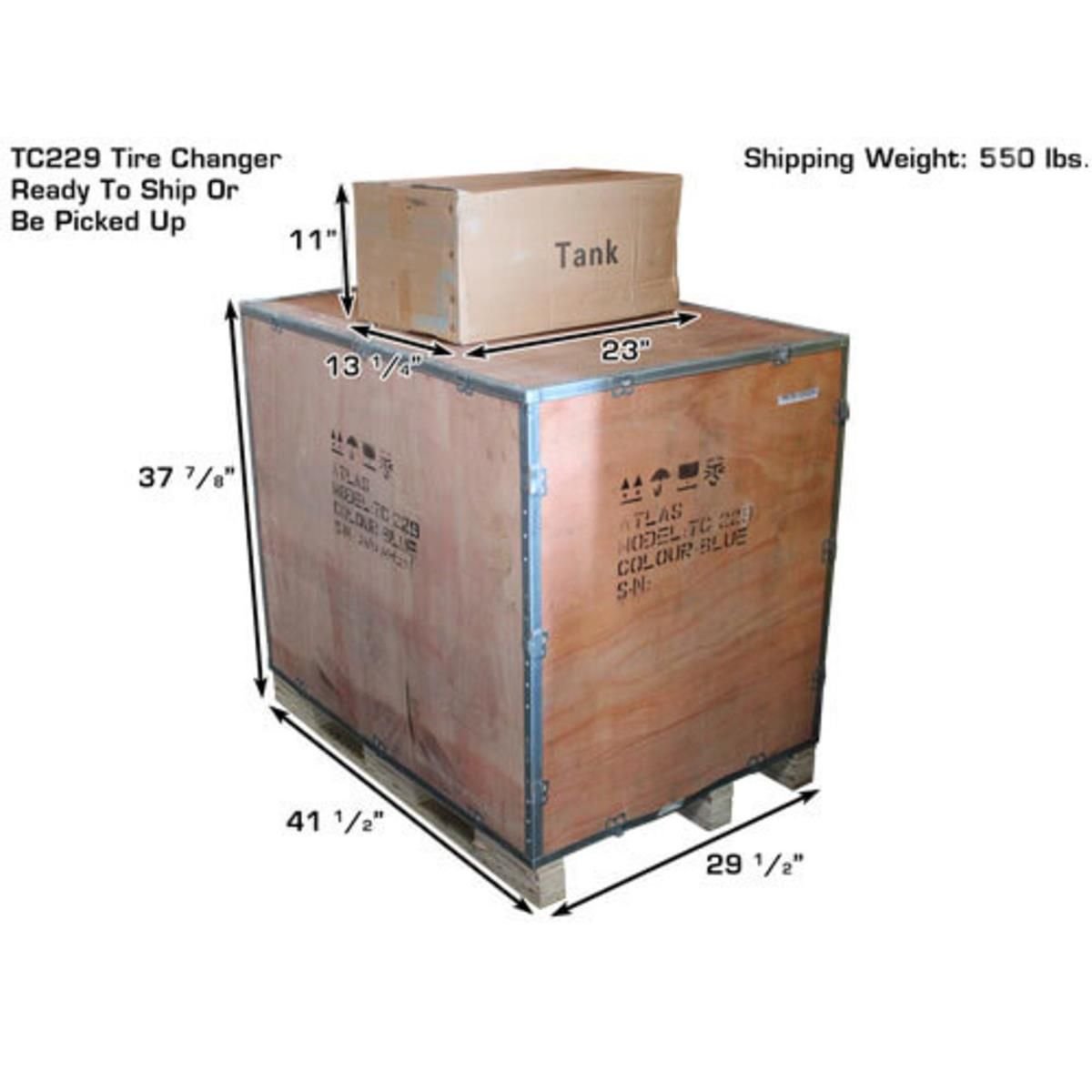

| Shipping Weight | 550 lbs. |
Atlas® WB49-2 Specifications
| Max Tire Diameter | 39″ (3′ 6″) |
|---|---|
| Rim Sizes (Cars and Light Trucks) | 10″ – 32″ |
| Rim Width | 1 1/2″ – 20″ |
| Shaft Size | 40 mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 rpm |
| Data Entry | Automatic 2D (Automatic 3D Optional) |
| Measurements | Standard or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110 volt |
| Shipping Weight | 400 lbs. |
