EKKO EB13E-138 Full Powered Straddle Stacker 2800 lb Cap., 138″ Height
Original price was: £5,943.62.£3,268.99Current price is: £3,268.99.
The EKKO EB13E-138 Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2800 lb
- Raised Height 138
- Adjustable Forks 8.3-33.5
- Adjustable Legs 45.7-59.1
- Fork Length 45.3
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 2*12V/100Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty

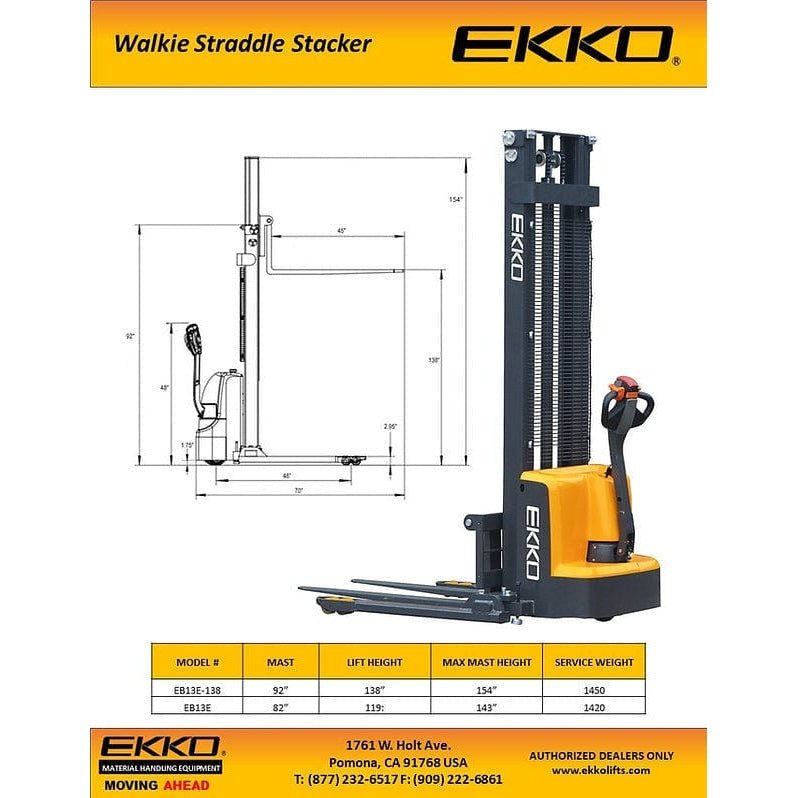

Specifications
|
Model |
EB13E-138 |
|
|
Load capacity |
(lbs) |
2800 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
154 |
|
Lowered mast height |
(in) |
92 |
|
Battery voltage (dimensions) |
(in) |
212V/100AH(10/6.6/8.5) |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
|
Service Weight |
(lbs) |
1450 |
