Katool C9372 Brake Lathe Machine
Original price was: £4,374.71.£2,624.83Current price is: £2,624.83.

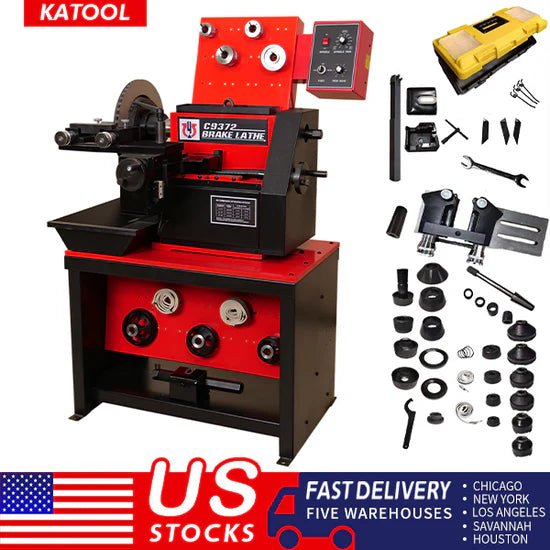

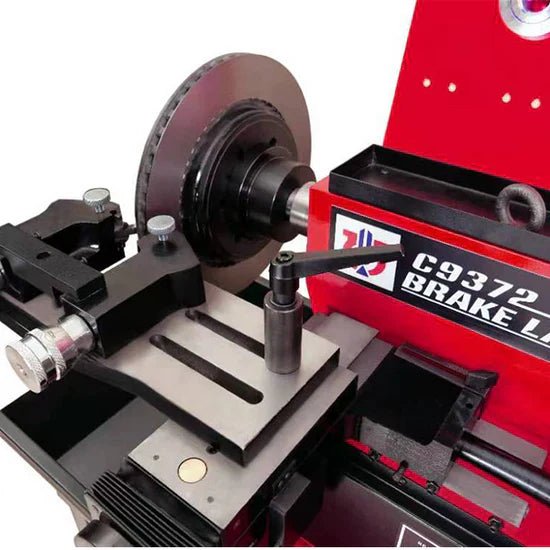

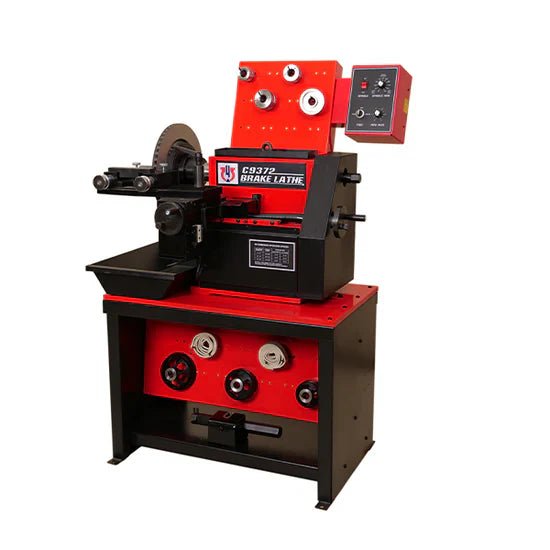

C9372 Brake Lathe by Katool
Worn or uneven brake components can cause noise, compromise safety, and lead to expensive repairs. Many standard brake lathes lack the versatility to handle a wide range of brake sizes, making it difficult to deliver consistent, high-quality results. The C9372 Brake Lathe from Katool is engineered to address these challenges with a powerful, flexible, and precision-focused design suitable for professional workshops.
Designed to handle brake rotors as small as 4 inches and as large as 20 inches, the C9372 offers multiple spindle speeds, adjustable feed rates, and quick changeover between rotor and drum operations. An automatic stop position improves both safety and workflow efficiency. With its combination of power, accuracy, and ease of use, the C9372 delivers smoother braking surfaces, reduced noise, and reliable performance for a wide range of vehicles.
Brake Lathe C9372 Specifications
- Rotor Diameter: 4″–20″ (102–508 mm)
- Maximum Rotor Thickness: 2.85″ (73 mm)
- Drum Diameter: 6″–19.5″ (152–500 mm)
- Drum Depth: 6.5″ (165 mm)
- Flywheel Diameter: 6″–24″ (152–610 mm)
- Spindle Weight Capacity (Standard 1″ Arbor): 150 lbs (68 kg)
- Spindle Speed: 70–320 RPM
- Feed Range – Rotor and Drum: 0″–0.026″ (0–0.66 mm)
- Feed Rate Per Minute: 2.54″ (64.5 mm)
- Motor: 110V / 220V, 50/60 Hz
- Dimensions: 43.3″ x 28.7″ x 28.3″ (1100 x 730 x 720 mm)
- Shipping Weight: 661.3 lbs / 300 kg
C9372 Brake Lathe Key Features
- Fast, accurate, and efficient rotor resurfacing
- Adjustable fast and slow cutting modes for rotors
- Precise and consistent drum resurfacing capability
- Fully adjustable drum cutting settings
- Three selectable spindle speeds for optimal control

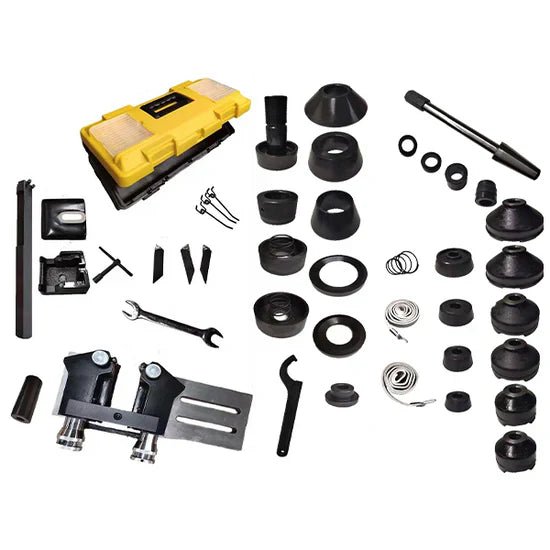

- Complete adapter package included
- Quick and convenient switching between rotor and drum operations
- Automatic stop function after each cut for improved safety and workflow efficiency
Warehouse Pickup Available
Contact us for details.
- Azuza, CA 91702
- Brookshire, TX 77423
- City of Industry, CA 91744
- Deer Park, TX 77536
- Kalamazoo, MI 49048
- Linden, NJ 07036
- Pooler, GA 31322
- Romeoville, IL 60446
