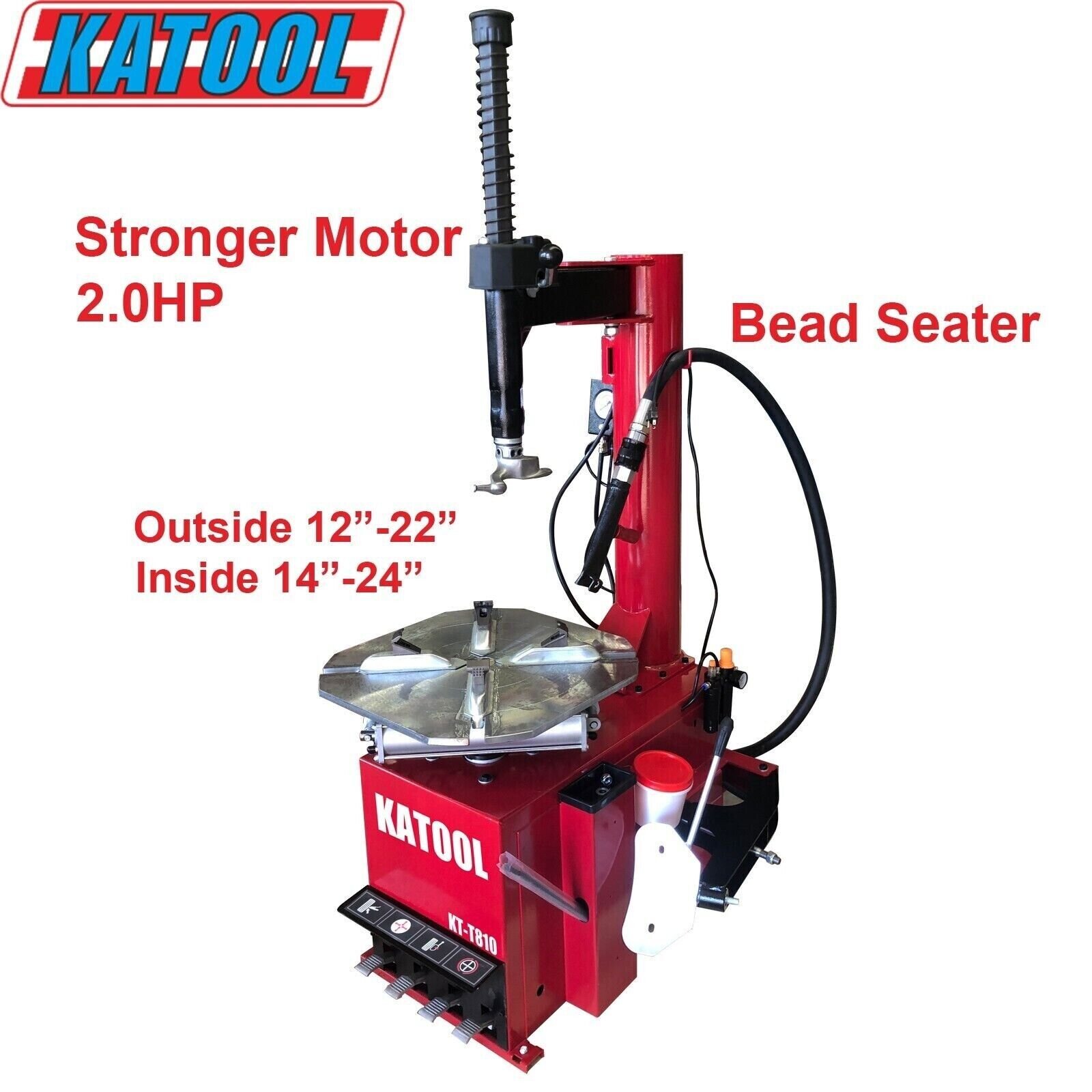

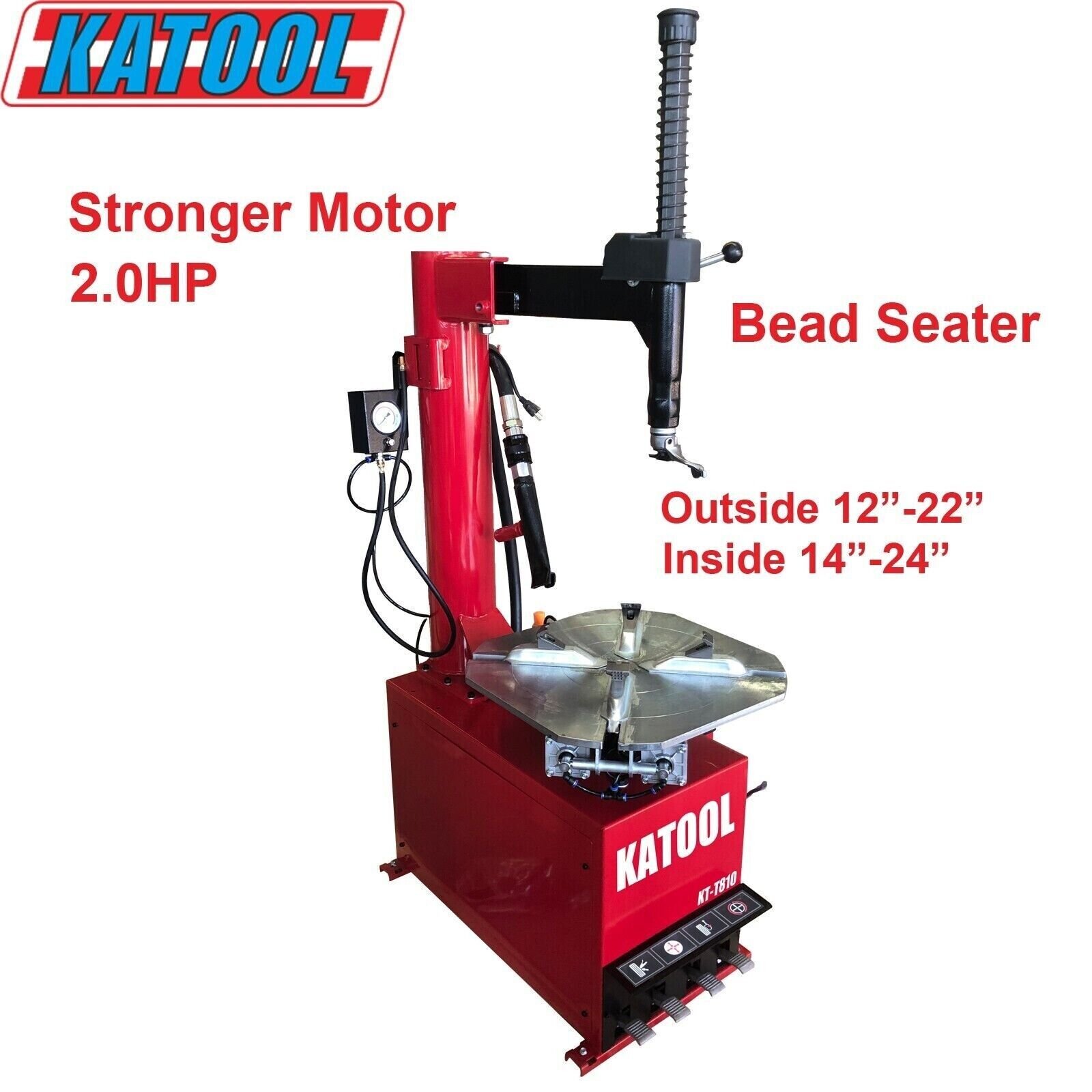

Katool KT-T810 Wheel Clamp Tire Changer Machine – w/ Bead Blaster

Looking for fast, reliable, and easy-to-use tire service equipment? The KT-T810 Wheel Clamp Tire Changer from Katool is built to handle a wide range of tire sizes with consistent performance. It supports tires up to 41 inches in diameter and 15 inches in width, while the adjustable clamping range (outside: 12″–22″, inside: 14″–24″) ensures a secure grip on various wheel types. Powered by a robust 2.0HP motor and operating at 6.8 r/min, the KT-T810 delivers smooth, efficient operation suited for professional workshops.

Designed to improve productivity and reduce operator effort, the KT-T810 streamlines tire changes with durable construction and user-friendly controls. It is an excellent upgrade for shops seeking dependable performance and faster turnaround times.

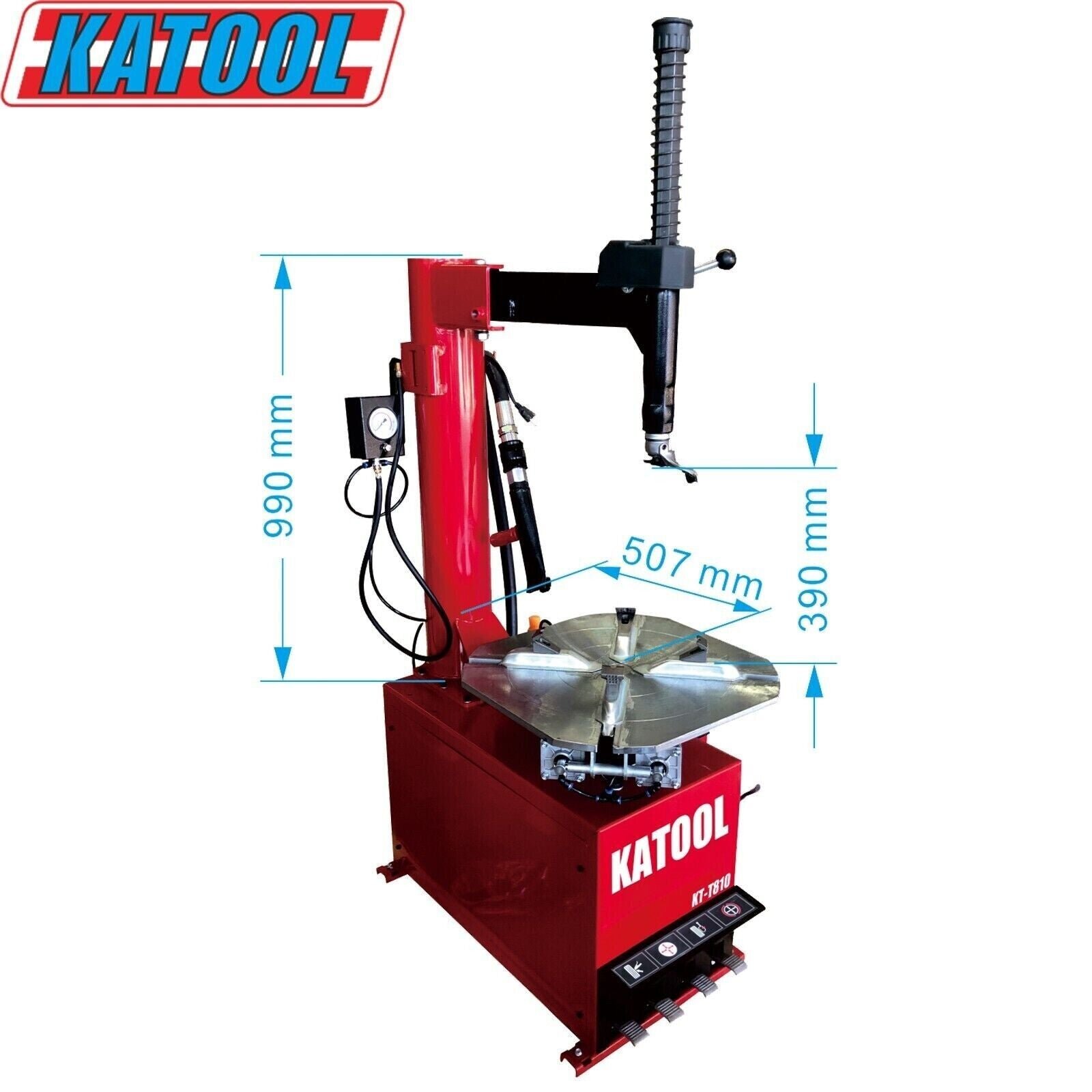

Tire Changer KT-T810 Specifications

• Maximum Wheel Diameter: 41″ / 1040 mm
• Maximum Wheel Width: 15″ / 380 mm
• Outside Clamp: 12″–22″
• Inside Clamp: 14″–24″
• Power Supply: 120V 1PH
• Motor Power: 2.0HP / 1.5 kW
• Rotation Speed: 6.8 r/min
• Air Pressure: 0.8–1.0 Mpa (116–145 psi)
• Net Weight: 186 kg
• Motor: 120V / 1PH / 2.0HP

KT-T810 Katool Key Features

• Alloy steel jaws with 0.8–1.1 mm carburized treatment and full quenching for superior strength and hardness, including protective covers to prevent rim damage
• Stainless steel mounting head, solution-treated and polished to ergonomic standards, with a plastic rim-protecting cover

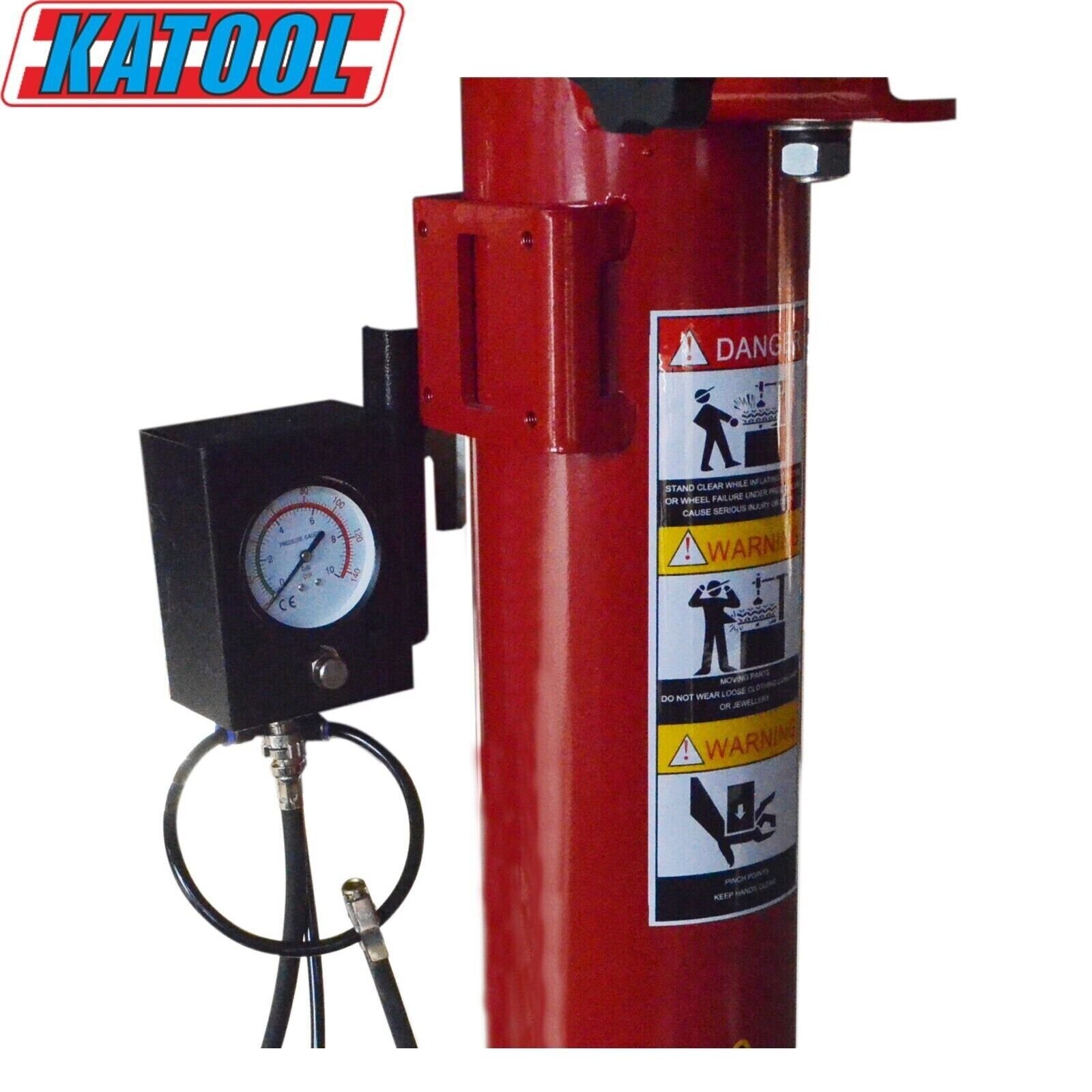

• Foot-pedal–controlled inflation gauge for simple and accurate pressure control
• Durable spade cover to protect rims from scratches
• Pull-type pedal system designed for ease of operation and maintenance
• High-performance motor with pure copper winding for faster cooling, lower failure rates, and longer service life
• Bead blast seater head with integrated air tank
• Premium filtration system for effective oil separation, clean airflow, and extended pneumatic system durability
• Enclosed body design to protect internal components

Katool Warranty

• One-year (12-month) warranty covering all parts and manufacturing defects, free of charge

Available Combos

• KT-T810 + B760 Wheel Balancer Combo
• KT-T810 + KT-B750 Wheel Balancer Combo

Optional Accessories (Sold Separately)

• Katool KT-T810 Tire Changer accessories available upon request
