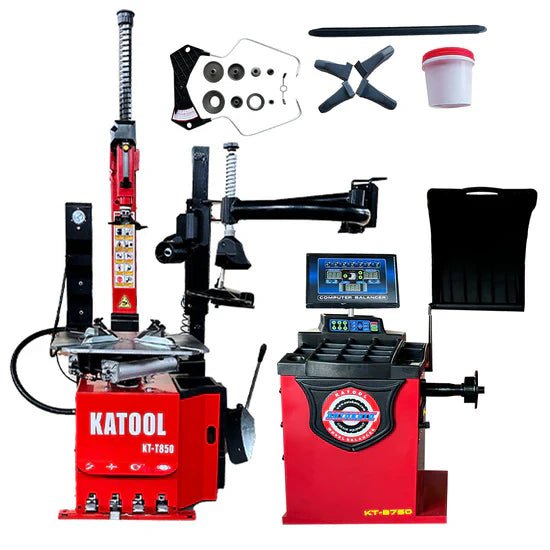

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine with Wheel Balancer KT-B750 Combo

T850 Tire Changer and B750 Wheel Balancer by Katool

The Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer and KT-B750 Wheel Balancer combo is engineered to deliver speed, accuracy, and ease of use in professional workshops. The KT-T850 supports wheels up to 47″ in diameter and 15″ in width, with outside clamping from 14″–26″ and inside clamping from 16″–28″. Driven by a 2.0HP motor operating at 6.8 RPM, it provides quick, efficient tire service under 0.8–1.0 MPa air pressure. Its tilt-arm configuration and integrated bead blast seater make working with difficult tires safer and more efficient.

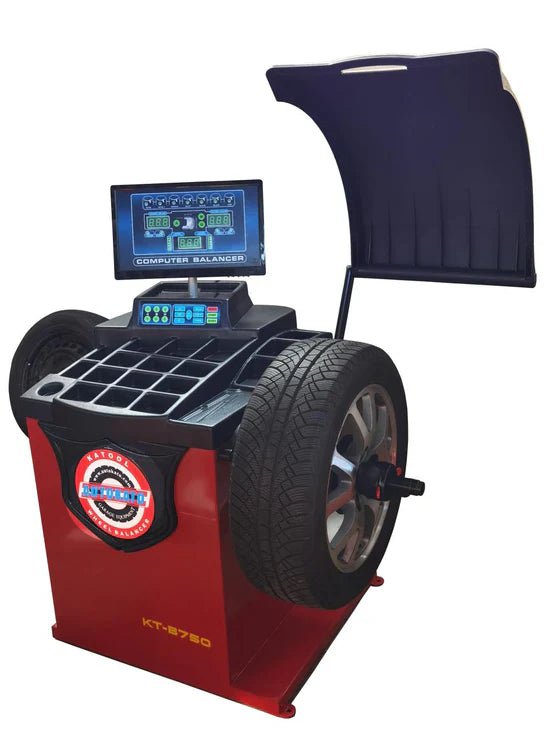

The KT-B750 Wheel Balancer complements the tire changer with reliable, high-precision balancing. With ±1g accuracy and a fast 7-second measuring cycle, it handles rims up to 30″ in diameter and 15″ wide. A 0.25 kW motor running at 180 rpm, combined with automatic measurement, multiple balancing modes, and self-calibration, ensures consistent and repeatable results. Together, this combo streamlines tire service while improving safety and productivity.

KT-T850 Tire Changer Specifications

• Max wheel diameter: 47″
• Max wheel width: 15″
• Outside clamp range: 14″–26″
• Inside clamp range: 16″–28″
• Power supply: 110V / 1PH
• Motor power: 2.0 HP / 1.5 kW
• Rotation speed: 6.8 r/min
• Air pressure: 0.8–1.0 MPa (116–145 psi)
• Net weight: 340 kg / 750 lbs

KT-B750 Wheel Balancer Specifications

• Rim diameter: ≤ 30″
• Wheel width: ≤ 15″
• Wheel diameter: ≤ 34.6″
• Balancing speed: 180 rpm
• Power supply: 120V / 1PH
• Motor power: 0.25 kW
• Rim center hole diameter: ≤ 135 mm
• Max wheel weight: ≤ 65 kg
• Balancing accuracy: ±1 g
• Measuring time: 7 seconds

KT-T850 Special Features

• Hardened alloy steel jaws with protective rim covers
• Stainless-steel mounting head with plastic protection guard
• Protective spade cover to reduce risk of rim damage
• Pull-type pedal system for simpler operation and maintenance
• Durable copper-wound motor with rapid heat dissipation
• High-quality lubricator to extend pneumatic system life
• Designed for North American standards with 110V / 2.0HP motor
• Equipped with assist arms and bead blast seater
• 200 mm aluminum bead breaker cylinder

KT-B750 Special Features

• Automatic measurement ruler for fast and accurate setup
• Heavy-duty 3 mm steel body construction with minimal vibration
• Reinforced 8 mm boards for stable, high-precision sensor performance
• High-efficiency copper motor for longer service life
• 36 mm quenched shaft for increased strength and durability
• Moisture-proof, dust-proof, and anti-static circuit board design
• Multiple balancing modes for various rim types
• Built-in fault diagnostics and self-calibration functions
• Selectable units: Ounce/Gram and MM/Inch
• Composite splash guard included
• Extended shaft to accommodate wider wheels

Katool Warranty

• One-year warranty covering all parts and manufacturing defects

Sold Separately

• Katool KT-T850 Tire Changer
• Katool KT-B750 Wheel Balancer
