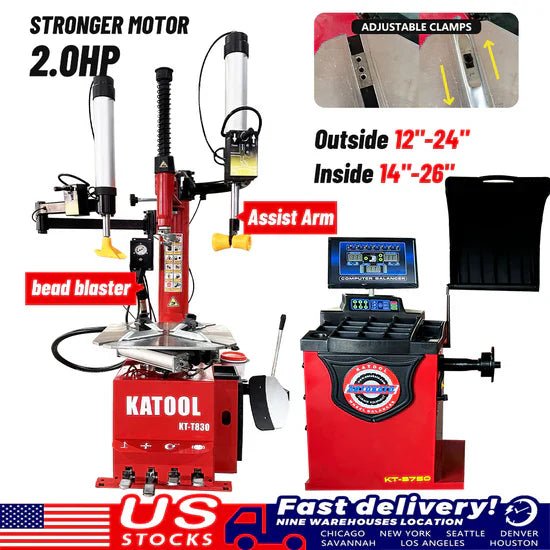

Katool T830 B750 Tire Changer with Wheel Balancer Combo

T830 Tire Changer and B750 Wheel Balancer by Katool

Are slow tire changes and inconsistent wheel balancing slowing down your operation? The Katool KT-T830 Wheel Clamp Tire Changer paired with the KT-B750 Wheel Balancer addresses both speed and accuracy. The KT-T830 features a powerful 2.0 HP / 1.5 kW motor with a 6.8 RPM rotation speed, capable of handling wheels up to 41″ in diameter and 15″ wide. Pedal-controlled inflation, a pull-type control system, and a protective spade cover help streamline workflow while safeguarding rims. The KT-B750 complements this setup with ±1 g balancing accuracy achieved in just 7 seconds at 180 RPM, delivering smooth and repeatable results.

Designed for durability and consistent performance, the KT-T830 uses a copper-wound motor that operates reliably at 0.8–1.0 MPa (116–145 psi). The KT-B750 is equipped with moisture-, dust-, and static-resistant electronics, multiple balancing modes, and self-calibration to maintain precision across various wheel types. Its 0.25 kW motor runs on a standard 120V outlet, while the extended shaft supports wider wheels. An included safety guard further enhances operator confidence. Together, these machines are built to increase productivity and elevate service quality.

Tire Changer KT-T830 Specifications

• Max Wheel Diameter: 41″ / 1040 mm
• Max Wheel Width: 15″ / 380 mm
• Outside Clamp: 12″–22″
• Inside Clamp: 14″–24″
• Power Supply: 120V / 1PH
• Motor Power: 2.0 HP / 1.5 kW
• Rotation Speed: 6.8 r/min
• Air Pressure: 0.8–1.0 MPa (116–145 psi)
• Net Weight: 240 kg / 529 lbs

Wheel Balancer KT-B750 Specifications

• Rim Diameter: <30"
• Wheel Width: 15″
• Wheel Diameter: <34.6"
• Balancing Speed: 180 rpm
• Power Supply: 120V / 1PH
• Motor Power: 0.25 kW
• Rim Center Hole Diameter: <135 mm
• Max Wheel Weight: <65 kg
• Balancing Accuracy: ±1 g
• Measuring Time: 7 s

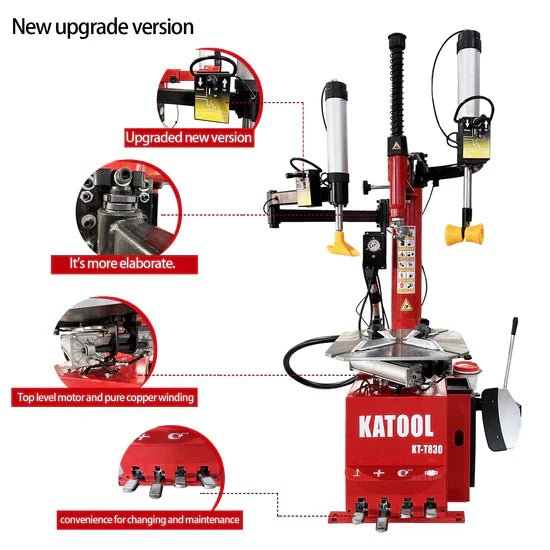

KT-T830 Special Features

• Hardened alloy steel jaws with rim-protective covers
• Stainless steel mounting head with plastic rim guard
• Pedal-operated inflation gauge for hands-free control
• Protective spade cover to minimize rim damage
• Pull-type pedal system for simplified operation
• Durable copper-wound motor with efficient heat dissipation
• High-quality lubricator for clean, dry air and extended pneumatic life
• North America ready: 110V / 1PH / 2.0 HP
• Double-side assist arm for easier tire handling
• Bead blast seater with post tank
• 186 mm (7.32″) stainless steel bead breaker cylinder
• Closed-body design to protect internal components

KT-B750 Special Features

• Automatic measuring ruler for A and D values
• 3 mm heavy-duty steel body with reduced vibration
• 8 mm reinforced sensor supports for improved stability and accuracy
• High-performance copper motor for long service life
• Ø36 mm quenched shaft thread for added strength
• Moisture-, dust-, and anti-static-resistant circuit board
• Multiple balancing modes for different rim types
• Built-in fault diagnostics and self-calibration
• Unit selection: Ounce/Gram, MM/Inch
• Integrated power board for stable operation
• Composite splash guard included
• Extended shaft design supports wider wheels

Katool Warranty

• One-year coverage on all parts and product defects

Product Availability

• KT-T830 Tire Changer and KT-B750 Wheel Balancer are sold separately
