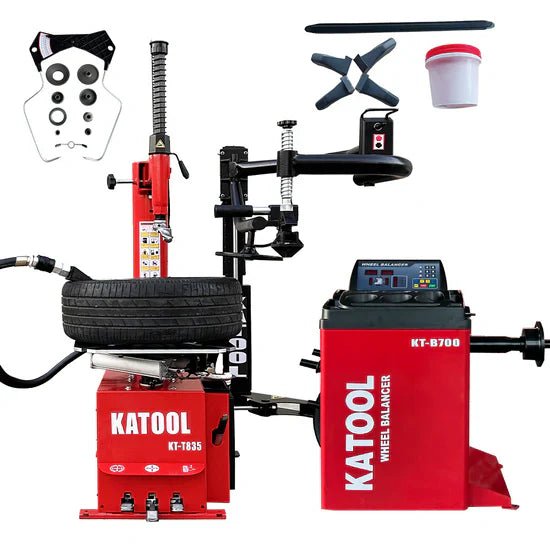

Katool KT-T835 Tire Changer with Wheel Balancer KT-B700 Combo

Simplify tire service operations with the Katool KT-T835 Tire Changer paired with the KT-B700 Wheel Balancer. Built to improve efficiency and ease of use, this combination delivers the power, precision, and reliability required in high-volume shops. The KT-T835 features a strong 2.0 HP motor and supports wheels up to 41 inches in diameter, offering the versatility needed for a wide range of vehicles. Integrated rim protectors and assist arms help ensure safe handling while preserving wheel condition.

Matched with the KT-B700 Wheel Balancer, this setup provides fast and accurate balancing with ±1 g precision in just 7 seconds. Multiple balancing modes, durable construction, and dependable components support consistent results and long service life. Together, these machines create a complete tire service solution that boosts productivity and enhances customer satisfaction.

Tire Changer KT-T835 Specifications

• Max Wheel Diameter: 41″
• Max Wheel Width: 15″

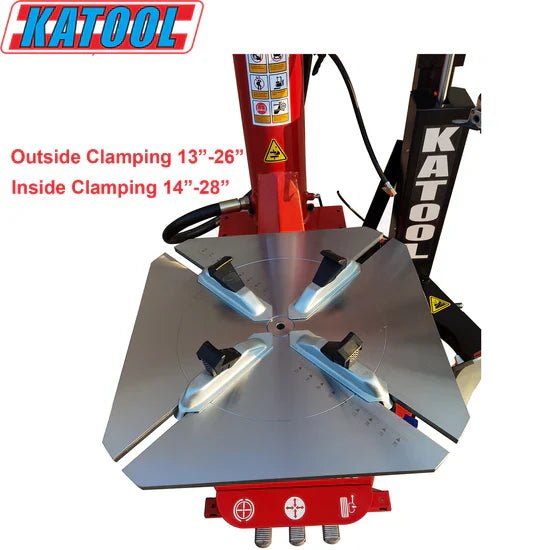

• Outside Clamp: 13″–26″
• Inside Clamp: 14″–28″
• Power Supply: 110V / 1PH / 60 Hz
• Motor Power: 2.0 HP / 1.5 kW
• Rotation Speed: 6.1 rpm
• Air Pressure: 0.8–1.0 MPa (116–145 psi)
• Net Weight: 582 lbs

Wheel Balancer KT-B700 Specifications

• Wheel Width: 3″–12″
• Wheel Diameter: ≤34.64″
• Balancing Speed: 180 rpm
• Power Supply: 120V / 1PH
• Motor Power: 0.25 kW
• Rim Center Hole Diameter: ≤135 mm / 5.31″
• Balancing Accuracy: ±1 g
• Measuring Time: 7 seconds
• Wheel Weight Capacity: 143 lbs

KT-T835 Special Features

• Alloy steel jaws with carburization and quenching for strength and durability
• Stainless steel mounting head with protective cover to safeguard rims
• Pedal-controlled inflation gauge for convenient operation
• High-quality spade cover designed to prevent rim damage
• Ergonomic pull-type pedal system for smoother, easier use
• Powerful copper-wound motor for efficient and long-lasting performance
• Integrated air filter to maintain clean airflow and extend pneumatic system life

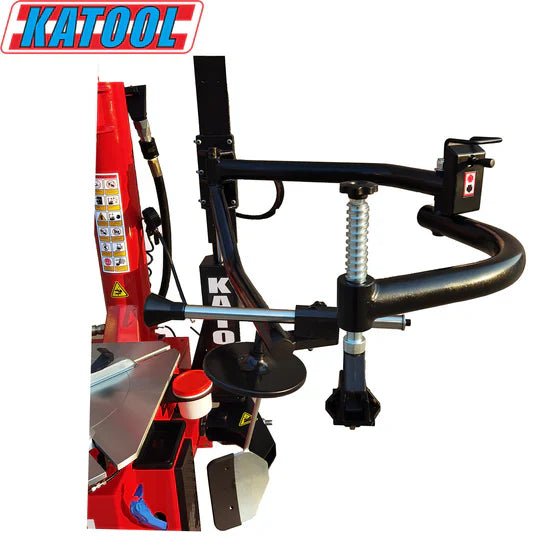

• Double-side assist arm ideal for run-flat and low-profile tires
• Bead blast seater with post tank for effective bead seating
• 186 mm stainless steel bead breaker cylinder
• Closed-body design to protect internal components

KT-B700 Special Features

• 3 mm thick steel body with solid welding for enhanced stability
• Integrated pressure sensor support design for improved accuracy

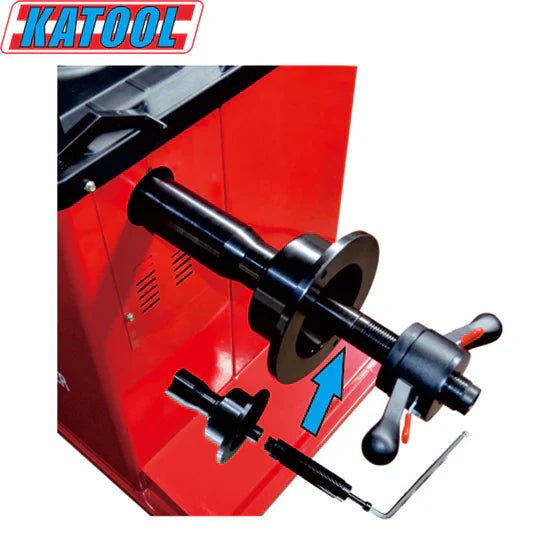

• High-strength 36 mm quenched shaft thread
• Advanced sealed circuit board for protection against dust and moisture
• Multiple balancing modes for different rim and tire types
• Built-in fault diagnosis with double-sided self-calibration
• Easy unit selection: Ounce/Gram, MM/Inch
• Optional wheel guard and compatibility with extended shafts
• Integrated power board designed for reliable, long-term operation

Katool Warranty

• One-year (12 months) warranty on all parts and against product defects

Product Availability

• KT-T835 Tire Changer and KT-B700 Wheel Balancer are sold separately
• Katool KT-T835
• Katool KT-B700
