Katool KT-4H850, 4 Post Vehicle Storage Lift 8,500lb

Katool 4H850 Vehicle Storage Lift

Short on garage space or concerned about proper vehicle storage? The Katool KT-4H850 Parking Lift is engineered to improve space utilization while maintaining high safety standards. With an 8,500 lb lifting capacity, it comfortably supports cars and light trucks. An adjustable lifting height of up to 70.87″ combined with a space-efficient footprint makes it well suited for most residential and commercial garages, allowing you to create additional usable space.

Versatile Design for Storage and Service

This four-post lift is designed for straightforward operation, whether used for long-term vehicle storage or routine maintenance. Wide column spacing and a low minimum runway height enable it to accommodate a broad range of vehicles. Convenience features include multiple power configurations, a caster kit for mobility, drip trays, and a jack tray. Safety is prioritized through CE certification, redundant mechanical locking systems, and a robust hydraulic design. The KT-4H850 delivers a complete, reliable solution for transforming your garage into a more functional workspace.

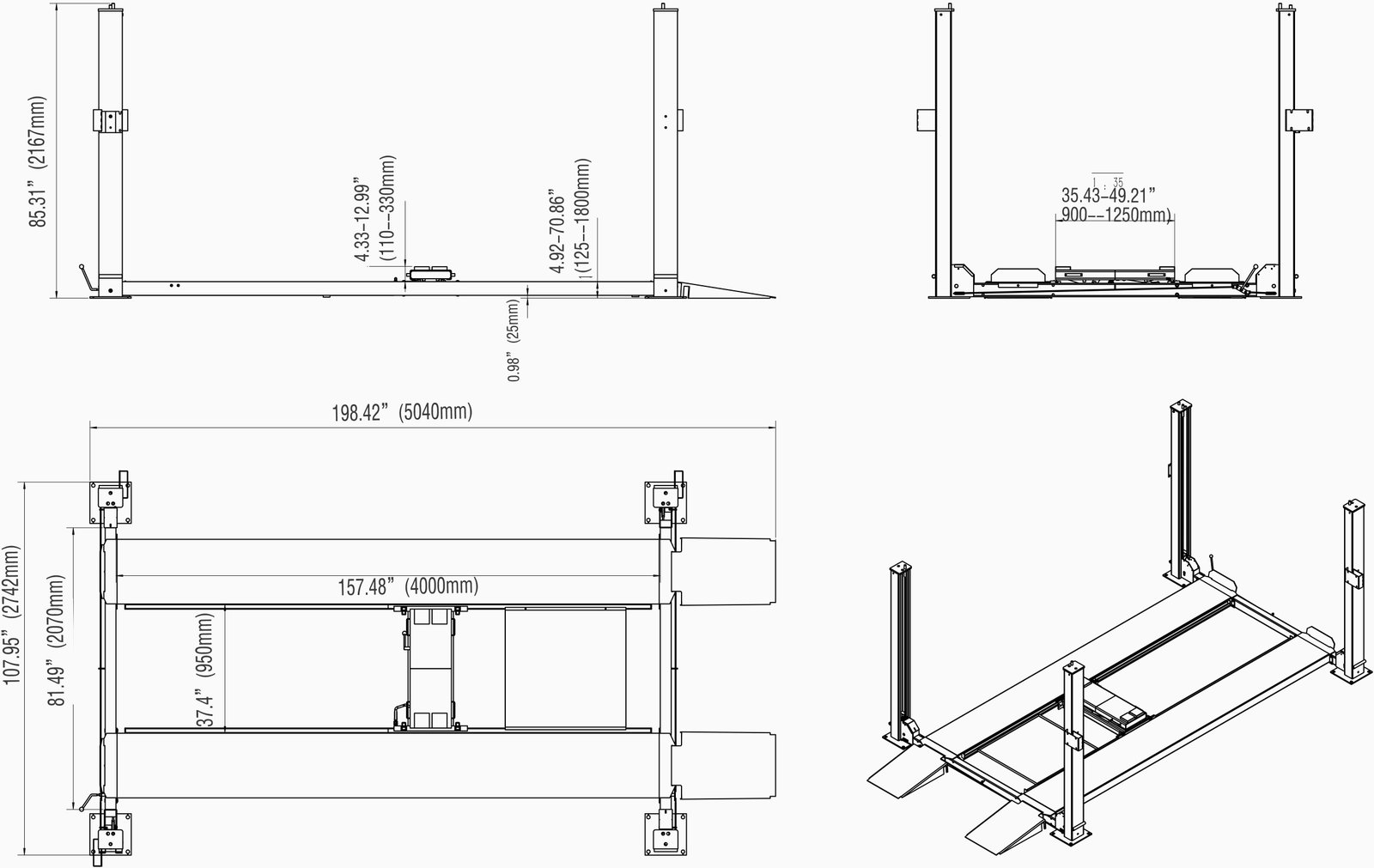

4H850 Specifications

• Lifting capacity: 8,500 lbs
• Max lifting height: 71″
• Height of posts: 84″
• Overall width: 108″
• Length with ramps: 200″
• Length without ramps: 172″
• Inside columns: 95″
• Inside runways: 37″
• Minimum runway height: 4.76″
• Lock positions: Every 4.7″ (12 positions)

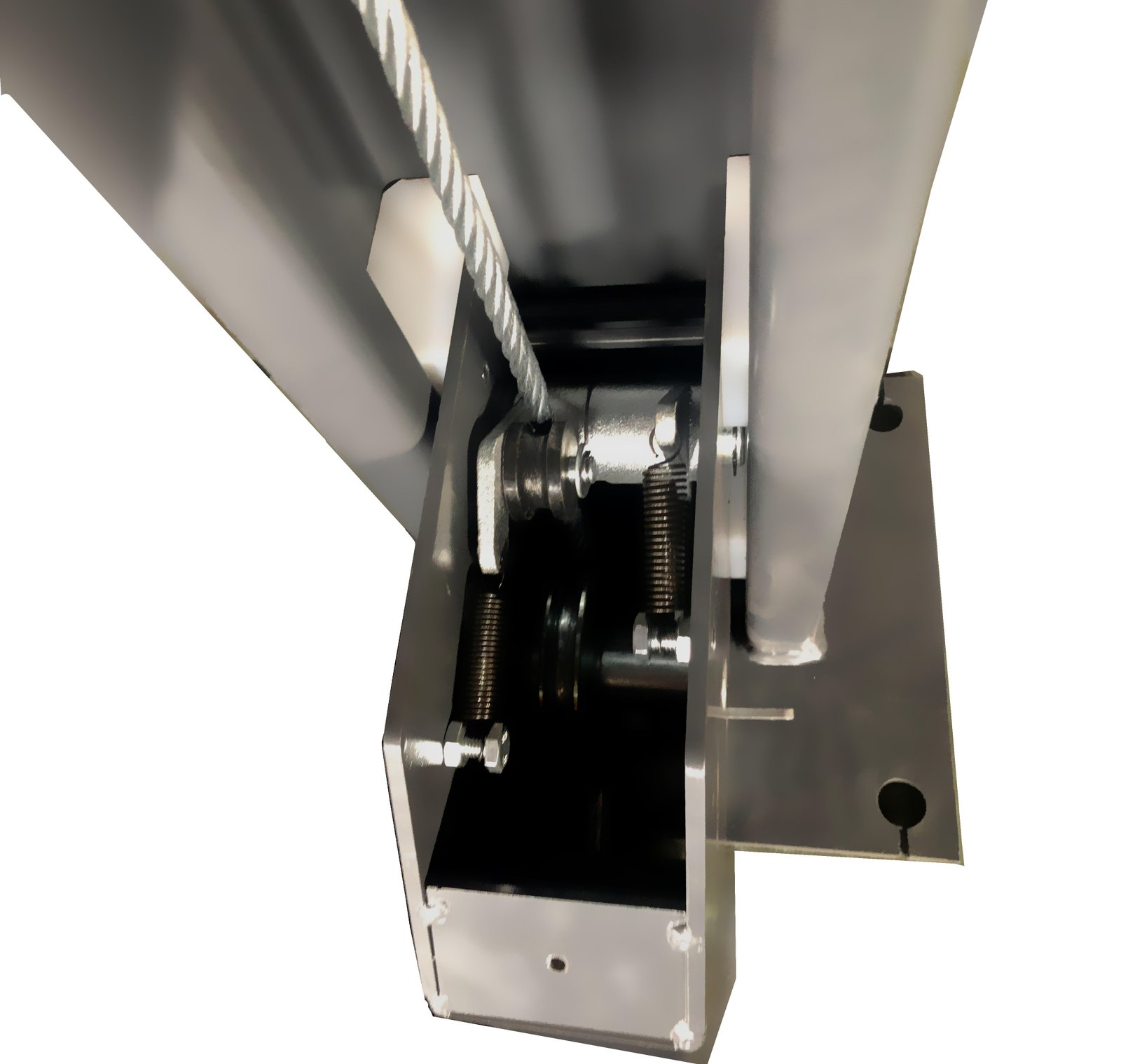

• Cable thickness: 3/8″
• Power: 110V / 60Hz / 1PH* or 220V / 60Hz / 1PH
• Shipping dimensions: 167″ L x 23″ W x 30″ H
• Weight: 1,820 lbs
• Color: Charcoal Grey with Yellow Ramps
• Oil: AW-46 or AW-32 (for colder climates)

KT-4H850 Special Features

• 8,500 lb lifting capacity
• CE approved, tested to 115% dynamic and 150% static load standards
• Single-point manual safety lock release
• Four mechanical locks with backup slack-cable safety system
• Motor column can be mounted at the front, rear, or either side

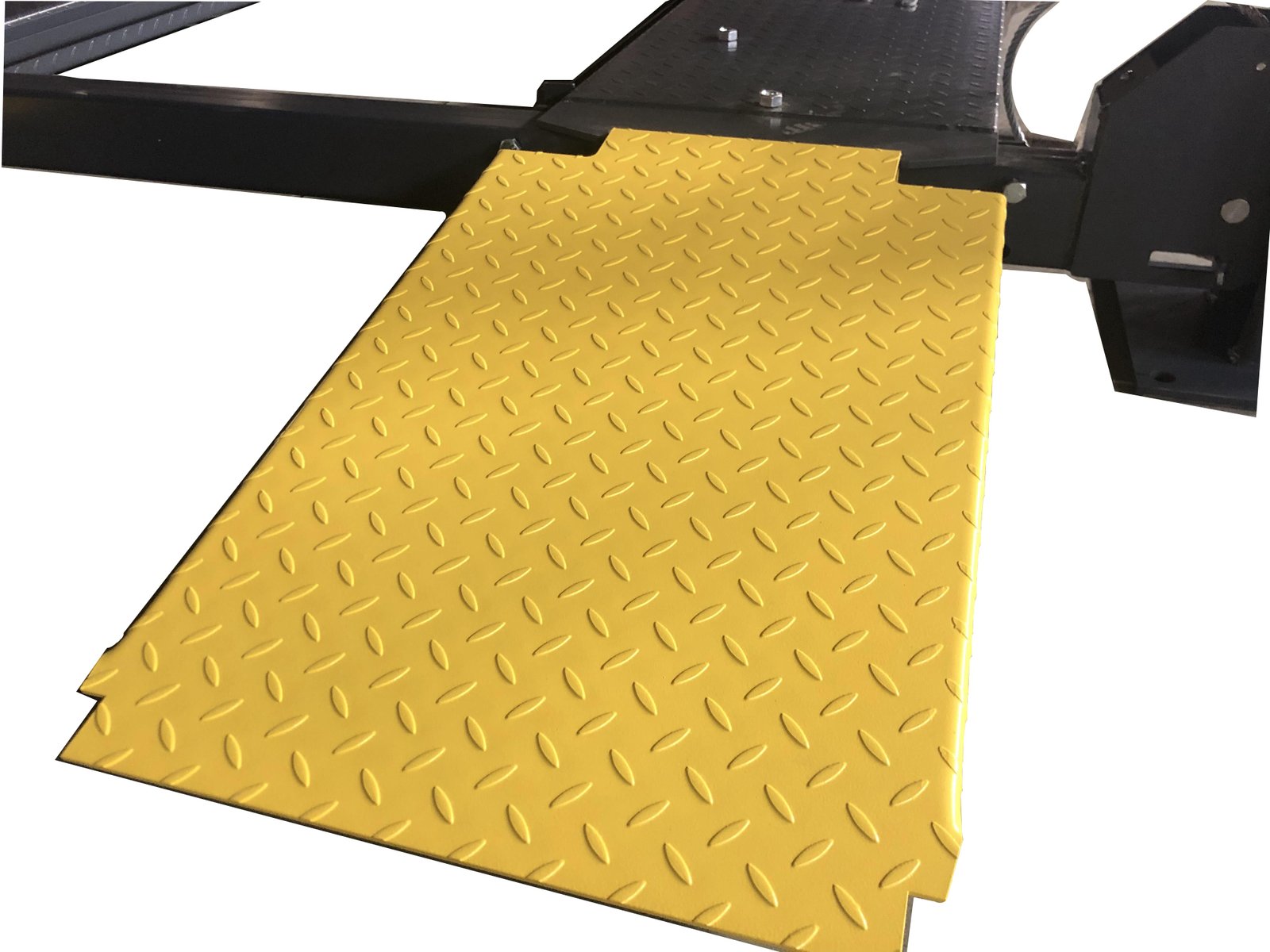

• Non-skid diamond platforms with adjustable lock ladders
• Includes caster kit for convenient relocation

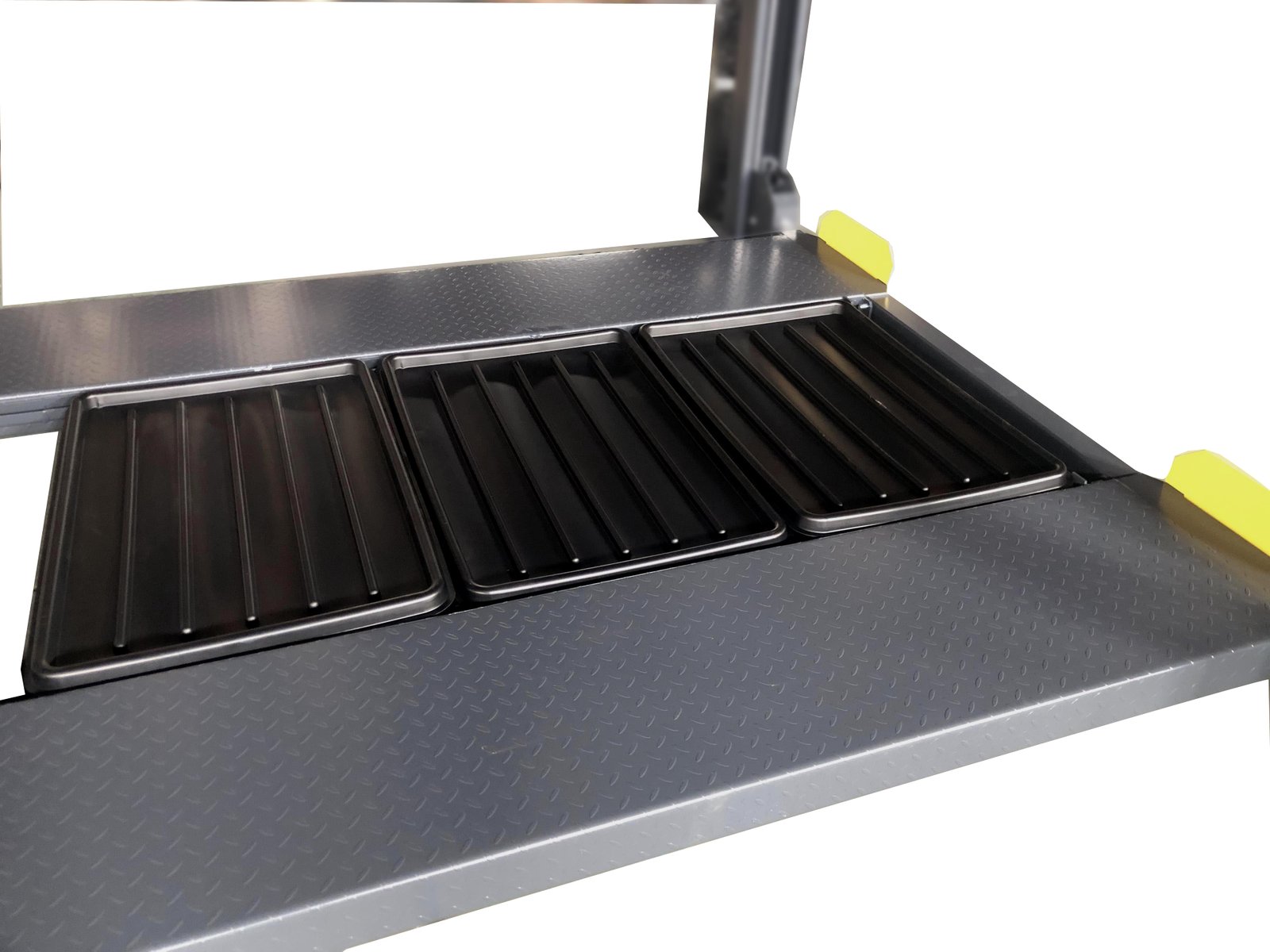

• Includes two drip trays and one jack tray
• Heavy-duty hydraulic system available in 110V or 220V configurations

*Requires 10-gauge wire and a 30-amp breaker

Why Choose the KT-4H850

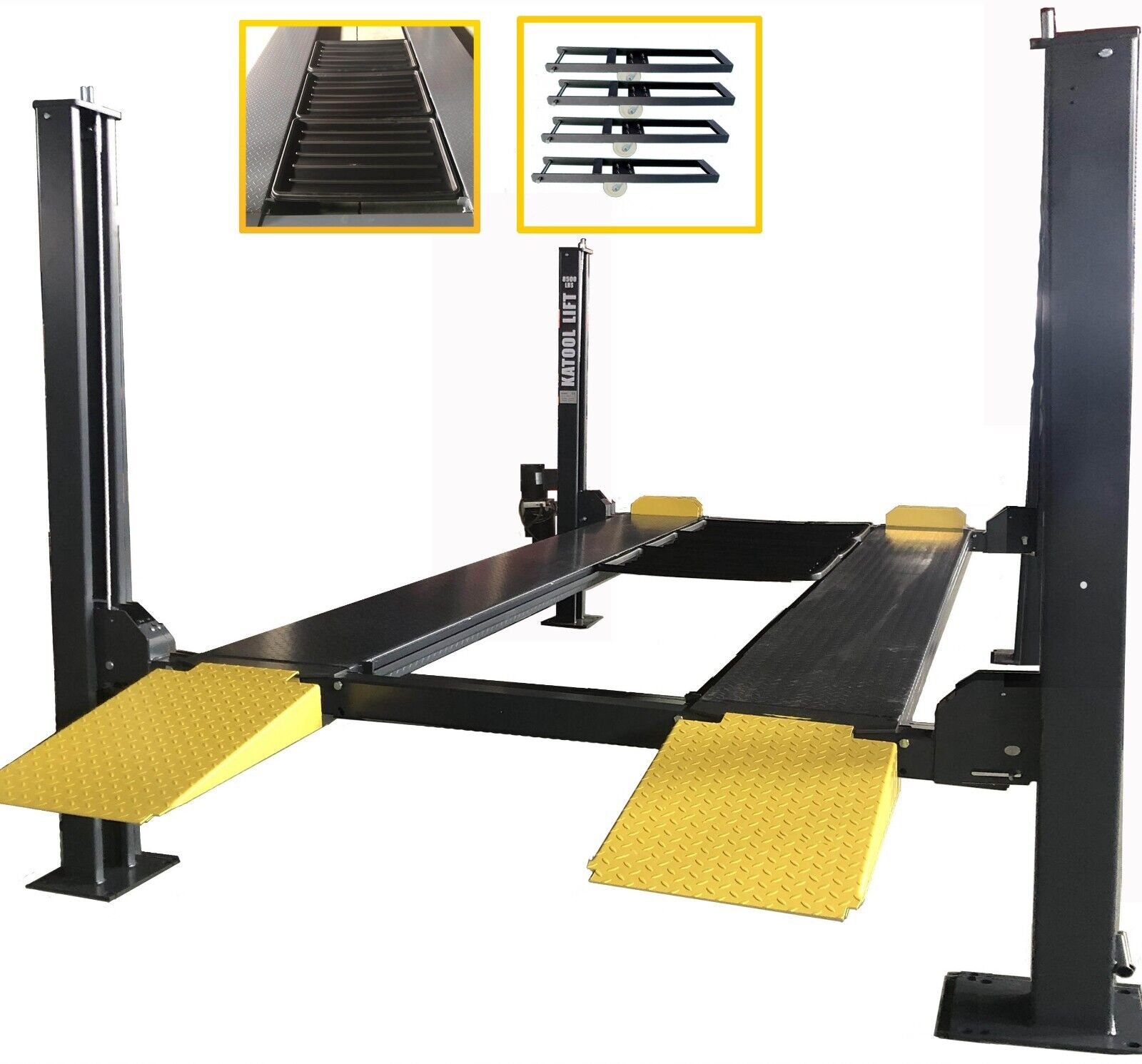

Included Accessories

• (1) Caster kit
• (2) Drip trays
• (1) Jack tray

Flexible Motor Mount

• Motor column can be installed at the front or rear, on either side

Certified Safety

• CE compliant, meeting EU safety, health, and environmental standards

Reliable Locking System

• Four mechanical locks with primary and secondary safety engagement

Katool Warranty

• One-year (12 months) warranty on parts and product defects
• Three-year (36 months) warranty on lift structural components

Optional Accessories (Sold Separately)

• 5,000 lb Rolling Jack KT-RJ50
• 7,000 lb Rolling Jack

Installation Note

• Concrete must be at least 3.93″ thick with a minimum strength of 3,000 PSI for safe installation

Warehouse Pickup Locations

• Azusa, CA 91702
• Brookshire, TX 77423
• City of Industry, CA 91744
• Deer Park, TX 77536
• Kalamazoo, MI 49048
• Linden, NJ 07036
• Pooler, GA 31322
• Romeoville, IL 60446

Pallet Dimensions

• Lift: 167″ L x 23″ W x 30″ H — 1,820 lbs
