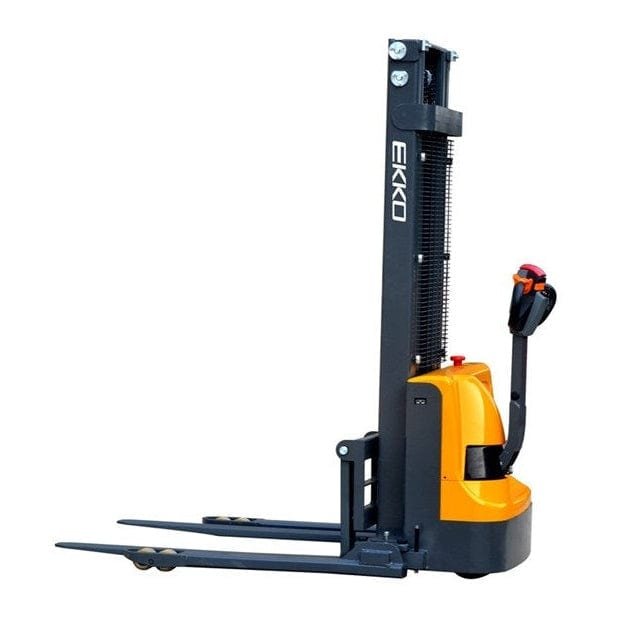

EKKO EB12EA Full Powered Straddle Stacker 3000 lb Cap., 145.67″ Height
£8,442.03 Original price was: £8,442.03.£4,643.12Current price is: £4,643.12.
The EKKO EB12EA Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 3000 lb
- Raised Height 145.67″ (12.13ft)
- Adjustable Forks 8.3-33.5″
- Adjustable Legs 45.7-59.1″
- Fork Length 45.3″
- Curtis Controller
- 24V AC Drive Motor 1500W
- 24V Lift Motor
- Internal Charger
- Battery 2*12V/120Ah Included
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- 3 Years Limited Warranty

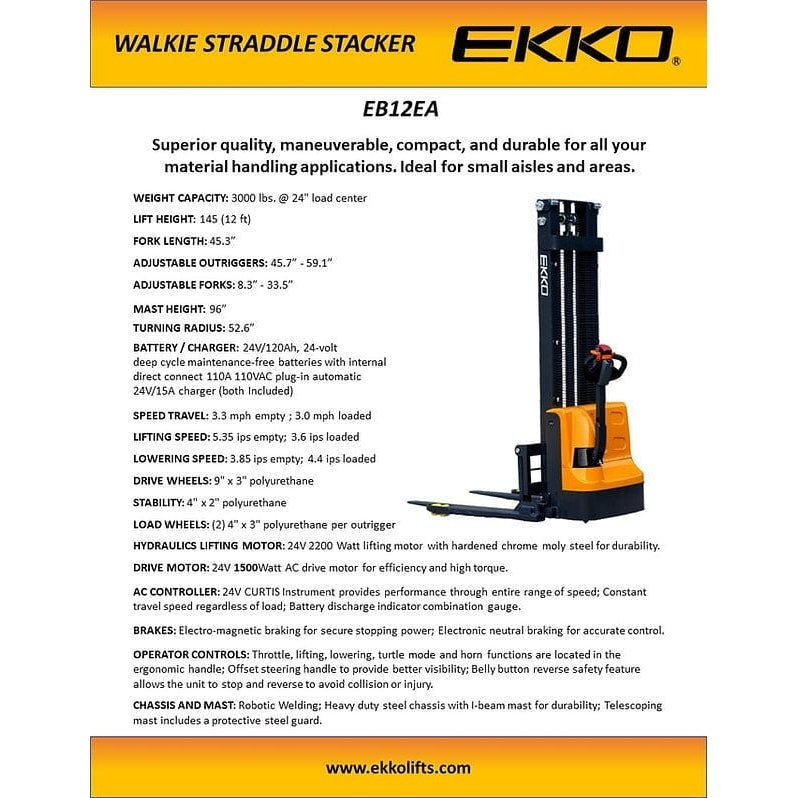

Specifications
|
Model |
EB12EA |
|
|
Load capacity |
(lb) |
3000 |
|
The max. lifting height |
(in) |
145.67 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
167.28 |
|
Lowered mast height |
(in) |
95.67 |
|
Battery voltage (dimensions) |
(in) |
212V/120AH(10/6.6/8.5) |
|
Internal Charger |
(V/A) |
24V/15A |
|
Lifting Motor |
(V/W) |
2200 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
(W) |
1500 Watt, Driving speed: laden/unladen: 4.0/4.2km/h |
|
Service Weight |
(lb) |
1584 |
