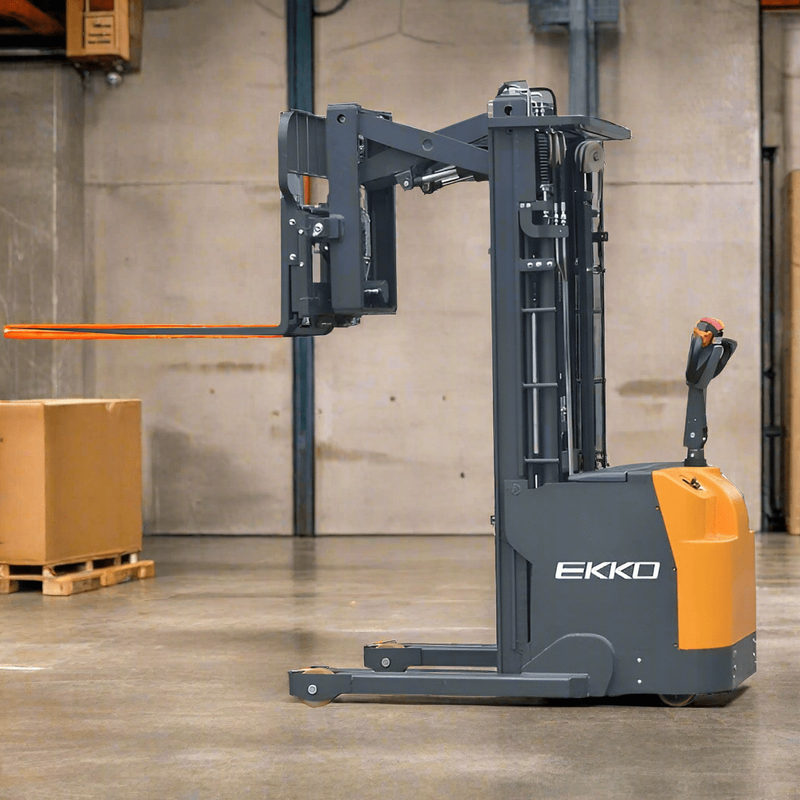

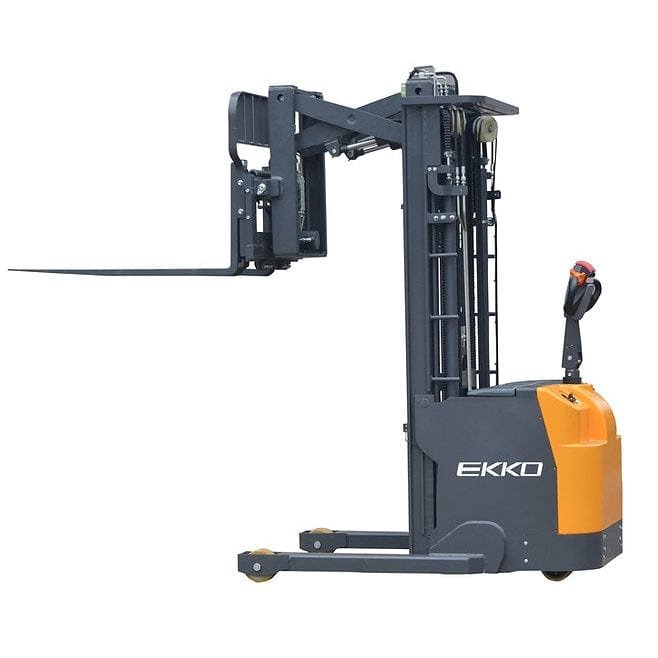

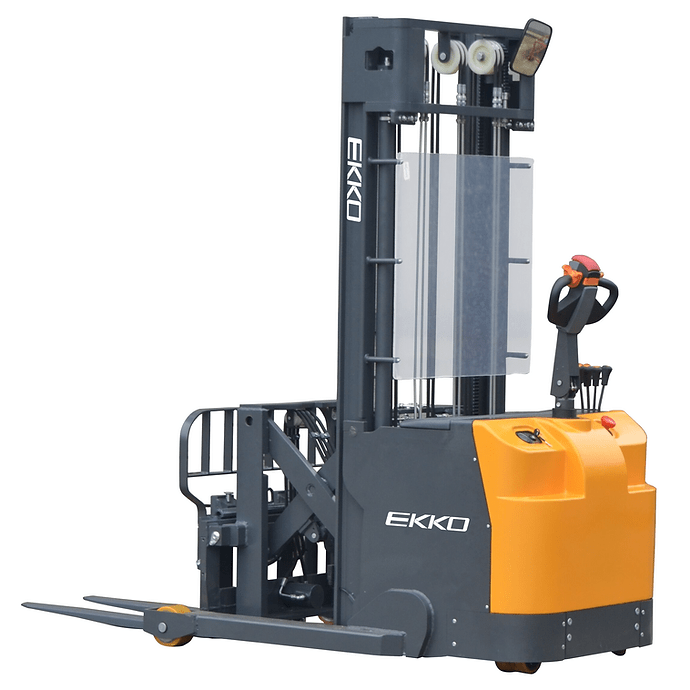

EKKO ER15 Walkie Reach Truck 3300 lb Cap., 177″ Height, Side Shift
Original price was: £20,674.74.£11,371.11Current price is: £11,371.11.
The EKKO ER15 Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

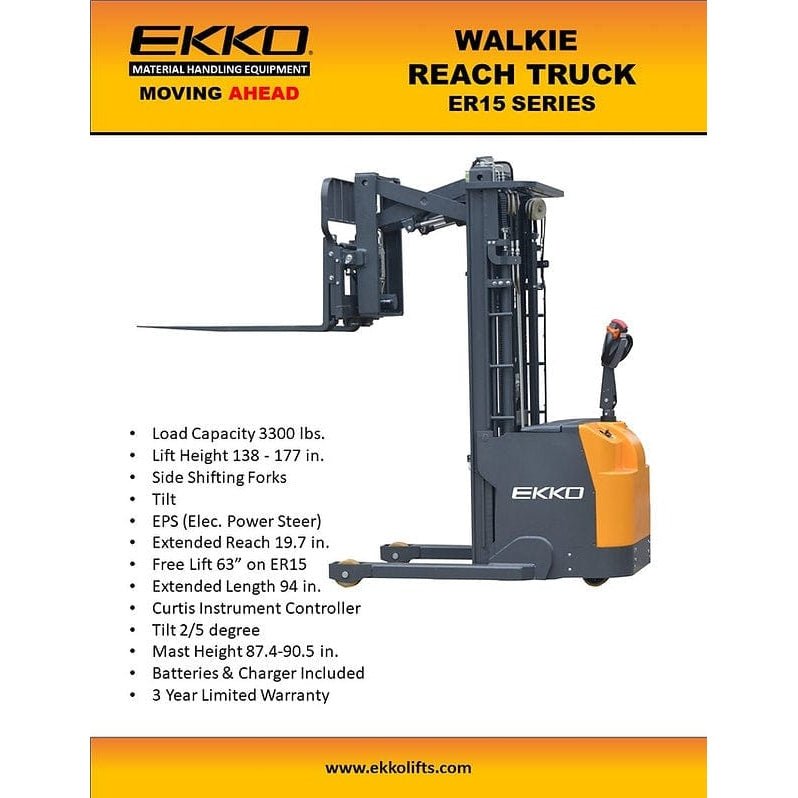

- Load Capacity 3300 lb
- Raised Height 177″ (14.75ft)
- Reach Distance of 19.7″
- Side Shifting Forks
- Free Lift 63″
- Tilt
- Adjustable Forks 7.9-33″
- Fork Length 45.3″
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/350Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty

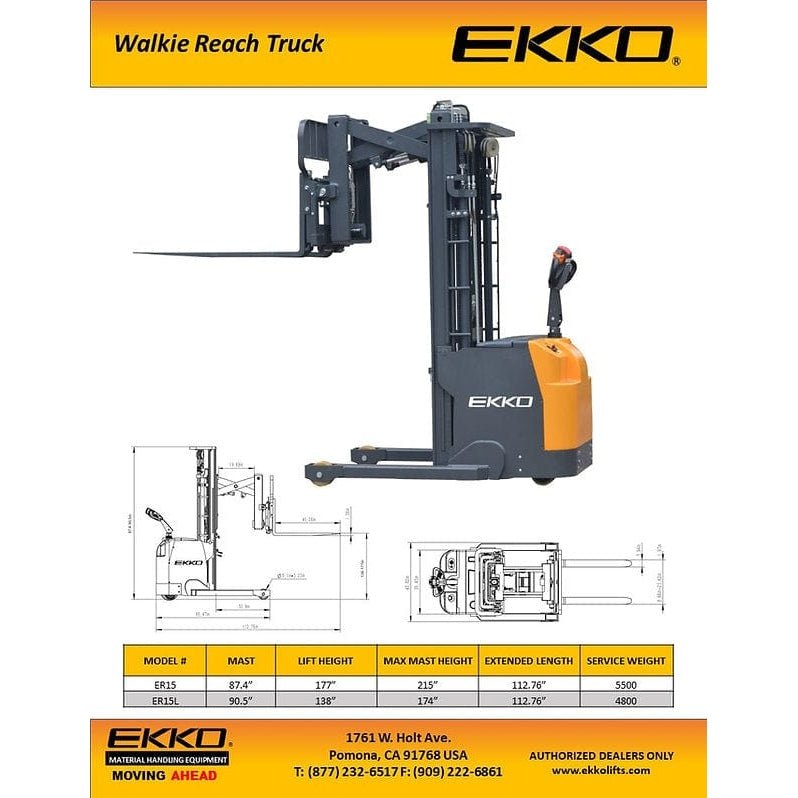

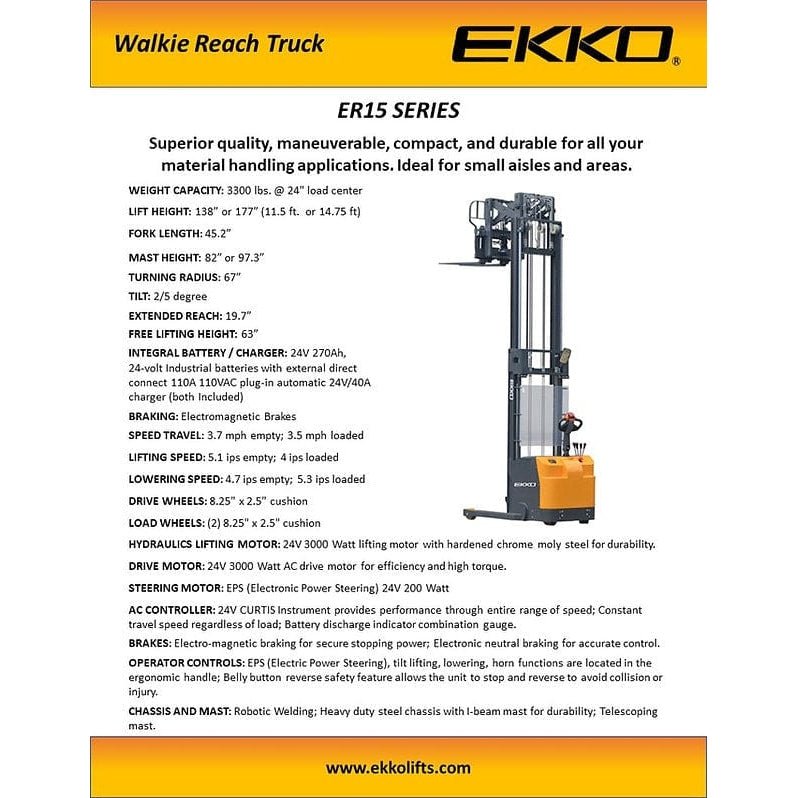

Specifications
|
Model |
ER15 |
|
|
Lift |
Electric |
|
|
Drive |
Electric |
|
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Lifting height |
(in) |
177 |
|
Side Shifting Forks |
Y |
|
|
Free Lift |
(in) |
63 |
|
Lowered mast height |
(in) |
87.4 |
|
Overall length/Extended |
(in) |
94/113.8 |
|
Overall width |
(in) |
43.8 |
|
Fork size, Thick/Width/Length |
(in) |
1.38/3.9/45.3 |
|
Fork adjust width |
(in) |
7.9-33 |
|
Reach Distance |
(in) |
19.7 |
|
Turning radius |
(in) |
64 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(V/W) |
AC 24V/3kw |
|
EPS Steering Motor |
(V/W) |
24/200W |
|
Lifting Motor |
(V/W) |
24V/3000W |
|
Battery voltage |
(V/Ah) |
24V/350Ah |
|
Service Weight |
(lb) |
5500 |
