Forward Lift DP15N001 175″ Two Post Lift 15,000 lbs. Capacity

Forward Lift DP15N001 175″ Two Post Lift 15,000 lbs. Capacity
Symmetrical Columns with Two-Stage Front & Rear Arms

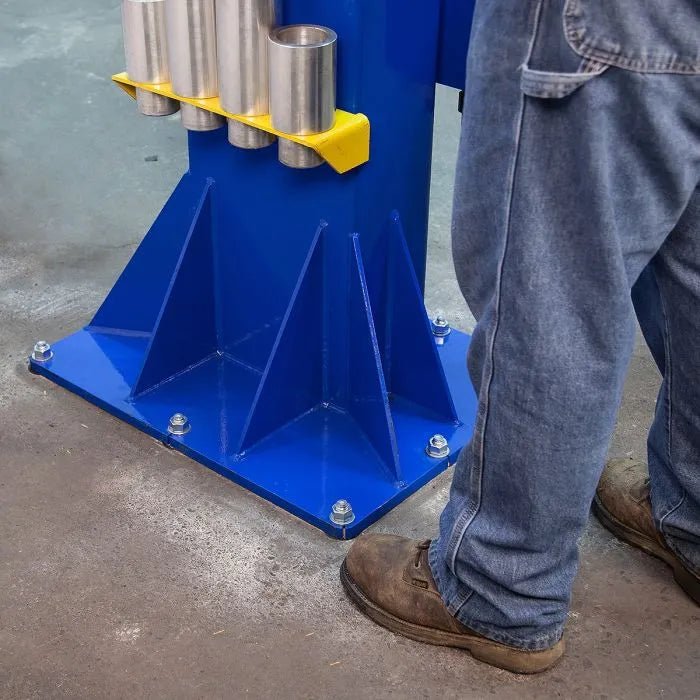

The Forward Lift DP15 is engineered with high-strength, heavy-gauge steel columns. Forward’s 15,000-pound capacity DP15 lift is perfect for servicing work trucks, vans, small buses, and anything else that rolls through your doors. Large gusseting on a substantial base plate foundation provides the stability and support you want with a high-capacity shop lift. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forwards spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak. The DP15 Two Post Lift is  ALI and ETL Certified.

The DP15 is a commercial grade heavy grade truck lift and should not be confused with any other cheap two post vehicle lifts. This is a Forward lift so it has been engineered to preform and built to last!

The DP15 lift is certified by ALI (Automotive Lift Institute) to meet American National Standard.

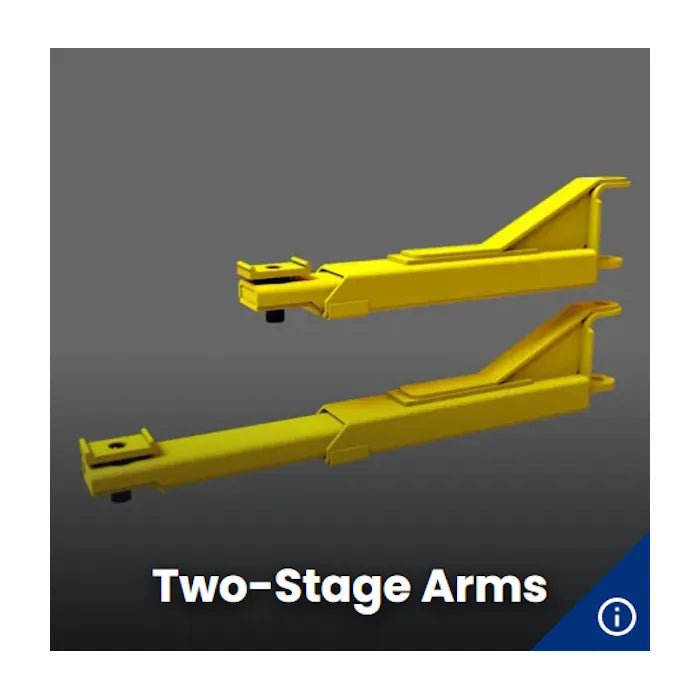

Two Stage Front & Rear Arms
This DP15 features two-stage arms with reinforced gusseting, extendable and retractable from 61″ to 38″, and a 5-1/2″ minimum adapter height from the floor. Forward’s spring-operated arm restraints are just one feature that keeps these heavy-duty lift arms constantly performing at their peak.

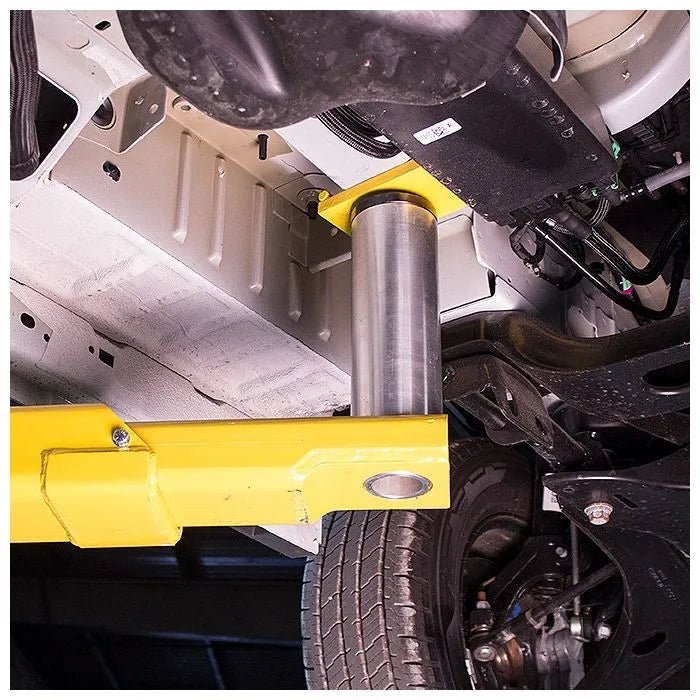

Truck Adapter Extensions Make Spotting Easy
The DP15 comes with eight aircraft grade aluminum truck adapter extensions. Four 5″ and four 10″ adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.

Three Height Model Options
The DP15 offers two different height options, for the lower ceiling option DP15N000 the overhead cross member mounts directly to the column without a column extension to fit a 154-3/4″ (12′ 11-3/4″) ceiling height. The DP15N001 fits a 176″ (14′ 8″) ceiling height. The extended height DP15N002 fits a 199″ (16′ 8″) ceiling height. With these options it’s easy to choose the best package to fit into your existing shop.

Low Profile Arms
Forward’s new HD two post arms feature a low profile adapter engagement area. This allows for greater flexibility of this lift. You’ll be able to encompass more service built around a lift that can handle most trucks and vans. The arms have heavy duty gusseting, are two stage that can easily be extended (61″ Length) and retracted (38″ Length) while lying on the floor to spot. Couple that with the light adapter extensions and you win the spotting large vehicle battle!

Reliable Cylinders
The cylinders on this lift are well-engineered and reliable. There are hydraulic cylinders in each column. They operate using direct pull-lifting technology. They are top-mounted and full-stroke. The cylinder rod is concealed inside the carriage.

Easy To Operate
This lift features a single-point lock release for easy operation.

Engineering Excellence
Forward’s U.S. engineers have over 29 years of combined experience designing automotive lifts for service and repair shops. Forward’s philosophy is to own our designs rather than use someone else’s off the shelf product.

Product Integrity
21st century design tools allow us to create, control and validate our designs to ensure maximum performance. Forward lifts are thoroughly tested to meet quality and durability standards. All product families are proof load tested to 1-1/2 times rated capacity and rigorously cycle tested.
